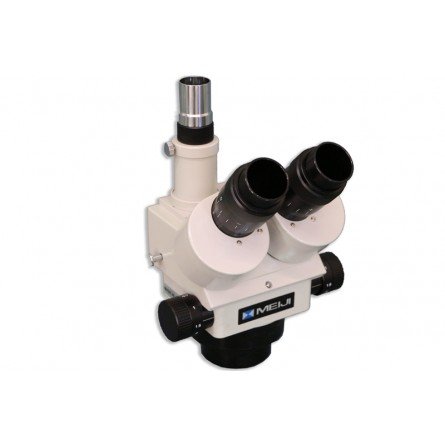

EMZ-13TR (1.0x – 7.0x) Trinocular Zoom Stereo Body, Working Distance 90mm


The EMZ-13TR trinocular zoom body is used for photography and video applications and offers an extended zoom ratio of 7:1, the highest in it’s series. Modularitiy of design enables the user to select magnification from 3x – 420x. The large zoom range means the user can expect superb optical performance and maneuverability.

$USD 1,735.00

The EMZ-13TR trinocular zoom body is used for photography and video applications and offers an extended zoom ratio of 7:1, the highest in it’s series. Modularitiy of design enables the user to select magnification from 3x – 420x. The large zoom range means the user can expect superb optical performance and maneuverability.

EMZ-5TRD (0.7x - 4.5x) Trinocular Zoom Stereo Body, W.D. 93mm with Detent

Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.

Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!

SKU: EMZ-13TR Category:

Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 7:1
Zoom Range: 1x – 7x
Zoom Knobs Markings: 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7
Zoom Control: Dual, graduated, bilateral
Magnification: 10x – 70x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 23mm – 3.2mm
Working distance: 90mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 3x – 420x (With auxiliary lenses and eyepieces)
Extended Working Distances: 32mm – 230mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Includes:
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card

Package Information:
• 7 lbs
• 13 x 10 x 8 inches
