BRC-2012K Black Retina Display Camera: 11.6 Retina with 2MP True Color Camera

Availability:

In stock


Compare
  • 11.6″ Retina Display + 2MP Built-in Camera
  • True-Color Camera, Full HD
  • Built-in Mouse-Control Software and external software to use with a PC/Mac
  • High-speed  live imaging and recording (30 fps USB, 60 FPS HDMI)

In stock

$1,199.00 $1,699.00

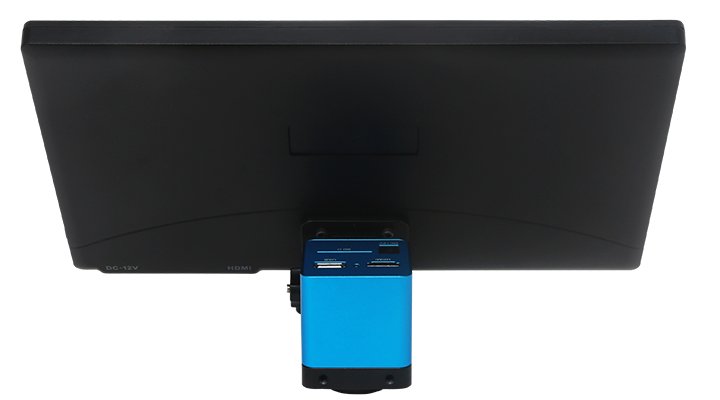

BRC2012K: 11.6″ Black Retina Display + 2MP Built-in Camera

  • BRC-2012K camera display is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera with 11.6″ Retina Display and it combines ultra-high performance CMOS sensor as the image-picking device with a super high definition monitor. USB2.0 is used as the data transfer interface.
  • For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video, etc.
  • For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software.

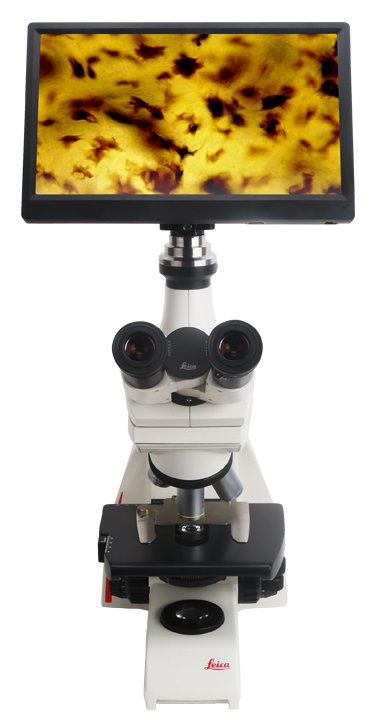

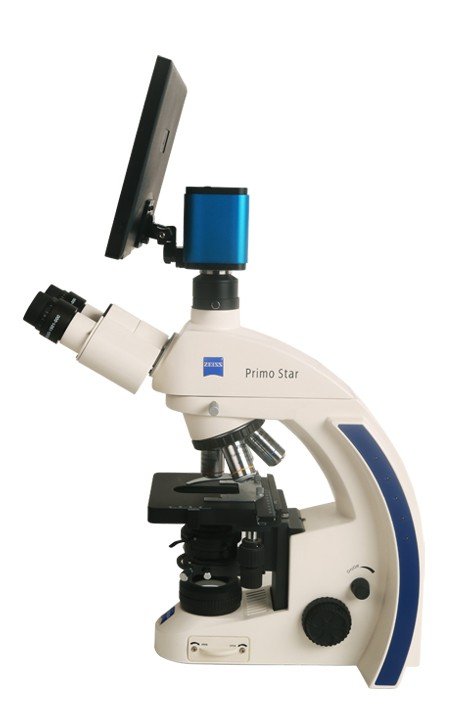

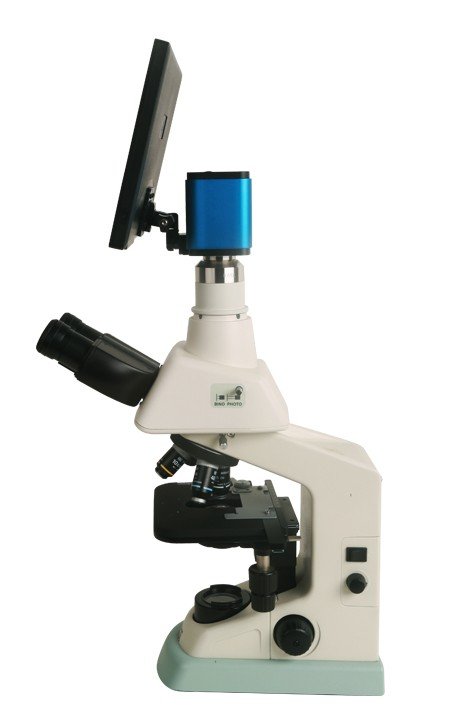

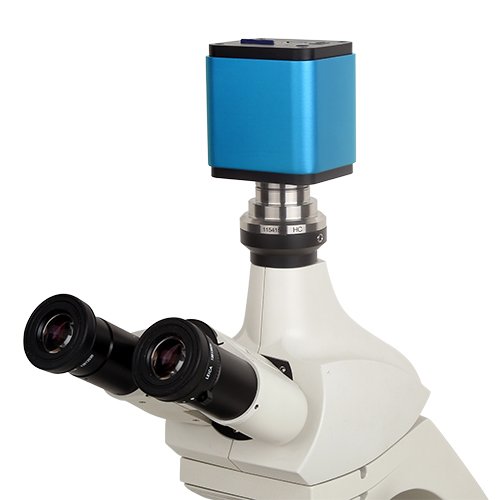

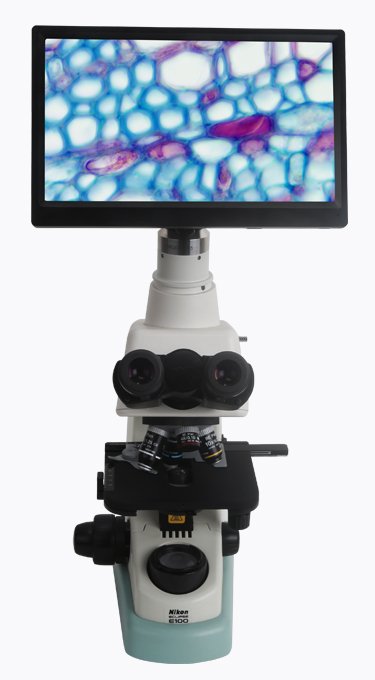

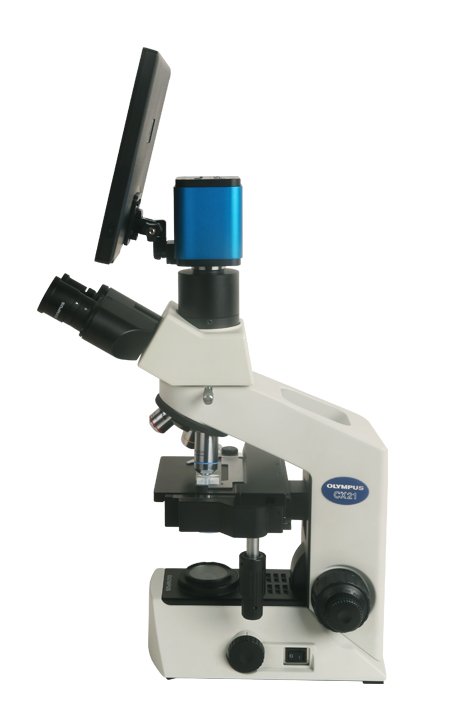

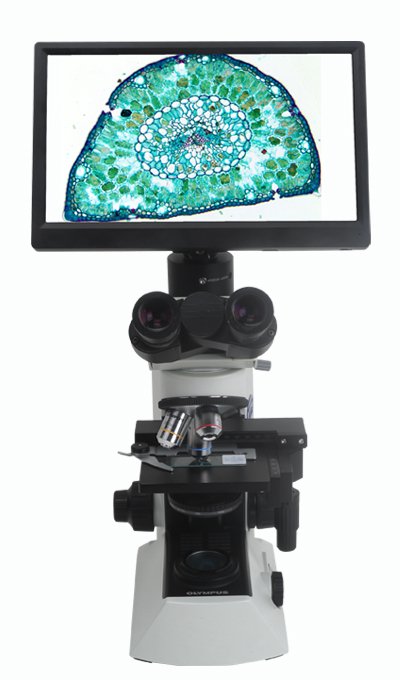

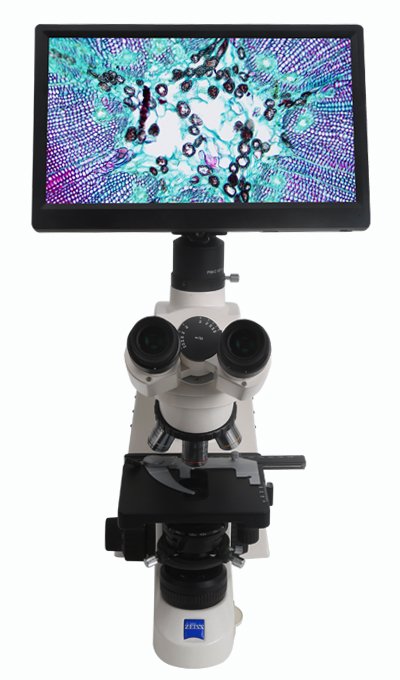

  • This camera display can be used for microscope, industrial stereo microscope, on-line inspection et al.

1. Camera Features

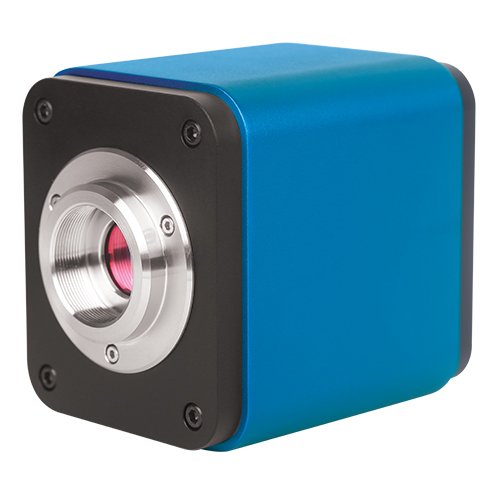

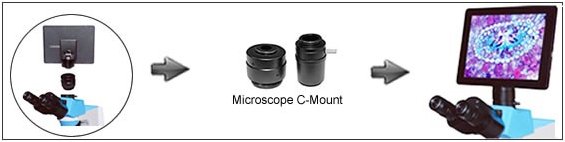

  • All in 1( HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor;
  • Simultaneous HDMI & USB output;
  • Built-in mouse control;
  • Built-in image capture & video record to SD card;
  • Built-in camera control panel for mouse control;
  • Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
  • Built-in image & video browsing,display & play;
  • Ultra-Fine color engine with perfect color reproduction capability(USB);
  • With advanced video & image processing application ToupView, ;
  • Support standard UVC for Windows/Linux/Mac(USB);
  • CNC shell molding design;

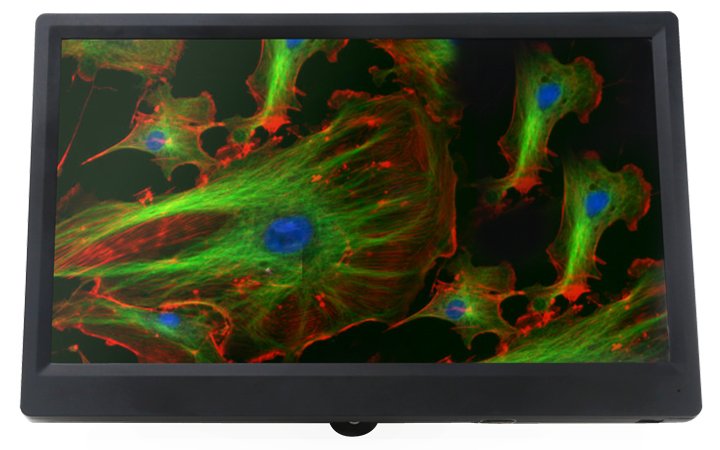

2. Display Features

  • HDMI monitor;
  • Panasonic IPS LCD panel;
  • True 1080P;
  • High contrast ratio up to 1000:1;
  • LED backlight with 50000 hours long life time;
  • 11.6 inch active area;

BRC-2012K Black Retina Display Camera



Technical Specifications

Order CodeSensor & Size(mm)Pixel(μm)G Sensitivity

Dark Signal

FPS/ResolutionBinningExposure
BRC-1612K1080P/Sony IMX236(C)

1/2.8″(5.5×3.4)

2.8×2.8510 mv with 1/30s

0.15 mv with 1/30s

[email protected]×1080

[email protected]×1080

1×10.4ms~999ms

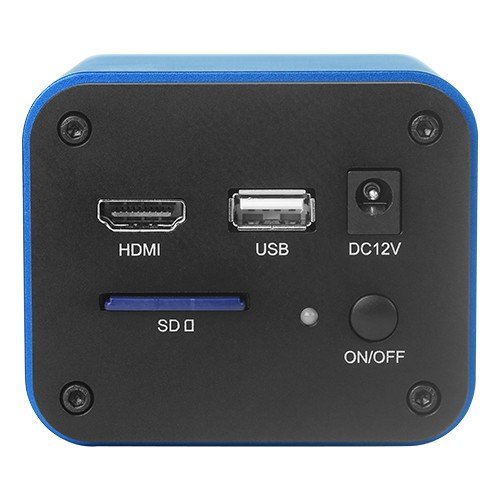

Interface & Button Functions
 USBUSB Camera or USB Mouse
HDMIHDMI Output
DC12V12V Power in
SDSD Card Slot
ON/OFFPower On/Off Switch
LEDPower On Indicator
Other Specification for HDMI Output
UI OperationWith USB Mouse
Image CaptureHigh Speed in SD Card
Video Record1080P 30fps in SD Card
Camera Control PanelIncluding Exposure, Gain, White Balance, Color

Adjustment, Sharpness and Denoising Control

ToolbarIncluding Zoom, Mirror, Comparison, Freeze,

Cross, Browser Function

Other Specification for USB Output
White BalanceAuto White Balance
Color TechniqueUltra-Fine Color Engine (USB)
Capture/Control APIStandard UVC for Windows/Linux/Mac(USB)
Recording SystemStill Picture or Movie (USB)
Software Environment (for USB2.0 Connection)
Operating SystemMicrosoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Display:   19” or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree)-10~ 50
Storage Temperature(in Centidegree)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 12V/2A Adaptor

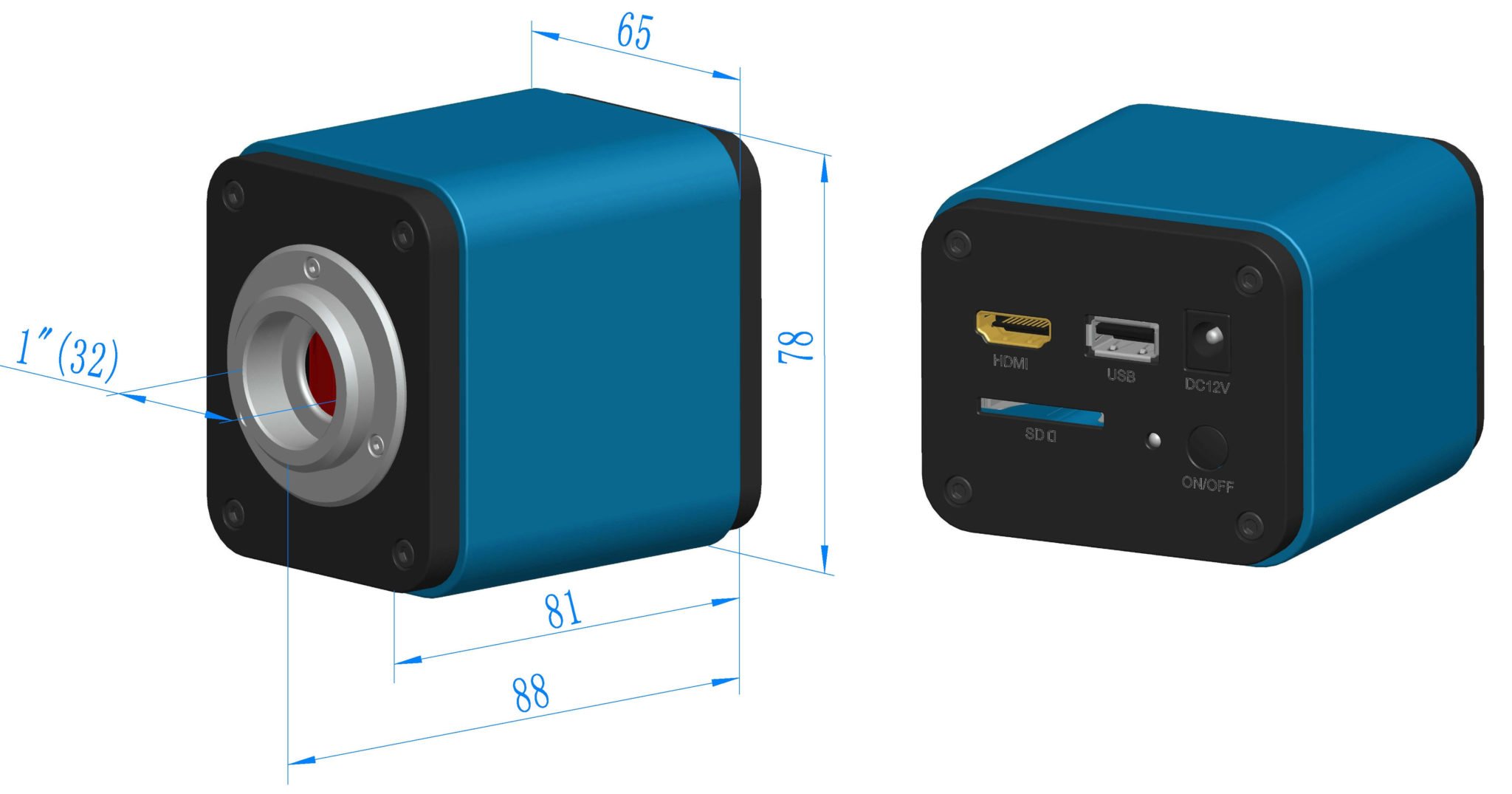

Overall Dimensions
Width x Depth x Height78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)
Shipping Weight0.47 kg (1.0lbs)

Technical Specifications

Order CodeSensor & Size(mm)Pixel(μm)G Sensitivity

Dark Signal

FPS/ResolutionBinningExposure
BRC-1612K1080P/Sony IMX236(C)

1/2.8″(5.5×3.4)

2.8×2.8510 mv with 1/30s

0.15 mv with 1/30s

[email protected]×1080

[email protected]×1080

1×10.4ms~999ms



Interface & Button Functions
 USBUSB Camera or USB Mouse
HDMIHDMI Output
DC12V12V Power in
SDSD Card Slot
ON/OFFPower On/Off Switch
LEDPower On Indicator
Other Specification for HDMI Output
UI OperationWith USB Mouse
Image CaptureHigh Speed in SD Card
Video Record1080P 30fps in SD Card
Camera Control PanelIncluding Exposure, Gain, White Balance, Color

Adjustment, Sharpness and Denoising Control

ToolbarIncluding Zoom, Mirror, Comparison, Freeze,

Cross, Browser Function

Other Specification for USB Output
White BalanceAuto White Balance
Color TechniqueUltra-Fine Color Engine (USB)
Capture/Control APIStandard UVC for Windows/Linux/Mac(USB)
Recording SystemStill Picture or Movie (USB)
Software Environment (for USB2.0 Connection)
Operating SystemMicrosoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Display:   19” or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree)-10~ 50
Storage Temperature(in Centidegree)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 12V/2A Adaptor
Overall Dimensions
Width x Depth x Height78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)
Shipping Weight0.47 kg (1.0lbs)

Possible Combinations

BLC-2070A Tablet Camera: 7" Android with 2MP camera

BLC-5097A Tablet Camera: 9.7" Android + 5MP Camera

BIM800FLW/bim800-tablet-camera.JPG

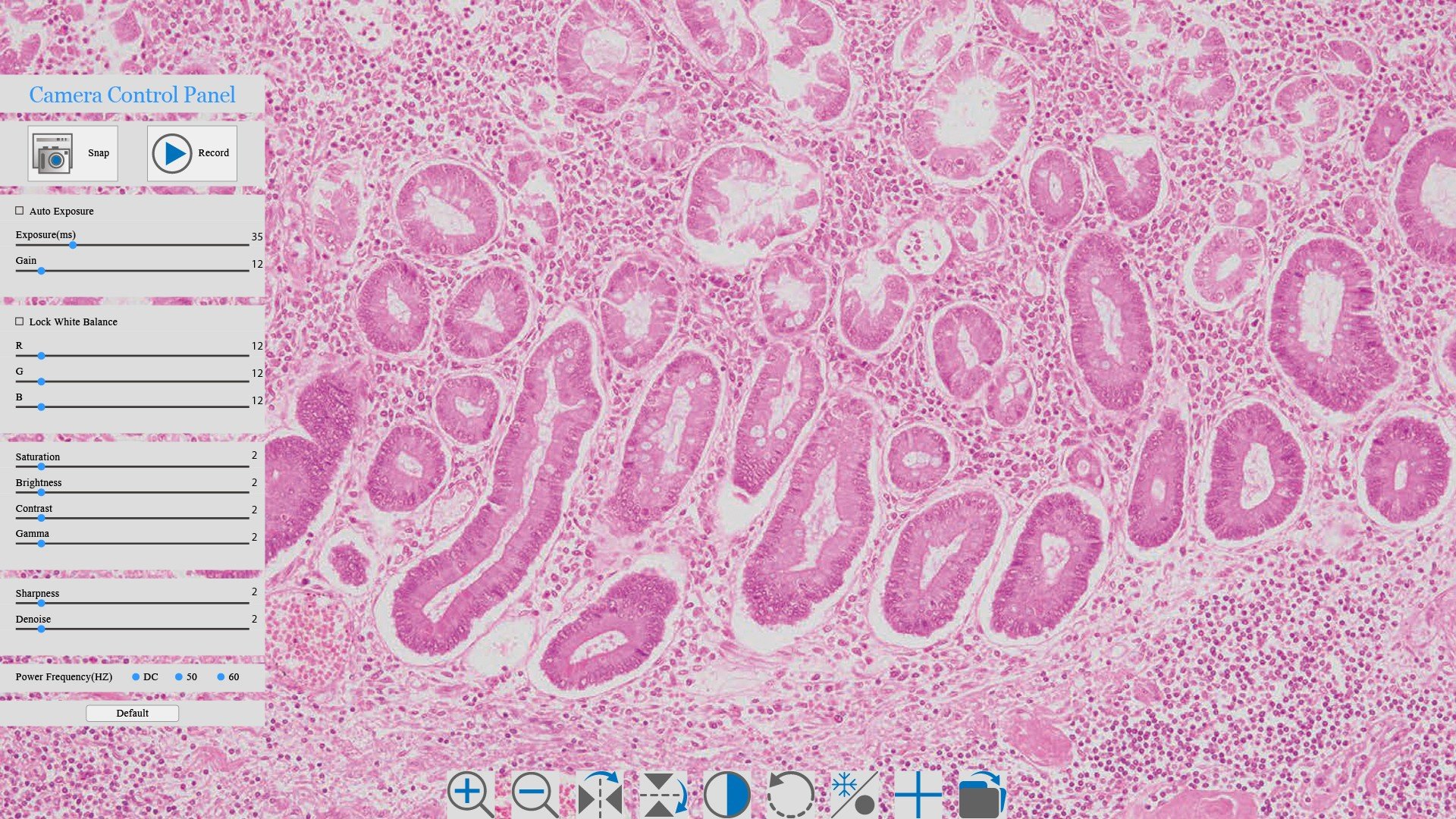

Built-in Mouse Control Software Camera

The significant innovation of this product is making the software implant inside the camera. This forward thinking feature frees suers from cumbersome computers and annoying buttons.

You can simply control the camera by just a mouse.

PC Imaging Software a more powerful imaging software, is also offered free of charge with this camera.
It has image and video acquisition and analysis capabilities.

Software Environment (for USB2.0 Connection)
Operating SystemMicrosoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Display:   19” or Larger
CD-ROM
