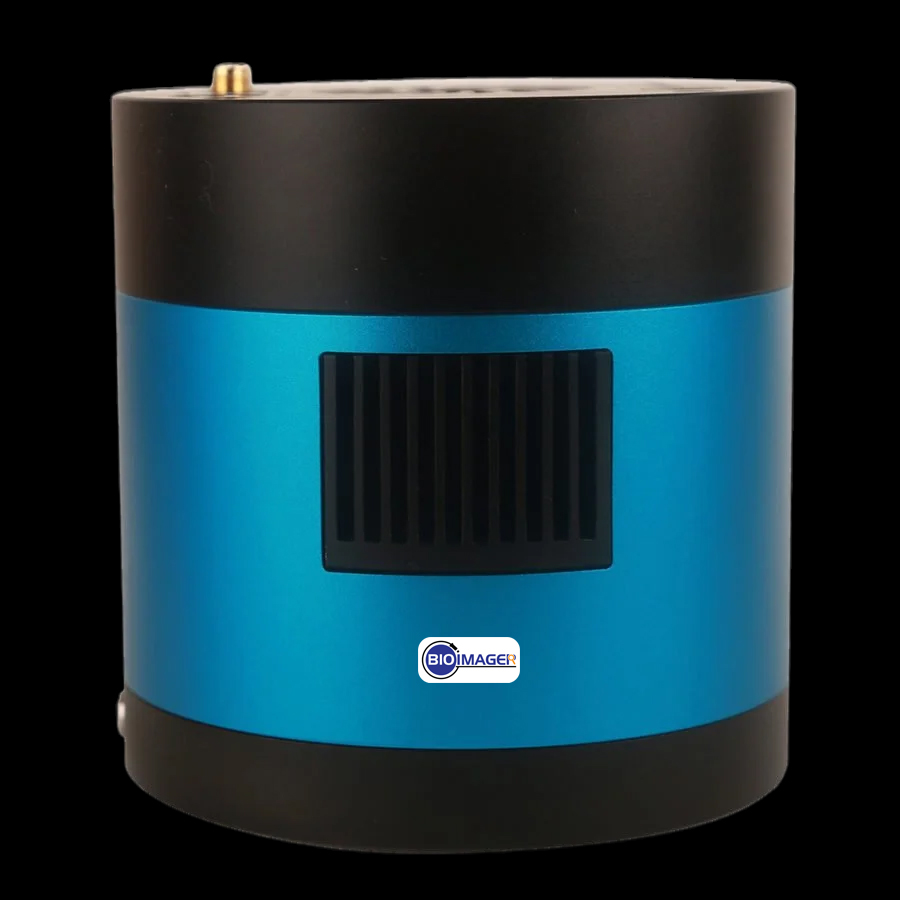

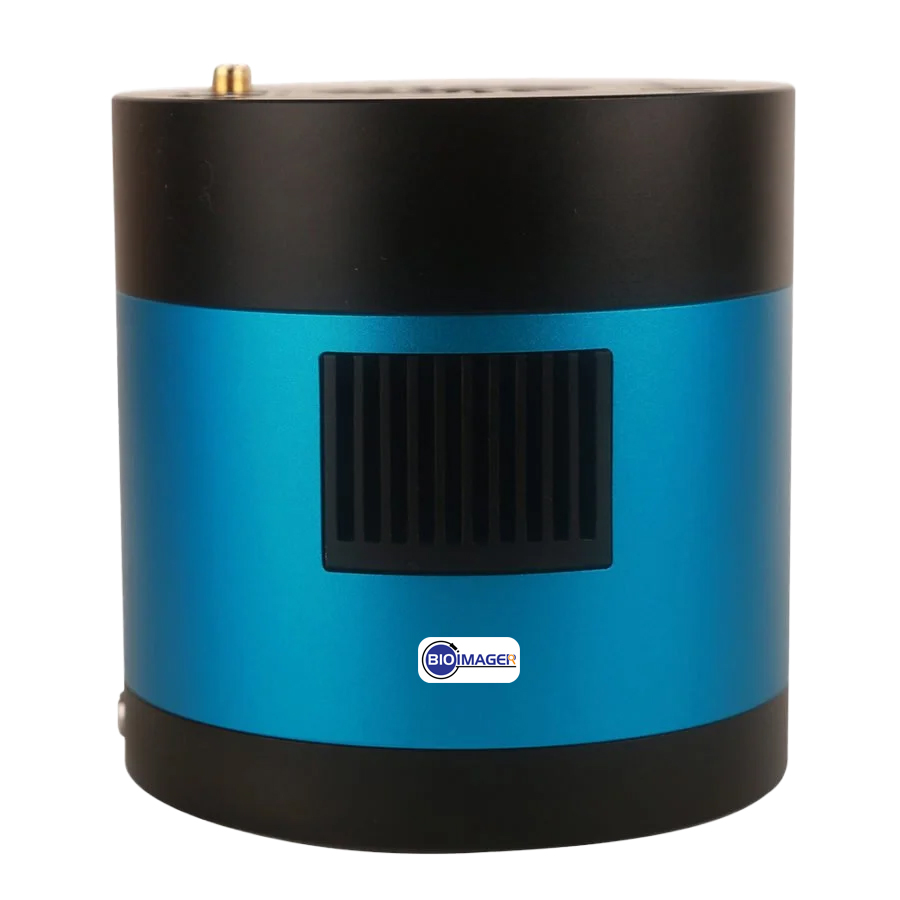

Bioimager BIC-T3D: High-Performance Temperature-Regulated USB3.0 CCD Microscopy Camera

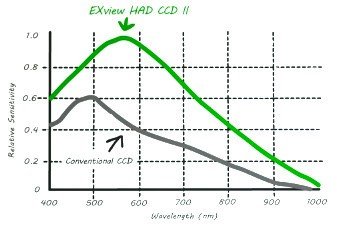

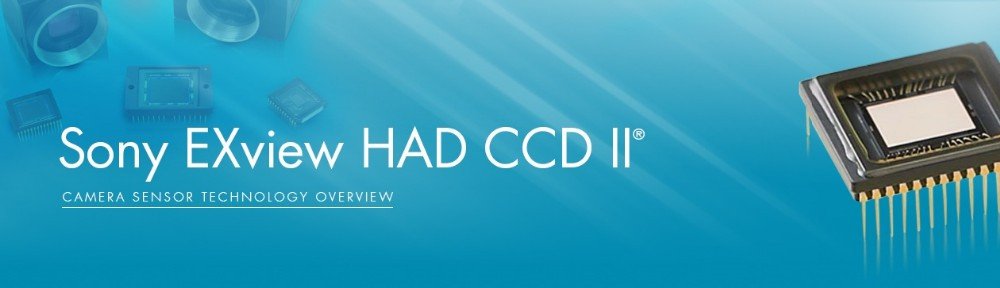

Experience cutting-edge imaging precision with the Bioimager BIC-T3D, featuring a temperature-regulated Sony Exview HAD CCD II sensor. This advanced CCD (Charge-Coupled Device) technology, renowned for its Hole-Accumulation-Diode structure, significantly enhances light efficiency by incorporating the near infrared spectrum. This breakthrough allows for exceptional image clarity even in low-light conditions.

Key Features:

Advanced Sony Exview HAD CCD II Sensor: Elevates light sensitivity and efficiency, capturing detailed images across a broader wavelength, including near-infrared.
Dual-Stage Peltier Cooling: Reduces the imaging chip’s temperature to -50°C below ambient, drastically improving the signal-to-noise ratio and minimizing image noise.

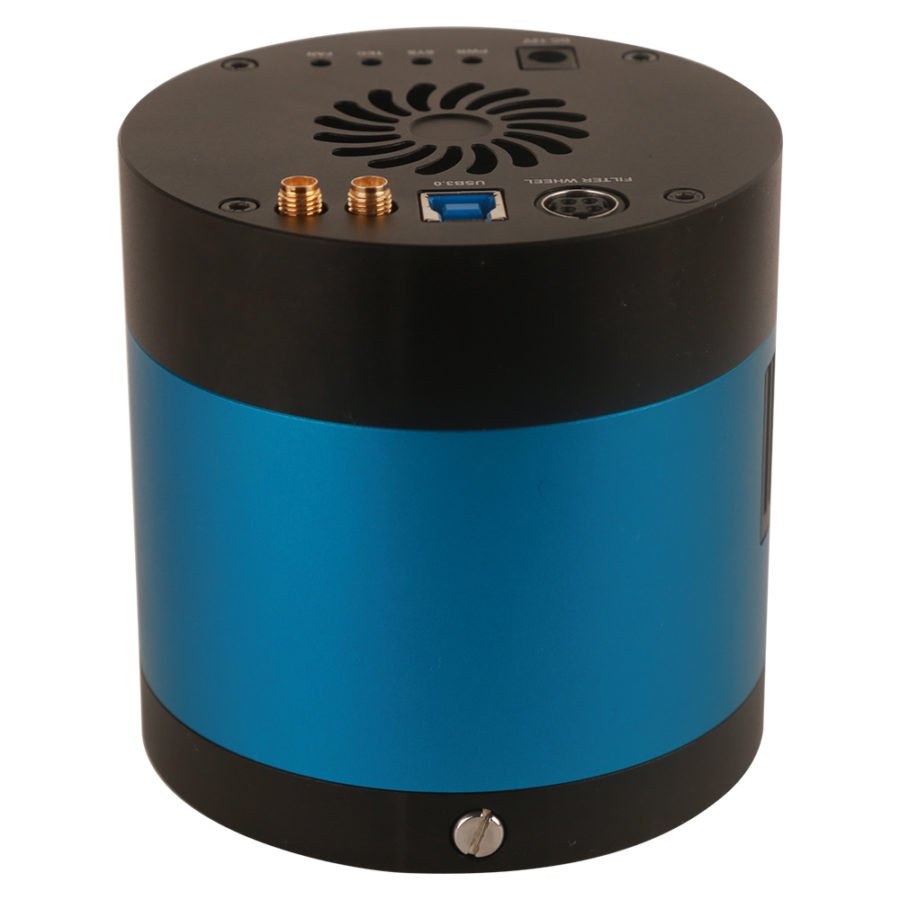

Optimized Heat Dissipation: A robust structure ensures efficient heat radiation and moisture resistance, complemented by an electric fan to speed up heat dispersal.
High-Speed Data Transfer: Utilizes USB3.0 interface, enhancing frame rates and ensuring quick and reliable image transfer.

Comprehensive Software and Compatibility:

Versatile Application Software: Comes equipped with advanced video and image processing software, tailored for precise analysis.
Extensive Platform Support: Offers SDKs for Windows, Linux, and OSX, featuring native C/C++, C#/VB.NET, DirectShow, and Twain Control API integration, making it adaptable to a variety of software environments.

Applications:

The BIC-T3D is exceptionally versatile, ideal for:

Microscope Fluorescence Imaging: Perfect for capturing and analyzing fluorescent images in microscopy.
Low-Light Imaging: Performs robustly in low-light scenarios across multiple scientific, medical, and industrial applications.
Astronomy: Suitable for astronomical imaging, capturing celestial phenomena with precision.

Enhance your imaging experience with the Bioimager BIC-T3D, where advanced technology meets versatility and performance.

Features

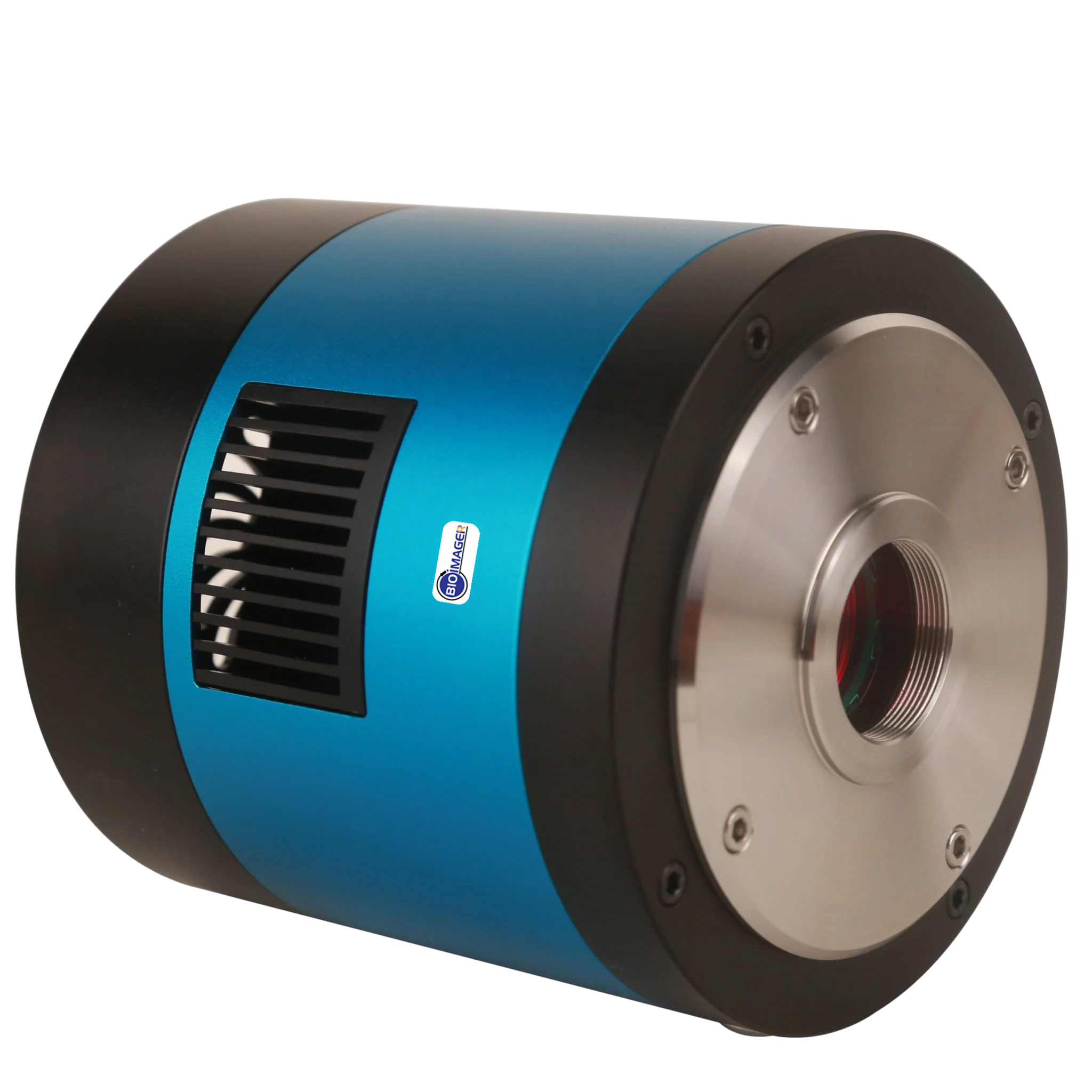

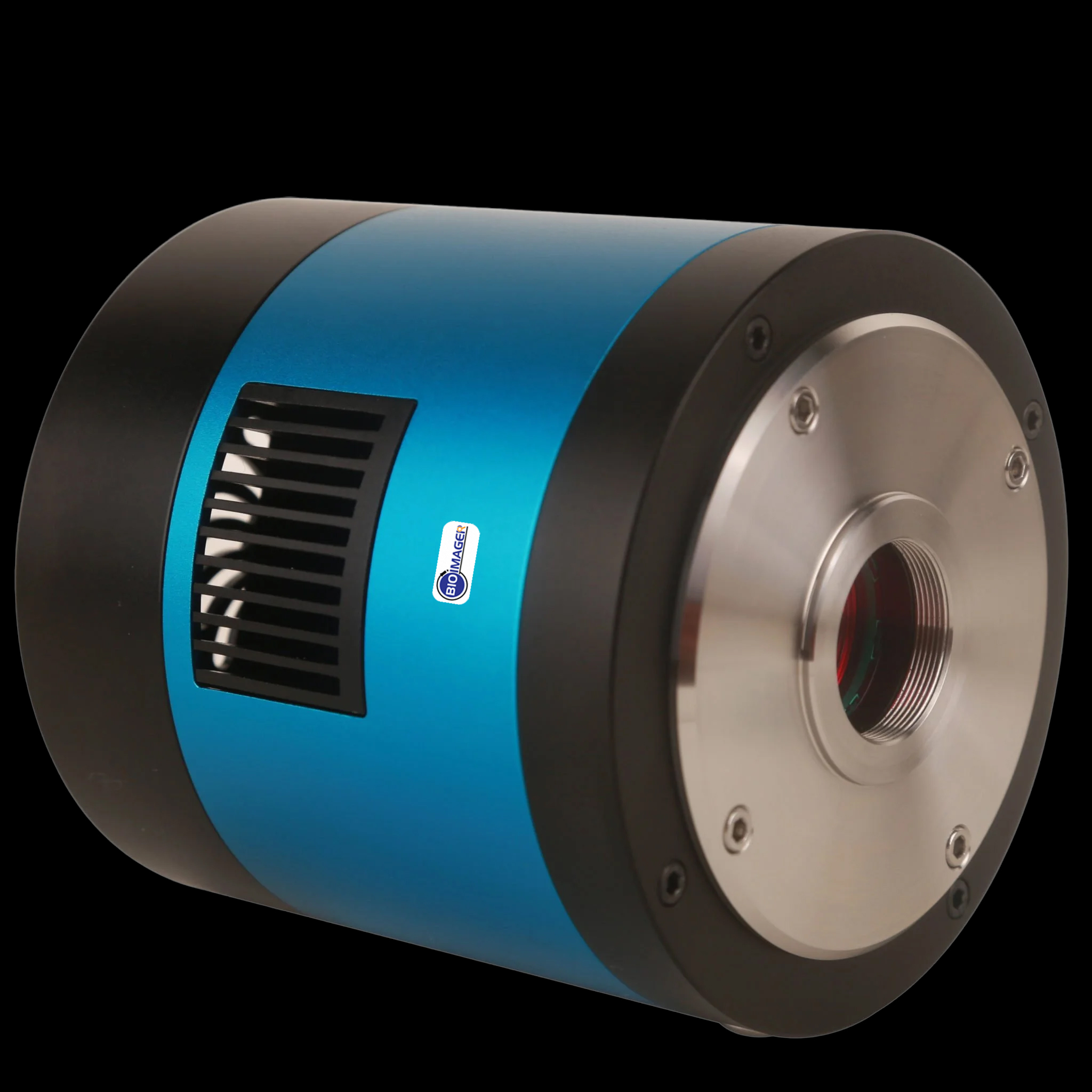

High-Resolution Imaging: Features a standard C-Mount camera equipped with a Sony ExView HAD CCD II sensor, offering a range from 1.4MP to 12MP for sharp, detailed images.
Advanced Thermoelectric Cooling: Utilizes a two-stage TE-cooling system with a controllable electric fan, allowing precise temperature management for optimal performance.
Customizable Temperature Settings: Enables temperature adjustments to be finely tuned to specific requirements, enhancing imaging consistency under varying operational conditions.
Innovative Design for Durability: Boasts a smart structure that maximizes heat dissipation efficiency while preventing moisture ingress, ensuring long-term reliability.
Superior Temperature Control: Capable of reducing temperatures by up to 45 degrees, significantly enhancing image quality by reducing noise.
Extended Exposure Times: Supports exposures of up to one hour, perfect for capturing images in low light or requiring detailed long-duration observation.
High-Speed USB 3.0 Interface: Offers a fast 5Gbit/second data transmission rate, ensuring quick and efficient image processing and data handling.
Ultra-Fine™ Color Engine: Delivers exceptional color accuracy and reproduction, making it ideal for applications where color fidelity is critical.
Comprehensive Imaging Software: Includes an advanced video and image processing application, enriching user experience with powerful analysis tools.

Ultra High Speed Data Transfer
The built-in USB3.0 interface of DigiRetina16 transfers image data at ultra high speed, which enables users to find and focus easily, even at full resolution.

Catalogue #	Sensor & Size (mm)	Pixel (μm)	G Sensitivity Dark Signal	FPS & Resolution	Binning	Exposure Time
BIC-T3D-12C1 (New)	12.0M/ICX834AQG(C) 1″(13.15×8.77)	3.10×3.10	420mv with 1/30s 15.2mv with 1/30s	3.6@24248×2836 3.6@2124×1418	1×1 2×2	0.06ms~3600s
BIC-T3D-12C2 (New)	12.0M/ICX834ALG(C) 1″(13.15×8.77)	3.10×3.10	420mv with 1/30s 12mv with 1/30s(F8.0)	3.6@24248×2836 3.6@2124×1418	1×1 2×2	0.06ms~3600s
BIC-T3D-9C1 (New)	9.0M/ICX814AQG(C) 1″(12.47×9.98)	3.69×3.69	580mv with 1/30s 12mv with 1/30s	4.4 @3388×2712 4.4 @1694×1356	1×1 2×2	0.06ms~3600s
BIC-T3D-9C2 (New)	9.0M/ICX814ALG(C) 1″(12.47×9.98)	3.69×3.69	580mv with 1/30s 12mv with 1/30s(F8.0)	4.4 @3388×2712 4.4 @1694×1356	1×1 2×2	0.06ms~3600s
BIC-T3D-6C	6.0M/ICX694AQG(C) 1″(12.48×9.99)	4.54×4.54	880mv with 1/30s 8mv with 1/30s	7.5@2748×2200 14@2748×1092	1×1	0.06ms~3600s
BIC-T3D-6M	6.0M/ICX694ALG(M) 1″(12.48×9.998)	4.54×4.54	1000mv with 1/30s 8mv with 1/30s	7.5@2748×2200 14@2748×1092	1×1	0.06ms~3600s
BIC-T3D-2.8C (New)	2.8M/ICX674AQG(C) 2/3″(8.81×6.63)	4.54×4.54	800mv with 1/30s 4mv with 1/30s	15@1940×1460 17@1610×1212 18@1932×1092	1×1	0.05ms~3600s
BIC-T3D-2.8M (New)	2.8M/ICX674ALG(M) 2/3″(8.81×6.63)	4.54×4.54	950mv with 1/30s 4mv with 1/30s	15@1940×1460 17@1610×1212 18@1932×1092	1×1	0.05ms~3600s
BIC-T3D-1,4C1 (New)	1.4M/ICX285AQA(C) 2/3″(8.88×6.70)	6.45×6.45	1240mv with 1/30s 10mv with 1/30s	15@1360×1024	1×1	0.07ms~3600s
BIC-T3D-1.4M1 (New)	1.4M/ICX285ALA(M) 2/3″(8.88×6.70)	6.45×6.45	1300mv with 1/30s 11mv with 1/30s	15@1360×1024	1×1	0.07ms~3600s
BIC-T3D-1.4C2	1.4M/ICX825AQA(C) 2/3″(8.88×6.70)	6.45×6.45	2000mv with 1/30s 4.8mv with 1/30s	25@1360×1040	1×1	0.07ms~3600s
BIC-T3D-M2	1.4M/ICX825ALA(M) 2/3″(8.88×6.70)	6.45×6.45	2000mv with 1/30s 4.8mv with 1/30s	25@1360×1040	1×1	0.07ms~3600s

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#, Directshow, Twain, Labview
Recording System	Still Picture and Movie
Cooling System*	Two-stage TE-cooling System -45°C below Camera Body Temperature
OPERATING ENVIRONMENT
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V, 3A
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17″ or Larger
	CD-ROM

Specification

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
BIC-T3D-12C1(New)	12.0M/ICX834AQG(C) 1″(13.15×8.77)	3.10×3.10	420mv with 1/30s 15.2mv with 1/30s	3.6@24248×2836 3.6@2124×1418	1×1 2×2	0.06ms~3600s
BIC-T3D-12C2(New)	12.0M/ICX834ALG(C) 1″(13.15×8.77)	3.10×3.10	420mv with 1/30s 12mv with 1/30s(F8.0)	3.6@24248×2836 3.6@2124×1418	1×1 2×2	0.06ms~3600s
BIC-T3D-9C1(New)	9.0M/ICX814AQG(C) 1″(12.47×9.98)	3.69×3.69	580mv with 1/30s 12mv with 1/30s	4.4 @3388×2712 4.4 @1694×1356	1×1 2×2	0.06ms~3600s
BIC-T3D-9C2(New)	9.0M/ICX814ALG(C) 1″(12.47×9.98)	3.69×3.69	580mv with 1/30s 12mv with 1/30s(F8.0)	4.4 @3388×2712 4.4 @1694×1356	1×1 2×2	0.06ms~3600s
BIC-T3D-6C(New)	6.0M/ICX694AQG(C) 1″(12.48×9.99)	4.54×4.54	880mv with 1/30s 8mv with 1/30s	7.5@2748×2200 14@2748×1092	1×1	0.06ms~3600s
BIC-T3D-6M(New)	6.0M/ICX694ALG(M) 1″(12.48×9.998)	4.54×4.54	1000mv with 1/30s 8mv with 1/30s	7.5@2748×2200 14@2748×1092	1×1	0.06ms~3600s
BIC-T3D-2.8C (New)	2.8M/ICX674AQG(C) 2/3″(8.81×6.63)	4.54×4.54	800mv with 1/30s 4mv with 1/30s	15@1940×1460 17@1610×1212 18@1932×1092	1×1	0.05ms~3600s
BIC-T3D-2.8M(New)	2.8M/ICX674ALG(M) 2/3″(8.81×6.63)	4.54×4.54	950mv with 1/30s 4mv with 1/30s	15@1940×1460 17@1610×1212 18@1932×1092	1×1	0.05ms~3600s
BIC-T3D-1,4C1(New)	1.4M/ICX285AQA(C) 2/3″(8.88×6.70)	6.45×6.45	1240mv with 1/30s 10mv with 1/30s	15@1360×1024	1×1	0.07ms~3600s
BIC-T3D-1.4M1(New)	1.4M/ICX285ALA(M) 2/3″(8.88×6.70)	6.45×6.45	1300mv with 1/30s 11mv with 1/30s	15@1360×1024	1×1	0.07ms~3600s
BIC-T3D-1.4C2	1.4M/ICX825AQA(C) 2/3″(8.88×6.70)	6.45×6.45	2000mv with 1/30s 4.8mv with 1/30s	25@1360×1040	1×1	0.07ms~3600s
BIC-T3D-M2	1.4M/ICX825ALA(M) 2/3″(8.88×6.70)	6.45×6.45	2000mv with 1/30s 4.8mv with 1/30s	25@1360×1040	1×1	0.07ms~3600s

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine

Recording System	Still Picture and Movie
Cooling System	Two-stage TE-cooling System -45C below Camera Body Temperature
OPERATING ENVIRONMENT
Operating Temperature	-10C to -50C
Storage Temperature	-20C to -60C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Power Supply	External Power Adapter for Cooling System, DC12V, 3A
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit)
Operating System	OS X (Mac OS X), Linux (Note: the software for Windows OS is Full version as follow picture, but for MAC and Linux are Simple Version without Measurement and other Process function)
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17 inch or Larger
	CD-ROM
