Save $USD 1,625

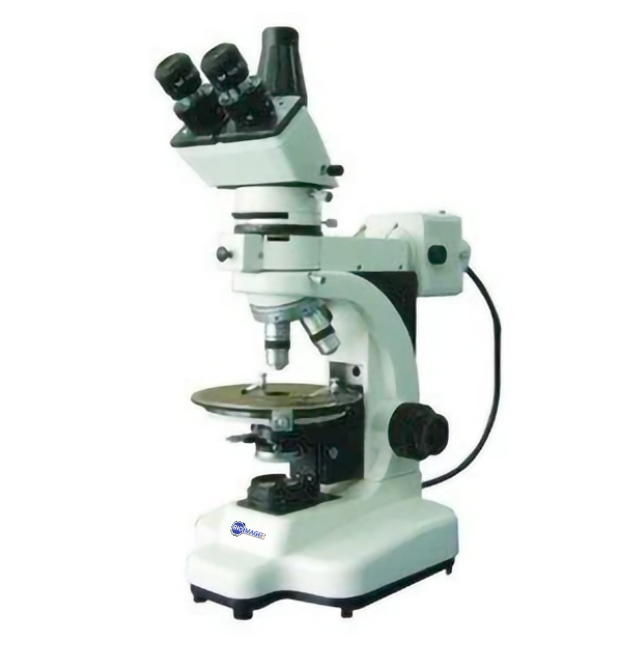

BPM590 Polarizing Transmitted/Reflected with rotatable head


  • Transmission and reflection polarizing microscope
  • Sliding trinocular viewing head, Inclined at 30°
  • Eyepiece WF10X/20
  • Strain free achromatic objective 4X, 10X; Strain free achromatic objective(Transmitted)25X, 40X, 63X; Strain free plan achromatic objective(Reflected)25X, 40X, 63X
  • Condenser NA1.25 Abbe condenser with iris diaphragm & filter

$USD 3,375.00 $USD 5,000.00

BPM590 Polarizing Microscope

  • Transmission and reflection polarizing microscope
  • Sliding trinocular viewing head, Inclined at 30°
  • Eyepiece WF10X/20
  • Strain free achromatic objective 4X, 10X; Strain free achromatic objective(Transmitted)25X, 40X, 63X; Strain free plan achromatic objective(Reflected)25X, 40X, 63X
  • Condenser NA1.25 Abbe condenser with iris diaphragm & filter

BPM590 Polarizing Transmitted/Reflected with rotatable head

Introduction
BPM590 transmission and reflection polarizing microscope is specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. It can be used to analyze and identify various minerals and specimens, it can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ specimen, mica λ/ 4 specimen, quartz wedge specimen and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope

Features

1. Trinocular head, digital cameras can be easily used on this microscope for image and video taking.

2. Gypsum λ specimen, mica λ/ 4 specimen, quartz wedge specimen are equipped.

3. Reflected illumination makes this microscope powerful for geology, mining, metallurgy, pharmacy and other observation.

Application area

BS-5090 transmission and reflection polarizing microscope is specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production.

ModelBPM590
Viewing HeadSliding trinocular viewing head, Inclined at 30°
EyepieceEyepiece WF10X/20
Eyepiece WF10X/ 20 with graticule
Eyepiece WF 10X/20 with scale of cross-line
ObjectiveStrain free achromatic objective 4X, 10X
Strain free achromatic objective(Transmitted)25X, 40X, 63X
Strain free plan achromatic objective(Reflected)25X, 40X, 63X
Lamp adjustment objective
NosepieceBackward quadruple nosepiece, Center adjustable
AnalyzerRotatable analyzer with gradation 0°-90°
Bertrand LensBertrand lens, Sliding in/out of optical path
Optical Compensatorλ Slip(first class red), 1/ 4λ Slip, Quartz Wedge
Revolving Round StageDiameter Φ160mm, Graduated in 1°Increments, Minimum resolution 6′ when using vernier scale
CondenserNA1.25 Abbe condenser with iris diaphragm & filter
FocusingCoaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm
Polarizer360° Rotatable, Located on the top of collector
Illumination12V/ 20W Halogen lamp, Brightness adjustable(Transmitted illumination)
12V/ 50W Halogen lamp, Brightness adjustable(Reflected illumination)
AccessoriesC Mount0.5X C-mount
1X C-mount
Mechanical stage, Moving rang 30X40mm
Specimen presser
Micrometer

Note : ● Standard Outfit, ○ Optional
