Save $3,201

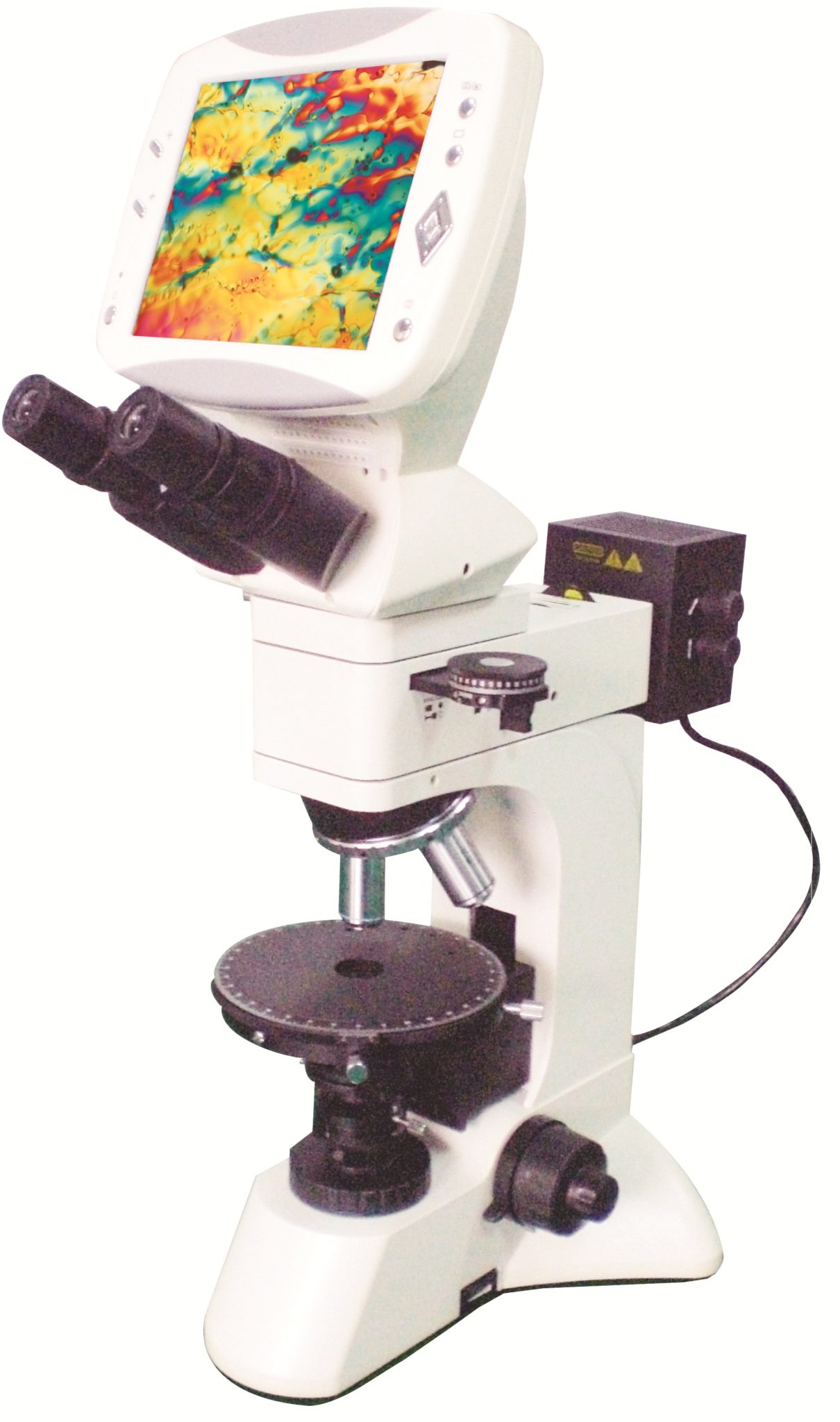

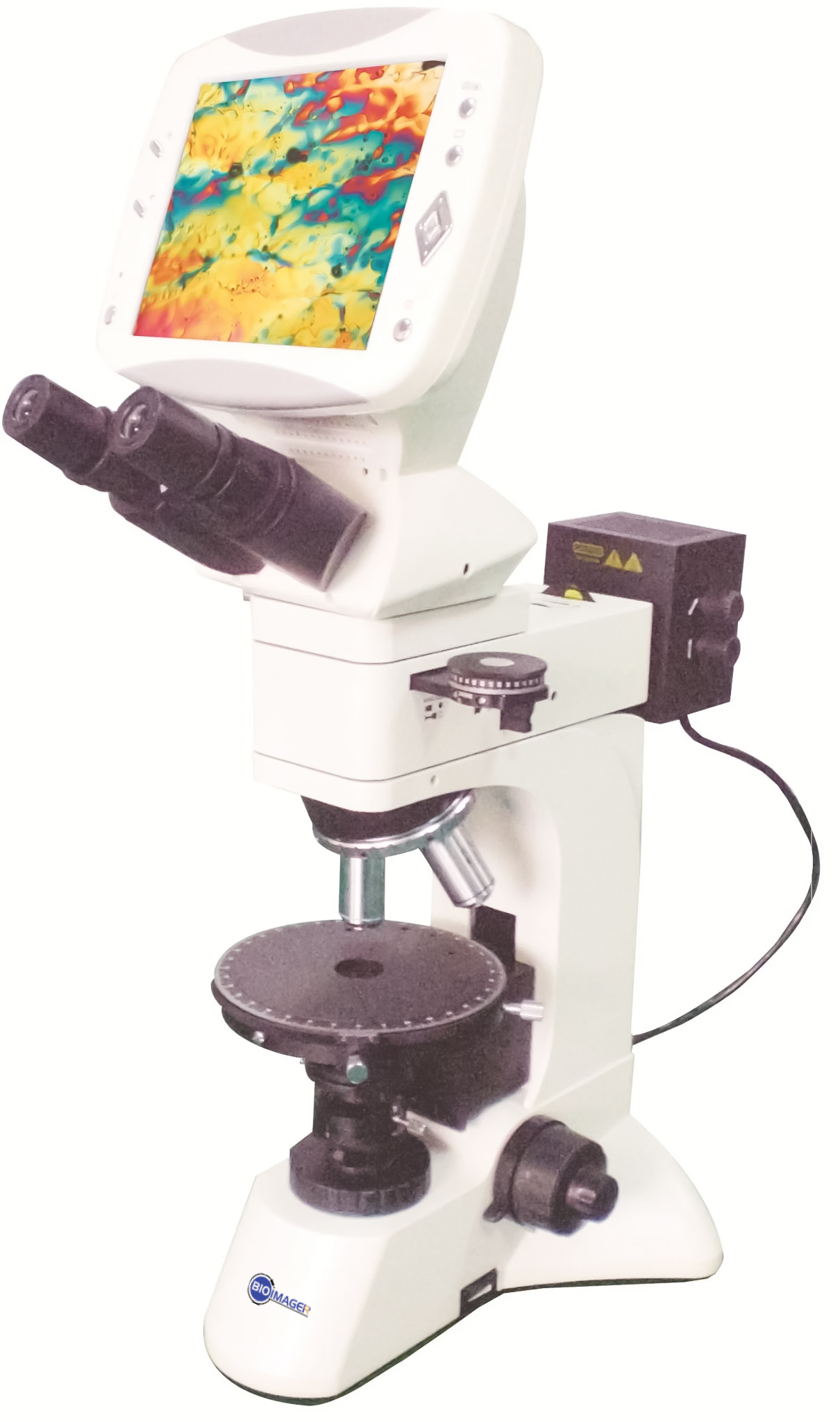

BPM400L Polarizing Microscope with LCD & camera

Availability:

In stock


Compare

1. Adopts a polarizing light to observe and research objects which have double refraction features.

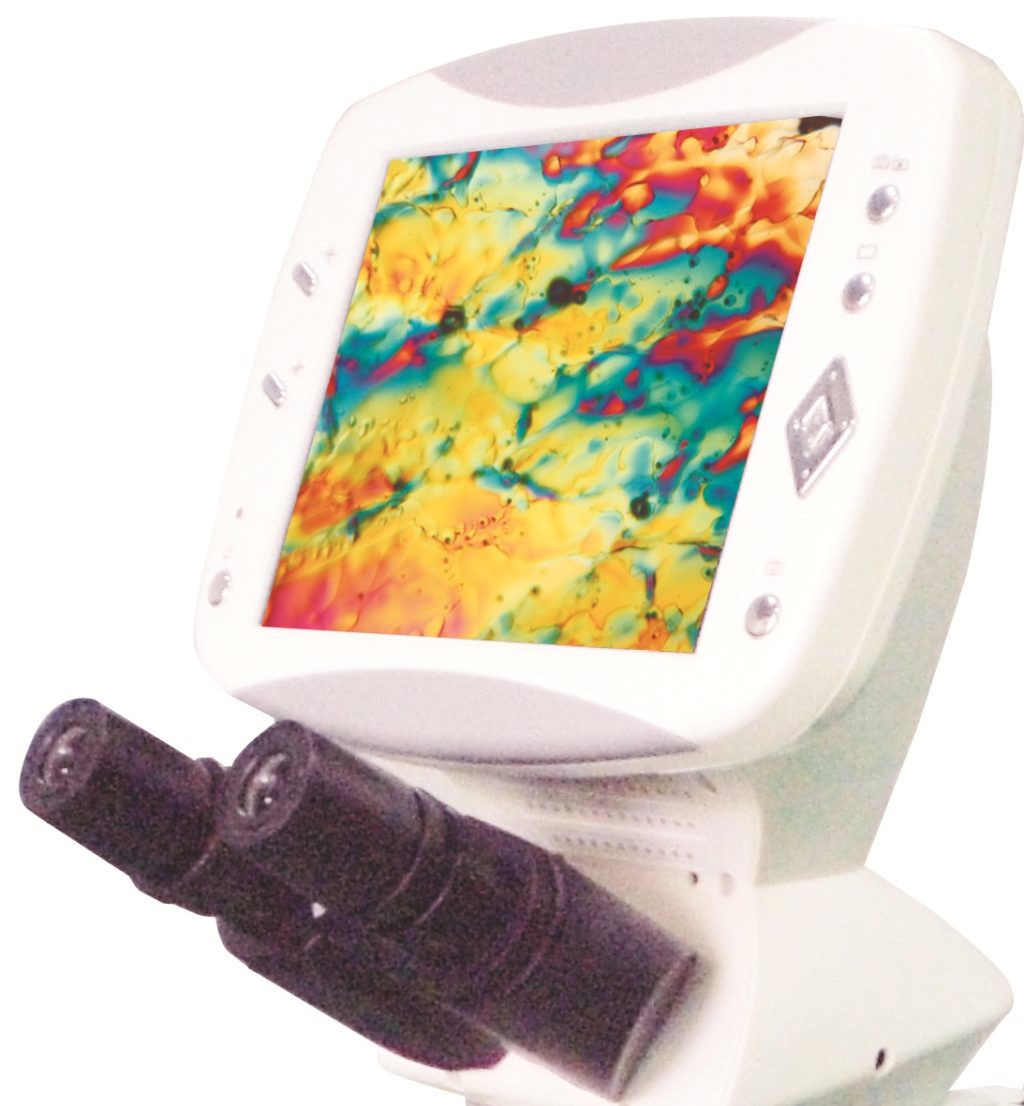

2. With a 5Mega Pixel high resolution camera with real time imaging display and video recording function.
3. With a high definition 8” LCD screen.
4. 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
5. USB Cable for Transferring Images to a PC.
6. SD Card slot for storage, archiving and printing, optional memory cards (Maximal Storage Capacity is 4 GB).

In stock

$3,999.00 $7,200.00

BPM400L digital LCD polarizing microscope adopts a polarizing light to observe and research objects which have double refraction features, users can make single polarizing observation, orthogonal observation, and conoscope observation. It has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. Eyepieces and an LCD screen can both be used for easy and comfortable viewing for yourself and to share with others. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It not only features high resolution of LCD display to generate genuine photo and video, but also features for quick and easy snapshots or short videos. This product integrates magnification, digital enlarge, imaging, display, capture photo and video and printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable.

1. Adopts a polarizing light to observe and research objects which have double refraction features.
2. With a 5Mega Pixel high resolution camera with real time imaging display and video recording function.
3. With a high definition 8″ LCD screen.
4. 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
5. USB Cable for Transferring Images to a PC.
6. SD Card slot for storage, archiving and printing, optional memory cards (Maximal Storage Capacity is 4 GB).

Introduction
BPM400L digital LCD polarizing microscope adopts a polarizing light to observe and research objects which have double refraction features, users can make single polarizing observation, orthogonal observation, and conoscope observation. It has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. Eyepieces and an LCD screen can both be used for easy and comfortable viewing for yourself and to share with others. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It not only features high resolution of LCD display to generate genuine photo and video, but also features for quick and easy snapshots or short videos. This product integrates magnification, digital enlarge, imaging, display, capture photo and video and printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable.

Application
BPM400L is mainly used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is widely applied in mineralogy, biology, chemistry, botany, plant pathology, zoology and other fields. It is the ideal instrument for scientific research and universities teaching and study.

Digital partsResolution5 Mega Pixel
NosepieceQuintuple(Backward Ball Bearing Inner Locating)
Slide Moving HolderMoving Range: 30mmX25mm
Sensor Size1/2.5 Inches
LCD Screen8 Inches TFT Screen, Resolution is 800X 600
Video OutputAV Output (NTSC/PAL)
Data OutputUSB2.0
Menu LanguageChinese / English
StorageSD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4 GB)
Scene ModeStandard / Softness / Vivid
Exposure ModeAuto Exposure
Date ModeYear, Month, Day, Hour, Minute
Optical Parts<Viewing HeadBinocular Head Inclined 30˚
EyepieceWide Field Plan Eyepieces WF10X(Ф22mm.)
Dividing Eyepiece(field number: Ф22mm) 0.10mm/Div
ObjectiveStrain-free Infinity Long W.D Plan Achromatic Objective (No Cover Glass)
PL L5X/0.12 (Work Distance):26.1 mm
PL L10X/0.25 (Work Distance):20.2 mm
PL L40X/0.60spring(Work Distance):3.98 mm
PL L60X/0.70spring(Work Distance):3.18 mm
Polarizing Unit Can Be Move Out or Into Optical Path, Polarizer and Analyzer Can Be Rotated From 0°to 360°.
Polarizer Can Be Rotated 360°
Analyzer Can Be Rotatable 360° with Scale and Minimum Vernier
Integrated Field and Aperture Diaphragm.
NosepieceQuadruple (The Center of Objective is Adjustable )
Intermediate AttachmentPuller Type Bertrand Lens and Center Adjustable.
Compensatorλ , λ/4 and Quarts Wedge Compensator.
Illumination6V30W Halogen, Brightness Adjustable.

Wide Voltage Range Power Supply (85-265V 50/60Hz)

Focusing SystemCoaxial Coarse/Fine Focus with Tension Adjustable and up Stop Device, Minimum Division of Fine Focusing: 2μm.
Optional PartsObjectivesStrain-free Plan Achromatic Objective (No Cover Glass)
PL L 20X/0.40(Work Distance):8.80mm
PL L50X/0.70Spring(Work Distance):3.68 mm
PL L80X/0.80spring(Work Distance):1.25 mm

9″ HD LCD with 1280×800 resolution & Built-in 12MP Camera
