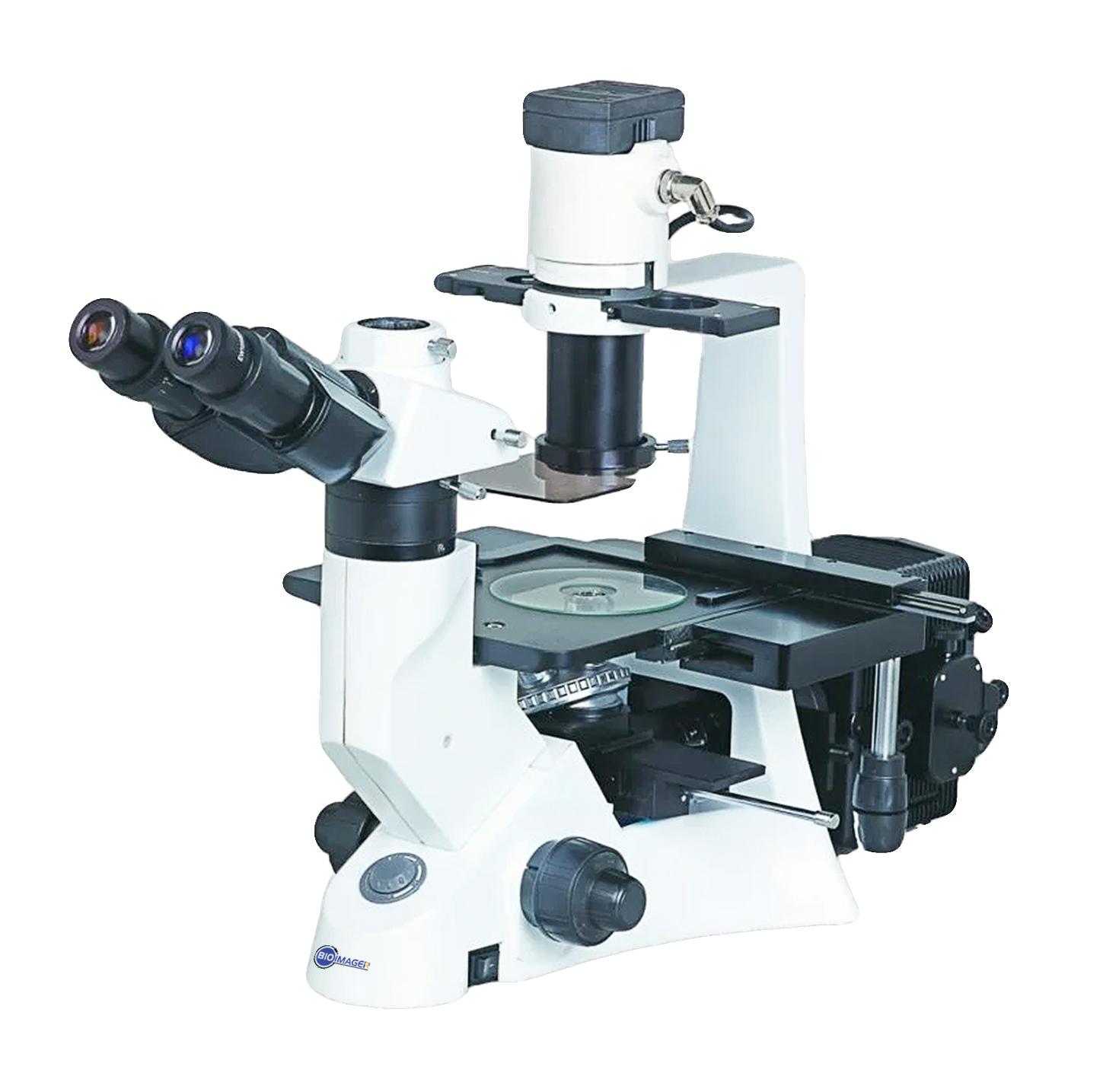

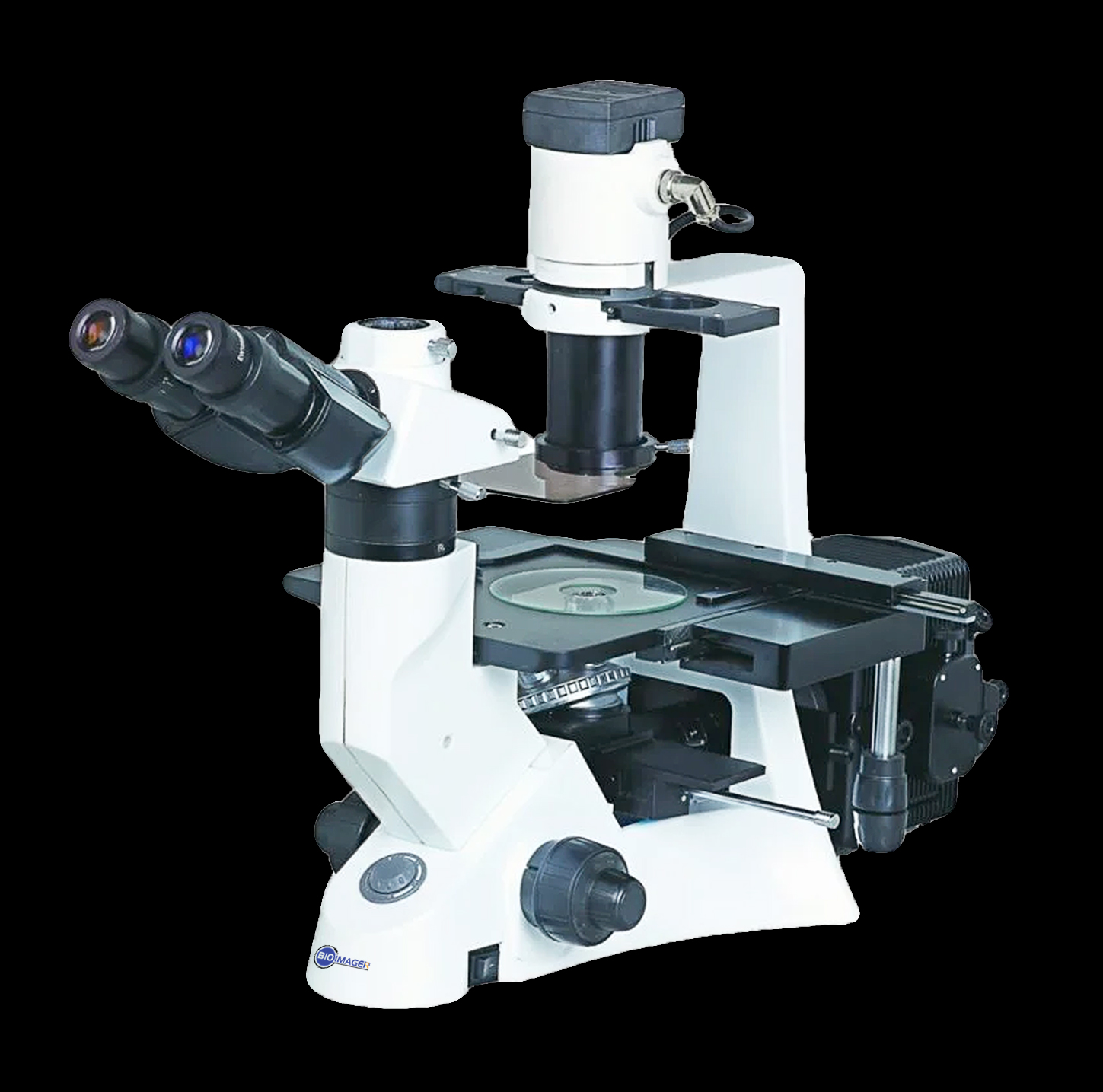

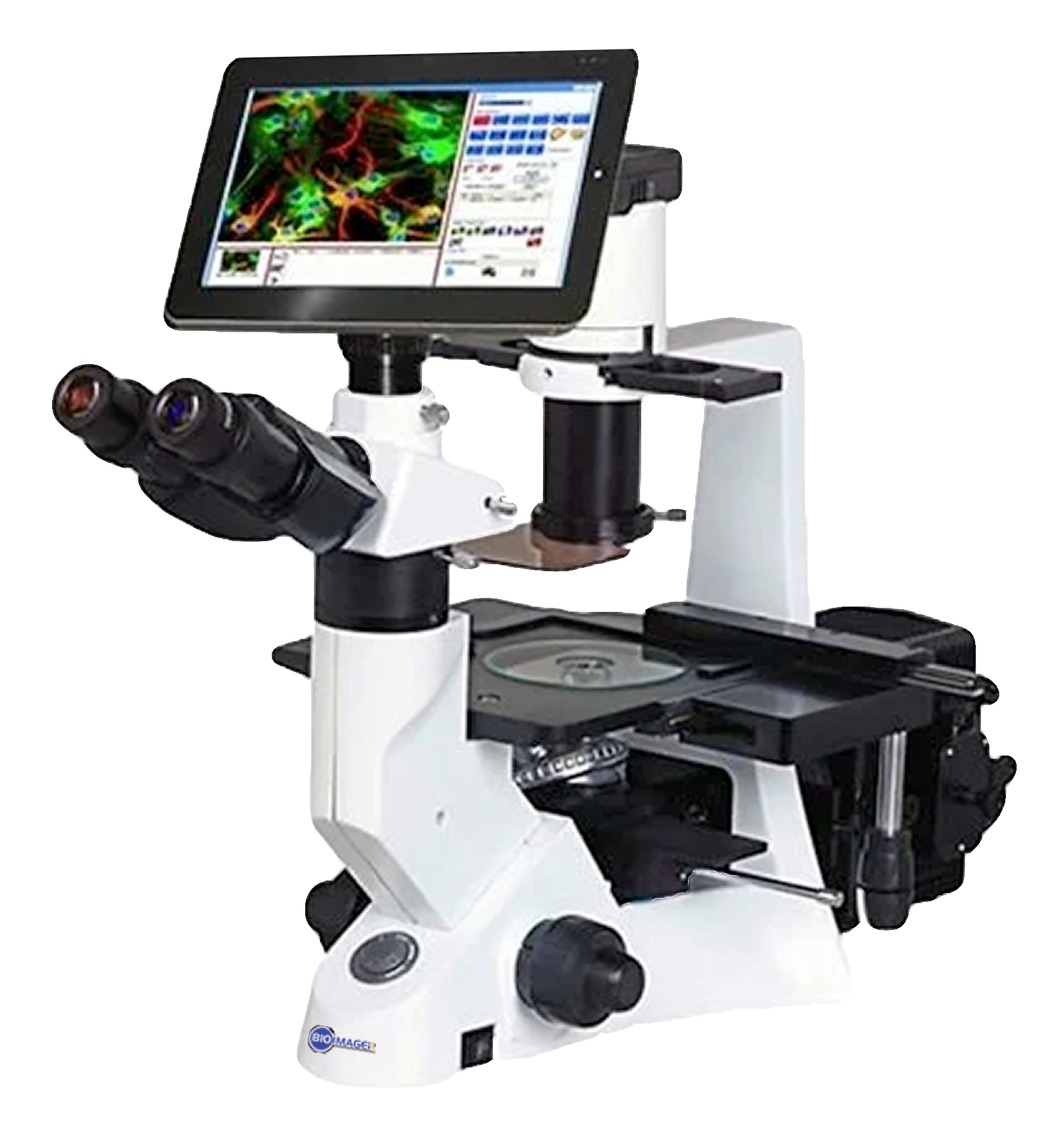

BIM500P Polarized Biological Inverted Microscope 40x-400x


In stock

  • Trinocular Head Inclined at 30°, Interpupillary 48-75mm
  • High-point, Extra Wide Field Eyepiece EW10×/ 22
  • LWD Infinite Plan Objective 4x/0.1, WD 18mm, 40x/0.6, WD 2.6mm, Infinite Plan Phase Objective PH 10x/0.25, WD 10mm, PH 20x/0.4, WD 5.1mm,
  • POlarizer & 360 degree rotation analyzer
  • ELWD Condenser NA 0.3, LWD 72mm
  • Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Tissue Cultur Cells

In stock

$2,225.00 $3,000.00

BioiImager has developed a polarization kit for an inverted biological microscope BIM500 series, for the first time. This uses a transmitted halogen illumination light 6V/30W. Below are the products specifications, video demonstration and sample video.

Viewing Head

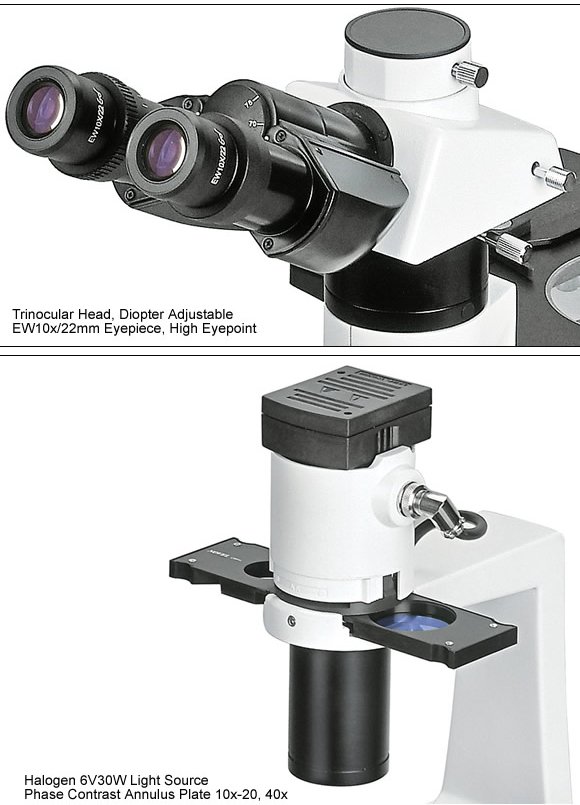

Trinocular Head Inclined at30°, Interpupillary Distance48-75mm


High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective Lenses

LWD (Long Working Distance) Infinite Plan Objective

4×/ 0.1, WD 18mm

10×/ 0.25, WD 10mm

20×/ 0.4, WD 5.1mm

40×/ 0.6, WD 2.6mm

50x/0.80, WD 1mm

60x/0.85, WD 0.20

Infinite Plan Phase Objective

PH10×/ 0.25, WD 10 mm

PH20×/ 0.4, WD 5.1mm

PH40×/ 0.65, WD 0.35mm

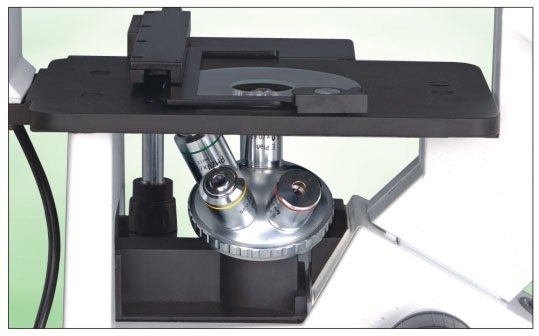

Quintuple Nosepiece

Pol Kit


360 rotation Analyzer


ELWD (Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)


Centering Telescope (Φ30MM)

Phase Annulus

10×-20×, 40× Phase Annulus Plate(Center Fixed)

10×-20×, 40× Phase Annulus Plate(Center Adjustable)


Plain Stage 160×250mm

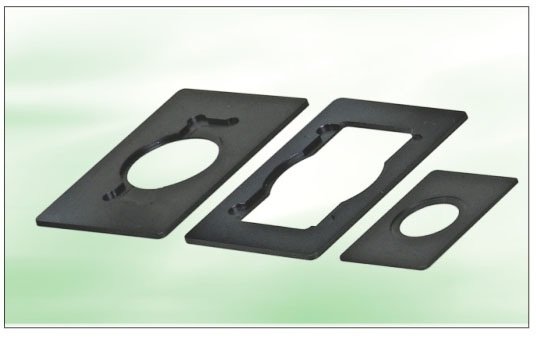

Glass Insert

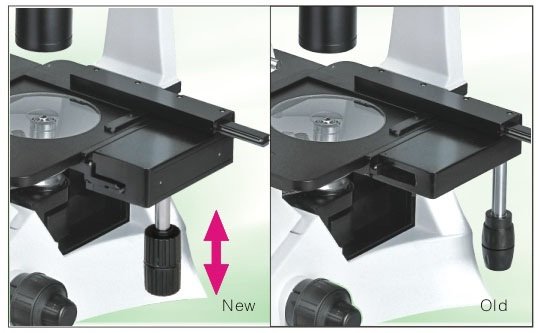

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120mm×78mm

Auxiliary Stages 70mm×180mm

Terasaki Holder

Φ38mm Petri Dish Holder

Φ54mm Slide Glass Holder


Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation


Halogen Lamp 6V/30W


Diameter 45mm, Blue, Green and Ground Glass

Photo Attachment

Photo Attachment

Video Adapter

Video Adapter with C Mount

Fluorescence Attachment

Inverted Fluorescence Attachment FI-100

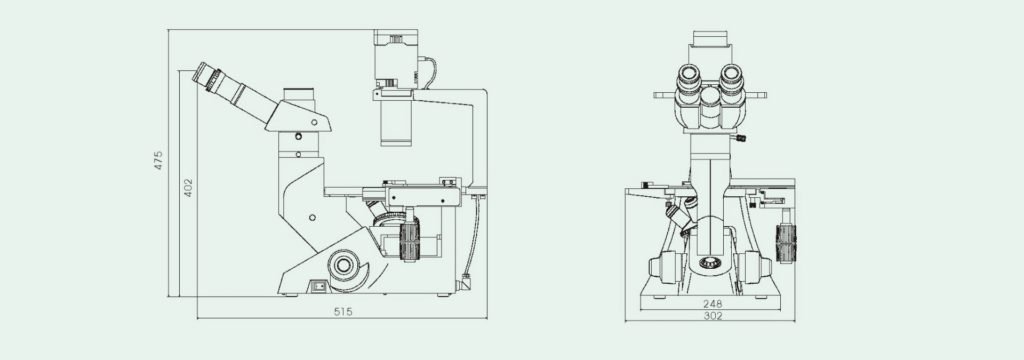

Dimension& G.W.

46.5cm*39.5cm*64cm, 15.5kg

 Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Viewing Head Options:

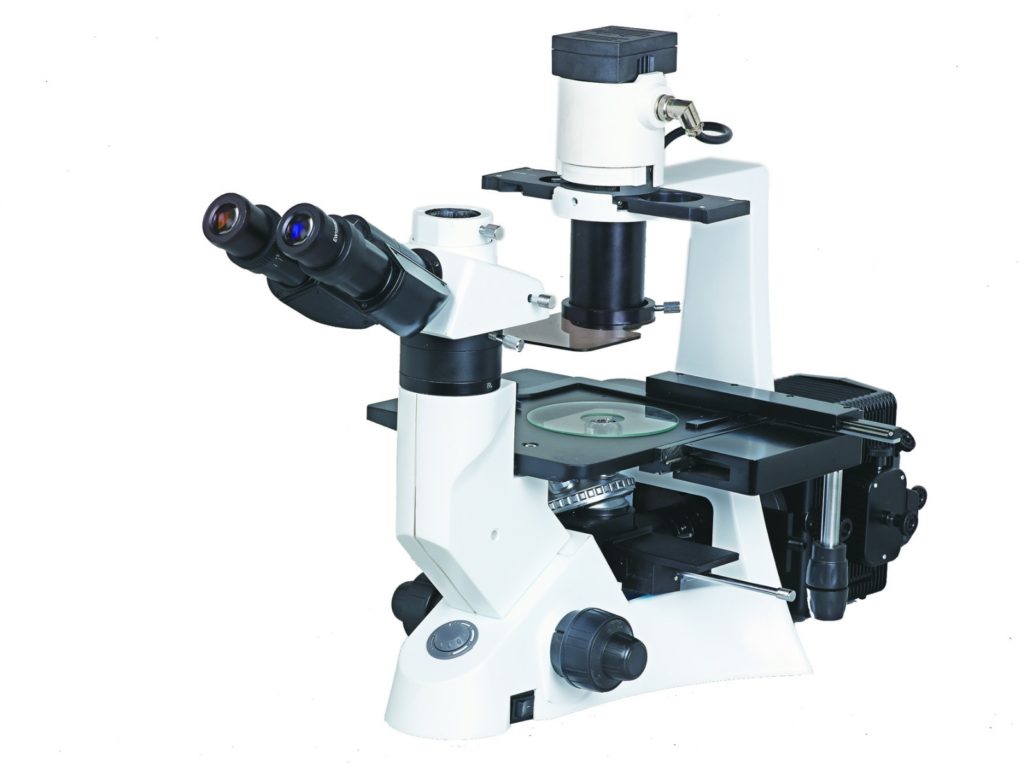

1) Trinopcular Head

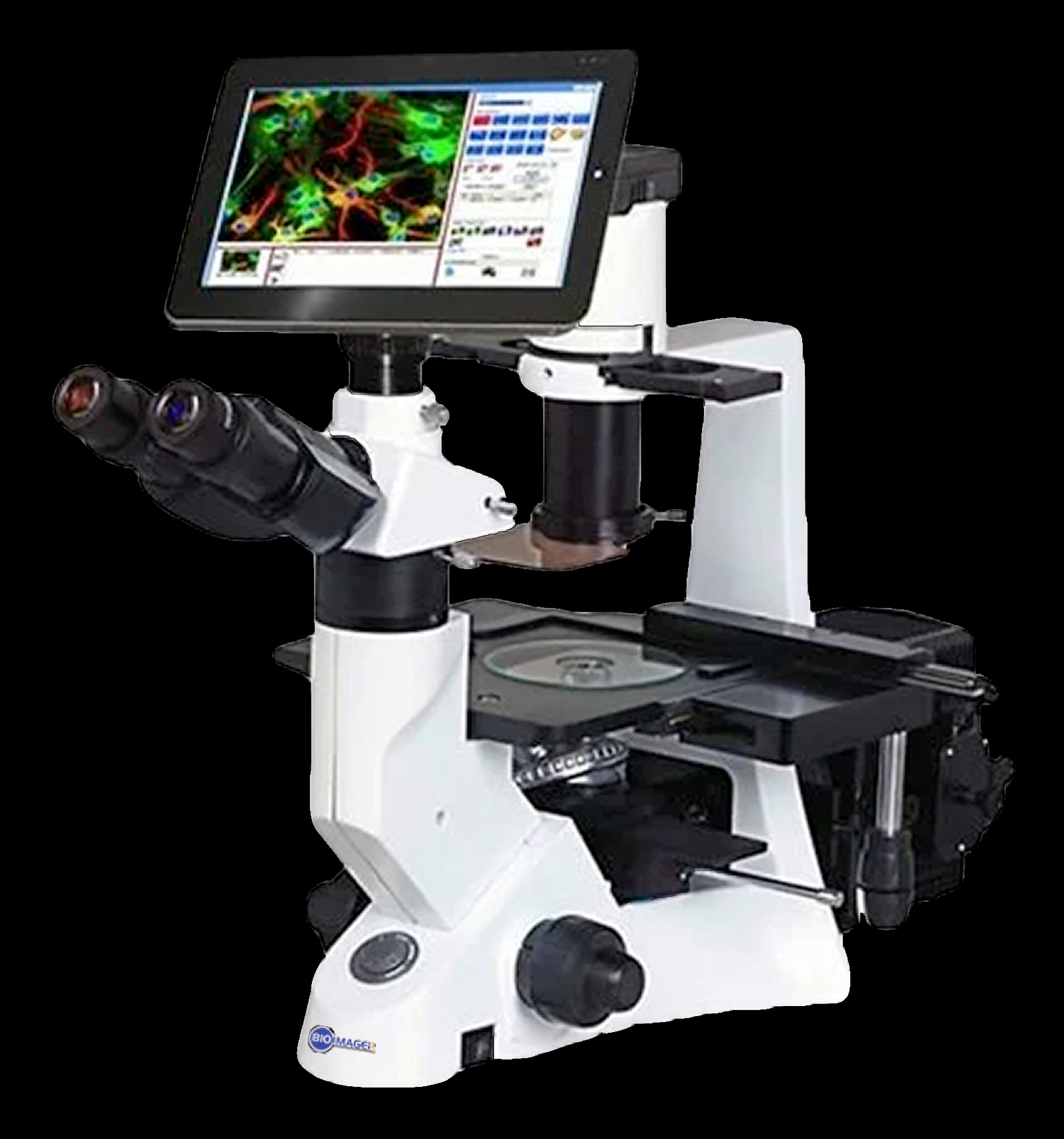

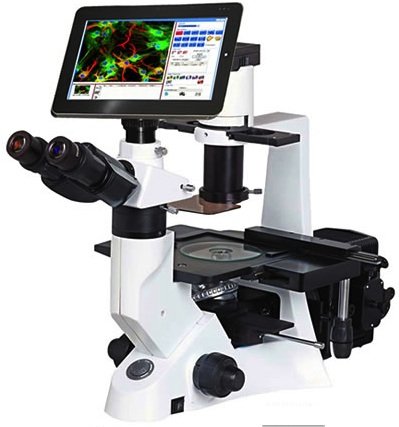

2) BRC-2012 : 2MP Camera, 11.7″ Retina Display, Trinocular Head

3) BRC-6012  6MP Camera, 11.7″ Retina Display, Trincoular Head

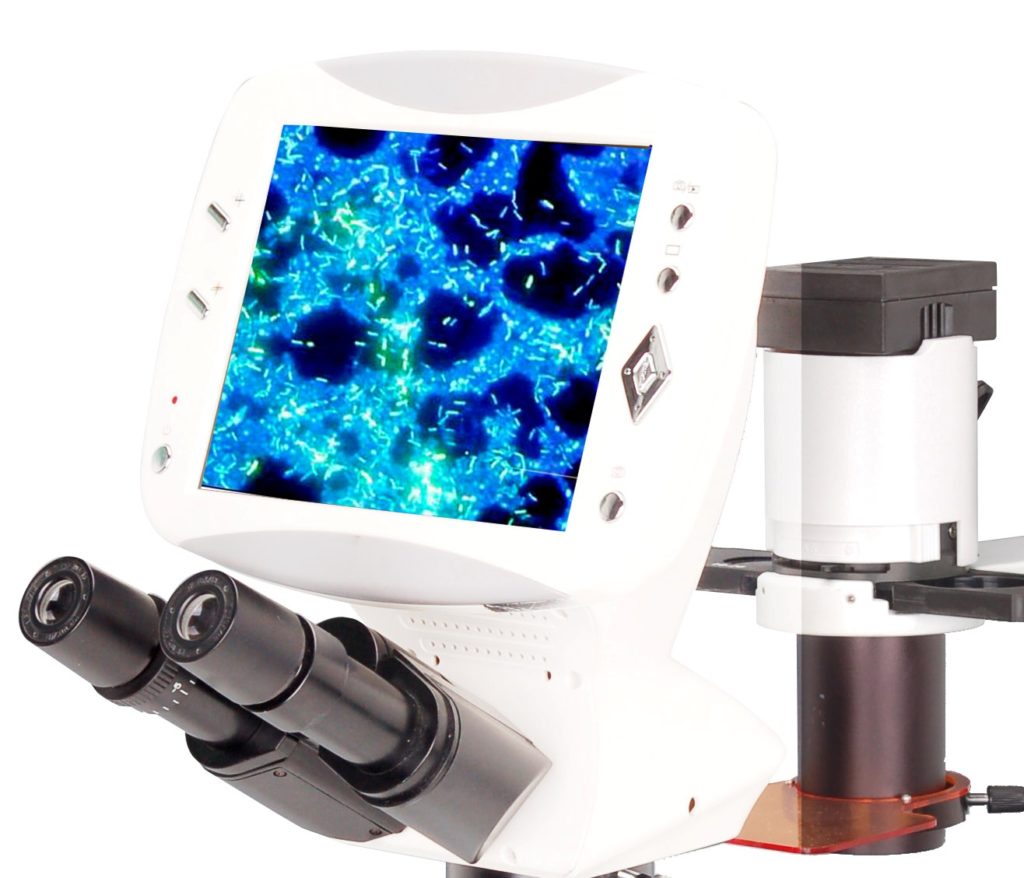

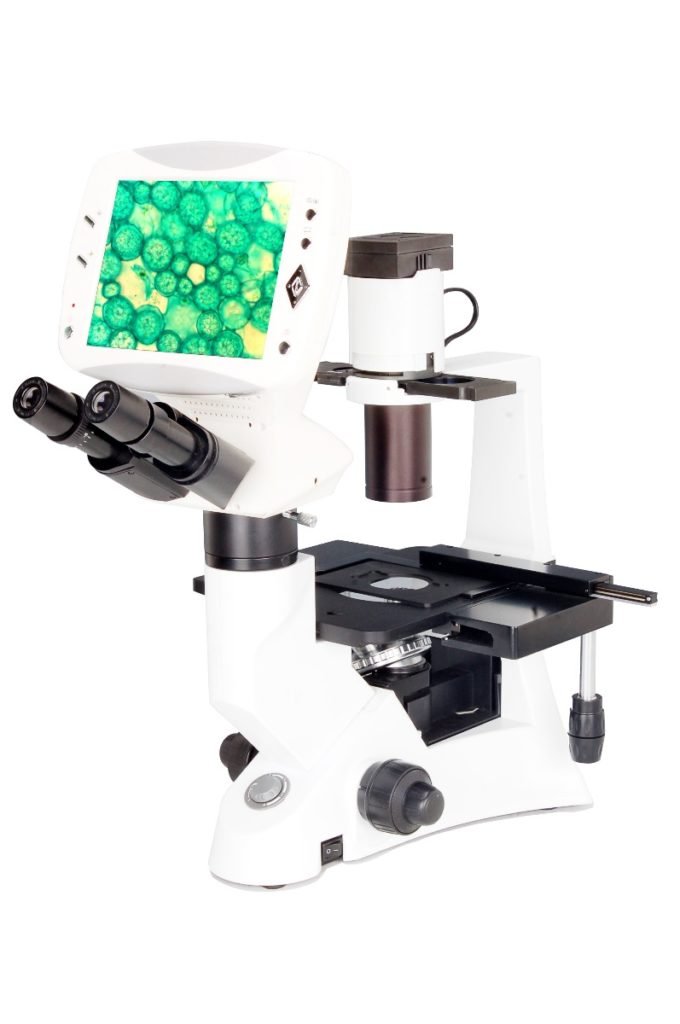

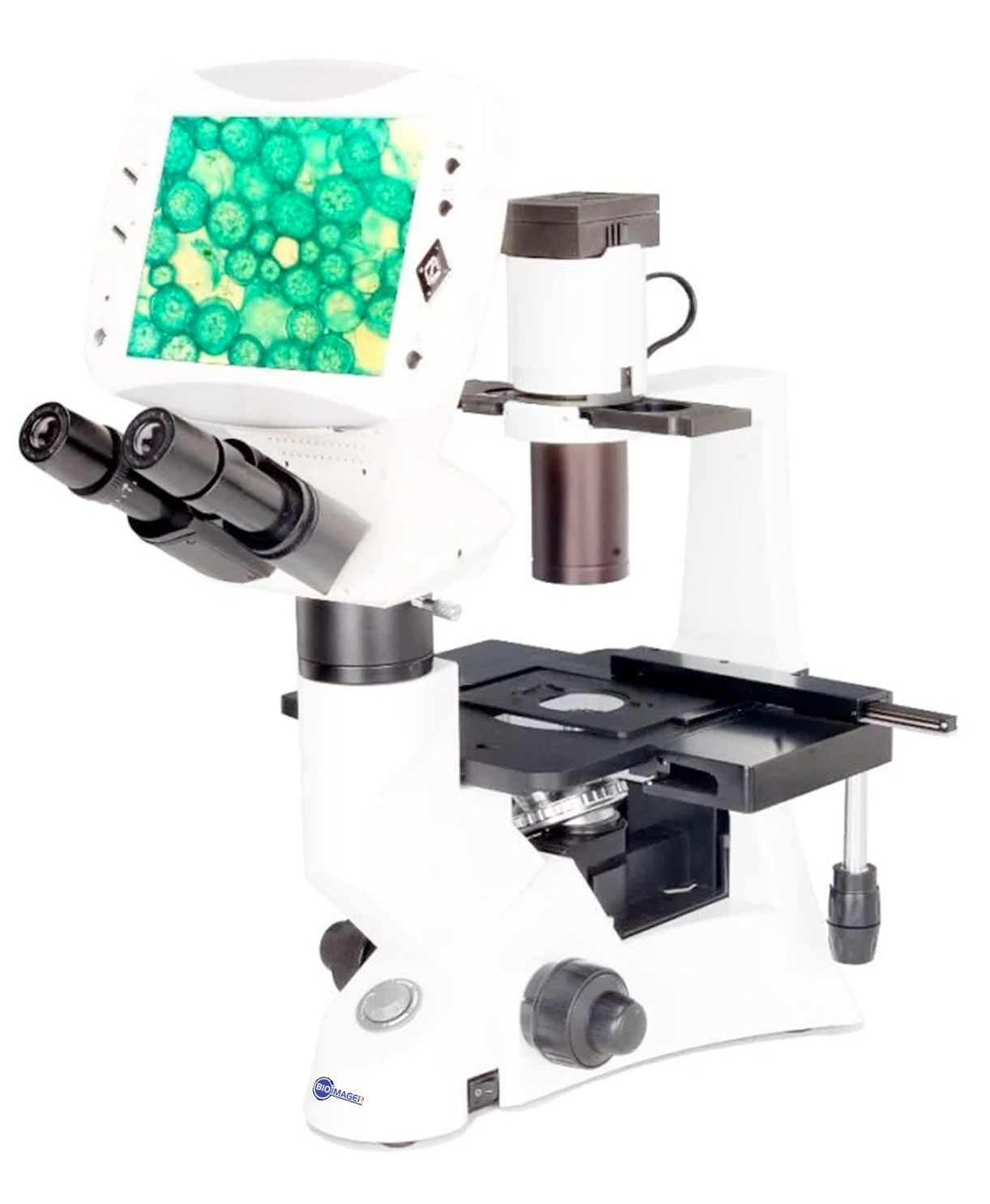

4) BLC-12097 12MP Camer, 9.7″ HD LCD Display, Binocular Head

Video Demonstration with BRC-2012 and mineralogy slide:

Sample slide visualized with BIM500P Polarized Biological Inverted Microscope at 10x objective lens and BRC-2012K Black Retina Display Camera: 11.6 Retina with 2MP True Color Camera:
