Save $USD 496

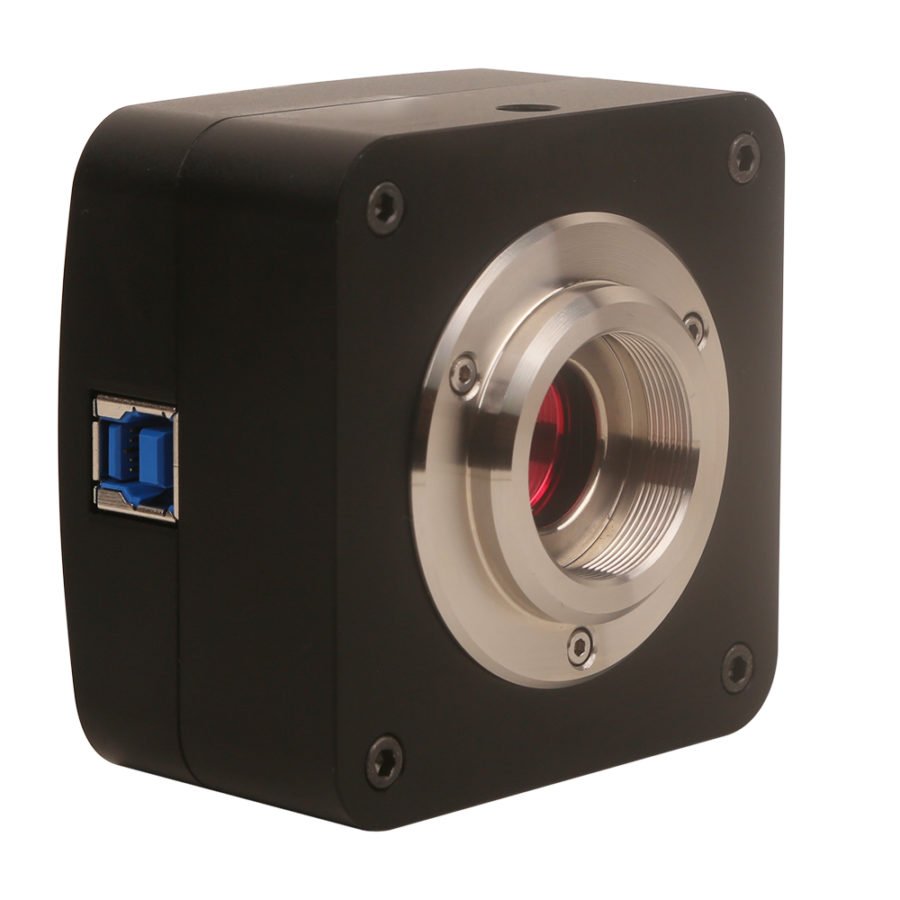

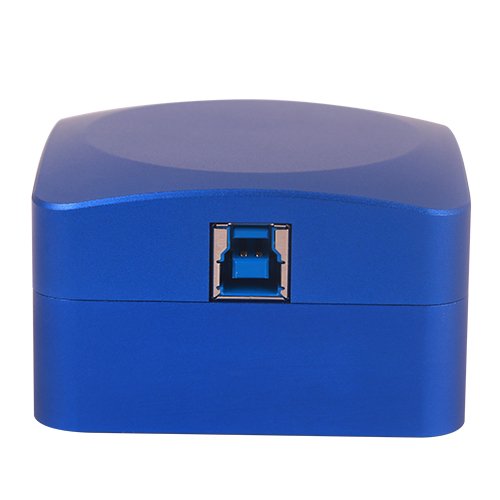

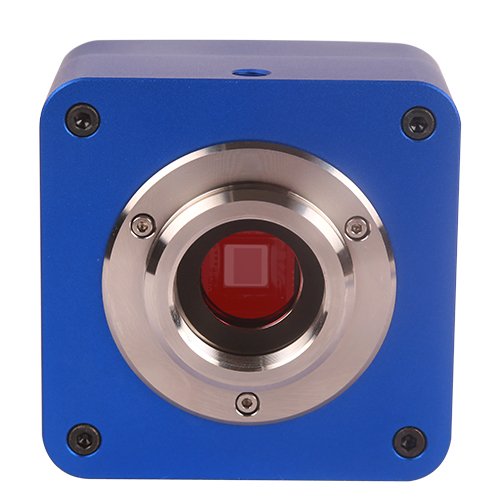

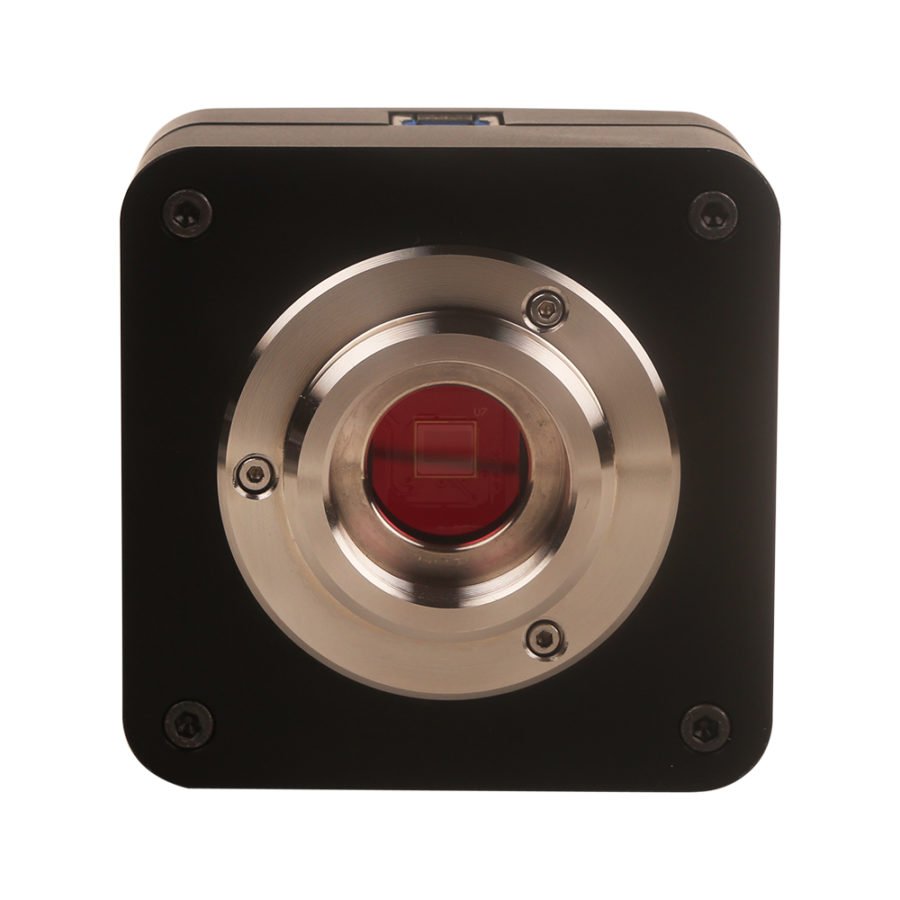

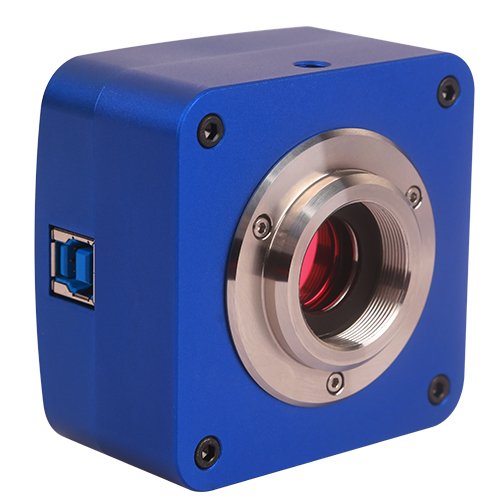

USB 3.0 CMOS Microscope Camera, BIC-T3C


  • USB 3.0 High speed data interface
  • From 2.3MP  to 12MP CCD sensor
  • Sensor size 1/2.8″ to 2/3″
  • from 15 fps to 90 fps speed
  • from 1.85 to 5.86 μm/pixel
  • Up to 1120mV G Sensitivity with 1/30s





$USD 999.00 $USD 1,495.00

USB 3.0 CMOS Microscope Camera, BIC-T3C

 Specification

Order CodeSensor & Size (mm)Pixel (μm)G Sensitivity

Dark Signal

FPS/ResolutionBinningExposure
BIC-T3C-12C12M/IMX226(C)

1/1.7″(7.40×5.55)

1.85×1.85280mv with 1/30s
0.1mv with 1/30sQ3/coming soon1×1,2×20.1ms~2000ms
BIC-T3C-6C6.3M/IMX178(C)

1/1.8″(7.37×4.92)

2.4×2.4425mv with 1/30s
0.15mv with 1/30s[email protected]×2048

[email protected]×1024

1×1,2×20.244ms~2000ms
BIC-T3C-6M6.3M/IMX178(M)

1/1.8″(7.37×4.92)

2.4×2.4425mv with 1/30s
0.15mv with 1/30s[email protected]×2048
[email protected]×10241×1,2×20.244ms~2000ms
BIC-T3C-3C13.1M/IMX036(C)

1/2.8″(5.12×3.84)

2.5×2.5200mv with 1/30s
0.5mv with 1/30s[email protected]×1536

[email protected]×768

1×1,2×20.244ms~2000ms
BIC-T3C-3C23.1M/IMX123(C)

1/2.8″(6.46)

2.5×2.5600mv with 1/30s
0.15mv with 1/30s[email protected]×1536

[email protected]×768

1×1,2×20.244ms~2000ms
BIC-T3C-2C12.3M/IMX185(C)

1/1.9″(7.20×4.5)

3.75×3.751120mv with 1/30s
0.5mv with 1/30s[email protected]×1200

[email protected]×600

1×1,2×20.244ms~2000ms
BIC-T3C-2C22.3M/IMX302(C,GS )

1/1.2“ (13.4mm)

5.86×5.861016mv with 1/30s

0.15mv with 1/30s

[email protected]×12001×10.244ms~2000ms
BIC-T3C-2M12.3M/IMX174(M, GS)

1/1.2” (13.4mm)

5.86×5.861016mv with 1/30s

0.15mv with 1/30s

[email protected]×12001×10.244ms~2000ms
BIC-T3C-5C15.0M/IMX250(C, GS)
2/3” (11.1mm)3.45×3.451146mv with 1/30s
0.15mv with 1/30s[email protected]×2048
[email protected]×10241×10.06ms~2000ms
BIC-T3C-5C25.0M/IMX250(M, GS)
2/3” (11.1mm)3.45×3.45915mv with 1/30s
0.15mv with 1/30s[email protected]×2048
[email protected]×10241×10.06ms~2000ms



OTHER HARDWARE CONFIGURATION
Spectral Range380-650nm (with IR-filter)
White BalanceROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering TechniqueUltra Fine Color Engine
Capture/Control APINative C/C++, C#, Directshow, Twain, Labview
Recording SystemStill Picture and Movie
Cooling System*Natural
OPERATING ENVIRONMENT
Operating Temperature-10℃~ 50℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating SystemSupport Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit)

OS X (Mac OS X), Linux

PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17″ or Larger
CD-ROM

Ultra High Speed Data Transfer
The built-in USB3.0 interface of DigiRetina16 transfers image data at ultra high speed, which enables users to find and focus easily, even at full resolution.
BRC-1600 16MP USB 3.0 Retina HD Colorful CMOS Microscope Camera

Video 1. Phase Contrast Kit and Sample Images

BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.
