BioCam HD20 20MP High-Definition High-Resolution Digital Microscopy Camera BioCam HD20 20MP High-Definition High-Resolution Digital Microscopy Camera $USD 4,000.00 Original price was: $USD 4,000.00.$USD 2,995.00Current price is: $USD 2,995.00.
bsd 400 -bioimager dental microscope BSD400 - LED Surgical Operating and Dental Microscope $USD 16,000.00 Original price was: $USD 16,000.00.$USD 9,995.00Current price is: $USD 9,995.00.
Sale!

BIC-AF2-Z14 Autofocus Video Microscope Camera 1X-14X Zoom

Original price was: $USD 4,500.00.Current price is: $USD 2,400.00.

-47%
  • Autofocus: Fully Automated Real-time Auto Focusing
  • Large optical magnification: from 1x to 14x
  • Digital zoom: 6x
  • Super large Field of view: From 171x92mm (larger than a well-plate) up to a 24.3×13.5mm (largest stereoscope view possible)
  • SONY 1/2.8″ CMOS sensor, high sensitivity
  • HD 1080p resolution
  • High frame rate 60fps
  • Support photo capture and video record, TF card storage
  • Long working distance: 10cm to infinity
  • Support I/O equipment
Add to Wishlist
Guaranteed Safe Checkout

Guaranteed Safe Checkout

Questions? Request a Call Back

Application: Microscope

  • Scientific research, education, teaching, demonstration and academic exchanges;
  • Digital laboratory, medical research;
  • Industrial visual (PCB examination, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aerospace, military (high sophisticated weapons)

  • Autofocus, automated built-in focus system
  • Large optical magnification: from 1x to 14x
  • Digital zoom: 6x
  • Super large Field of view from 171x92mm (larger than a well-plate) up to a 24.3×13.5mm (largest stereoscope view possible)
  • 1080P HDMI output
  • USB mouse control, support Wireless mouse
  • TF card storage
  • DC5V power input
  • Support I/O equipment

Autofocus 1080p HD 60fps Video Microscope Camera 1X-14X Zoom

BIC AF14Z 1 autofocus camera



  • SONY 1/2.8″ CMOS sensor, high sensitivity
  • HD 1080p resolution
  • high frame rate 60fps
  • Fully automatic Real-time Auto Focus
  • Built-in optical lens, large zoom ratio: 1:14
  • Support photo capture and video record, TF card storage
  • Long working distance: 10cm to infinity
  • Large Field of View (FOV)
  • Support I/O equipment

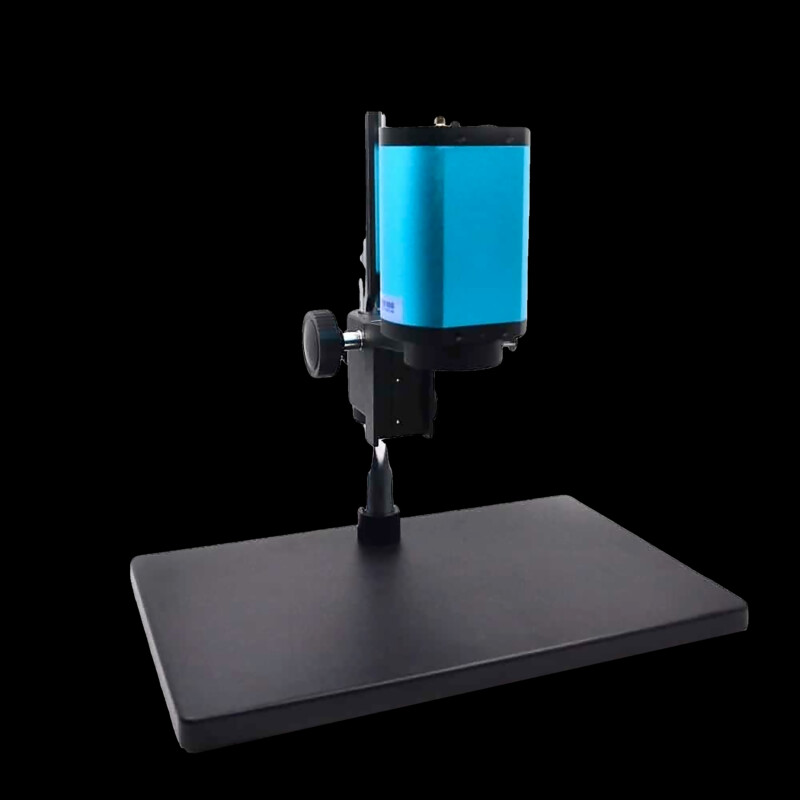

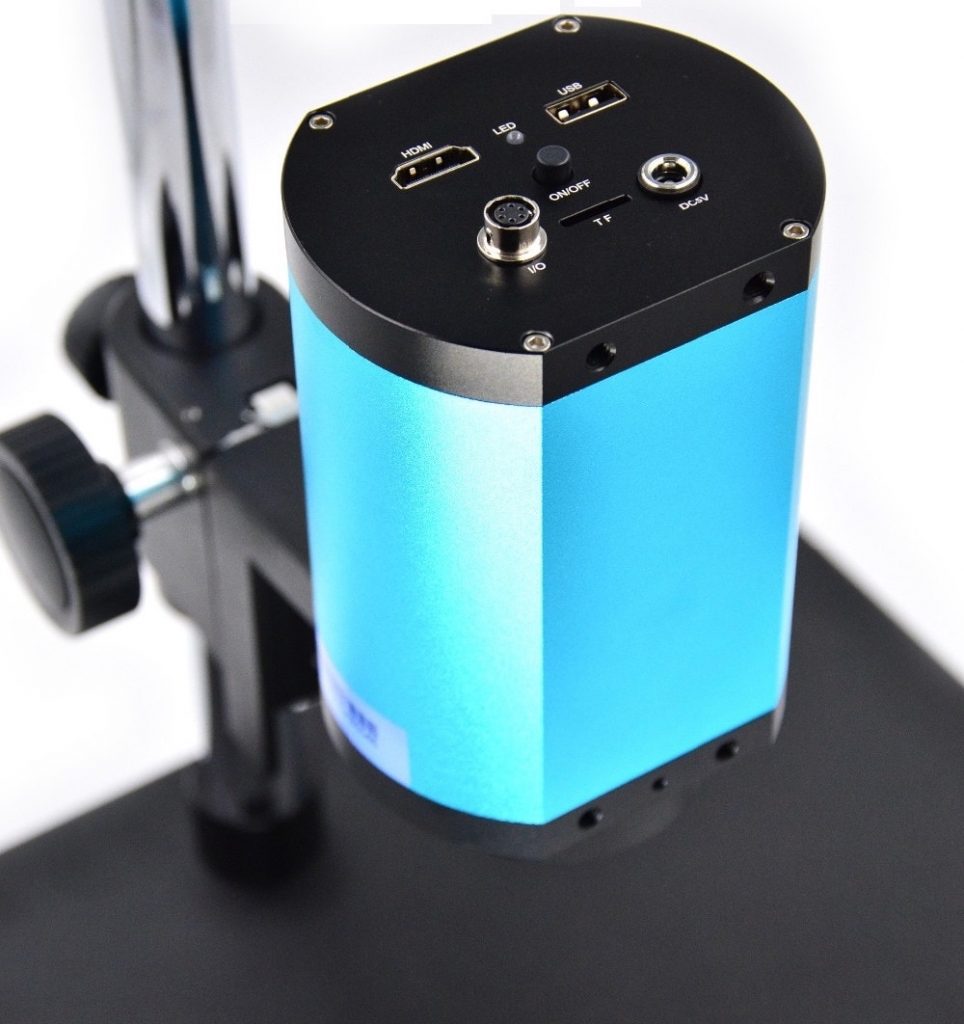

BIC AF14Z 12 autofocus camera stand lightBIC AF14Z 2 autofocus camera stand

Sensor SONY Color CMOS
Pixel 2 million pixels
Pixel size 1/2.8〞
Menu Full digital UI design
Method of Operation Self-contained key control
Power DC5V
Output method HDMI
Preview Frame rate 1080P 60fps
Scanning method Line by line scanning
White Balance Auto / Manual
Exposure Auto / Manual
Electronic Shutter Speed 1/50s (1/60s)-1/10000s
Optical magnification 1x-14x
Working distance 100mm～infinity
Digital magnification 1x-6x
Digital zoom Support

Built-in optical lens, large zoom rate: 1:14
Optical magnification: 1X-14X
Digital magnification: 1X-6X

Field of View:

Magnification FOV

(10cm Working Distance)

 FOV

(30cm Working Distance)
1X 171mm*92mm 420mm*230mm
2X 89mm*50mm 196mm*110mm
3X 71mm*40mm 150mm*84mm
4X 60mm*33mm 116mm*65mm
5X 52mm*29mm 101mm*57mm
14X 24.3mm*13.5mm 45.5mm*25mm

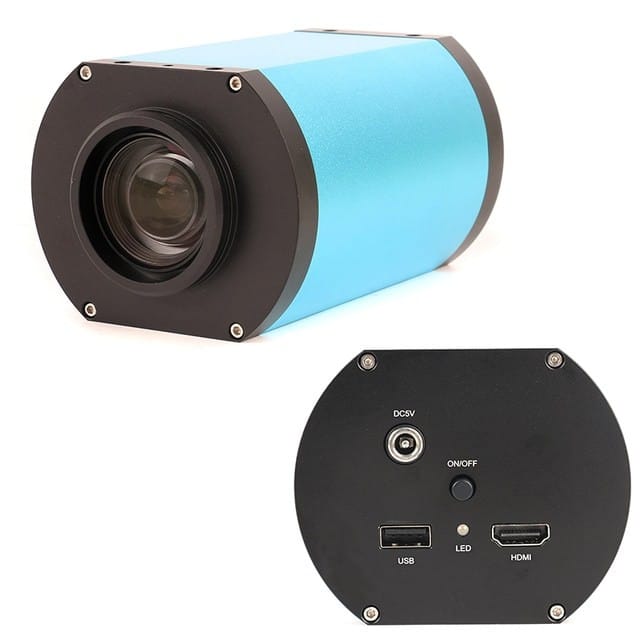

BIC AF14Z 5 autofocus camera rear view descriptive

Microscope built-in UI controlled by Mouse

User could adjust focus, exposure, gain, white balance, Zoom, capture photo and recording video by mouse

Camera support add cross-hair



Sensor SONY Color CMOS
Pixel 2 million pixels
Pixel size 1/2.8〞
Menu Full digital UI design
Method of Operation Self-contained key control
Power DC5V
Output method HDMI
Preview Frame rate 1080P 60fps
Scanning method Line by line scanning
White Balance Auto / Manual
Exposure Auto / Manual
Electronic Shutter Speed 1/50s (1/60s)-1/10000s
Optical magnification 1x-14x
Working distance 100mm～infinity
Digital magnification 1x-6x
Digital zoom Support



Built-in optical lens, large zoom rate: 1:14

Optical magnification: 1X-14X

Digital magnification: 1X-6X

Magnification FOV

(10cm Working Distance)

 FOV

(30cm Working Distance)
1X 171mm*92mm 420mm*230mm
2X 89mm*50mm 196mm*110mm
3X 71mm*40mm 150mm*84mm
4X 60mm*33mm 116mm*65mm
5X 52mm*29mm 101mm*57mm
14X 24.3mm*13.5mm 45.5mm*25mm



Package Contents:

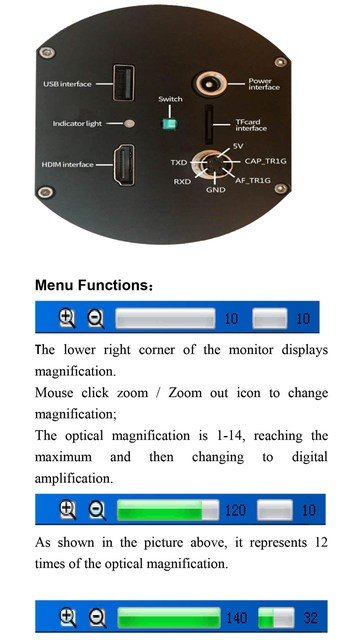

Zooming in/out function:

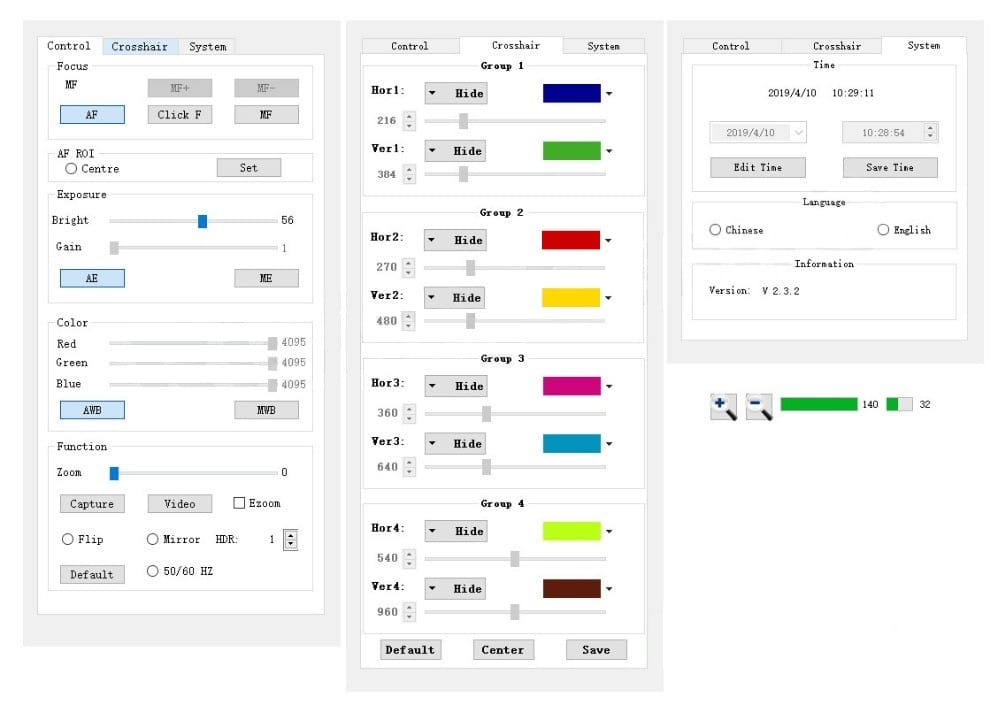

Three Tabs:

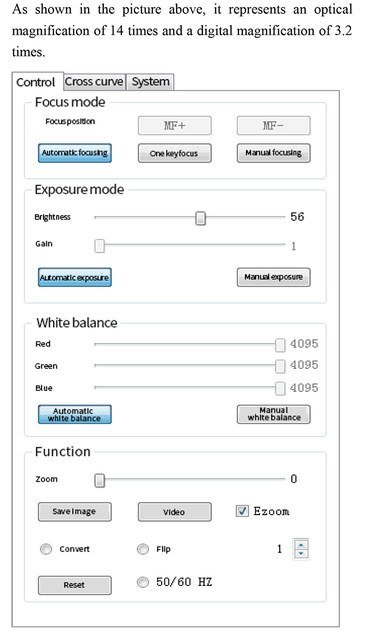

Control Tab:

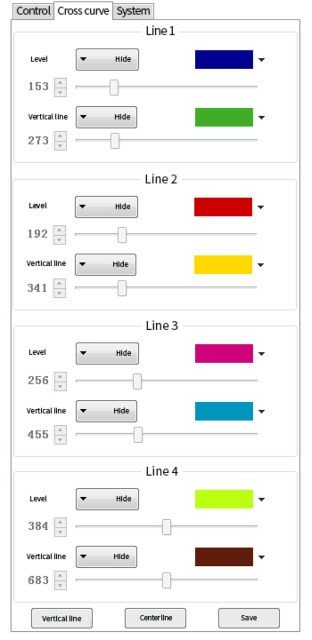

Cross Curve Tab:

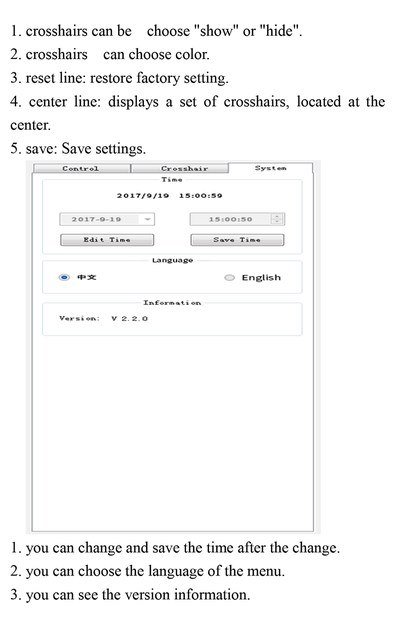

System Tab:

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

    SKU: BIC-AF2-14Z Categories: , , , , , , , , , Tags: , , , , , , , , ,
