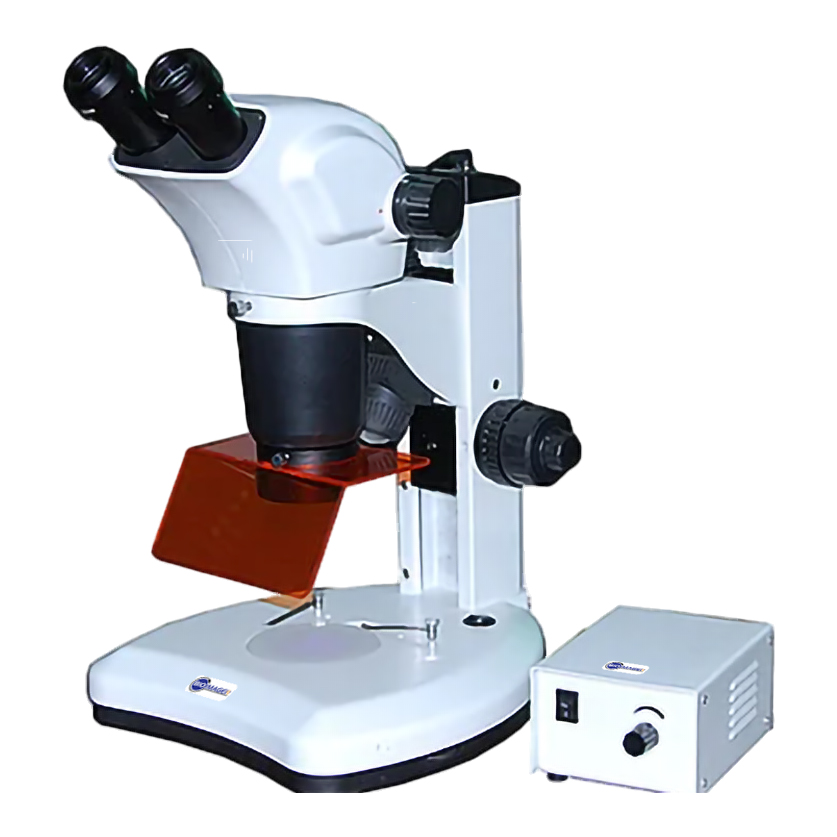

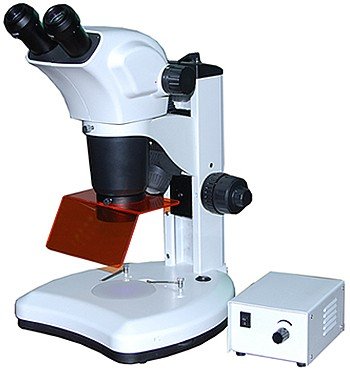

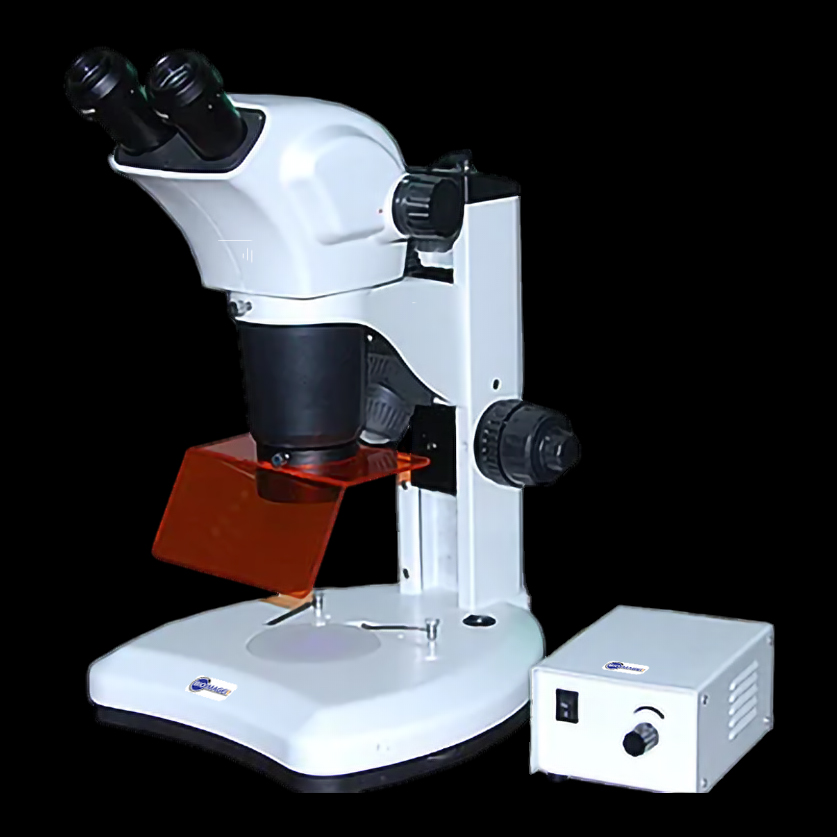

BSM300FLL LED Epi-Fluorescence Stereo Microscope Introduction:
The BSM300FLL LED Epi-Fluorescence Stereo Microscope is a high-performance fluorescence imaging system designed for biological research, medical diagnostics, industrial inspection, and forensic analysis. With its stereo zoom optical system, LED fluorescence illumination, and ergonomic design, this microscope delivers high-resolution imaging with exceptional clarity and precision.
Equipped with multi-wavelength fluorescence filters (UV, Violet, Blue, and Green), it enables detailed observations of fluorescent-labeled specimens in various scientific and industrial applications. Its coarse and fine focusing system, digital camera compatibility, and wide magnification range (7x to 63x) make it an essential tool for fluorescence microscopy.
Whether used for live-cell imaging, molecular biology, or material science, the BSM300FLL ensures accurate, stable, and efficient fluorescence imaging, making it the ideal choice for professionals and researchers.
BSM300FLL LED Epi-Fluorescence Stereo Microscope:
The BSM300FLL LED Epi-Fluorescence Stereo Microscope is a high-performance microscope designed for fluorescence imaging applications. It integrates a stereo zoom optical system with an advanced LED epi-fluorescence illumination system, making it ideal for biological, medical, and industrial fluorescence observations.
Key Features of BSM300FLL LED Epi-Fluorescence Stereo Microscope:
Zoom Stereo Optical System:
Zoom Ratio: 0.7x – 6.3x
Total Magnification: 7x – 63x
Zoom Adjustment Knob for precise control
Adjustable Interpupillary Distance: 55 – 75mm
Plan Widefield Eyepieces:
Available in WF10X/20mm, WF15X, WF20X, and WF25X for enhanced field of view
High eye-point design for comfortable extended use

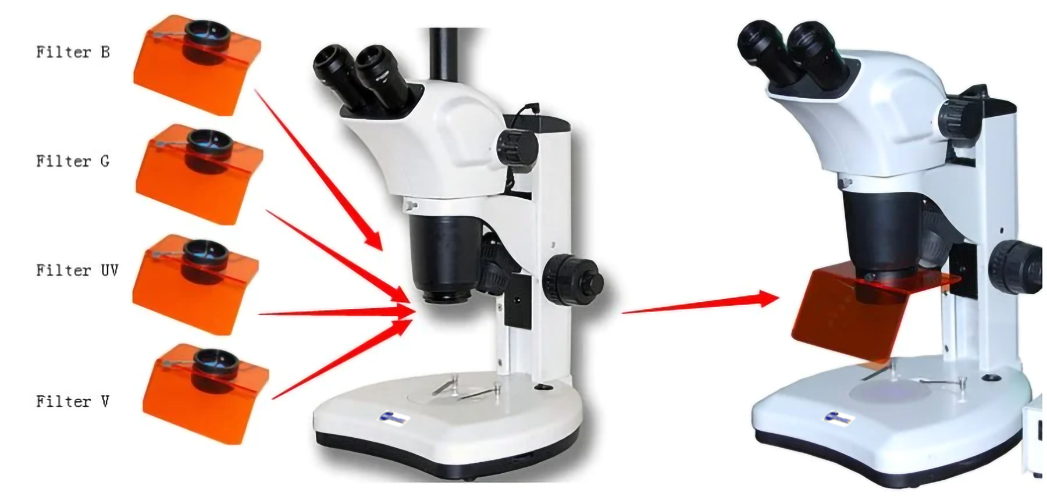

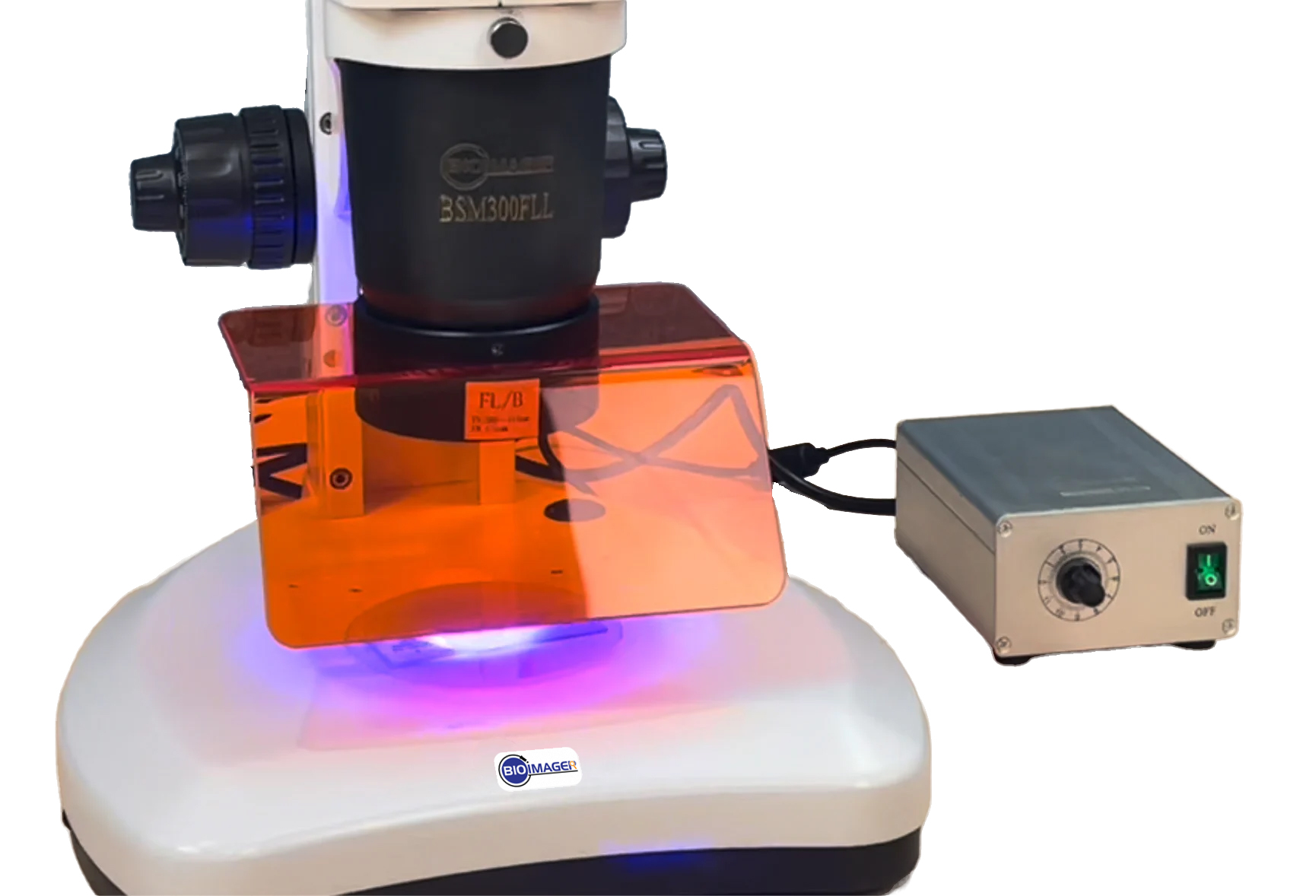

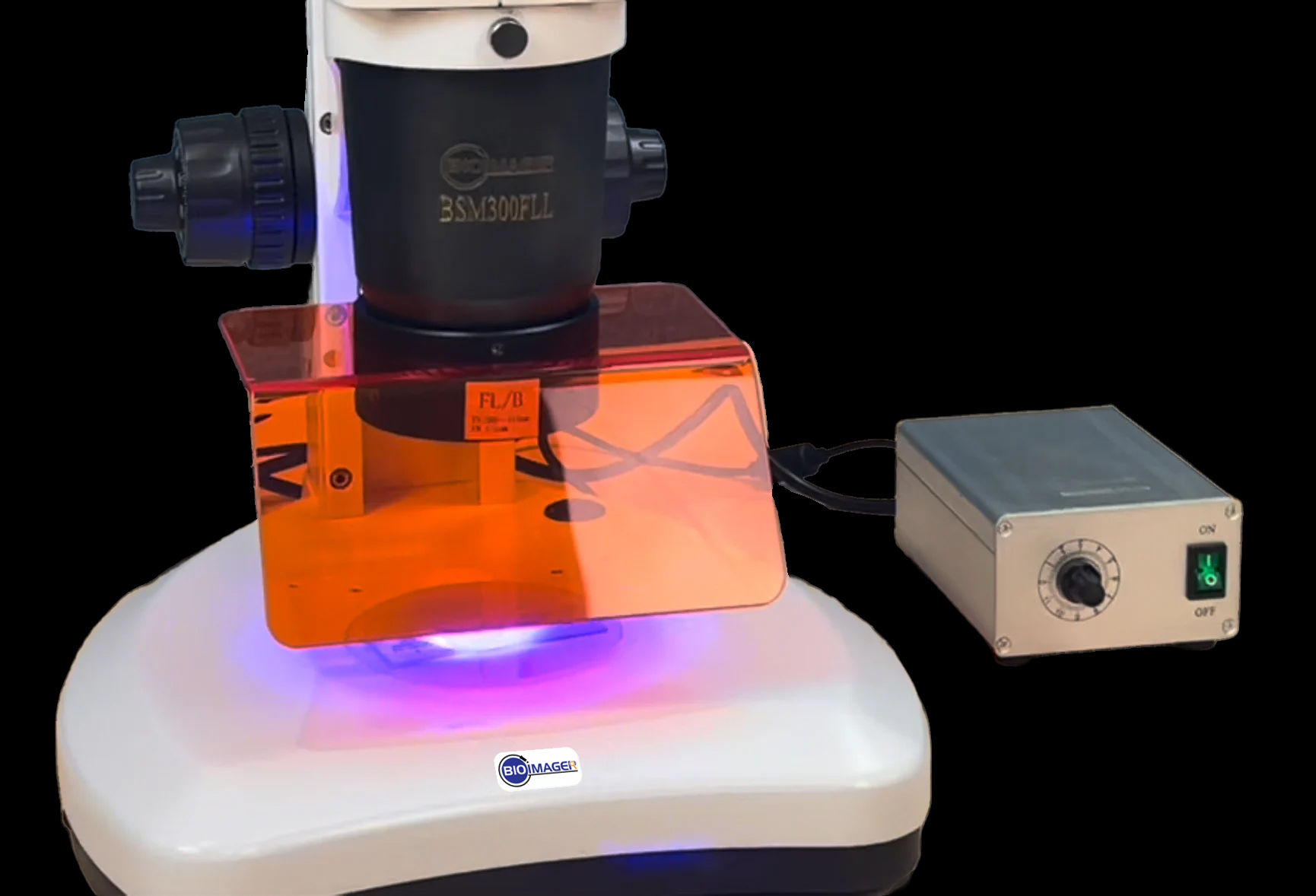

Epi-LED Fluorescence Illumination System (Optional):
Available in UV (330nm-400nm), Violet (395nm-415nm), Blue (420nm-485nm), and Green (460nm-550nm)
Excitation and emission wavelengths suitable for a wide range of fluorophores

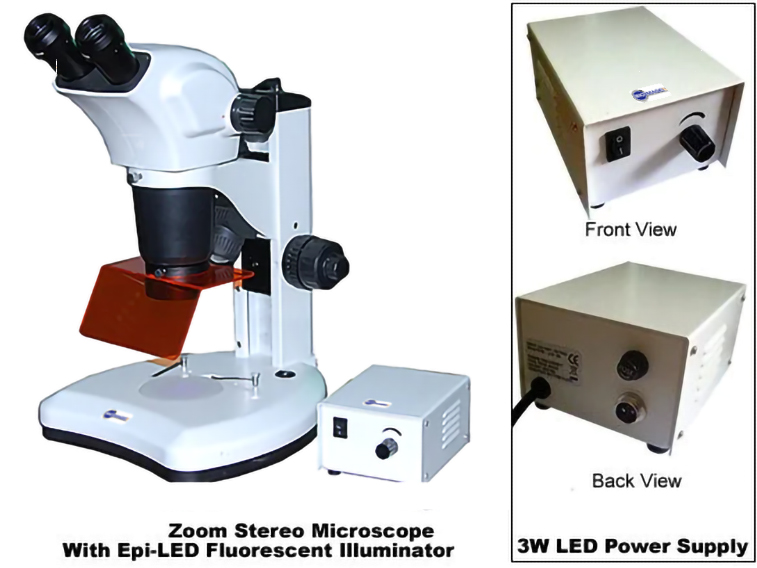

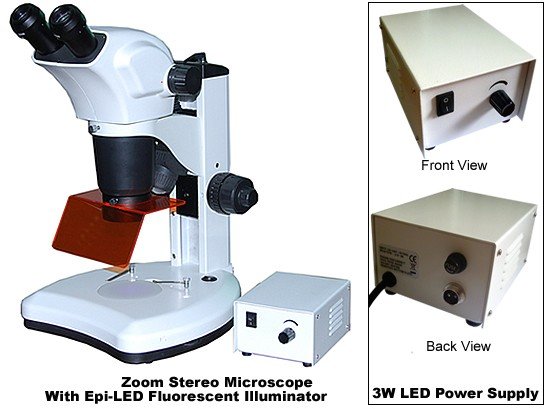

3W LED Power Supply with different filter options for fluorescence applications
Reflected & Transmitted LED Illumination:
3W LED Reflective Illumination (30W Halogen Optional)
3W LED Transmitted Illumination with specimen clips for secure slide placement

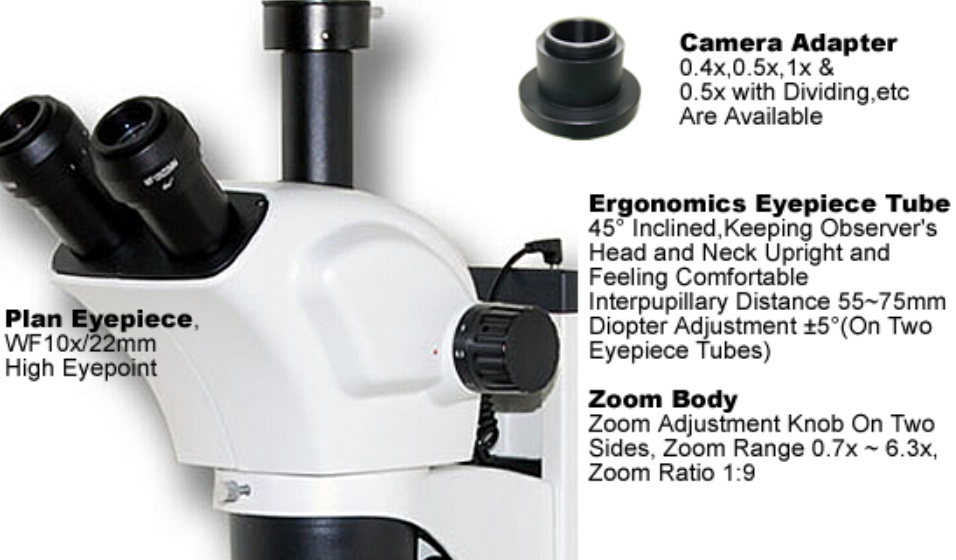

Ergonomic Binocular Eyepiece Tube:
45° inclined eyepiece tube for comfortable viewing
Diopter adjustment on both eyepieces for user-specific focus
Auxiliary Lenses for Magnification Expansion (Optional):
0.5x, 1.5x, and 2x auxiliary lenses available to extend the magnification range

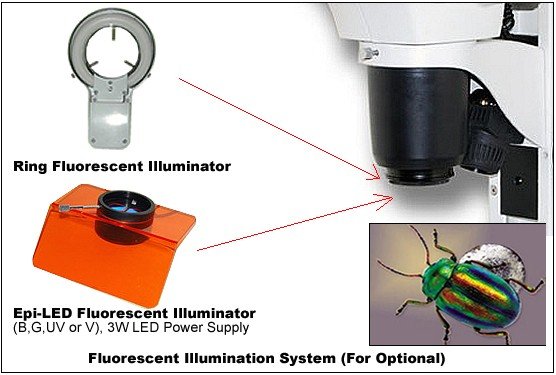

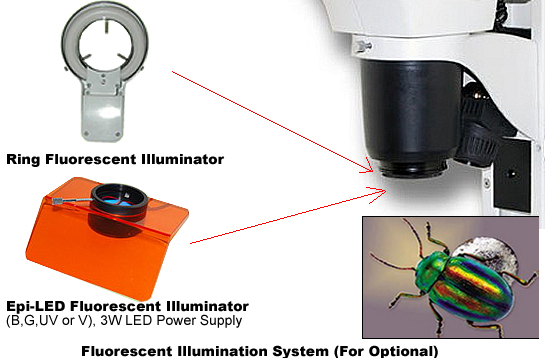

Ring Fluorescent Illuminator (Optional):
Designed to enhance image contrast and visibility

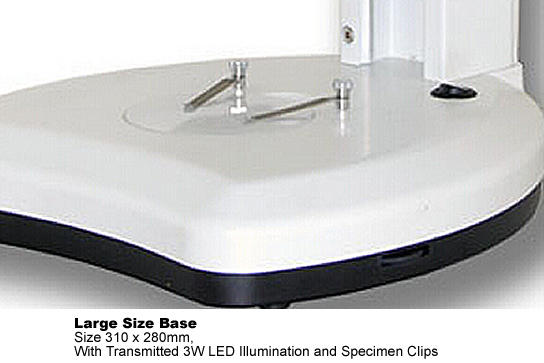

Sturdy Track Stand with Coarse & Fine Focus:

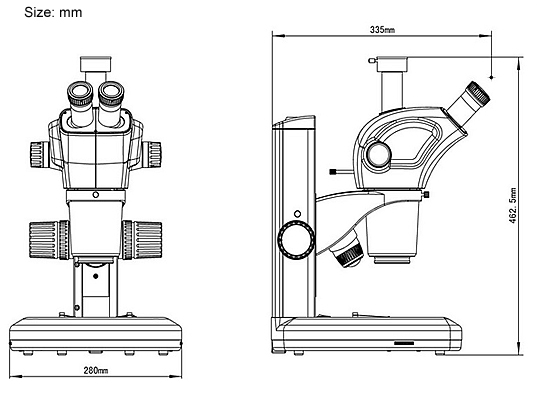

Large, heavy base (330mm x 280mm) for stability
Coarse and fine focusing mechanism for precision control

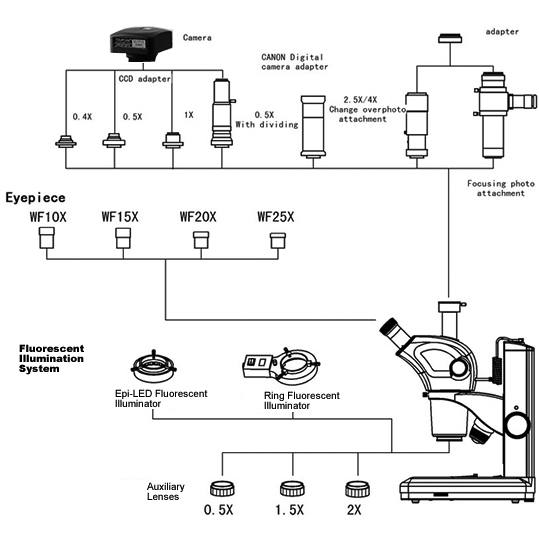

Camera Adapter Compatibility:
Supports 0.4x, 0.5x, and 1x camera adapters
Can integrate CMOS/CCD digital cameras for imaging and documentation
Applications:
Biological and medical fluorescence imaging
Industrial inspection for fluorescent-tagged samples
Live-cell imaging
Quality control in material science
Forensic and environmental analysis
The BSM300FLL LED Epi-Fluorescence Stereo Microscope is an excellent choice for researchers and professionals who require high-quality fluorescence imaging with a versatile stereo zoom system.
