1 Inch SWIR Series MACHINE VISION LENSES $USD 1,450.00 – $USD 1,500.00

2/3 Inch SWIR Series MACHINE VISION LENSES

$USD 880.00 – $USD 990.00

Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back
Model Number Wavelength (nm) Resolution (lp/mm) Focal Length (mm) F/# Optical Distortion Field Angle (D/H/V) Working Distance Filter Thread Mount
BPL-0814SWIR-S 900-1700 60 8.5 F1.4-F16 -1.20% 61° / 54.8° / 42.8° 0.2m-∞ M35.5×0.5 C
BPL-1214SWIR-S 900-1700 40 12.5 F1.4-F22 -0.40% 46.8° / 38.2° / 29.2° 0.2m-∞ M35.5×0.5 C
BPL-1614SWIR-S 900-1700 40 16.3 F1.4-F22 -0.40% 36.6° / 29.6° / 22.4° 0.2m-∞ M35.5×0.5 C
BPL-2514SWIR-S 900-1700 60 25.9 F1.4-F16 -0.50% 23.6° / 19° / 14.4° 0.2m-∞ M35.5×0.5 C
BPL-3514SWIR-S 900-1700 60 35 F1.4-F16 -0.05% 17.4° / 14° / 10.6° 0.15m-∞ M35.5×0.5 C
BPL-5020SWIR-S 900-1700 60 50 F2.0-F32 -0.10% 12.36° / 9.92° / 7.45° 0.4m-∞ M35.5×0.5 C
BPL-NV7525SWIR 900-1700 90 75 F2.5-F16 0.32% 6.24° / 4.98° / 3.72° 265mm-480mm M30.5×0.5 C

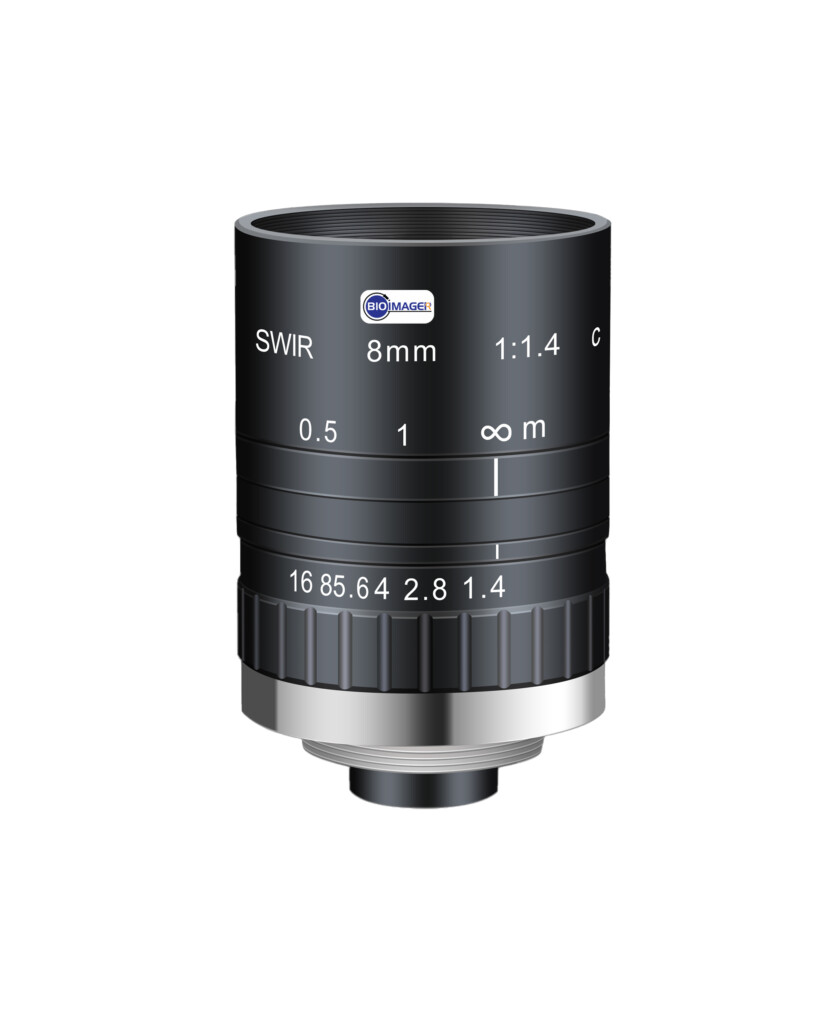

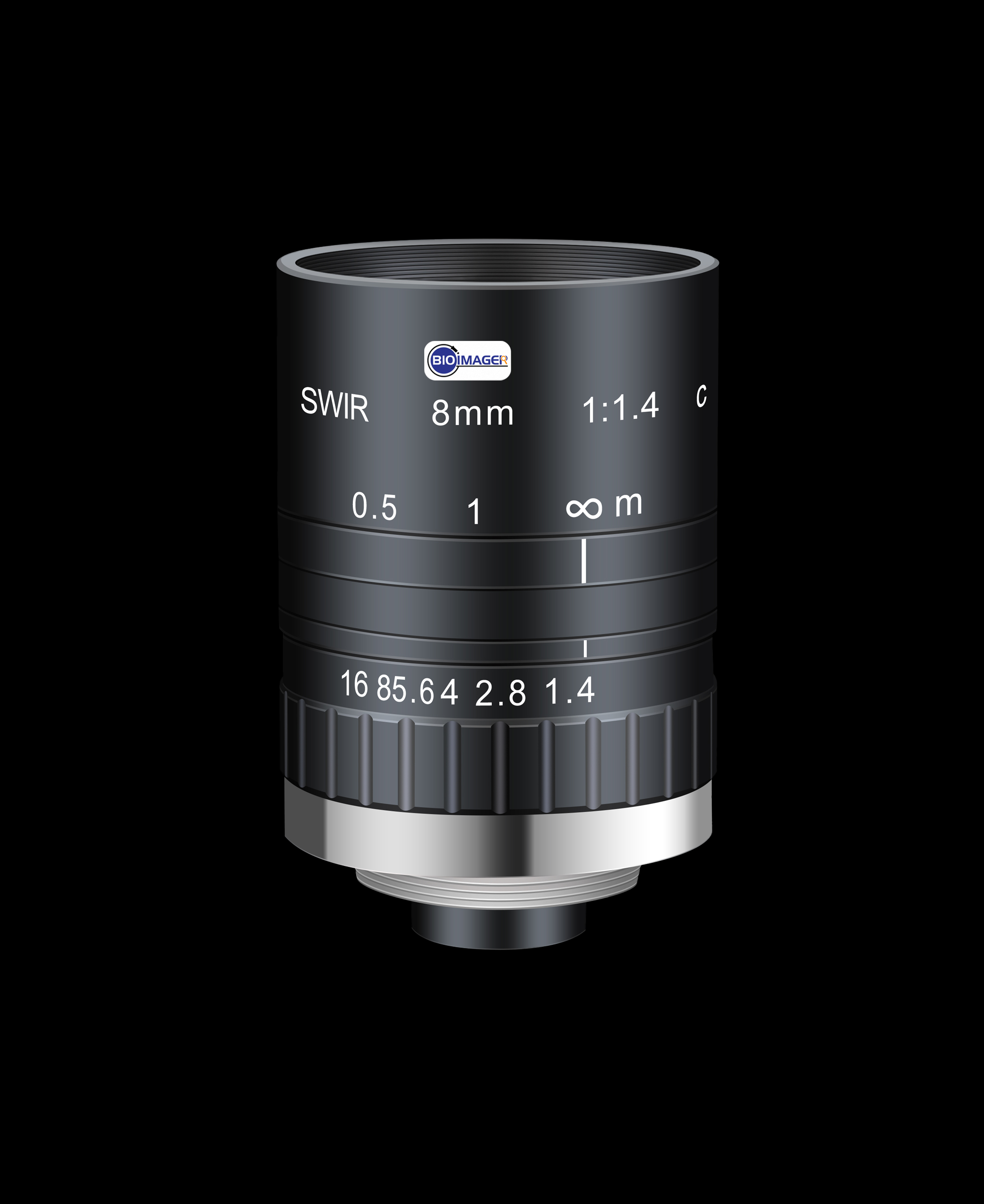

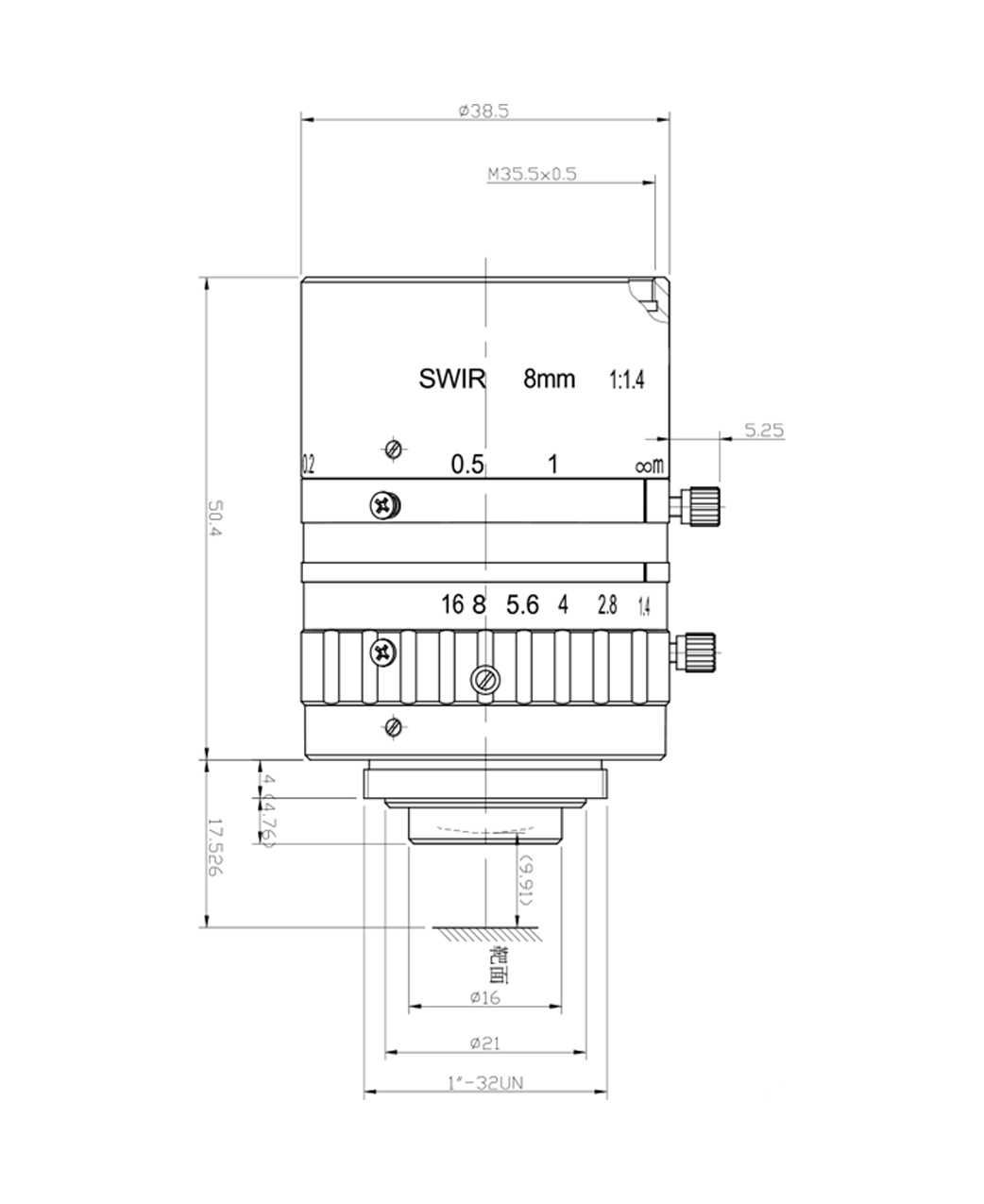

BPL-0814SWIR-S:

Resolution 60p/mm
Format 2/3″
Mount C
Focal Length 8.5mm
F/No F1.4~F16
Back Focus 9.91mm
Iris Type M-Iris
Angle of view (DXVXH) 2/3″ Format 61° x 42.8° x 51.8°
1/2″ Format 53.1° x 33.4° x 43.6°
1/3″ Format 41.1° x 25.4° x 33.4°
Distortion <-1.2%
Working Distance 0.2m~ ∞
Design Wavelength 900~1700nm
Filter Thread M35.5 x 0.5
Dimension ∅38.5 x 50.4mm
Weight 156g

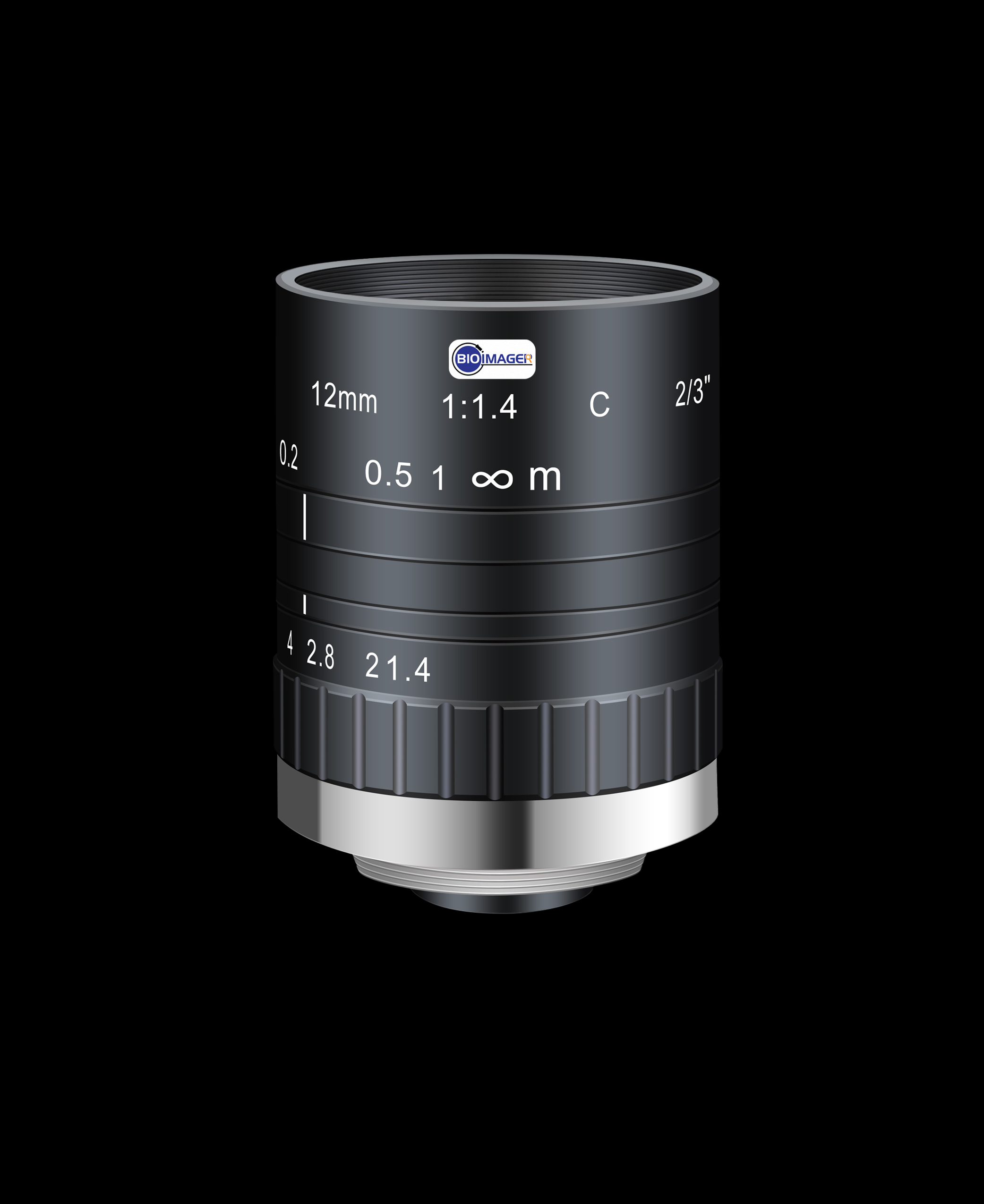

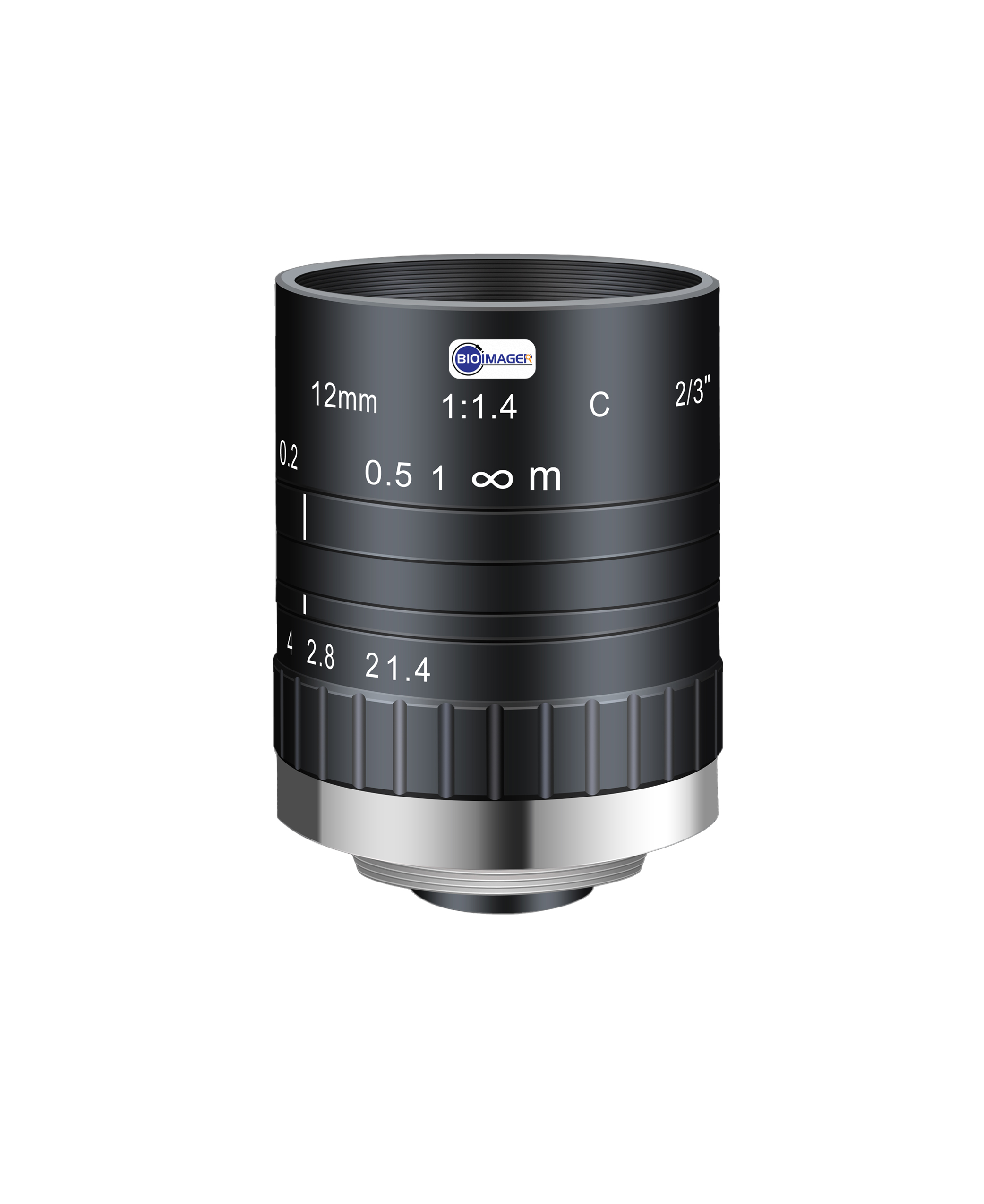

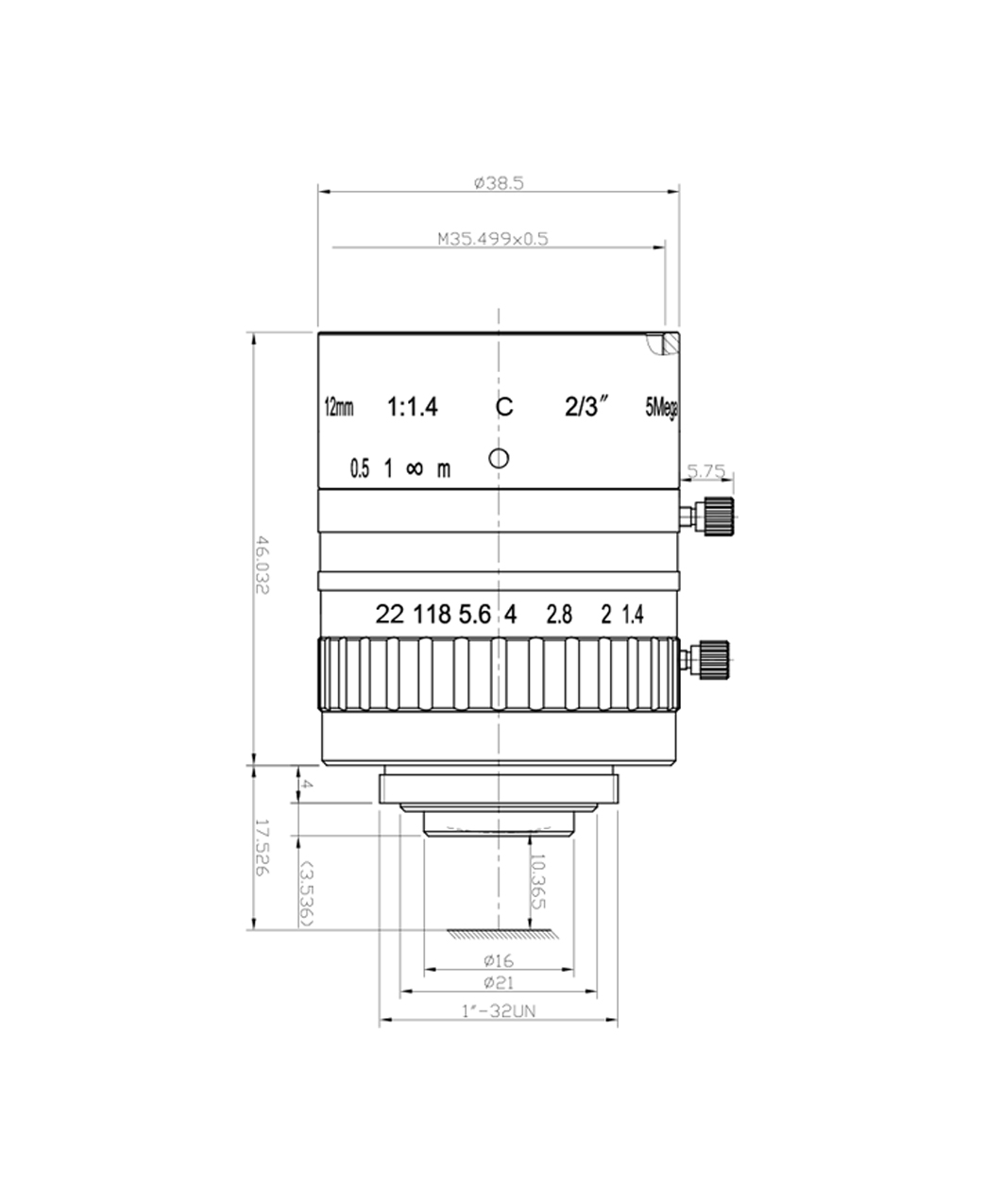

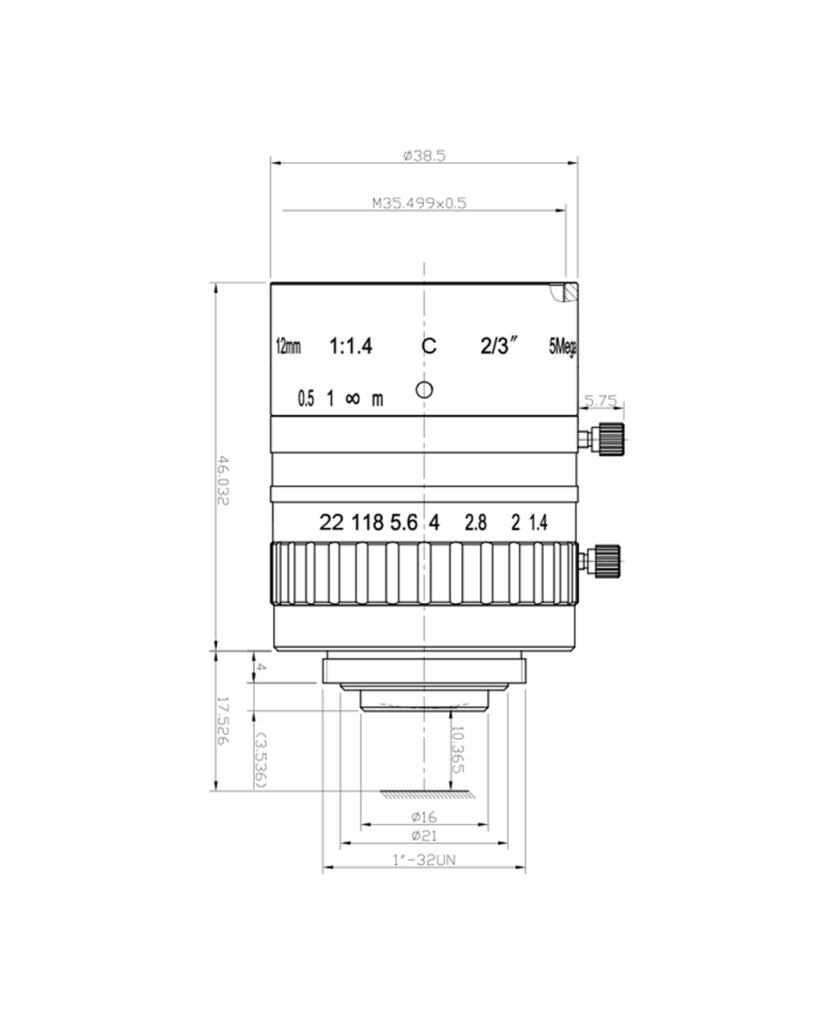

BPL-1214SWIR-S

Resolution 40Ip/mm
Format 2/3″
Mount C
Focal Length 12.5 mm
F/No F1.4~F22
Back Focus 10.365 mm
Iris Type M-Iris
Angle of view (DXVXH) 2/3″ Format 46.8° x 29.2° x 48.2°
1/2″ Format 35.5° x 21.7° x 25.7°
1/3″ Format 27° x 16.4° x 21.7°
Distortion <-0.4%
Working Distance 0.2m~ ∞
Design Wavelength 900~1700nm
Filter Thread M35.5×0.5
Dimension ∅38.5×46.03 mm
Weight 150g

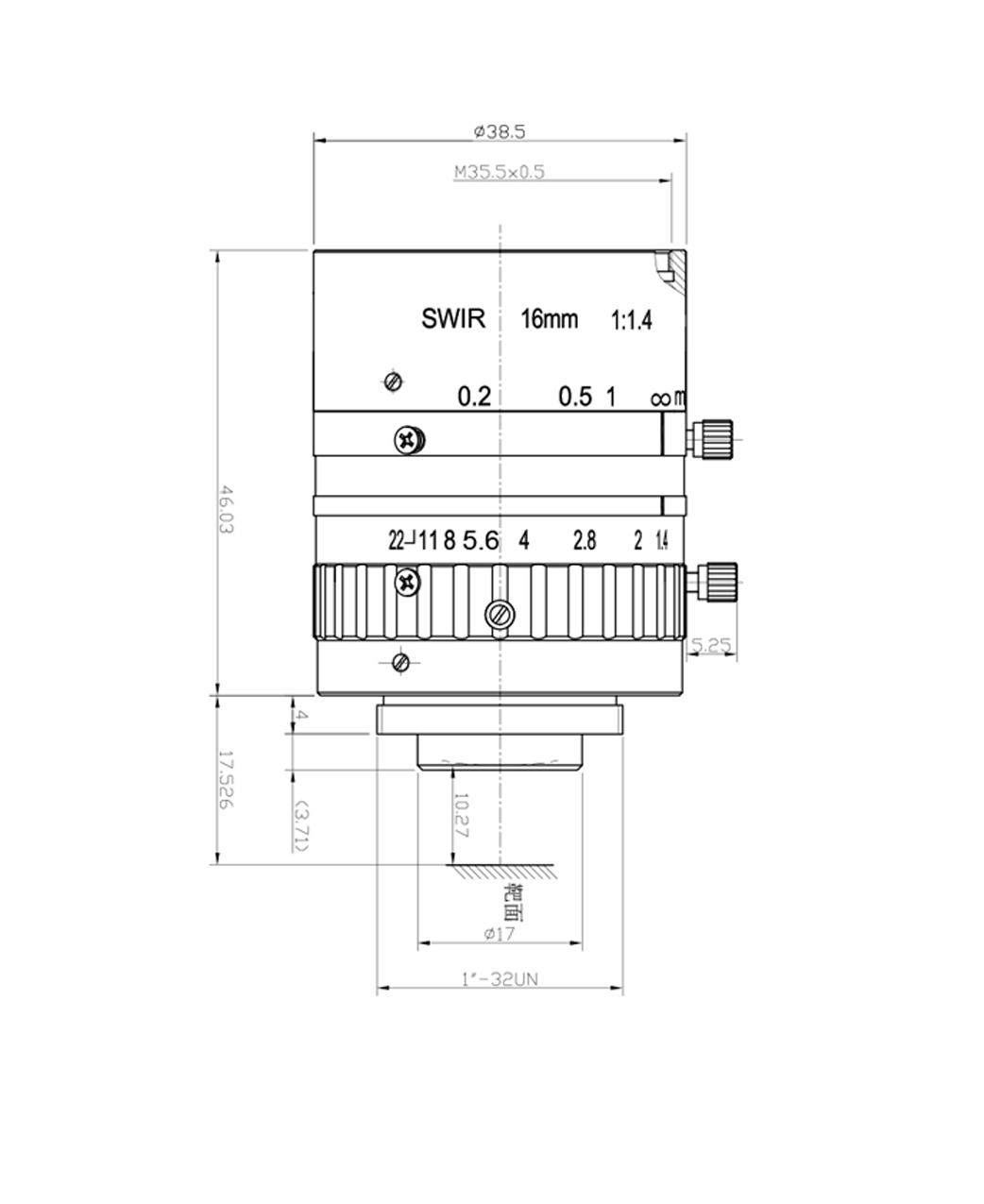

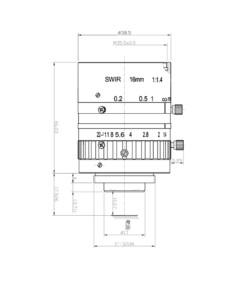

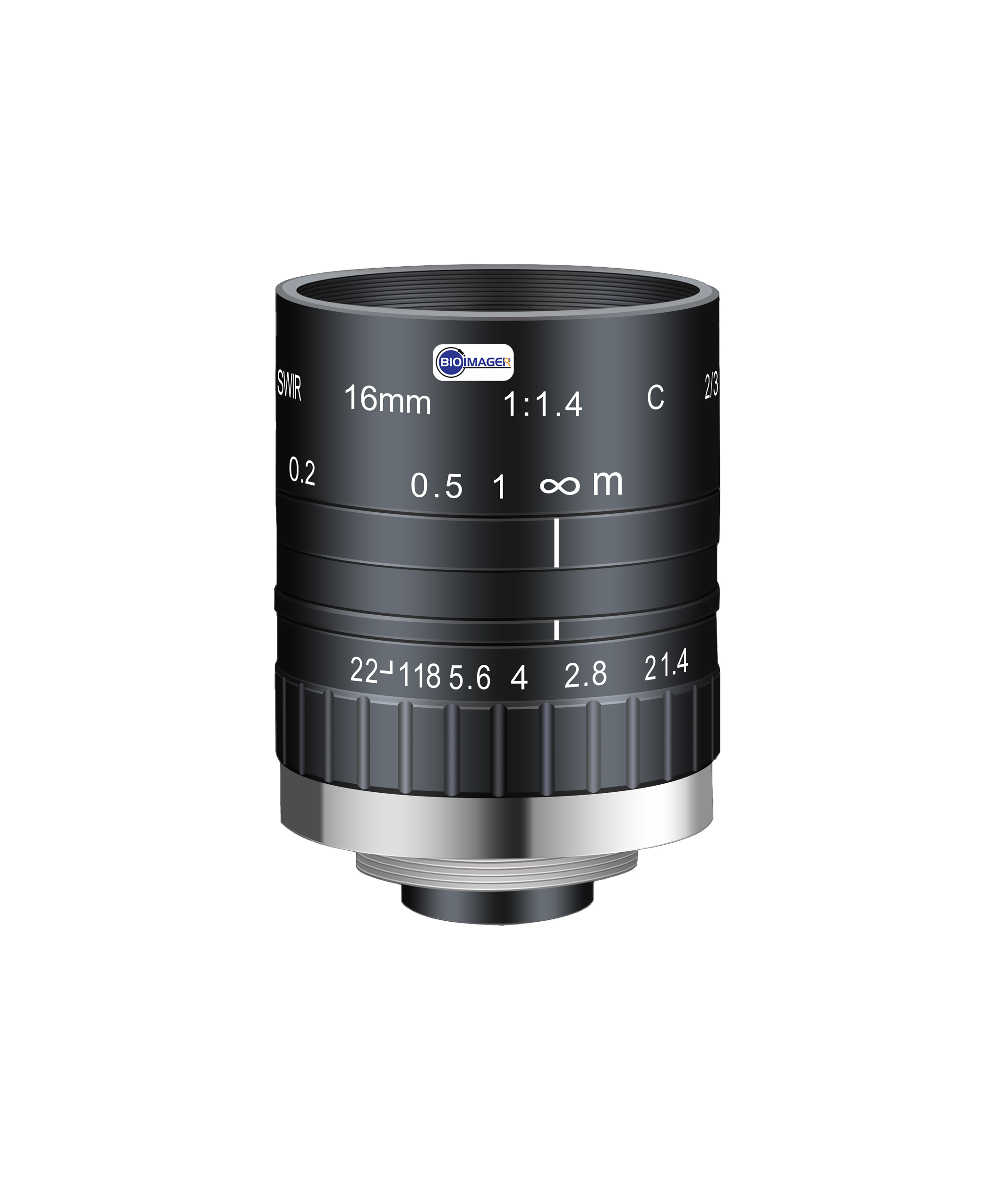

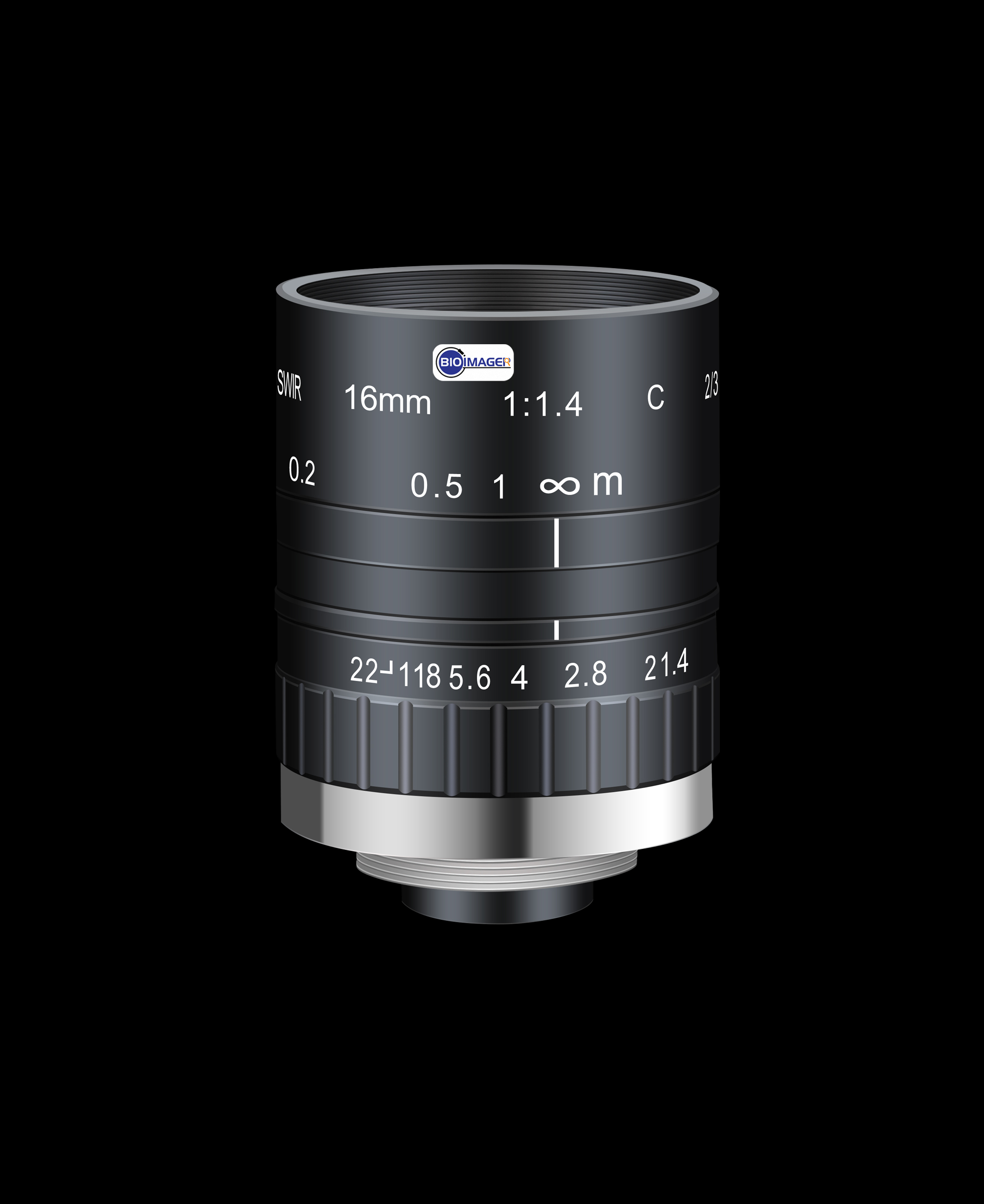

BPL-1614SWIR-S

Resolution 40Ip/mm
Format 2/3″
Mount C
Focal Length 16.3 mm
F/No F1.4~F22
Back Focus 10.27 mm
Iris Type M-Iris
Angle of view (DXVXH) 2/3″ Format 36.6° x 22.4° x 29.6°
1/2″ Format 27.6° x 16.8° x 22.2°
1/3″ Format 20.9° x 12.6° x 16.8°
Distortion <-0.4%
Working Distance 0.2m~ ∞
Design Wavelength 900~1700nm
Filter Thread M35.5 x 0.5
Dimension ∅38.5×46.03 mm
Weight 139g

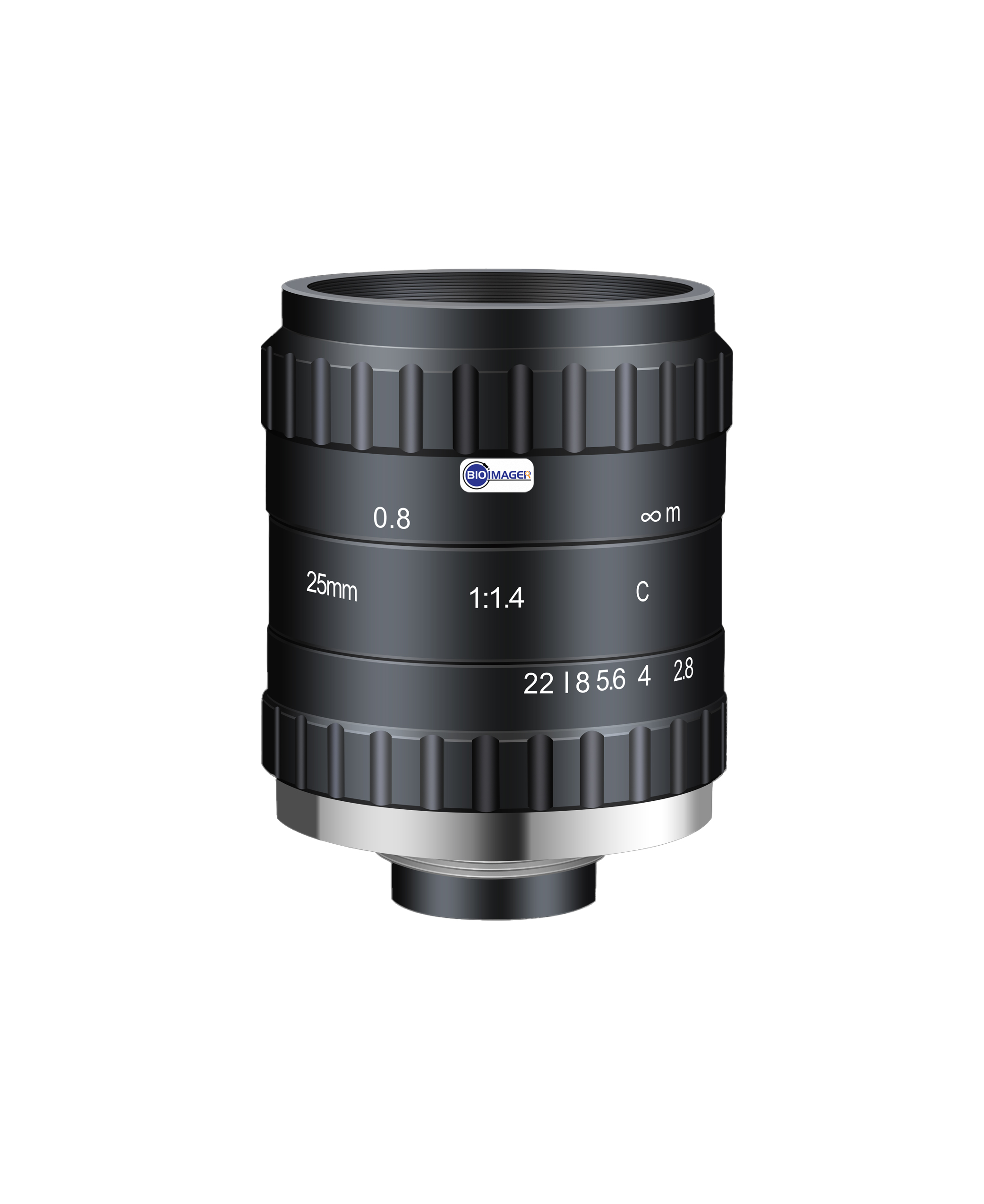

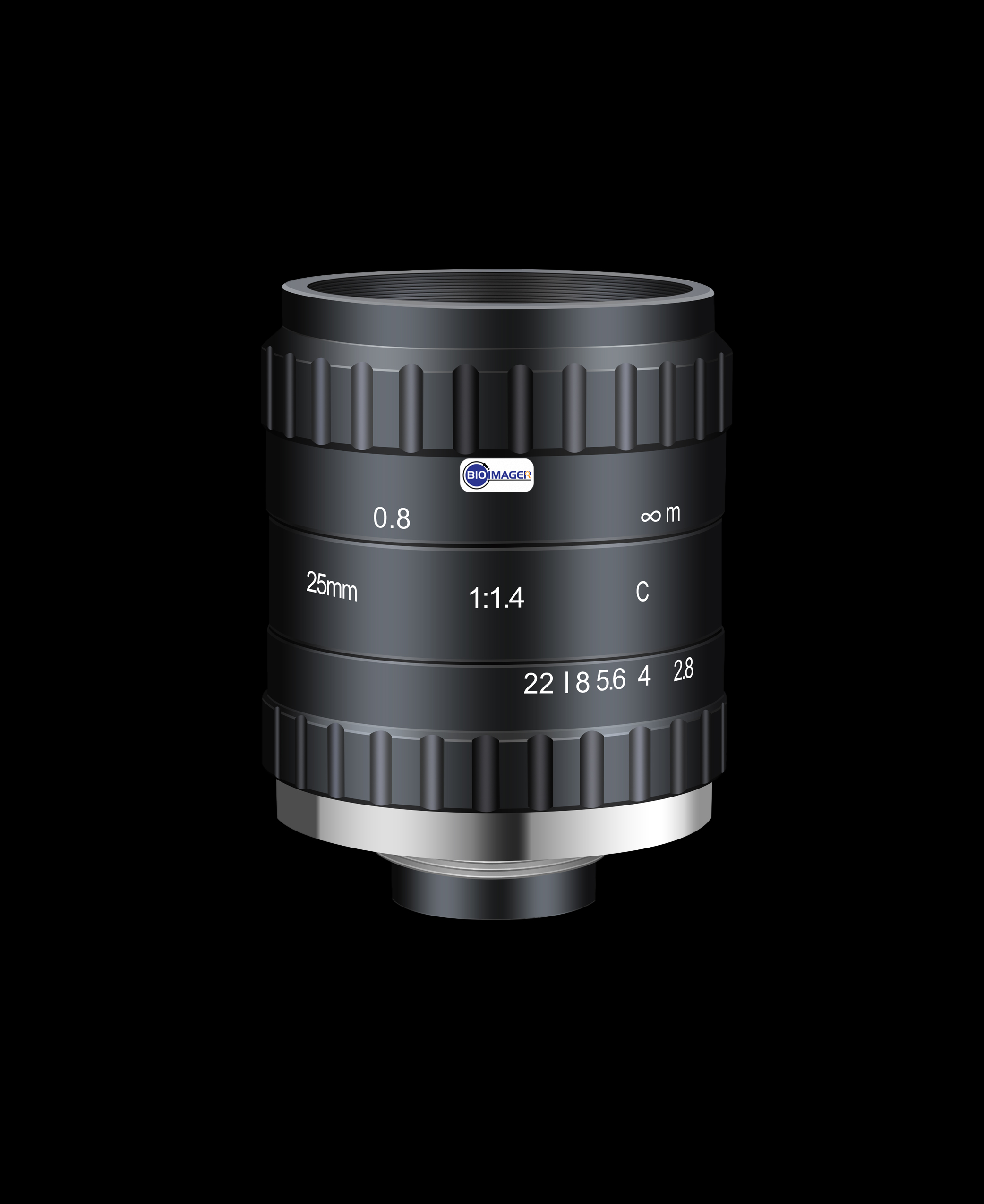

BPL-2514SWIR-S

Resolution 60Ip/mm
Format 2/3″
Mount C
Focal Length 25.9 mm
F/No F1.4~F16
Back Focus 9.98 mm
Iris Type M-Iris
Angle of view (DXVXH) 2/3″ Format 23.6° x 14.4° x 19°
1/2″ Format 17.6° x 10.6° x 14.1°
1/3″ Format 13.2° x 8° x 10.6°
Distortion <-0.5%
Working Distance 0.5m~ ∞
Design Wavelength 900~1700nm
Filter Thread M35.5 x 0.5
Dimension ∅38.5 x 34.61 mm
Weight 110g

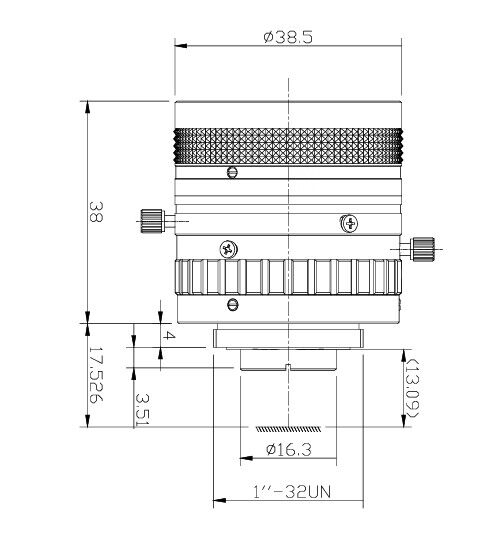

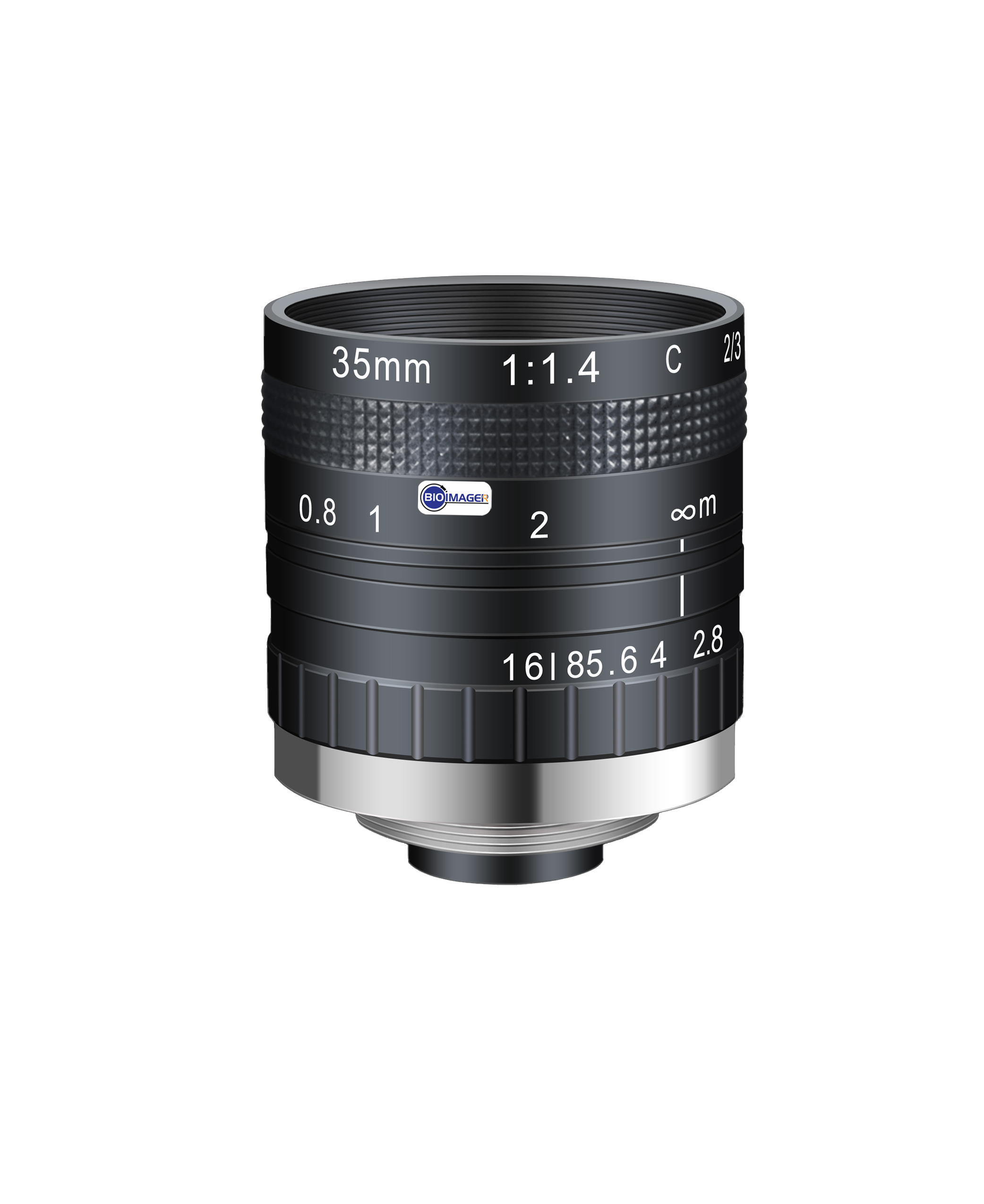

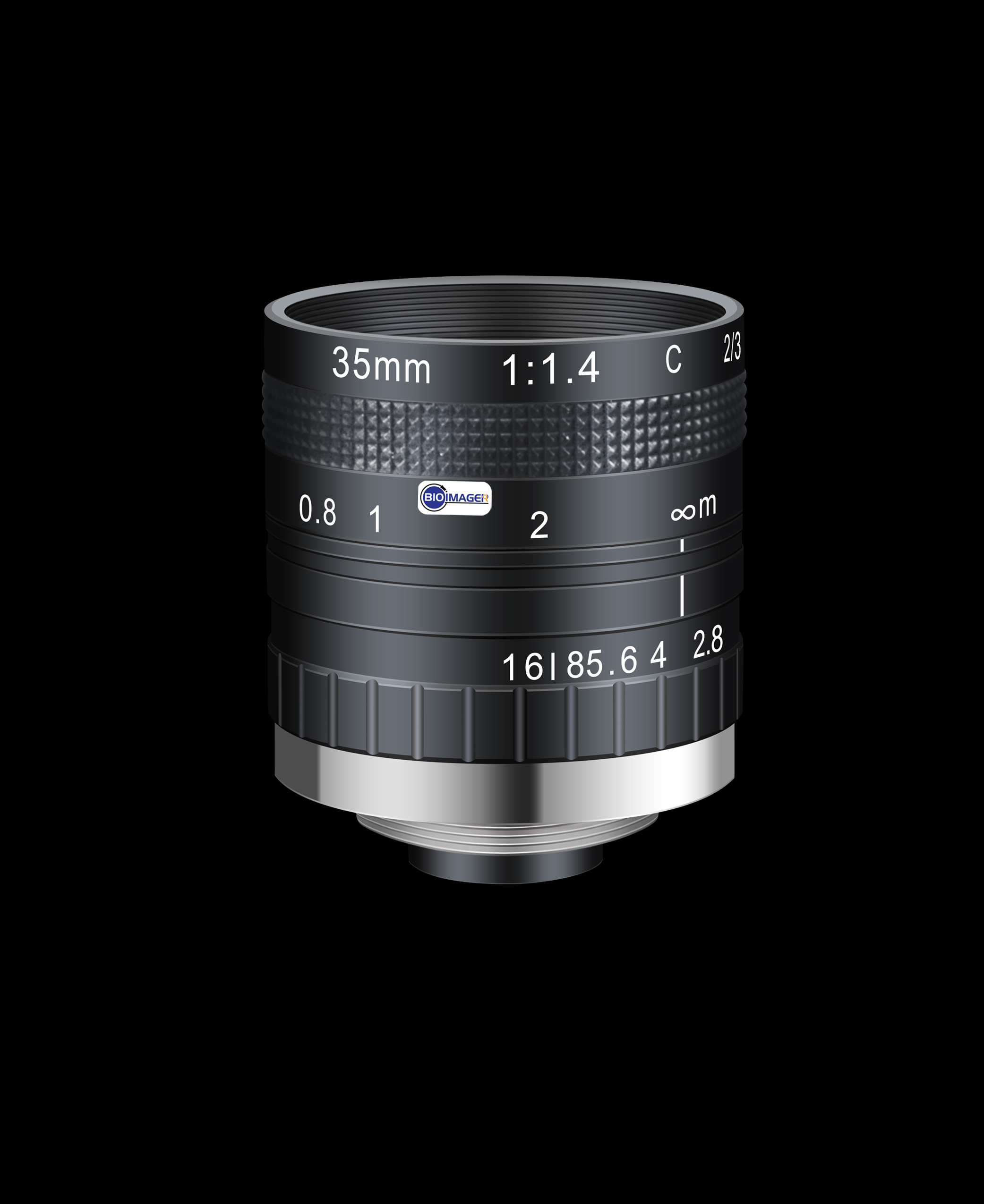

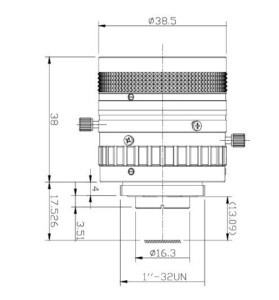

BPL-3514SWIR-S

Resolution 60Ip/mm
Format 2/3″
Mount C
Focal Length 35 mm
F/No F1.4~F16
Back Focus 13.09 mm
Iris Type M-Iris
Angle of view (DXVXH) 2/3″ Format 17.4° x 10.6° x 14°
1/2″ Format 13.04° x 7.85° x 10.45°
1/3″ Format 9.8° x 5.89° x 7.85°
Distortion <-0.5%
Working Distance 0.15m~ ∞
Design Wavelength 900~1700nm
Filter Thread M35.5 x 0.5
Dimension ∅38.5 x 38 mm
Weight 120g

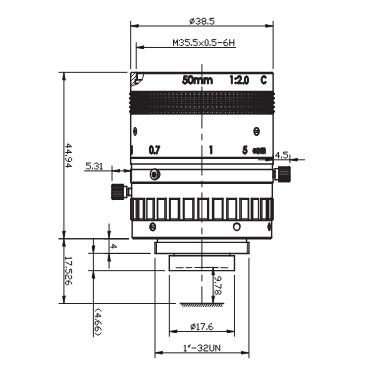

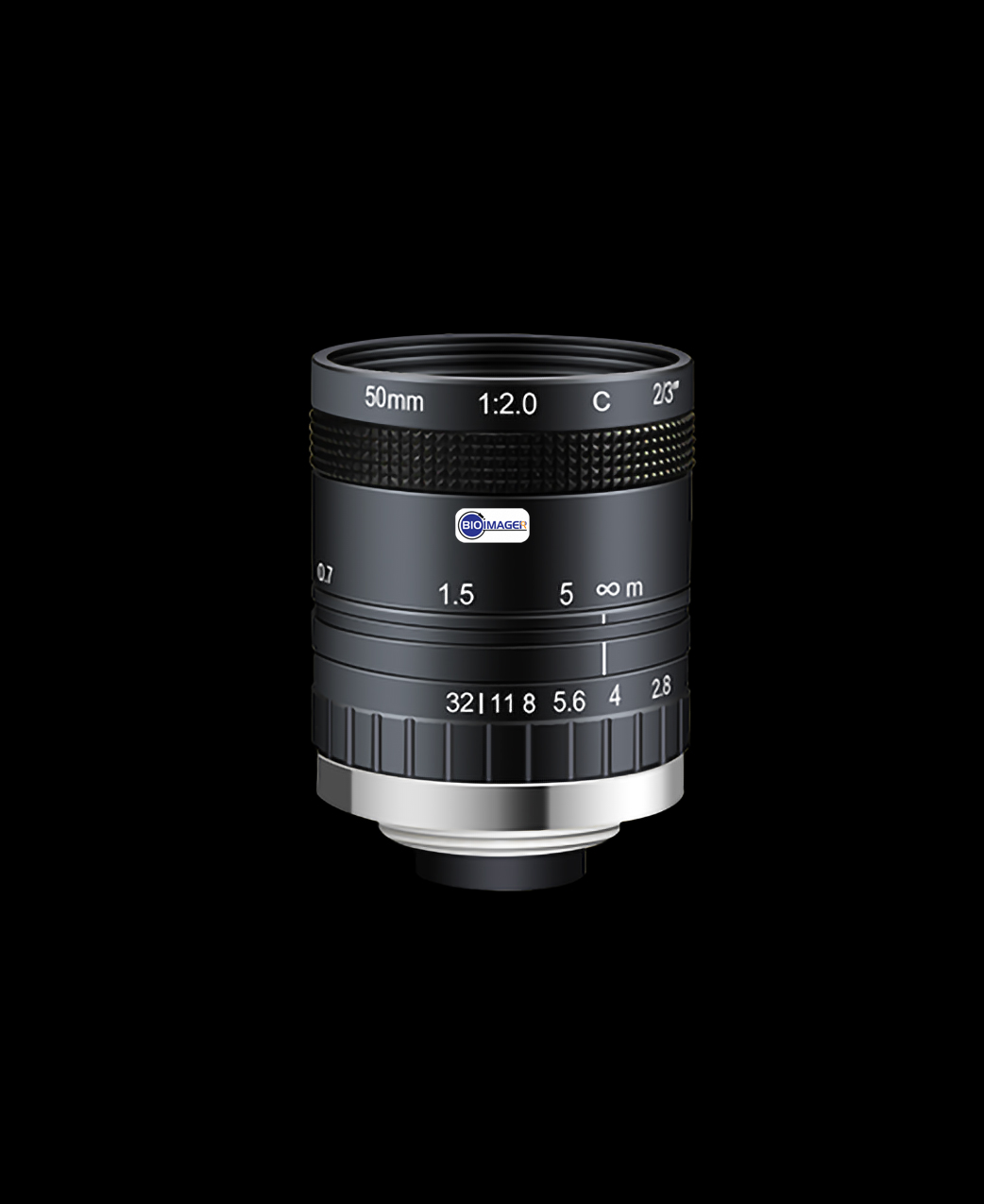

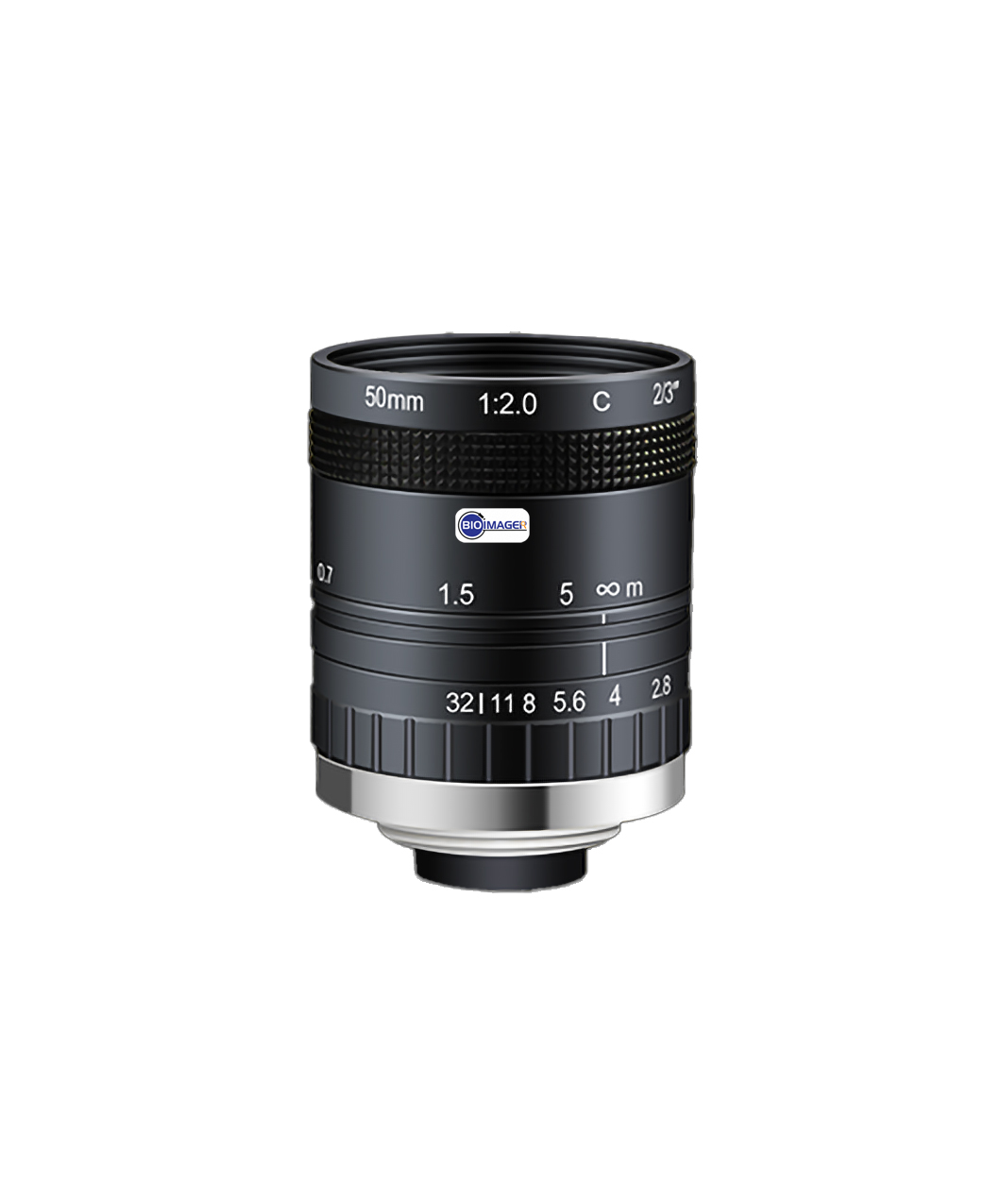

BPL-5020SWIR-S

Resolution 60Ip/mm
Format 2/3″
Mount C
Focal Length 50 mm
F/No F2~F32
Back Focus 9.78 mm
Iris Type M-Iris
Angle of view (DXVXH) 2/3″ Format 12.36° x 7.45° x 9.92°
1/2″ Format 9.04° x 5.42° x 7.24°
1/3″ Format 6.78° x 4.08° x 5.42°
Distortion <-0.1%
Working Distance 0.4m~ ∞
Design Wavelength 900~1700nm
Filter Thread M35.5 x 0.5
Dimension ∅38.5 x 44.94 mm
Weight 152g
