1 Inch SWIR Series MACHINE VISION LENSES

$USD 1,450.00 – $USD 1,500.00

Model Name

Clear

Add to Wishlist

Questions? Request a Call Back

Model Number	Wavelength (nm)	Resolution (lp/mm)	Focal Length (mm)	F/#	Optical Distortion	Field Angle (D)	Field Angle (H)	Field Angle (V)	Working Distance	Filter Thread	Mount
BPL-2518SWIR	900-1700	100	25	F1.8-F16	-0.50%	35.49°	28.5°	21.74°	0.3m-∞	M30.5 x 0.5	C
BPL-3514SWIR	900-1700	50	35	F1.4-F16	0.08%	25.75°	20.57°	15.62°	0.3m-∞	M37x0.75	C
BPL-5014SWIR	900-1700	50	50	F1.4-F16	0.05%	18.18°	14.48°	10.97°	0.5m-∞	M46x0.75	C
BPL-NV2514SWIR	900-1700	40	25	F1.4-F22	-0.15%	36°	27.8°	21°	0.3m-∞	M40.5×0.5	C

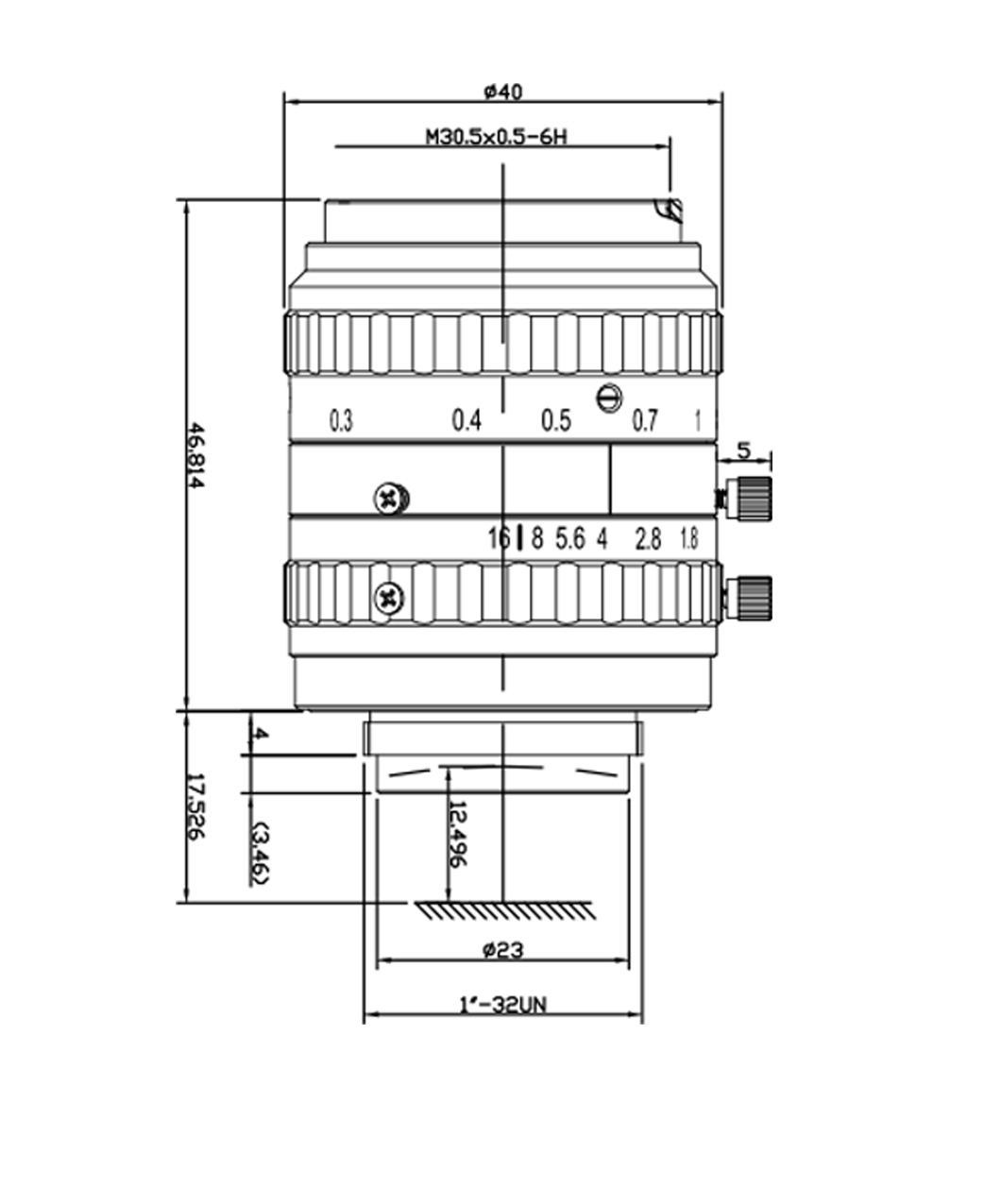

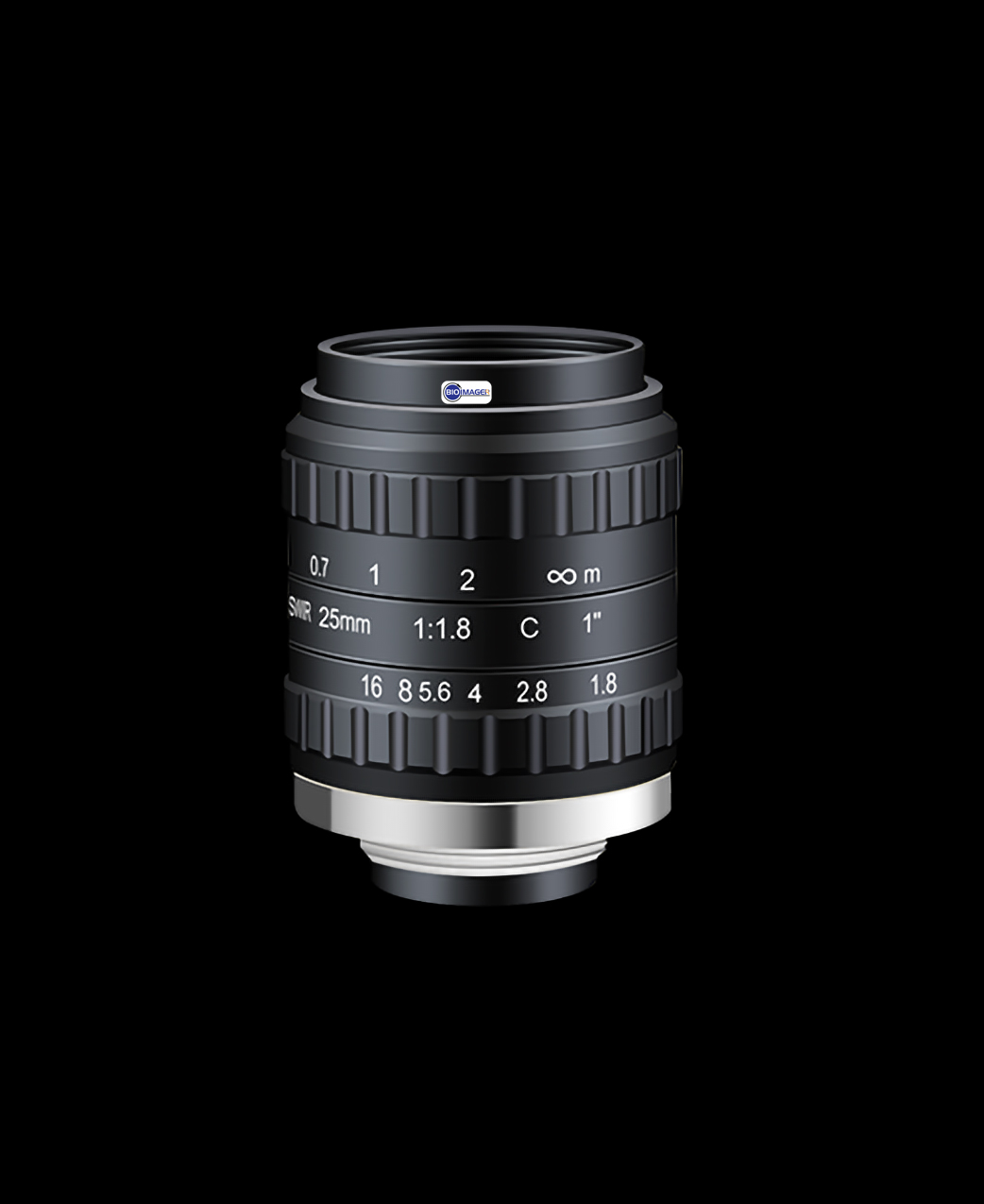

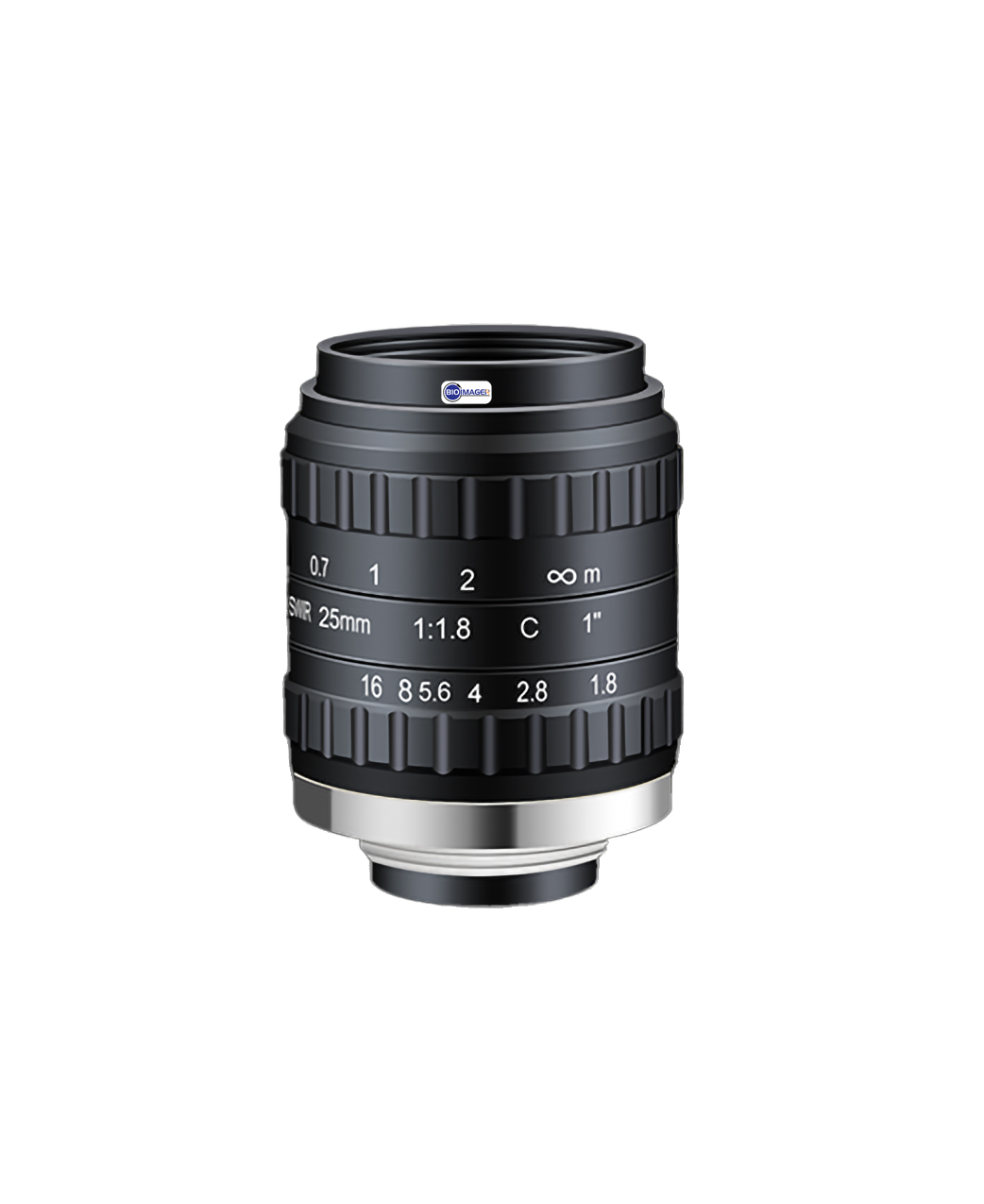

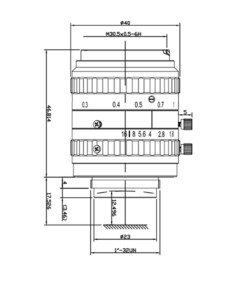

BPL-2518SWIR

Resolution		100lp/mm
Format		1″
Mount		C
Focal Length		25mm
F/No		F1.8~F16
Back Focus		12.496mm
Iris Type		M-Iris
Angle of view (DXVxH)	1″Format	35.49°x21.74°x28.5°
	2/3″Format	24.81°x15.04°x19.96°
	1/2″Format	18.18°x10.97°x14.59°
	1/3″Format	13.69°x8.24°x10.97°
	1/4″Format	9.15°x5.5°x7.32°
Distortion		<-0.5%
Working Distance		0.3m~∞
Design Wavelength		900~1700nm
Filter Thread		M30.5×0.5
Dimension		Ø40×46.81mm
Weight		145g

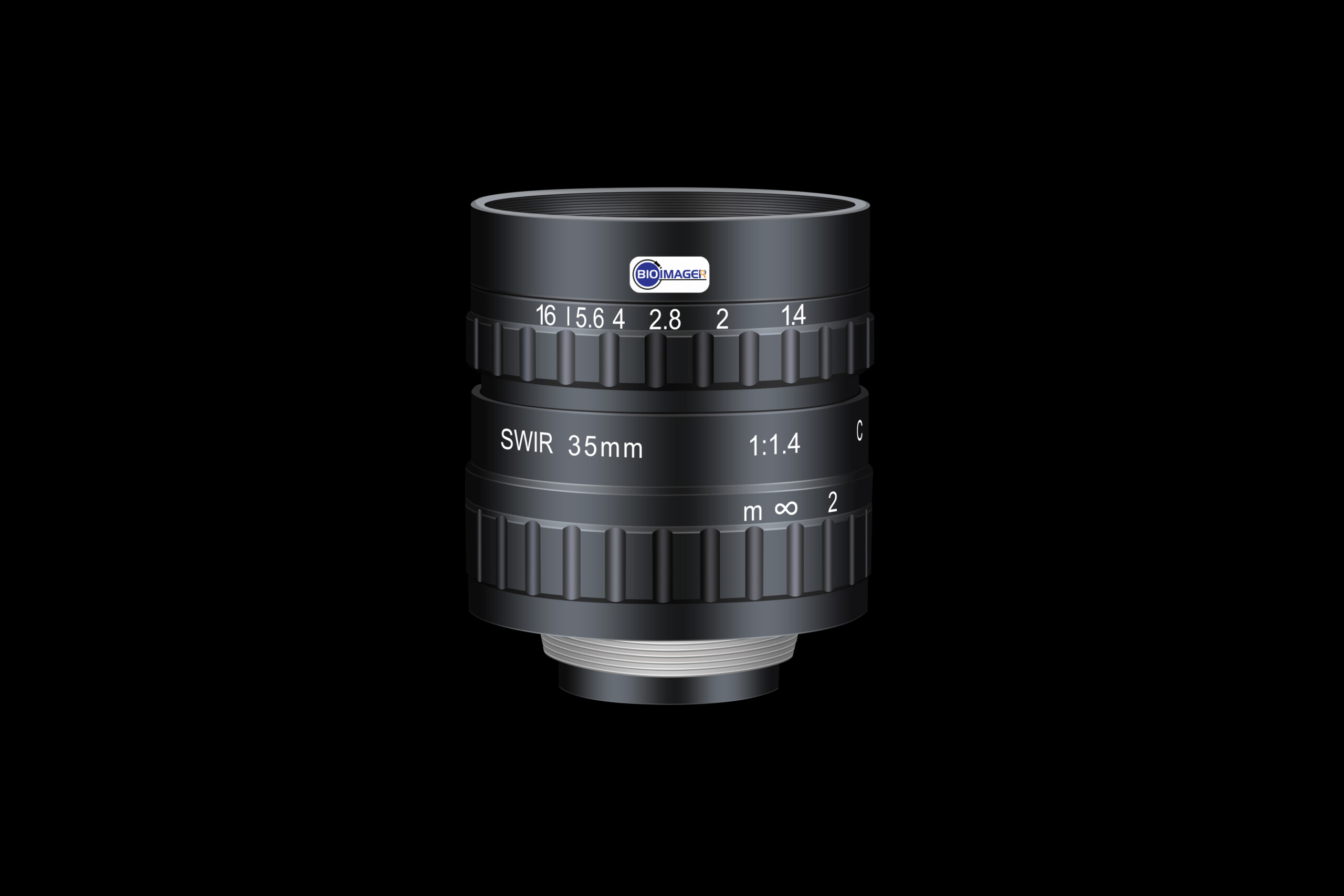

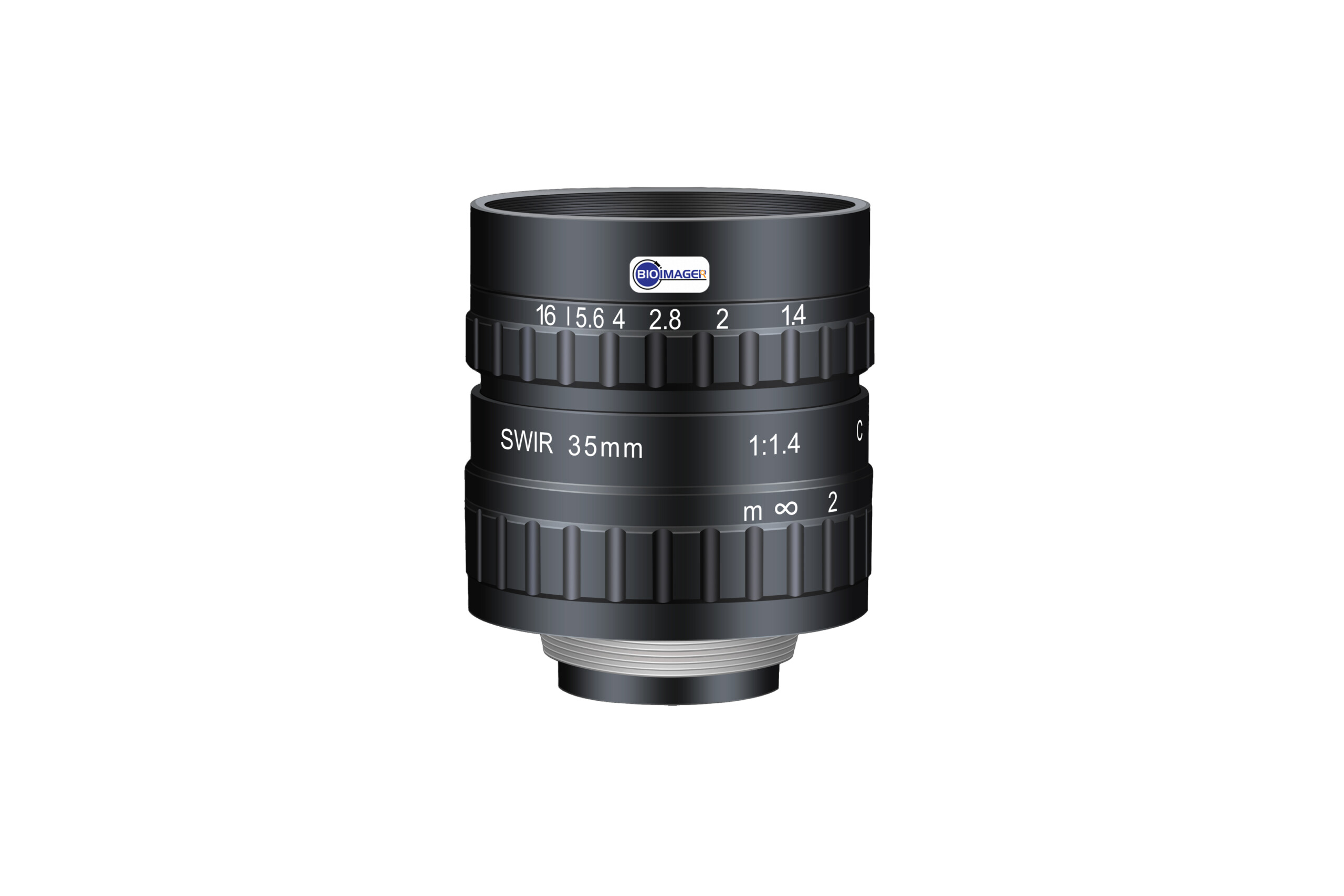

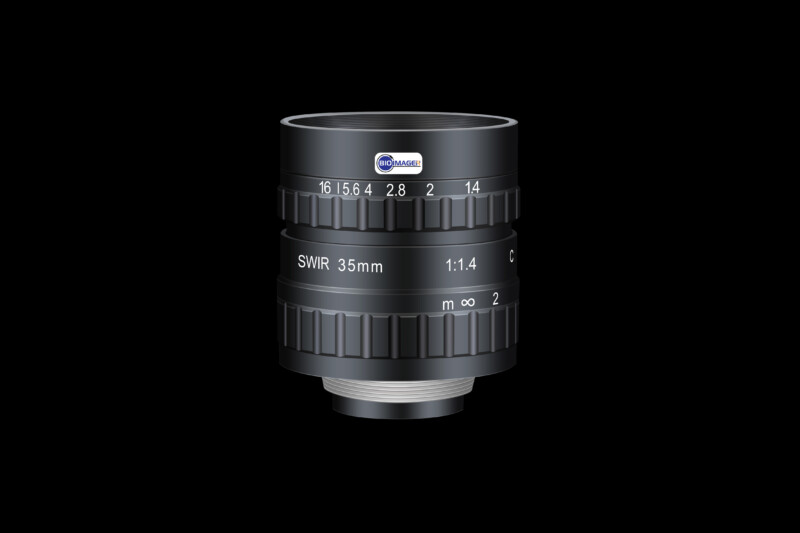

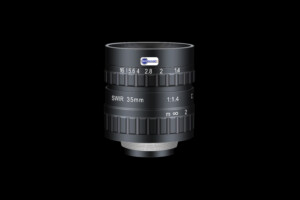

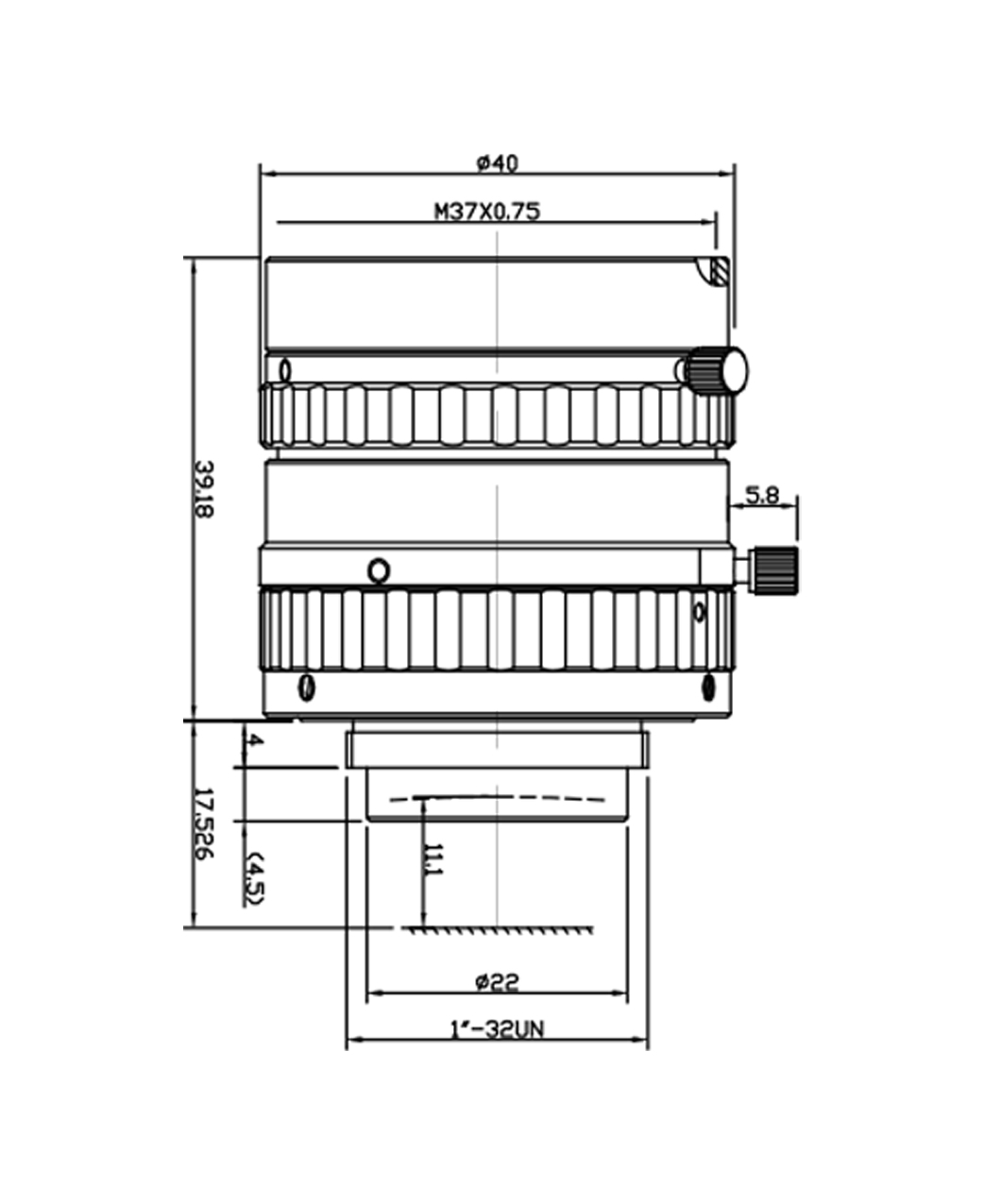

BPL-3514SWIR

Resolution		50lp/mm
Format		1″
Mount		C
Focal Length		35mm
F/No		F1.4~F16
Back Focus		11.1mm
Iris Type		M-Iris
Angle of view (DXVxH)	1″Format	25.75°x15.62°x20.57°
	2/3″Format	17.86°x10.77°x14.33°
	1/2″Format	13.03°x7.85°x10.45°
	1/3″Format	9.8°x5.89°x7.85°
	1/4″Format	6.54°x3.93°x5.23°
Distortion		<0.08%
Working Distance		0.3m~∞
Design Wavelength		900~1700nm
Filter Thread		M37x0.75
Dimension		Ø40×39.18mm
Weight		135g

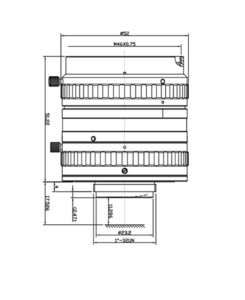

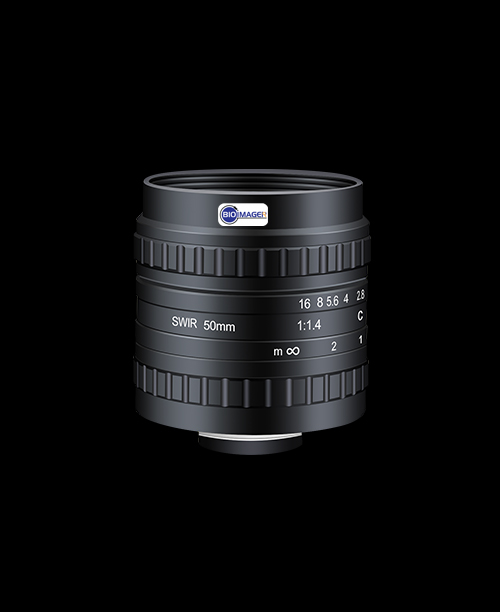

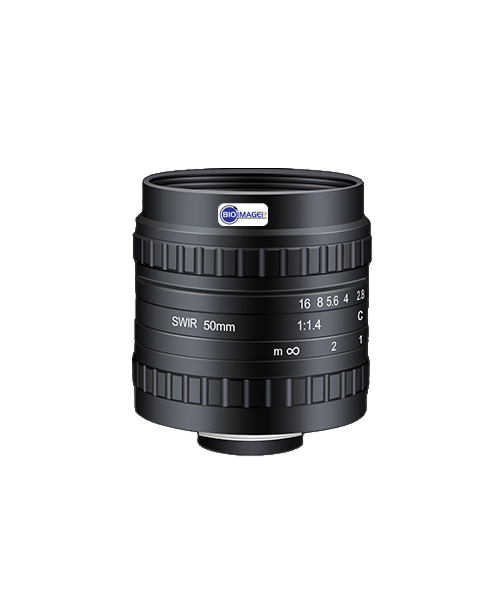

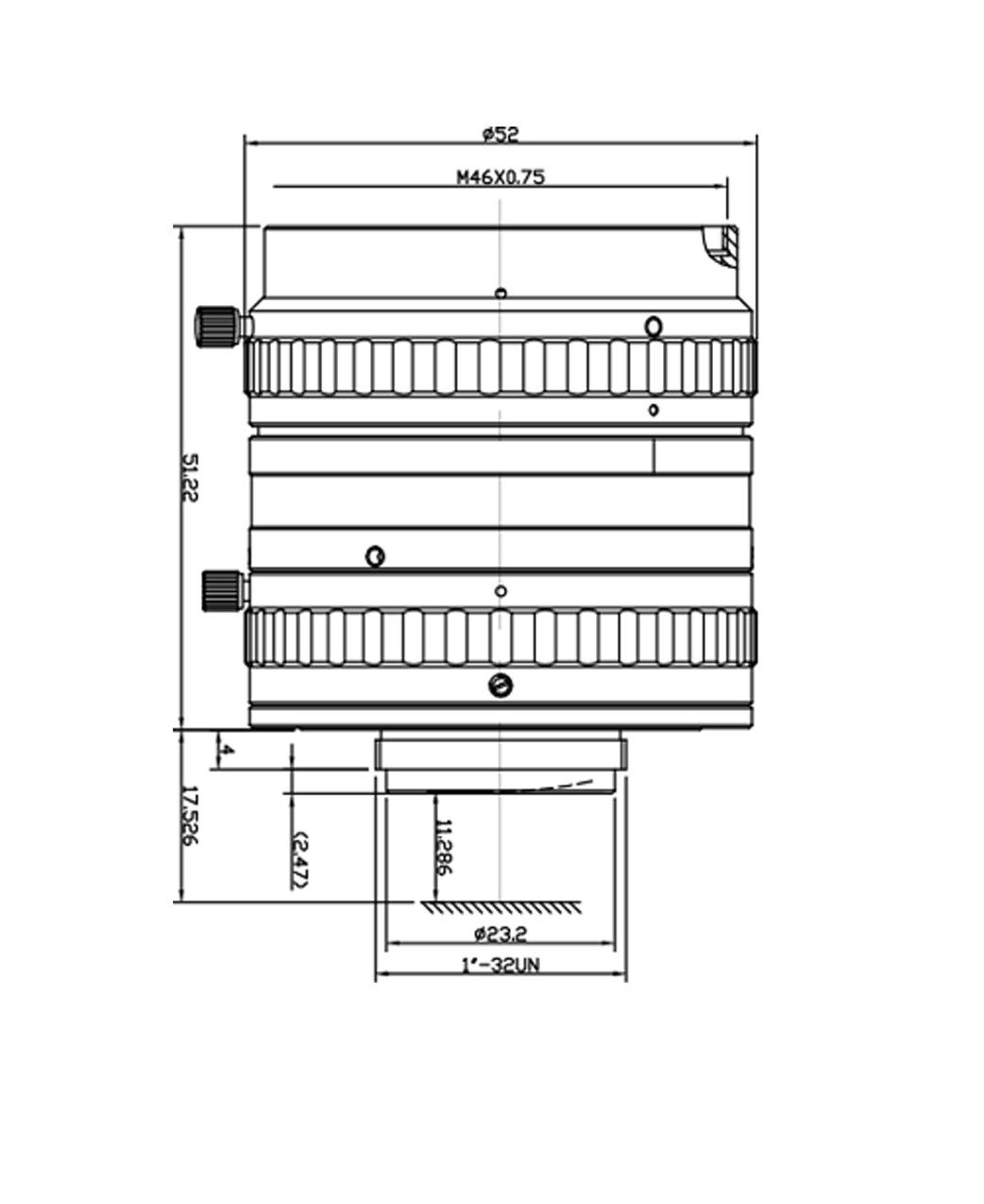

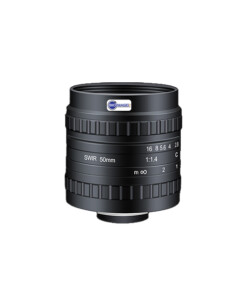

BPL-5014SWIR

Resolution		50lp/mm
Format		1″
Mount		C
Focal Length		50mm
F/No		F1.4~F16
Back Focus		11.28mm
Iris Type		M-Iris
Angle of view (DXVxH)	1″Format	18.18°x10.97°x14.48°
	2/3″Format	12.55°x7.55°x10.06°
	1/2″Format	9.15°x5.5°x7.32°
	1/3″Format	–
	1/4″Format	–
Distortion		<0.05%
Working Distance		0.5m~∞
Design Wavelength		900~1700nm
Filter Thread		M46x0.75
Dimension		Ø52×51.22mm
Weight		245g

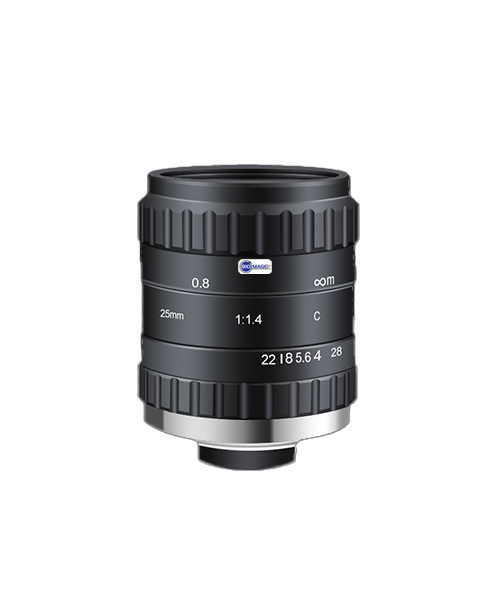

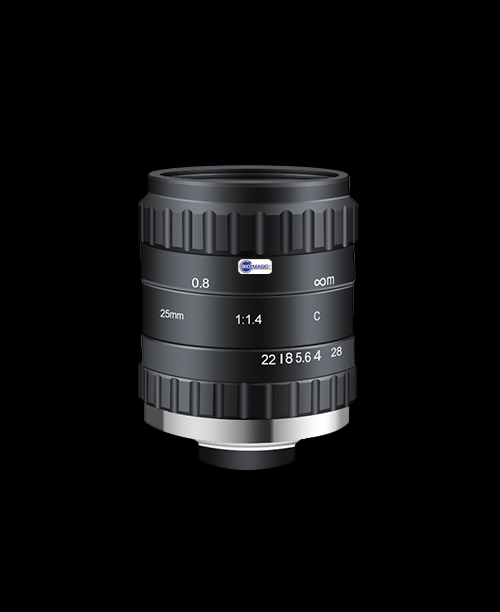

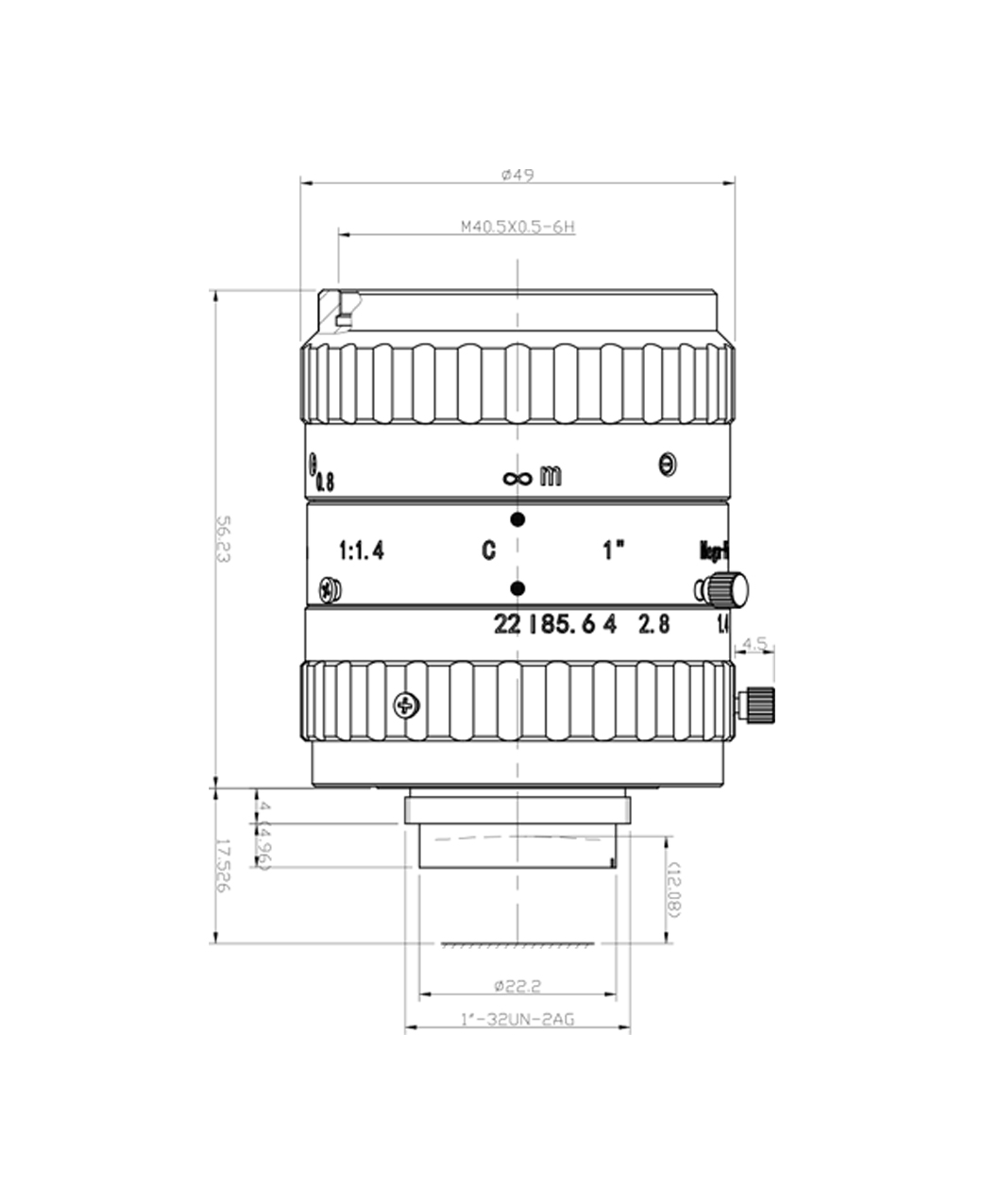

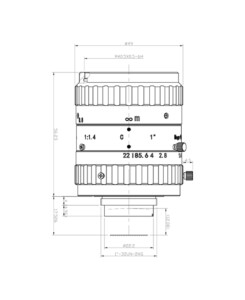

BPL-NV2514SWIR

Resolution		40lp/mm
Format		1″
Mount		C
Focal Length		25mm
F/No		F1.4~F22
Back Focus		12.08mm
Iris Type		M-Iris
Angle of view (DXVxH)	1″Format	36°x21°x27.8°
	2/3″Format	24.81°x15.04°x19.96°
	1/2″Format	18.18°x10.97°x14.59°
	1/3″Format	–
	1/4″Format	–
Distortion		<-0.15%
Working Distance		0.3m~∞
Design Wavelength		900~1700nm
Filter Thread		M40.5×0.5
Dimension		Ø49×56.23mm
Weight		270.1g
