2/3 2MP 100lp/mm FA Series Visible Light Lenses

2/3″ 2MP 100 lp/mm FA Series Visible Light Lenses – High-Resolution Optics for Machine Vision

The 2/3  2MP 100 lp/mm FA Series Visible Light Lenses are designed for high-resolution imaging applications, delivering sharp and high-contrast images for industrial and machine vision systems. This series includes seven models, each tailored for different focal lengths and field of view requirements.

 2/3  2MP 100 lp/mm FA Series Visible Light Lenses  Key Features:

• High Resolution: Supports 2MP resolution with a 100 line pairs per mm (lp/mm) optical performance, ensuring crisp image quality.
• Wide Aperture Range: Offers adjustable F/# values, allowing for optimal exposure control and depth of field.
• Low Optical Distortion: Minimizes image distortion, making these lenses suitable for precision measurement and inspection applications.
• Durable Design: Built with robust metal housing and C-mount compatibility, ensuring stability in industrial environments.
• Optimized for FA (Factory Automation): Suitable for machine vision, robotics, and automated inspection systems.

7 Available Models:

Each model in this series offers different effective focal lengths (EFL), varying from 12mm to 75mm, catering to a wide range of working distances and fields of view.

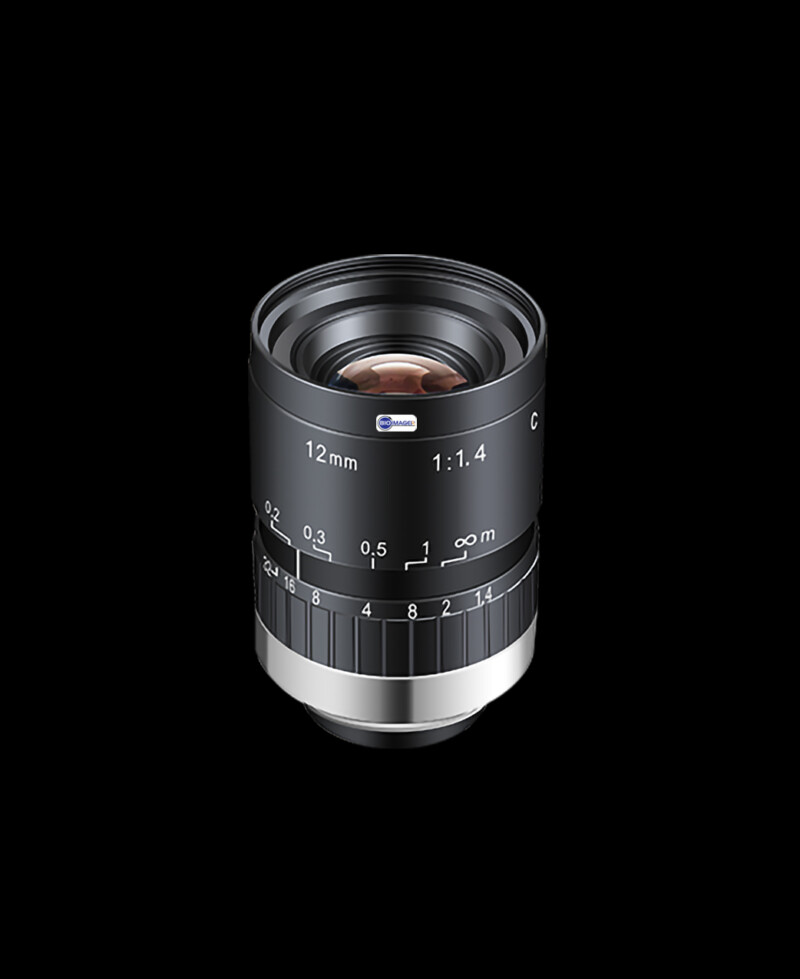

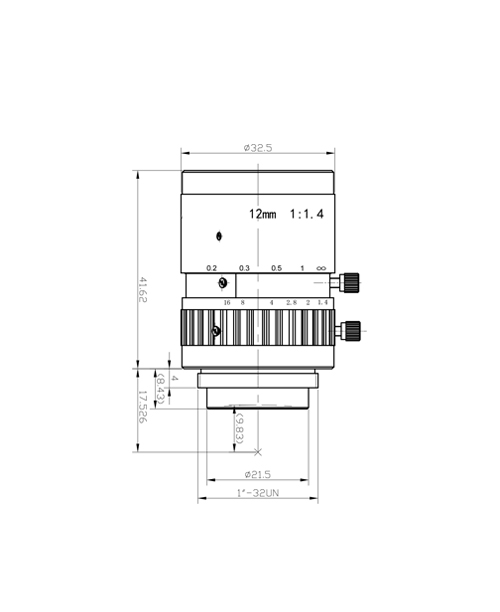

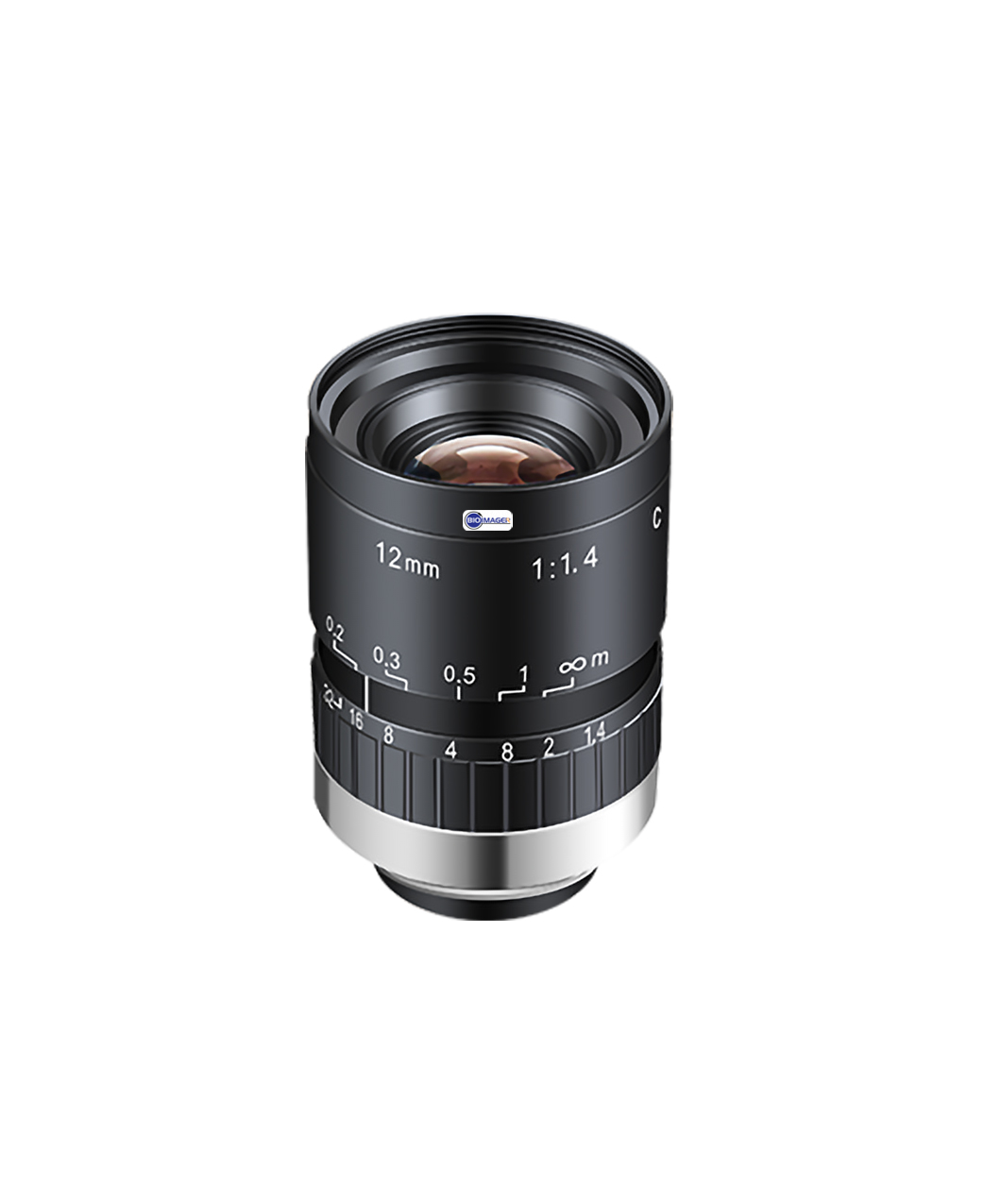

1. BPL-1214MM (12mm, F1.4-F16)
   • Wide-angle view, suitable for close-range applications.

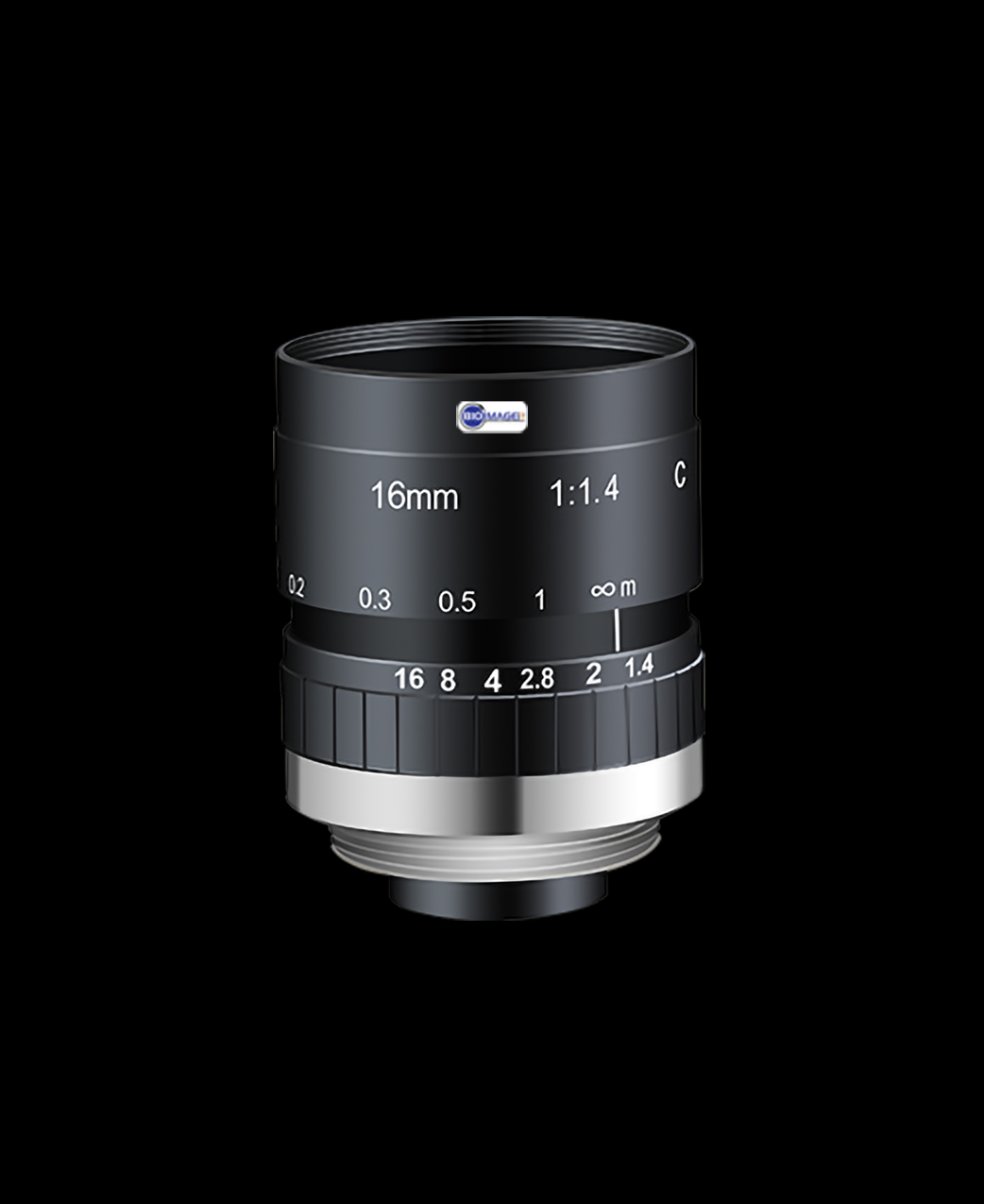

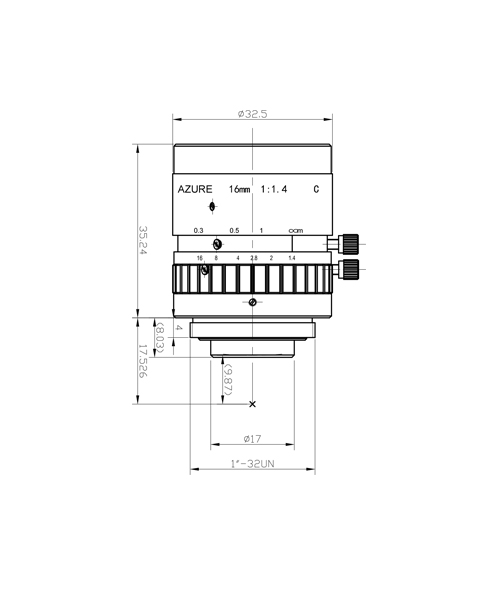

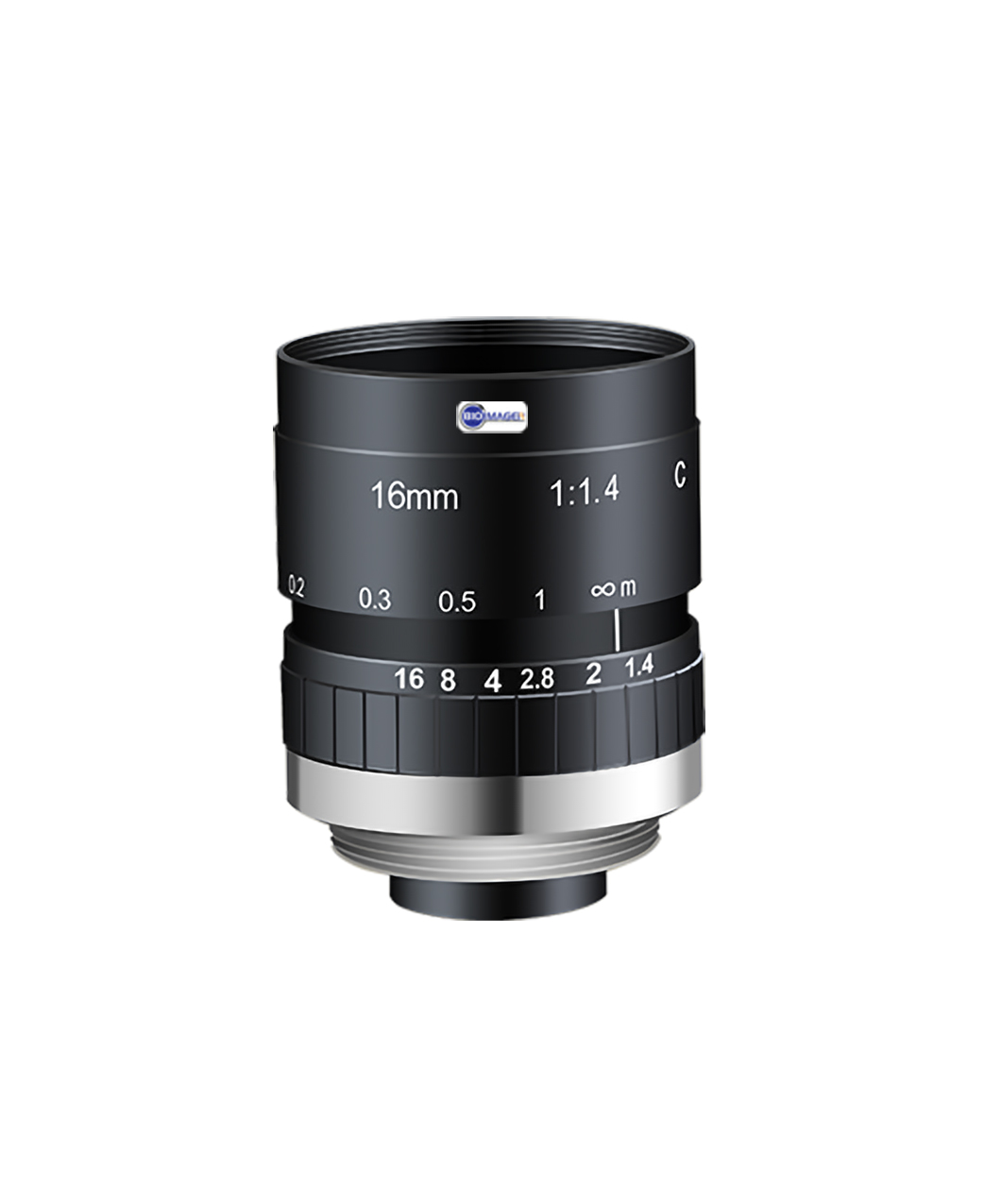

2. BPL-1614MM (16mm, F1.4-F16)
   • Slightly narrower than the 12mm model, providing a balanced field of view.

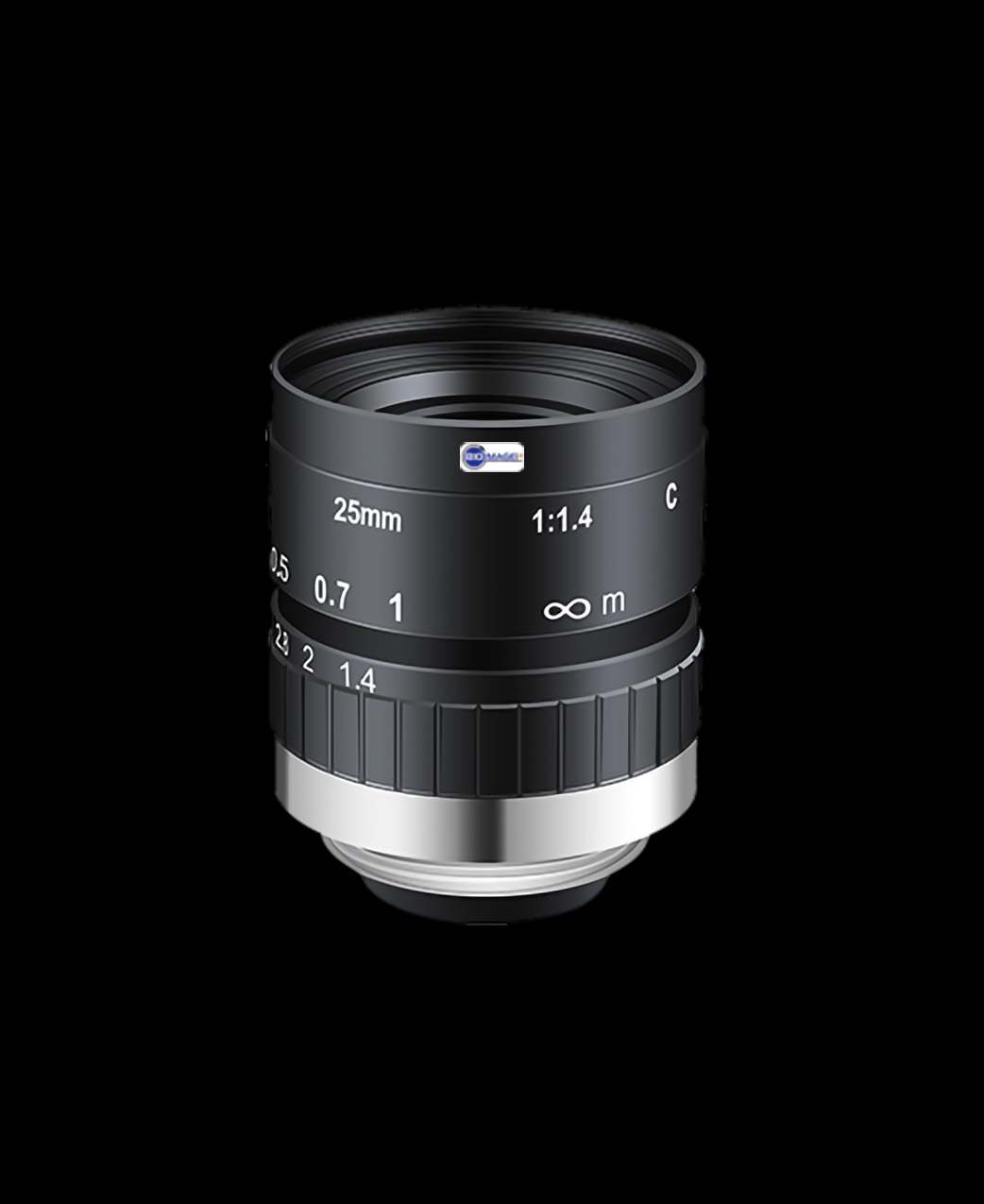

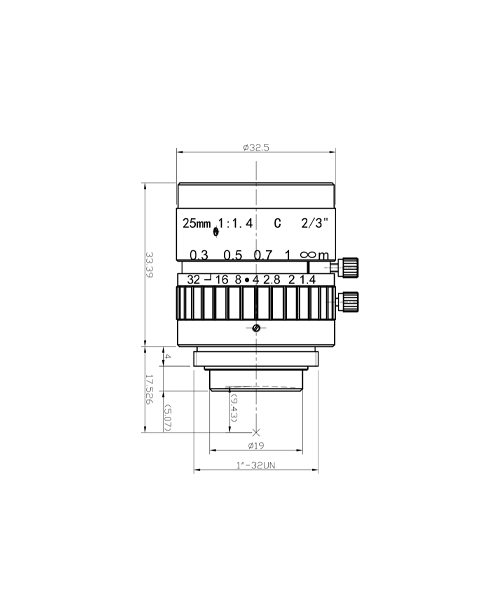

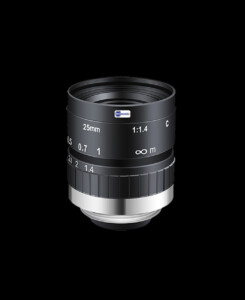

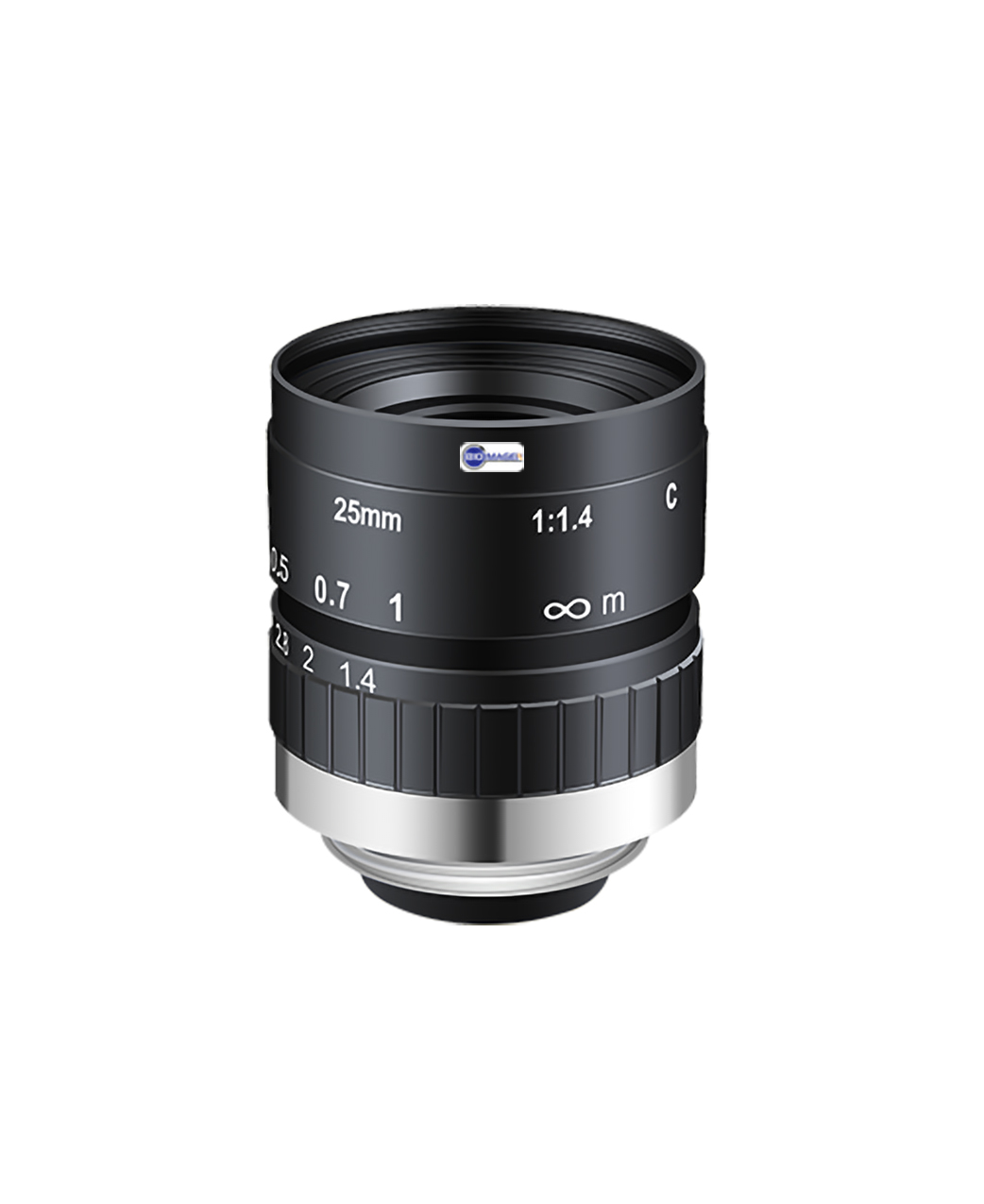

3. BPL-2514MM (25mm, F1.4-F32)
   • Mid-range focal length, ideal for general machine vision.

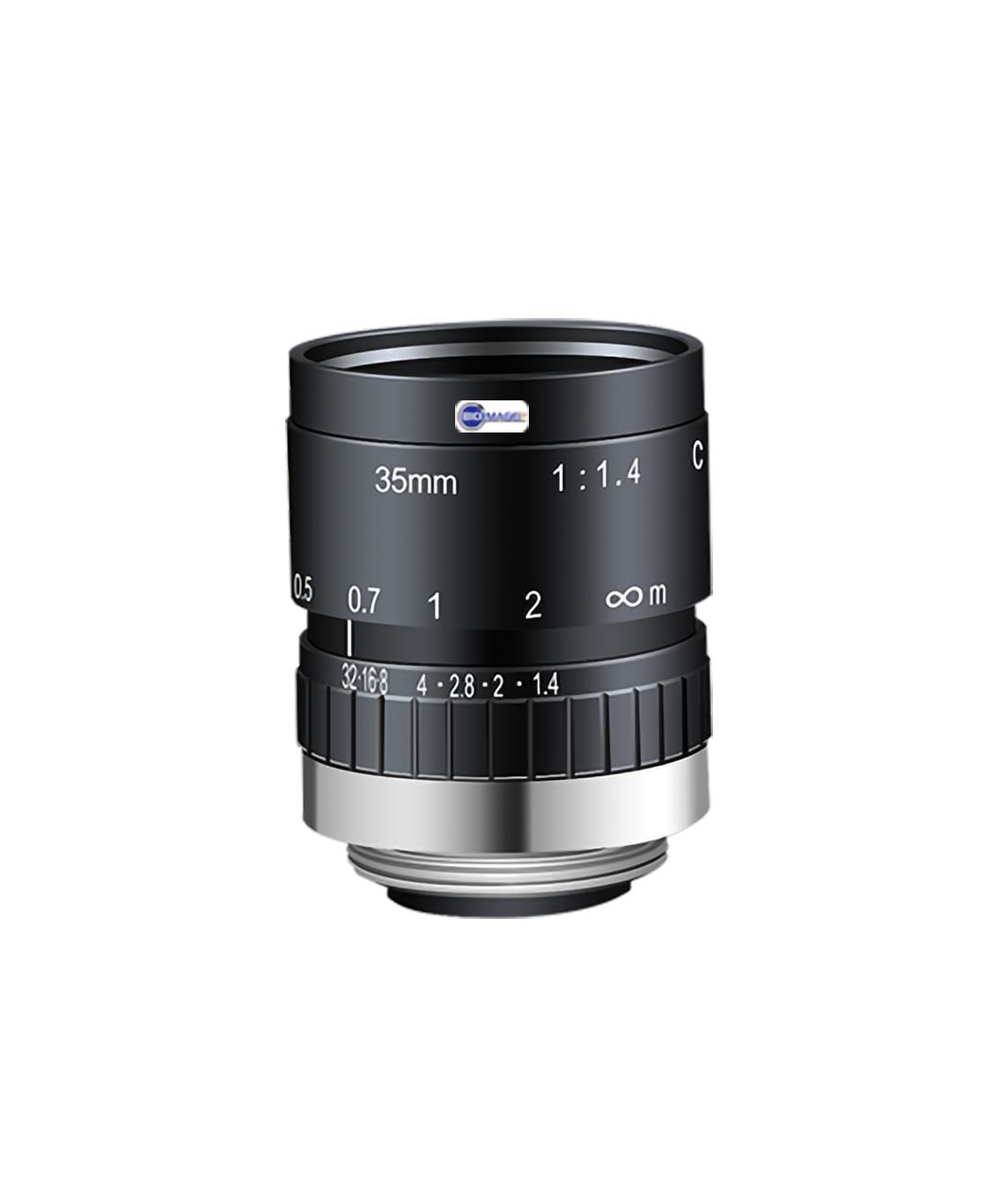

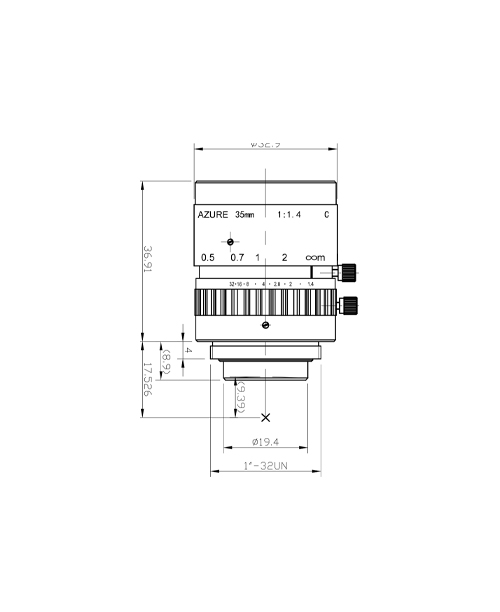

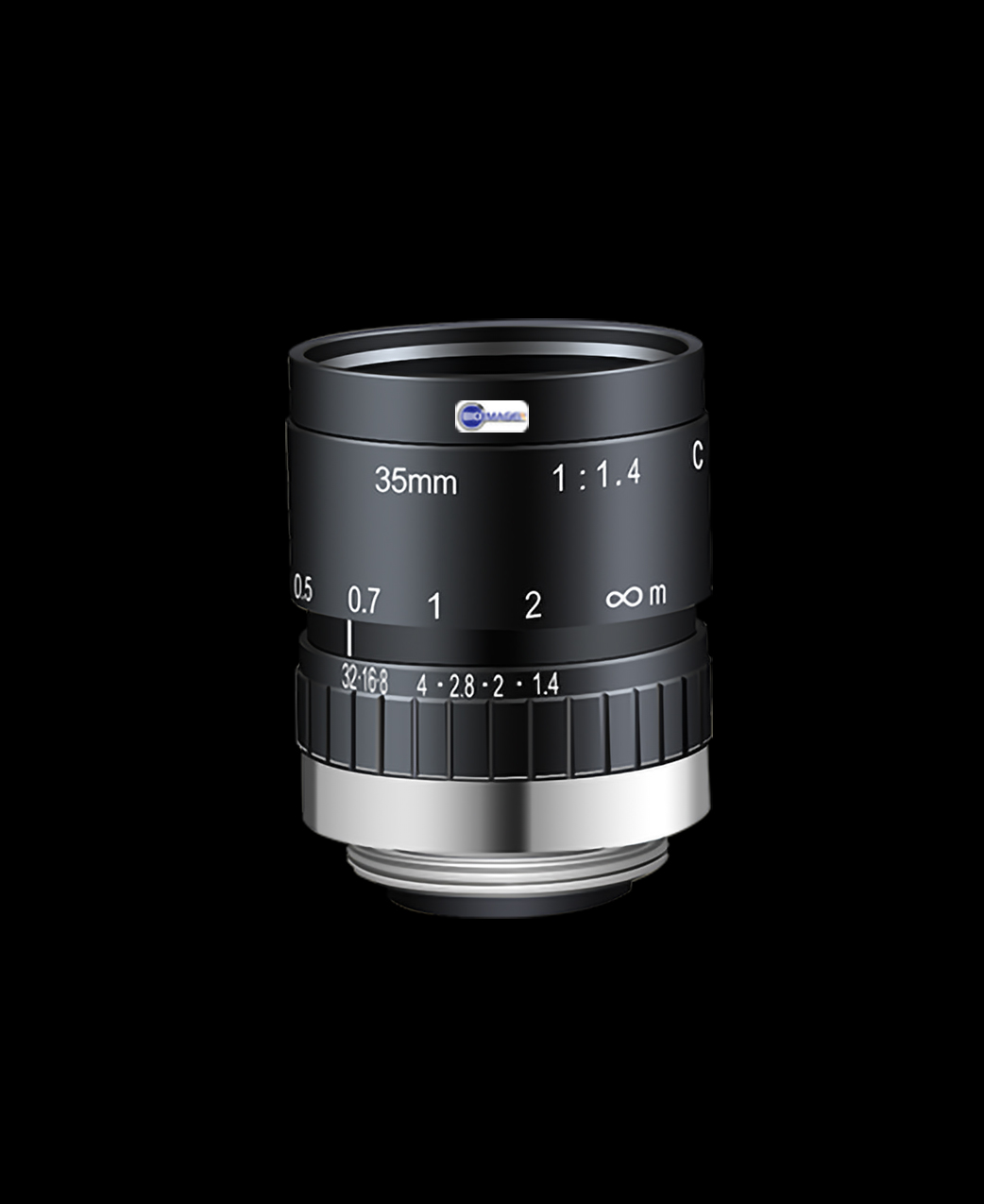

4. BPL-3514MM (35mm, F1.4-F32)
   • Suitable for applications requiring a more zoomed-in view with finer detail.

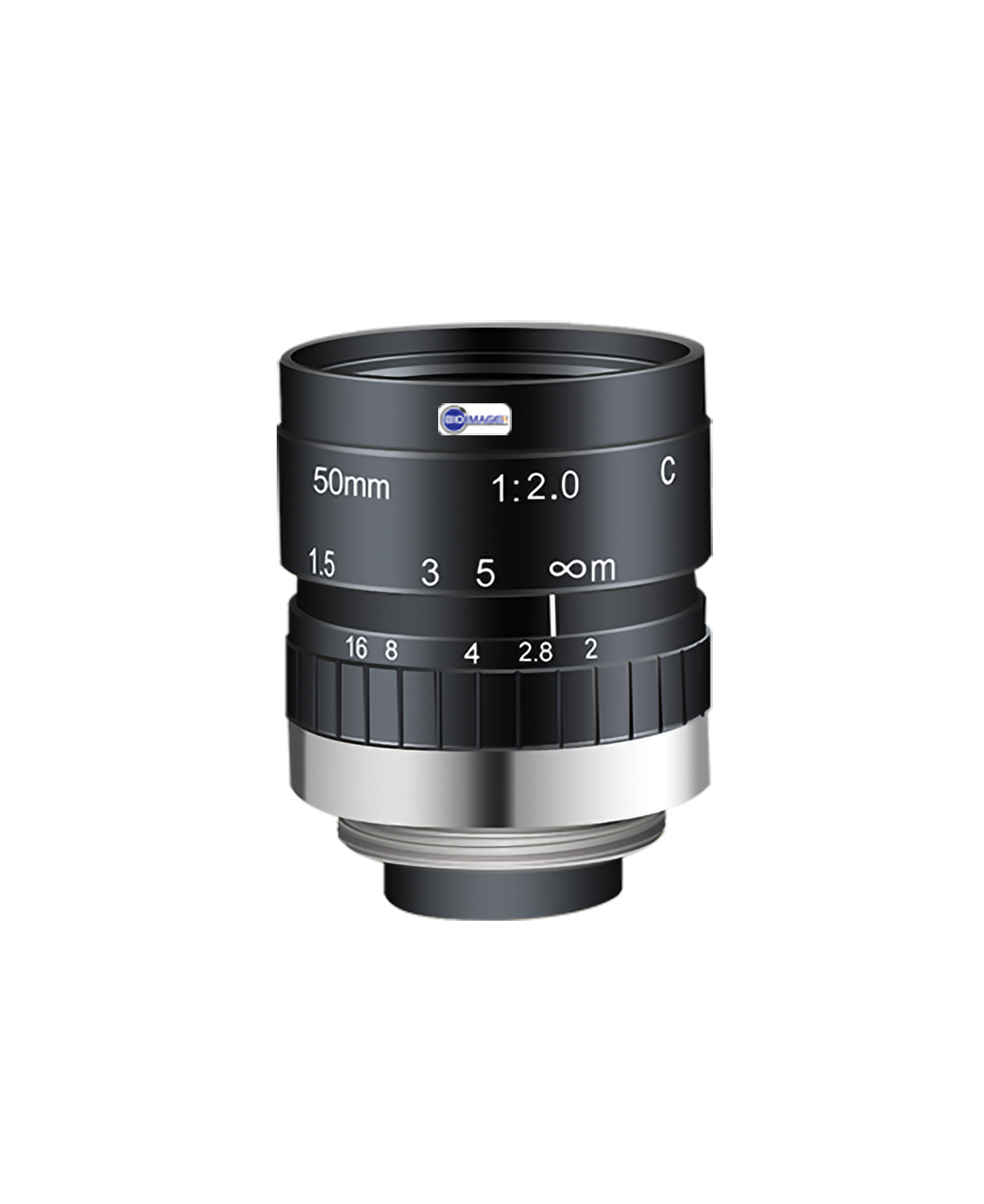

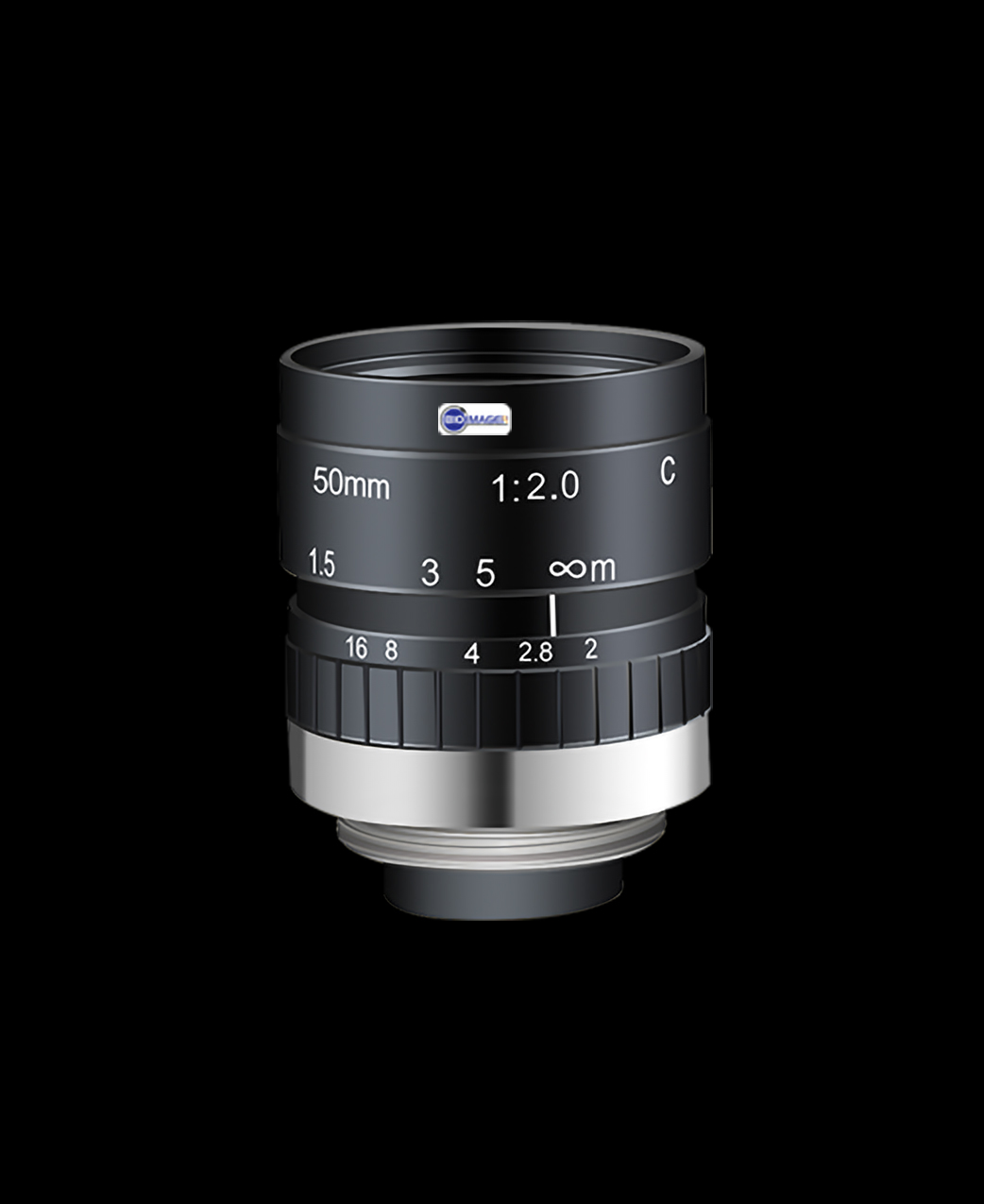

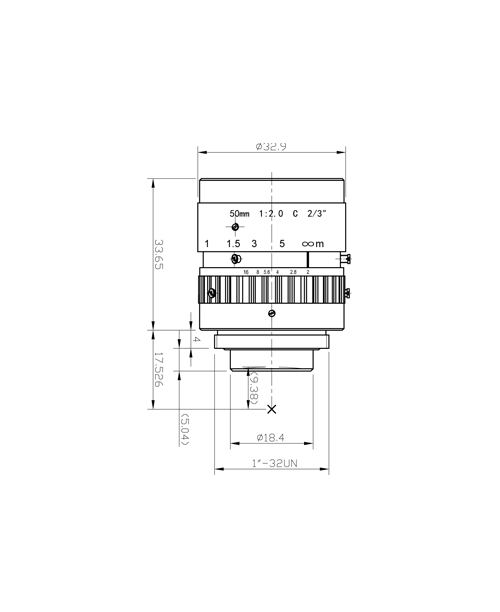

5. BPL-5020MM (50mm, F2.0-F16)
   • Longer focal length, perfect for distance imaging.

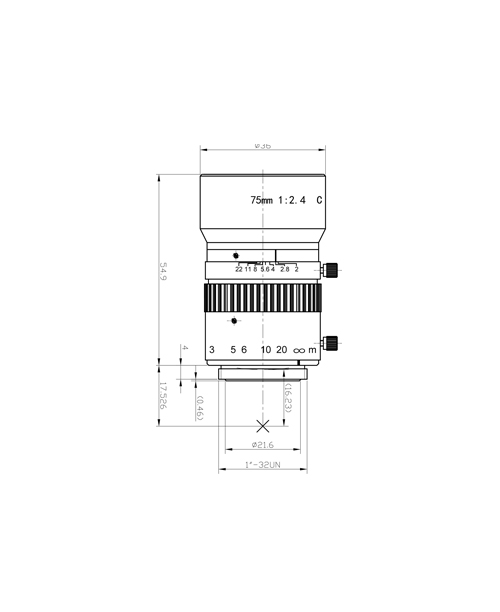

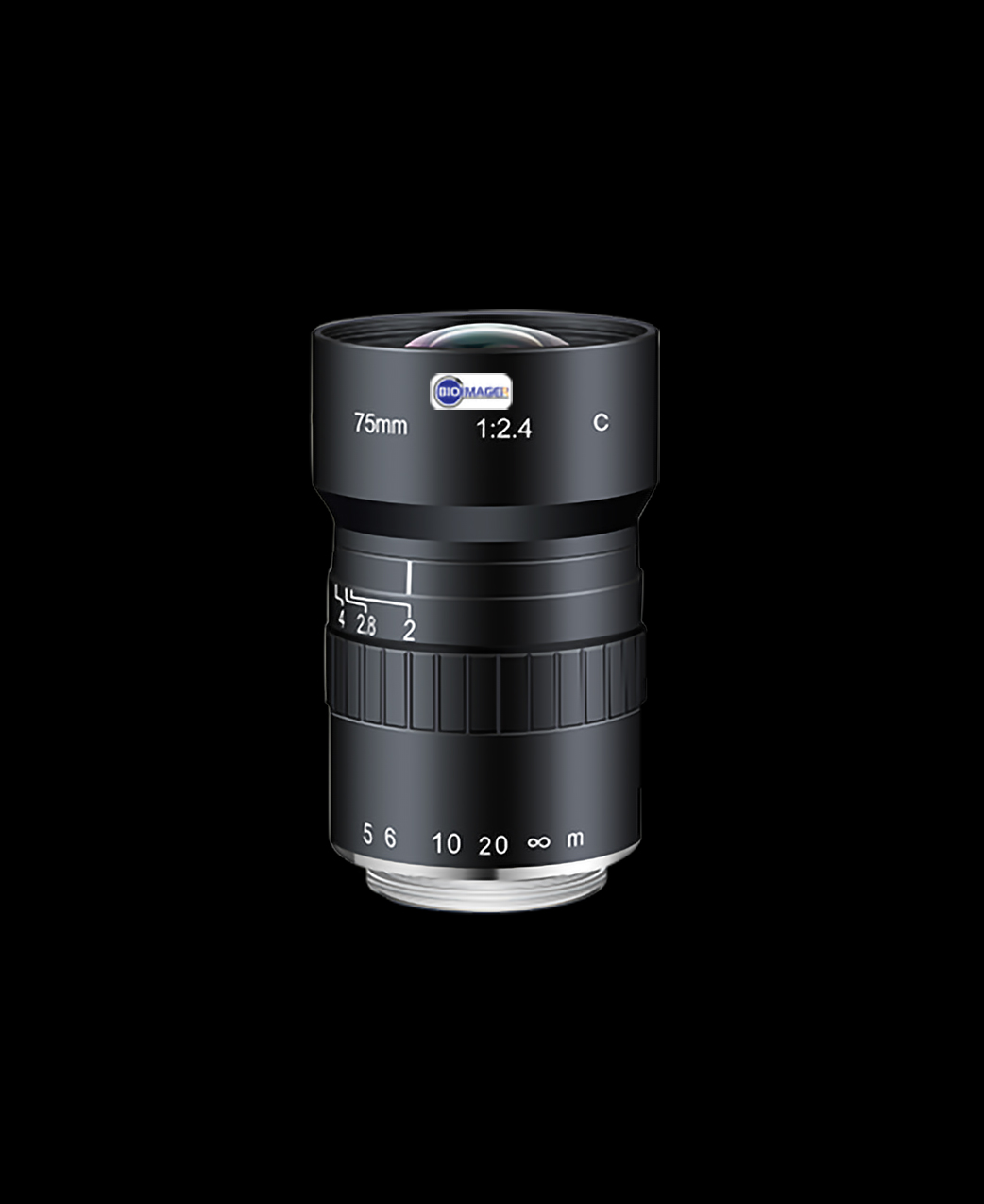

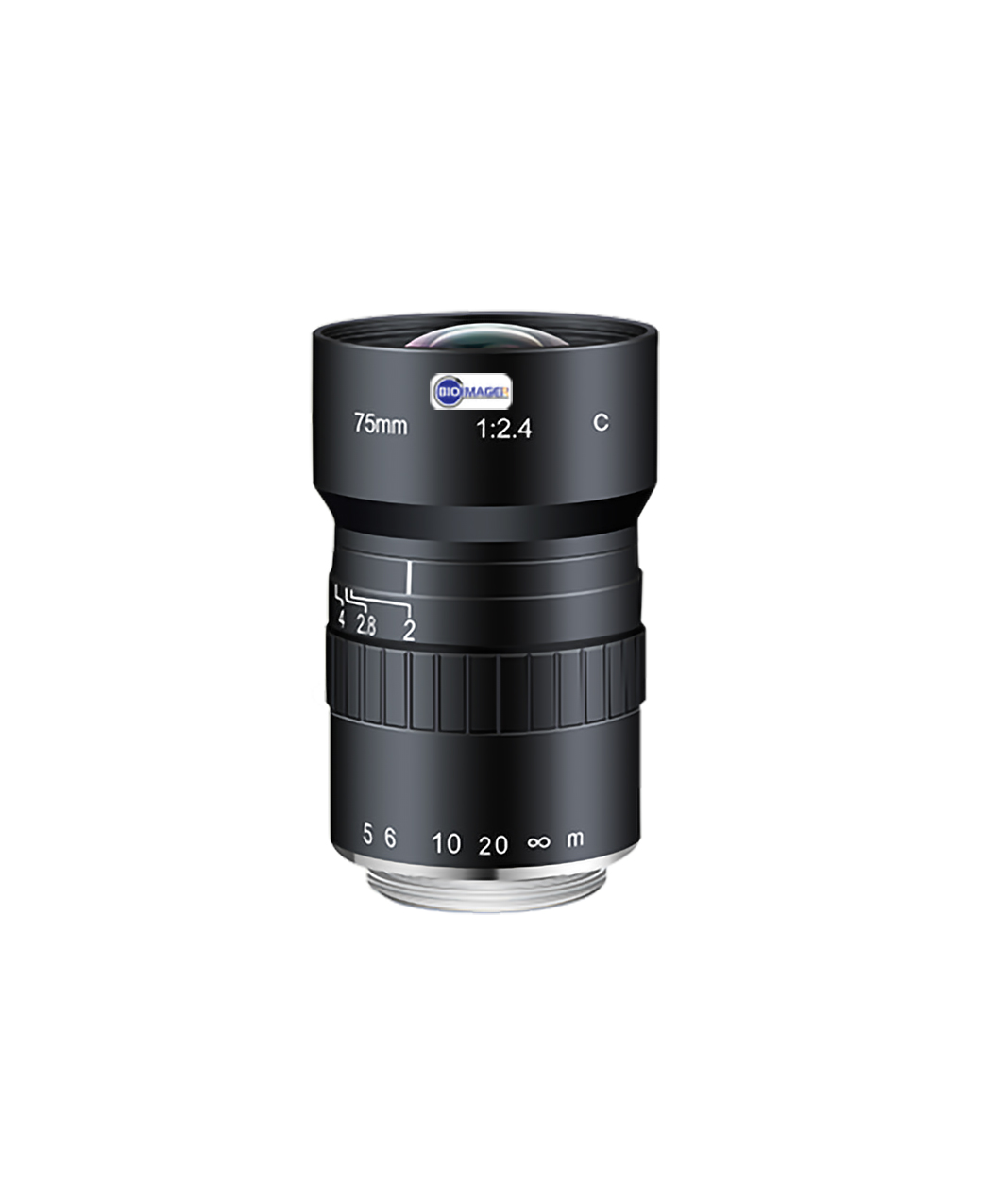

6. BPL-7524MM (75mm, F2.4-F22)
   • Higher magnification, used for applications where detailed inspection is needed.

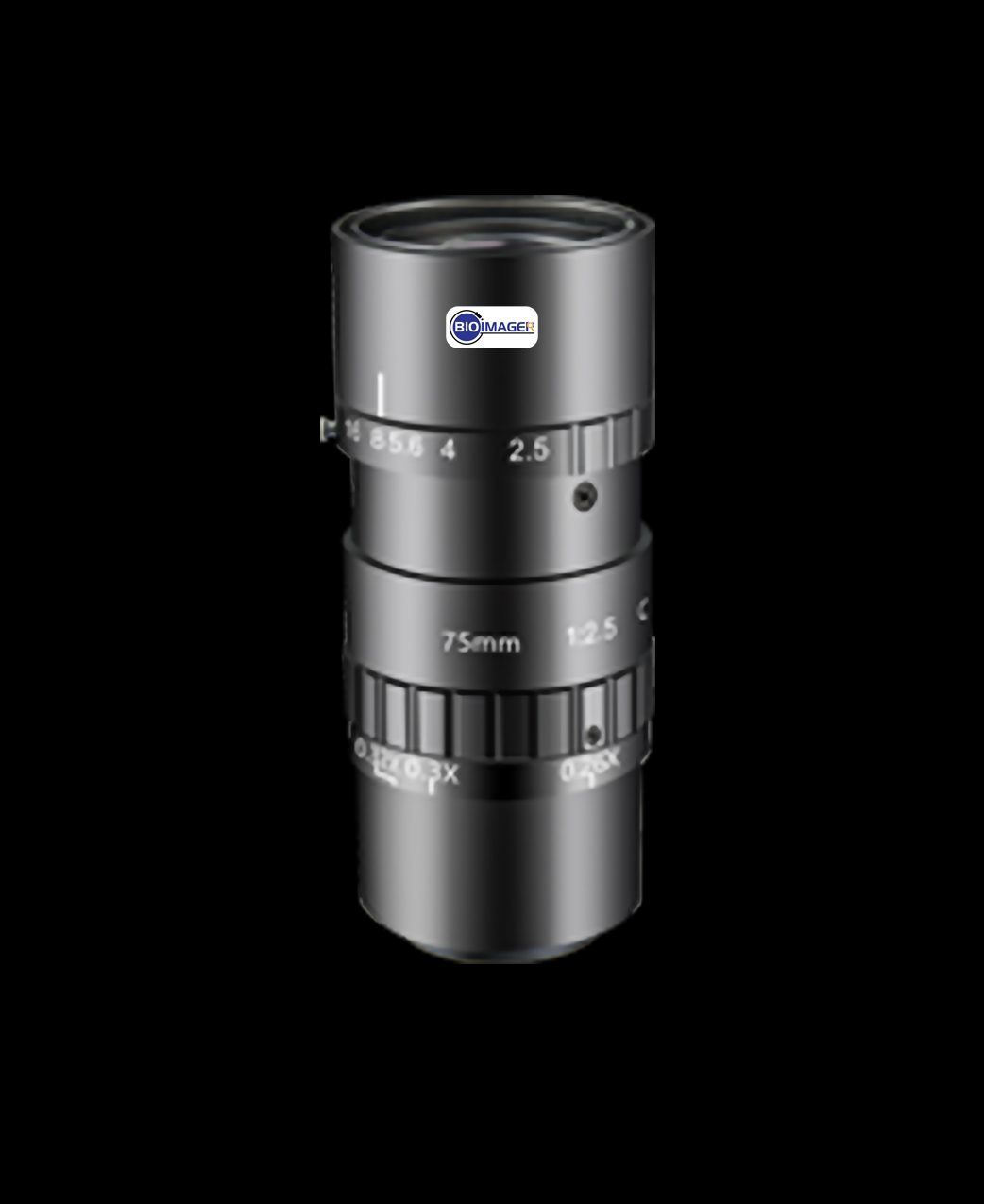

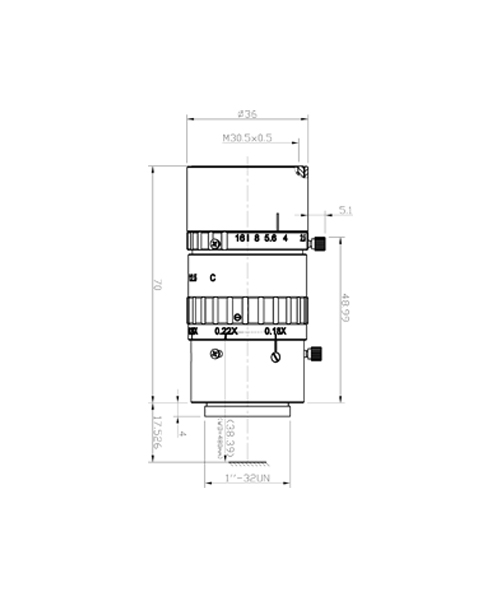

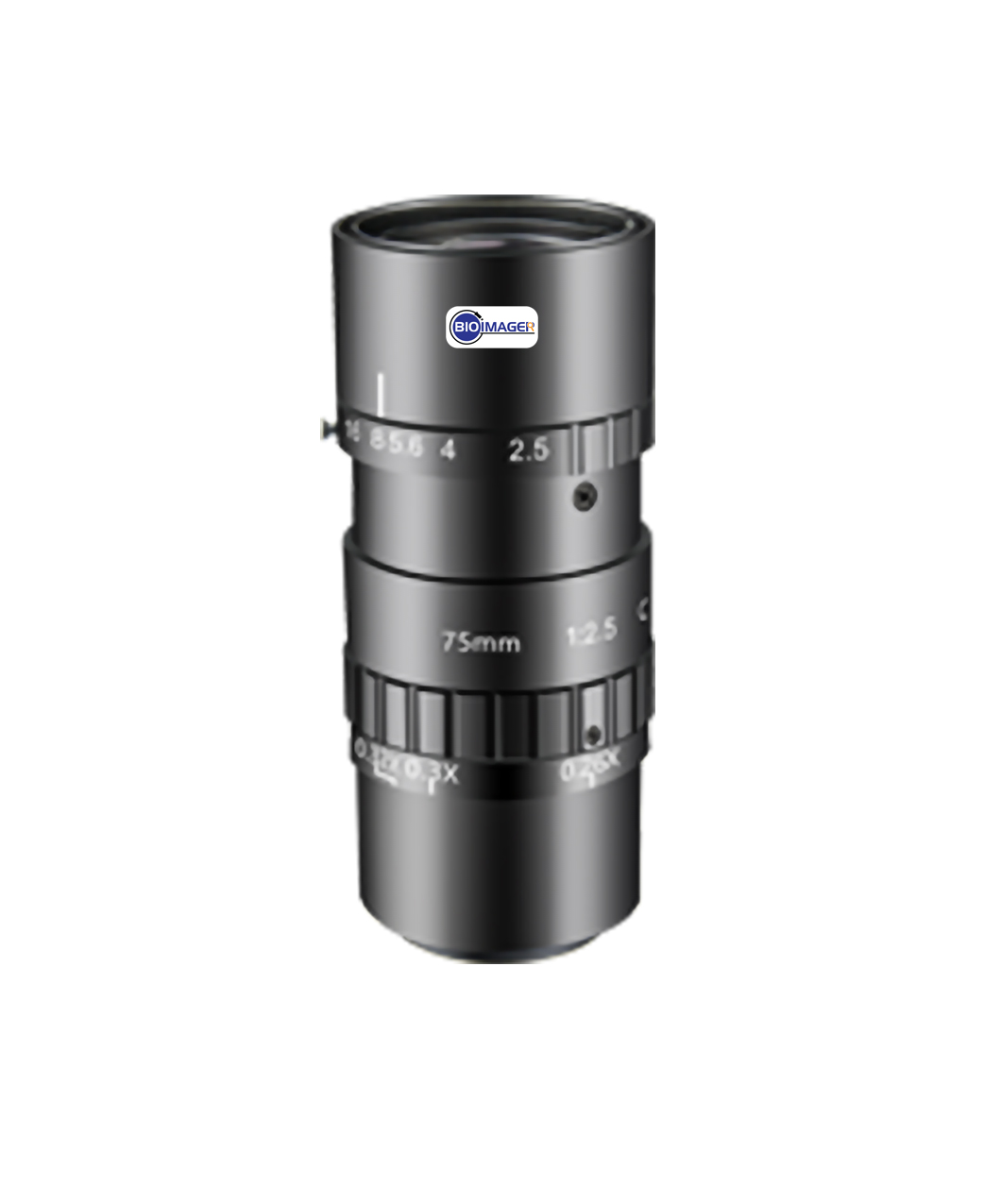

7. BPL-7525MM (75mm, F2.5)
   • Precision lens with fine-tuned optical clarity and optimized working distances.

These lenses are commonly used in factory automation, PCB inspection, object tracking, barcode reading, and other precision imaging applications. Their superior optical quality, low distortion, and high resolution make them a reliable choice for demanding machine vision tasks.
