1/2 5MP 150lp/mm FA Series Visible Light Lens

$USD 820.00 – $USD 840.00

Model Name

Clear

Add to Wishlist

Questions? Request a Call Back

Order Number	EFL	F/#	Optical Distortion	FOV			Working Distance	Filter Thread	Mount
Order Number	(mm)	F/#	Optical Distortion	D	H	V	Working Distance	Filter Thread	Mount
BPL-0414M5M	4	F1.4-F32	-1.50%	85°	75.12°	58.76°	0.1m-∞	M52x0.75	C
BPL-0614M5M	6	F1.8-F16	-1.00%	64.48°	53.8°	41.6°	0.1m-∞	M35.5×0.5	C

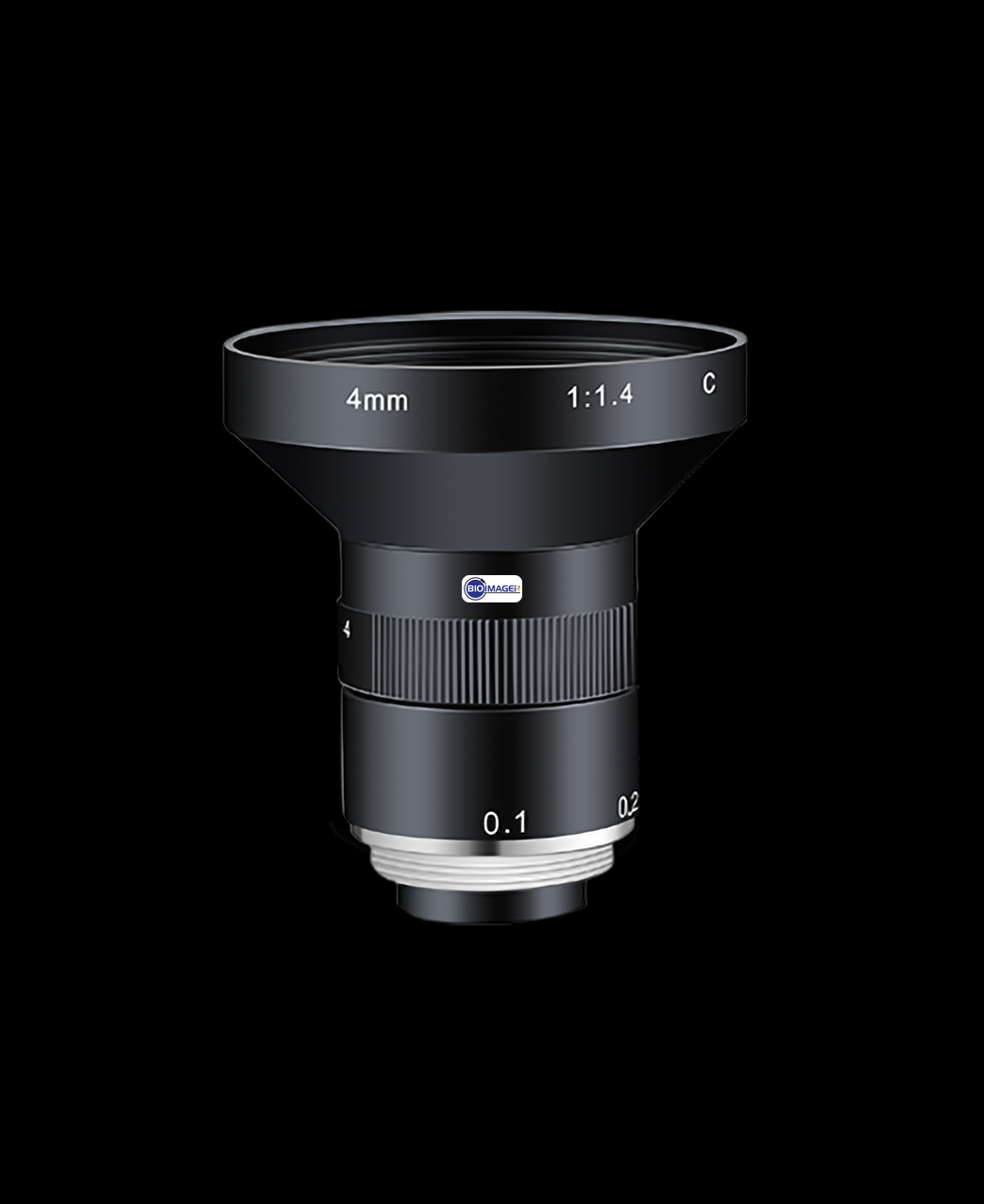

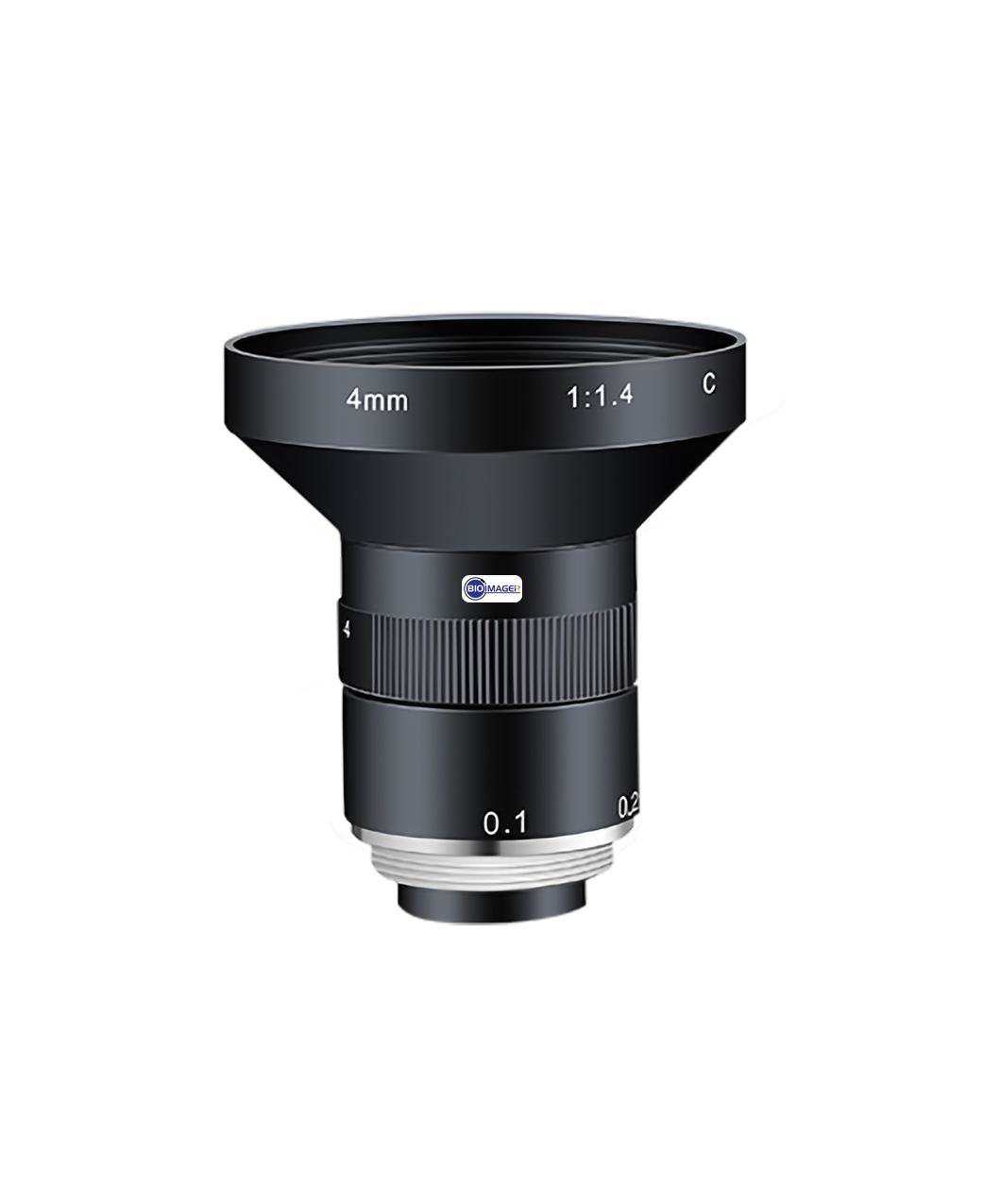

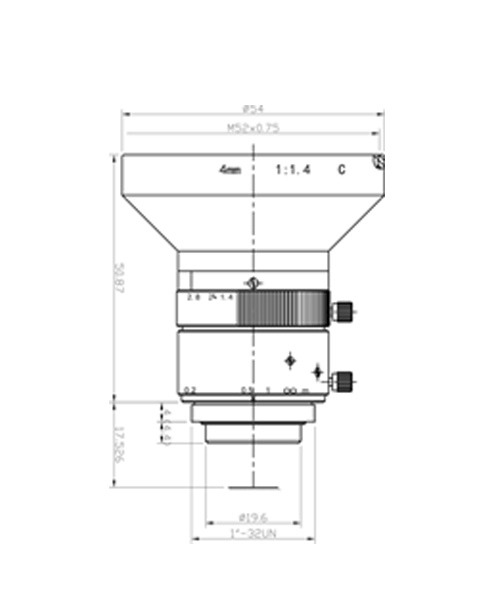

BPL-0414M5M Features:

Specification		Details
Resolution		150lp/mm (5MP)
Format		1/2″
Mount		C
Focal Length		4mm
F/No		F1.4~F32
Back Focus		10.33mm
Iris Type		M-Iris
Angle of View (DXVXH)	1/2″ Format	85° × 58.76° × 75.12°
	1/3″ Format	73.74° × 48.46° × 61.93°
	1/4″ Format	53.13° × 33.4° × 43.6°
Distortion		< -1.5%
Working Distance		0.1m~∞
Design Wavelength		400~700nm
Filter Thread		M52 × 0.75
Dimension		⌀54 × 50.87mm
Weight		142g

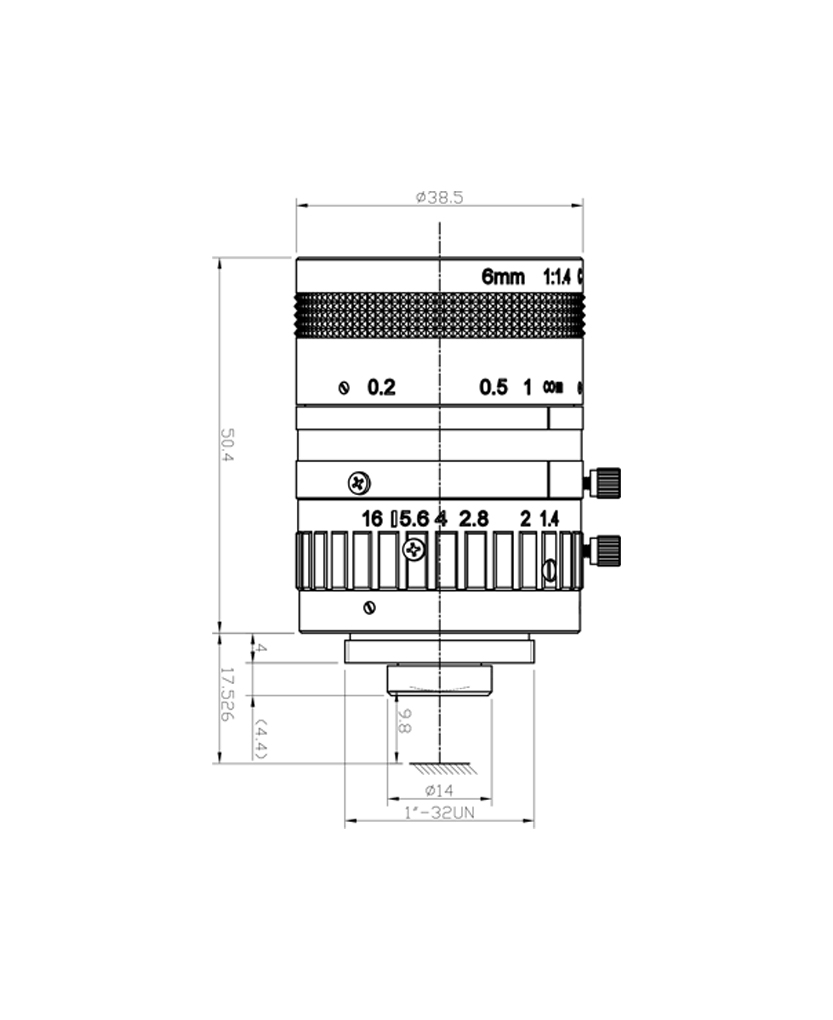

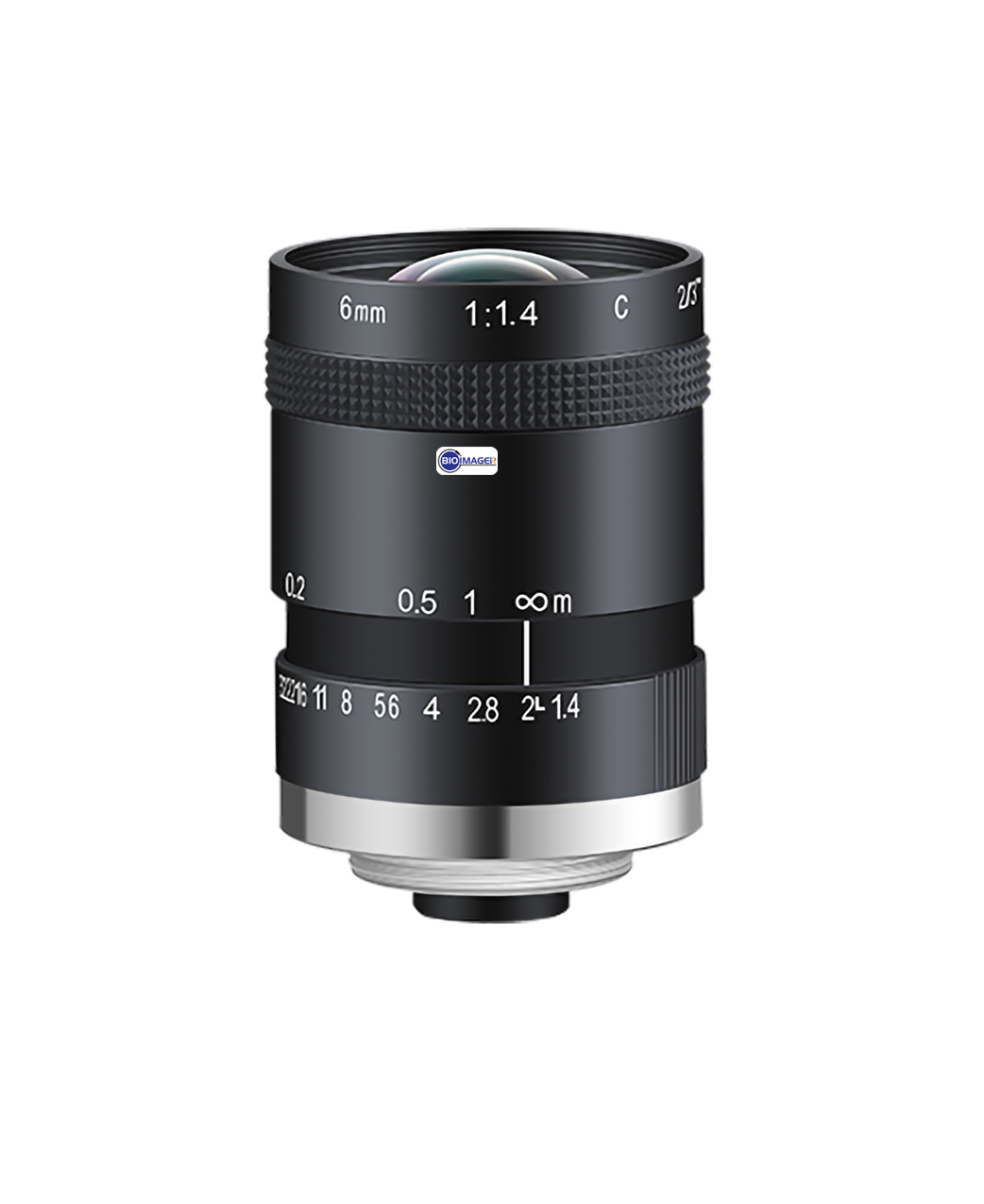

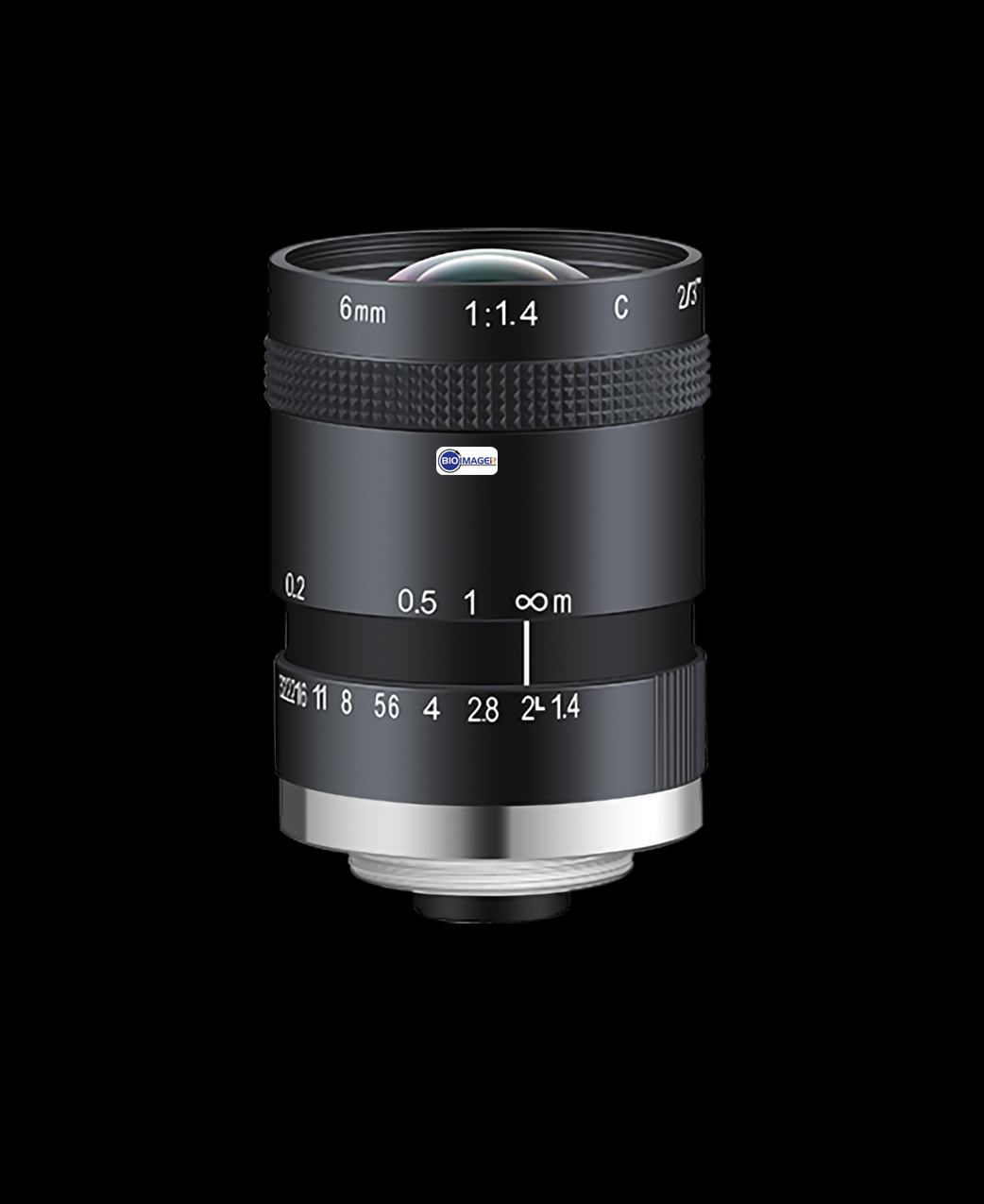

BPL-0614M5M Features:

Specification		Details
Resolution		150lp/mm (5MP)
Format		1/2″
Mount		C
Focal Length		6mm
F/No		F1.4~F16
Back Focus		9.8mm
Iris Type		M-Iris
Angle of View (DXVXH)	1/2″ Format	64.48° × 41.6° × 53.8°
	1/3″ Format	53.13° × 33.39° × 43.6°
	1/4″ Format	36.87° × 22.6° × 29.86°
Distortion		< -1%
Working Distance		0.1m~∞
Design Wavelength		400~700nm
Filter Thread		M35.5 × 0.5
Dimension		⌀38.5 × 50.4mm
Weight		140g
