1/2 5MP 150lp/mm FA Series Visible Light Lens
$USD 820.00 – $USD 840.00
2/3 2MP 100lp/mm FA Series Visible Light Lens
$USD 495.00 – $USD 615.00
$USD 740.00 – $USD 780.00
| Order Number | EFL(mm) | F/# | Optical Distortion | FOV | Working Distance | Filter Thread | Mount | ||
| D | H | V | |||||||

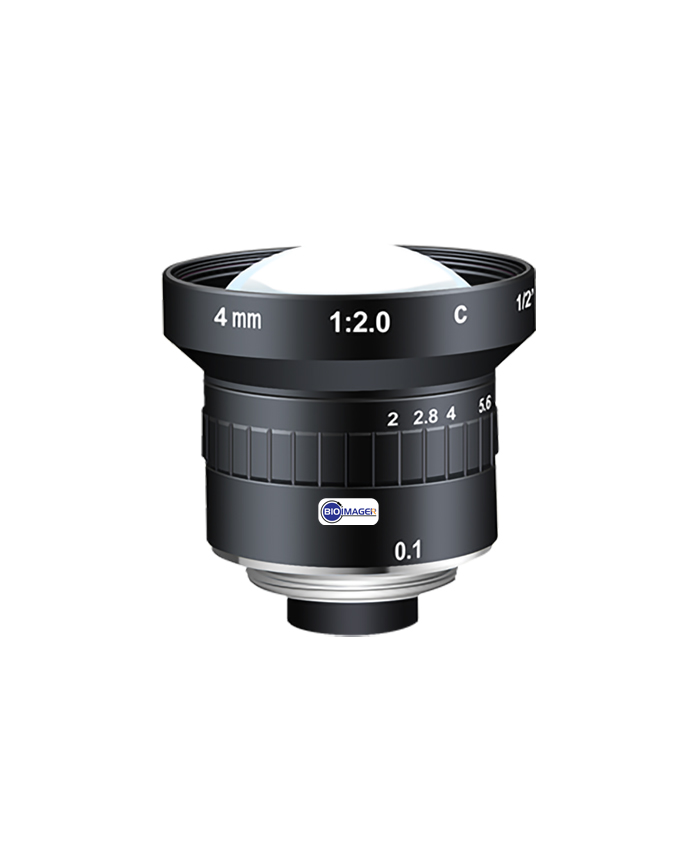

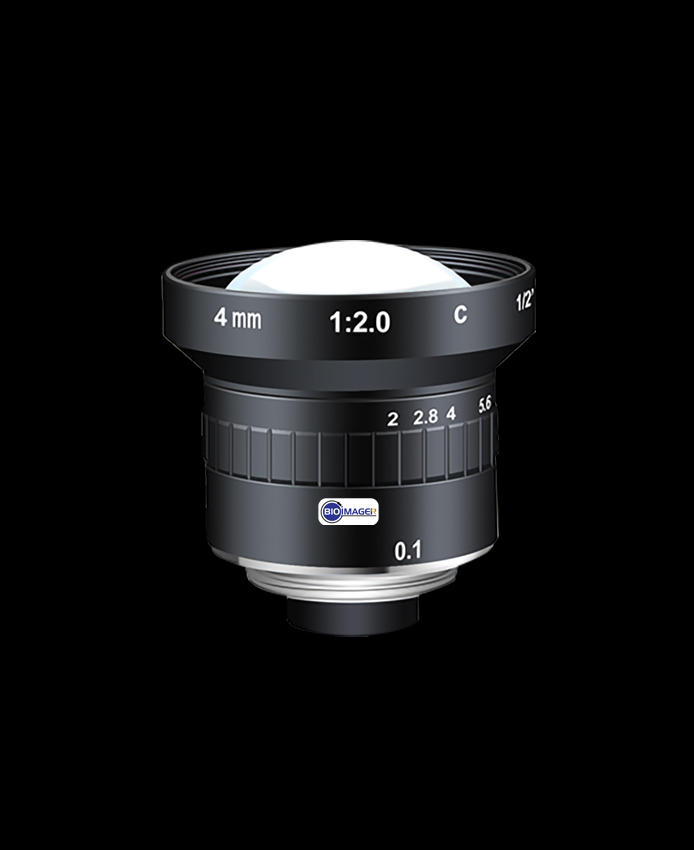

| BPL-0420MM | 4 | F2.0-F16 | -2.80% | 90° | 77.4° | 61.8° | 0.1m-∞ | —— | C |
| BPL-0614MM | 6 | F1.4-F16 | -1.00% | 68° | 56.6° | 43.8° | 0.1m-∞ | M30.5×0.5 | C |
| BPL-0814MM | 8 | F1.4-F16 | -0.70% | 54° | 43.8° | 33.6° | 0.1m-∞ | M30.5×0.5 | C |

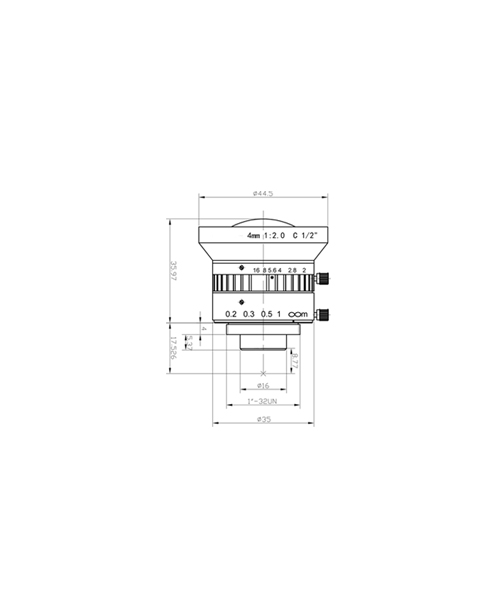

| Specification | Details | |
| Resolution | 100lp/mm (2MP) | |
| Format | 1/2″ | |
| Mount | C | |
| Focal Length | 4mm | |
| F/No | F2.0~F16 | |
| Back Focus | 8.77mm | |
| Iris Type | M-Iris | |
| Angle of View (DXVXH) | 1/2″ Format | 90°×61.8°×77.4° |
| 1/3″ Format | 73.74°×48.46°×61.93° | |
| 1/4″ Format | 53.13°×33.4°×43.6° | |
| Distortion | < -2.8% | |
| Working Distance | 0.1m~∞ | |
| Design Wavelength | 400~700nm | |
| Filter Thread | – | |
| Dimension | Ø 44.5 × 35.97mm | |
| Weight | 130g | |

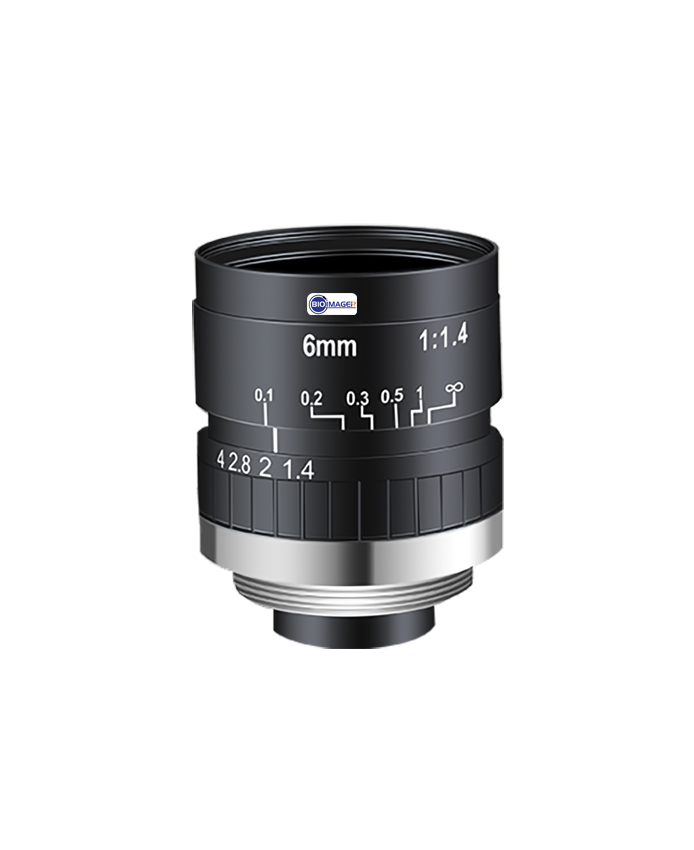

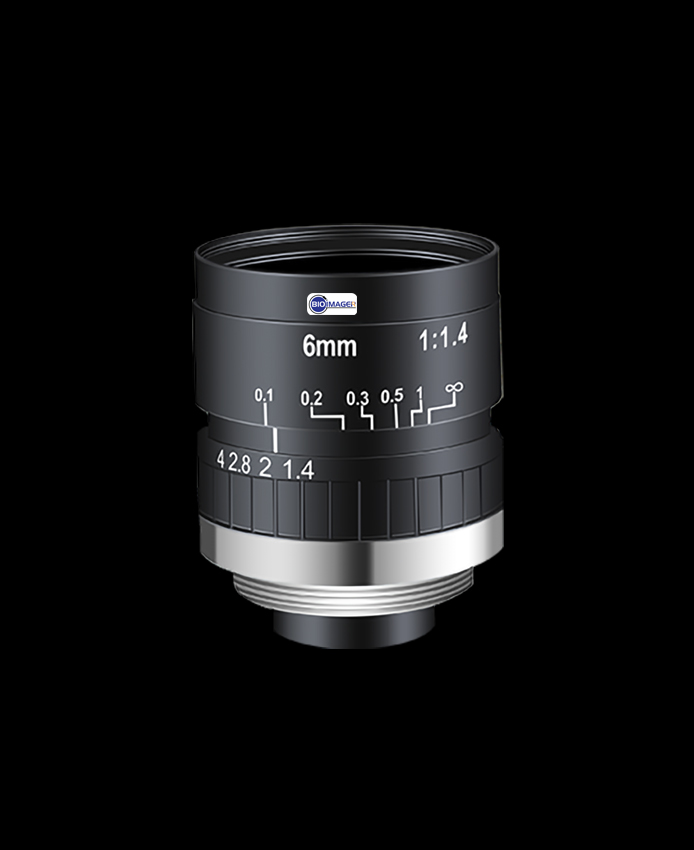

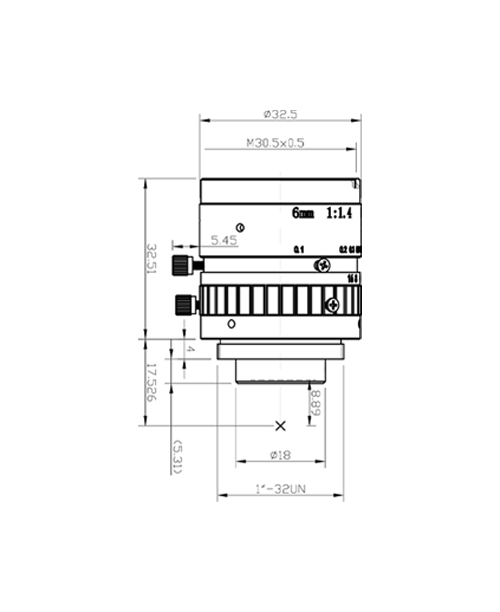

| Specification | Details | |
| Resolution | 100lp/mm (2MP) | |
| Format | 1/2″ | |
| Mount | C | |
| Focal Length | 6mm | |
| F/No | F1.4~F16 | |
| Back Focus | 8.89mm | |
| Iris Type | M-Iris | |
| Angle of View (DXVXH) | 1/2″ Format | 68°×43.8°×56.6° |
| 1/3″ Format | 53.13°×33.4°×43.6° | |
| 1/4″ Format | 36.87°×22.6°×29.86° | |
| Distortion | < -1% | |
| Working Distance | 0.1m~∞ | |
| Design Wavelength | 400~700nm | |
| Filter Thread | M30.5×0.5 | |
| Dimension | Ø 32.5 × 32.51mm | |
| Weight | 100g | |

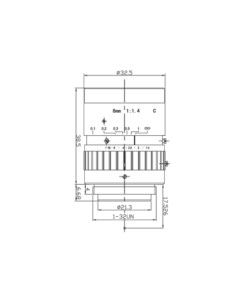

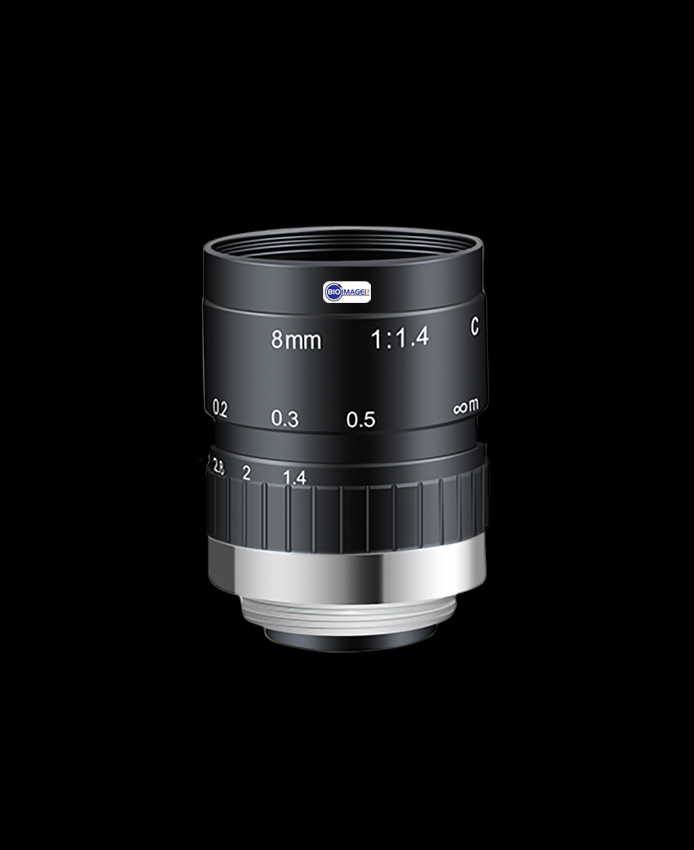

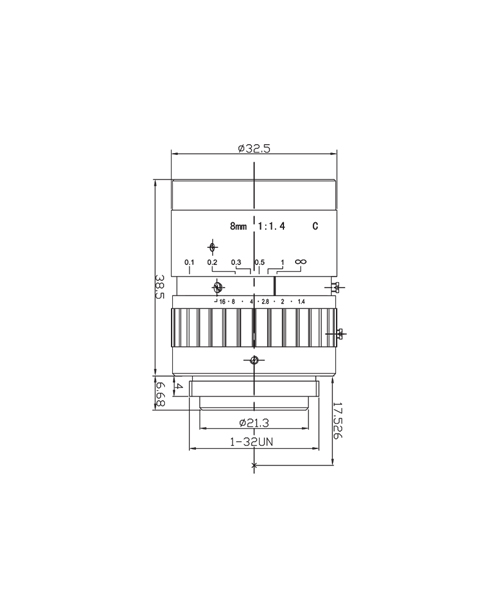

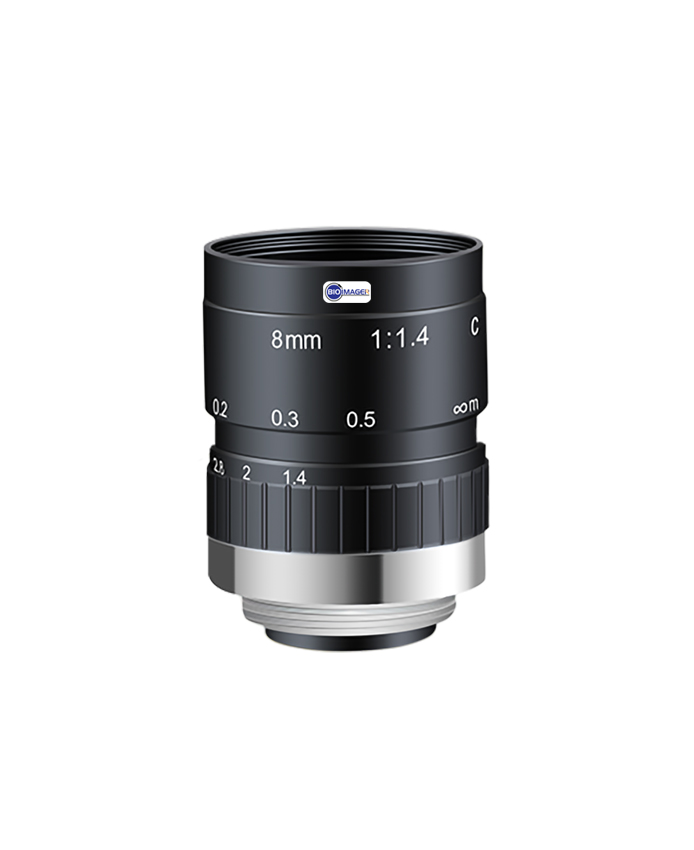

| Specification | Details | |
| Resolution | 100lp/mm (2MP) | |
| Format | 1/2″ | |
| Mount | C | |
| Focal Length | 8mm | |
| F/No | F1.4~F16 | |
| Back Focus | 11.02mm | |
| Iris Type | M-Iris | |
| Angle of View (DXVXH) | 1/2″ Format | 54°×33.6°×43.8° |
| 1/3″ Format | 41.11°×25.36°×33.4° | |
| 1/4″ Format | 28.07°×17.06°×25.36° | |
| Distortion | < -0.7% | |
| Working Distance | 0.1m~∞ | |
| Design Wavelength | 400~700nm | |
| Filter Thread | M30.5×0.5 | |
| Dimension | Ø 32.5 × 38.5mm | |
| Weight | 107g | |
