Save $75

Zeiss C-Mount Adapter

Availability:

In stock


Compare
  • C-Mount adapters for Zeiss Microscope
  • For tinocular head or side vidoe video point
  • For cameras from 1/3″ till 4/3″ sensor

In stock

$425.00 $500.00

Zeiss Primo Star series Microscope TV Adaptor

  • Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
  • With different built-in reduction lens (1.2X,1X, 0.8x 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3″,1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
  • Can be installed in Zeiss UIS trinocular tube such as:Zeiss Axiolab series,Zeiss Axioscope series,Zeiss PrimoStar series,Zeiss Axiovert series,Zeiss Stemi series,Axiophot-2 Axioplan-2 Axioskop-2 Axiostar Axiotech Series microscope
  • Build of material: anodized aluminum;
  • Telecentric optics with low light deficiency;
  • Parfocal with different microscope objective lenses;
  • Diffraction limited MTF;
  • Aperture totally coupled with UIS microscope objective’s exit pupil;

Zeiss Phototube to C-Mount  or T2-Mount Adapter (Zeiss TV Adapter)

ModelMagnificationSensor SizeMount Type

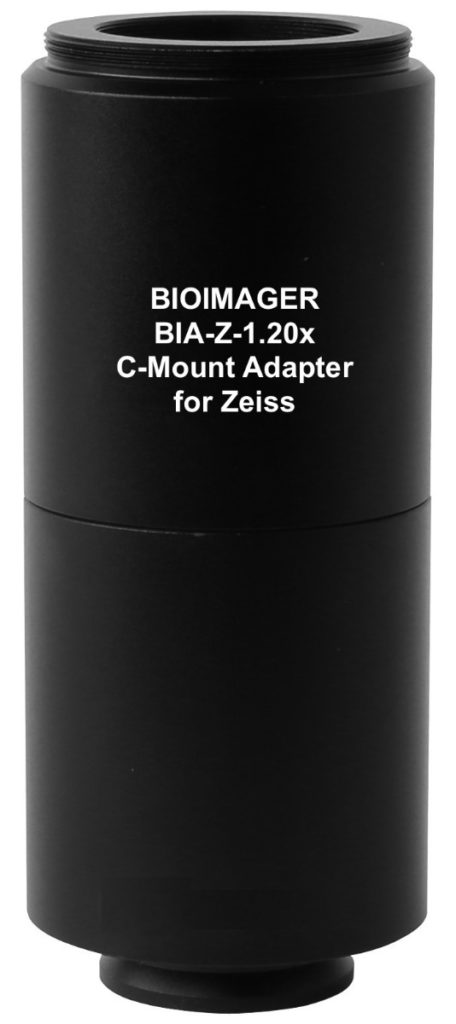

BIA-Z-1.2X(New)1.2X4/3”,1”T2-Mount

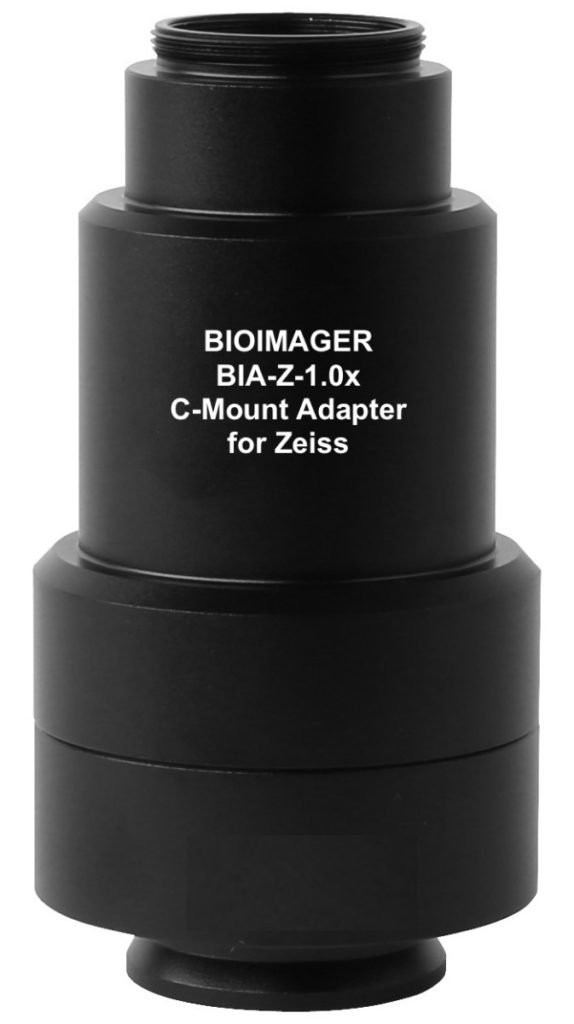

BIA-Z-1.0x1X1”, 2/3”C-Mount

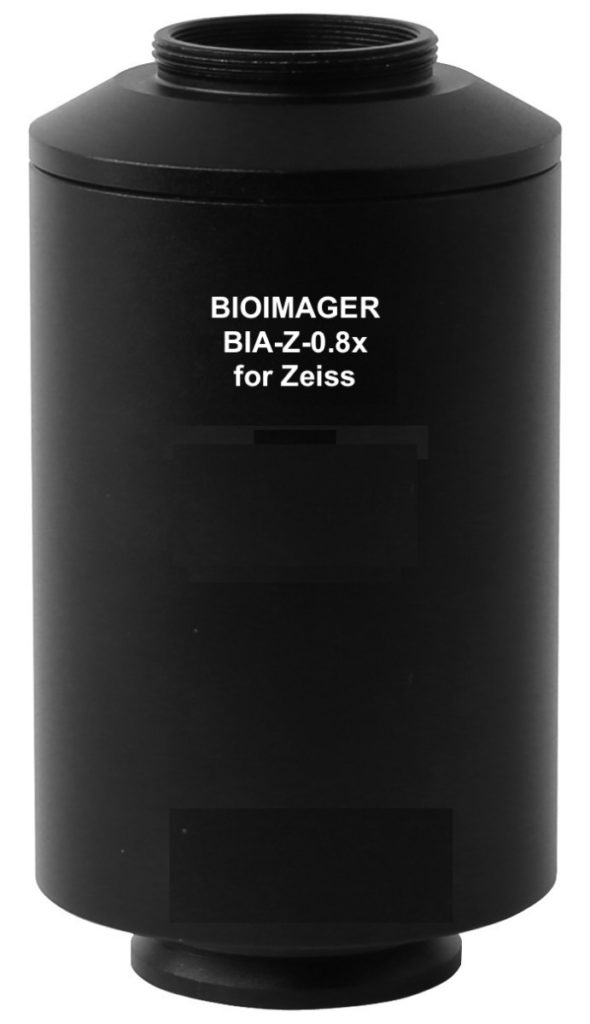

BIA-Z-0.8x(New)0.80X1”,2/3”C-Mount

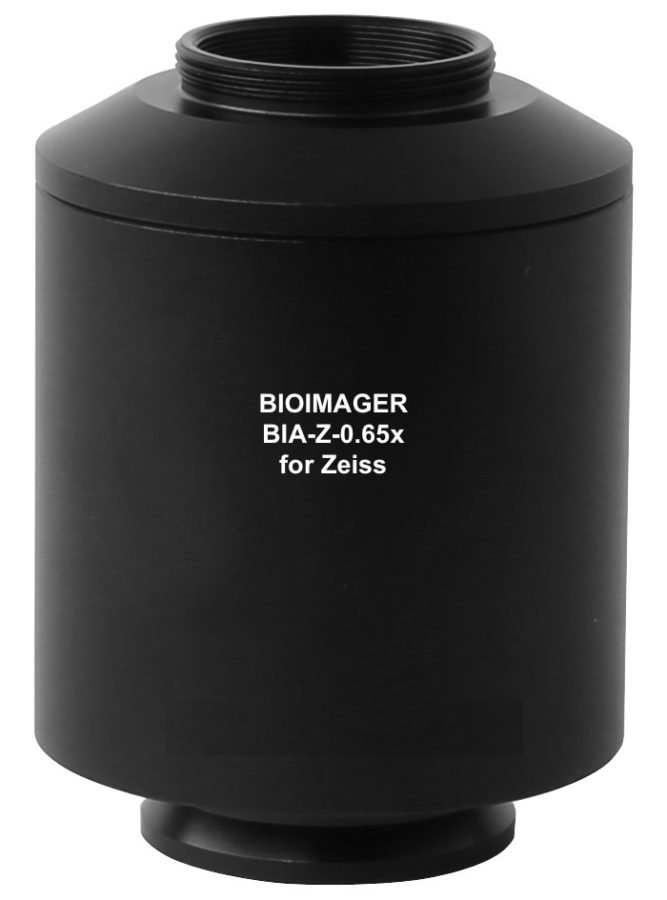

BIA-Z-0.65x0.65X2/3”,1/1.8”,1/2”C-Mount
BIA-Z-0.50x0.5X1/1.8”,1/2”,1/2.5”C-Mount

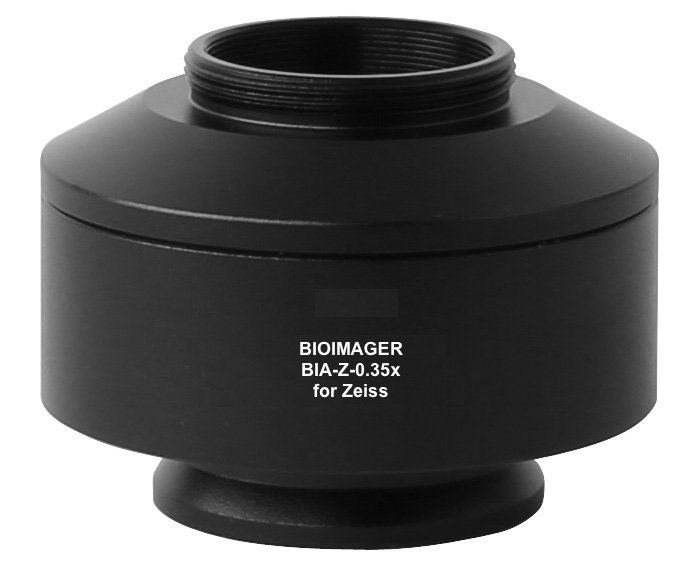

BIA-Z-0.35x0.35X1/3”,1/4”,1/5”C-Mount
Supported MicroscopeSpecially designed for Zeiss Primo Star series , Zeiss Primo vert series microscope

Note:Please specify your microscope model name, BIOIMAGER engineers will help you choose the right adaptor magnification according to the camera sensor size;
