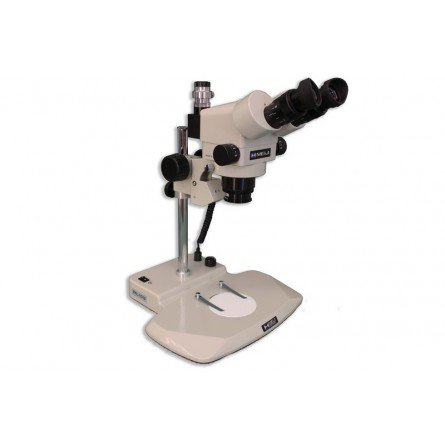

EMZ-200TR Trinocular / EMZ-200 Binocular Microsurgical System

Meiji Techno offers an economically priced training EMZ-200TR Trinocular zoom stereo system for Microvascular Anastomosis for practicing microsurgical training procedures to suture and repair blood vessels in place of a costly surgical microscope. EMZ-200TR body has a long 200mm working length, increase focal depth and a wide field number. The zoom body offers direct light to all three viewing ports simultaneously. Featuring Greenough optics for enhance image flatness and contrast.

Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 3.94x – 25.3x with .45X Auxiliary lens and 12.5x eyepieces
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 3.94x – 25.3x  (12.5x eyepieces)
Objective Lens: Brass Construction
Field of View: 63.5mm – 9.8mm
Working distance: 200mm
Eyetube Inclination: 30°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.45x – 202.5x (With auxiliary lenses and eyepieces)
Extended Working Distances: 57mm – 250mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Includes:
• Stereo Microscope Body (Special Trinocular Zoom Stereo Microscope with 30° eyetube inclination)
• 12.5X Eyepieces (Paired)
• Stand (Ergonomic slim pole stand with built in inclineable oblique LED illumination and extended 12.4mm pole)
• Black and White Reversible stage plate (MA569)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• 0.45X Auxiliary Lens – Working Distance 200mm (MA793)
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty

Package Information:
• 18 lbs
• 25 x 15 x 18 inches
