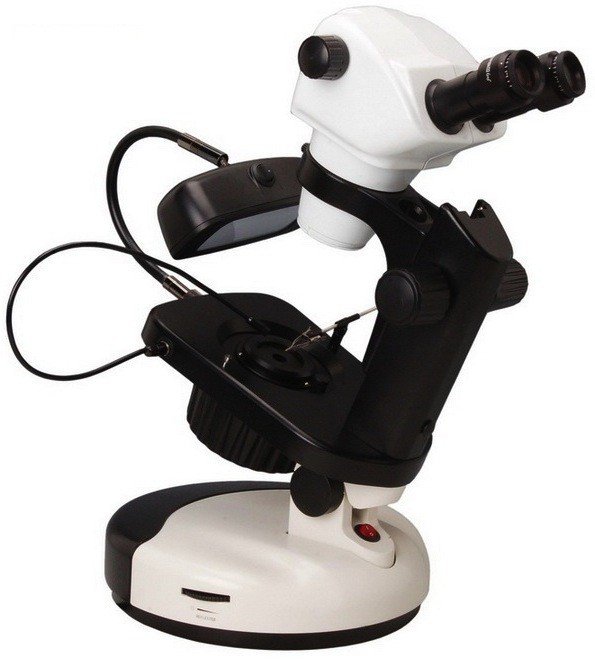

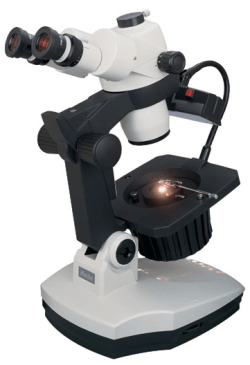

BDM700 Gemological Microscope


A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BDM700 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them.

$USD 3,999.00

A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BDM700 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples

1. Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source. It is a high level professional gemological microscope.
2. Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

INTRODUCTION
A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BDM700 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples

Features
1. Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source. It is a high level professional gemological microscope.
2. Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

Application area
BS-8040 gemological microscope is usually used to inspect the authenticity of gemstones and in the design, creation, and repair of jewelry. It can be used for inspecting diamonds, emeralds, rubies, and all other types of precious stones.

SKU: BDM700 Category:

Specifications

ModelBDM700BBDM700T
Stereo Zoom BodyZoom ratio 0.7×-4.5×, zoom ratio 1:6.5, working distance 95mm
EyepieceExtra wide field eyepiece WF10×/23 with diopter adjustment
Viewing HeadBinocular head, inclined at 45°, Interpupillary Distance 55-75mm
Trinocular head, inclined at 45°, Interpupillary Distance 55-75mm
Bright & Dark Field IlluminationIris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable
Illumination8W Fluorescent lamp(6000K)
LED Point Light
6V/20W Halogen illumination, lamp can be changed
FocusingFocusing range: 125mm, it is suitable for observing different size gem and sample
Gem ClampHigh quality steel clamp is perfect to hold the gem for observation from all directions
StageThere are 1 gem clamp fixing holds at each side
StandHeight and angle of viewing head can be adjusted, easy to operate
Assistant Objectives0.75×, working distance 105mm
1.5×, working distance 47mm
2×, working distance 33mm

Note: ● Standard Outfit, ○ Optional
