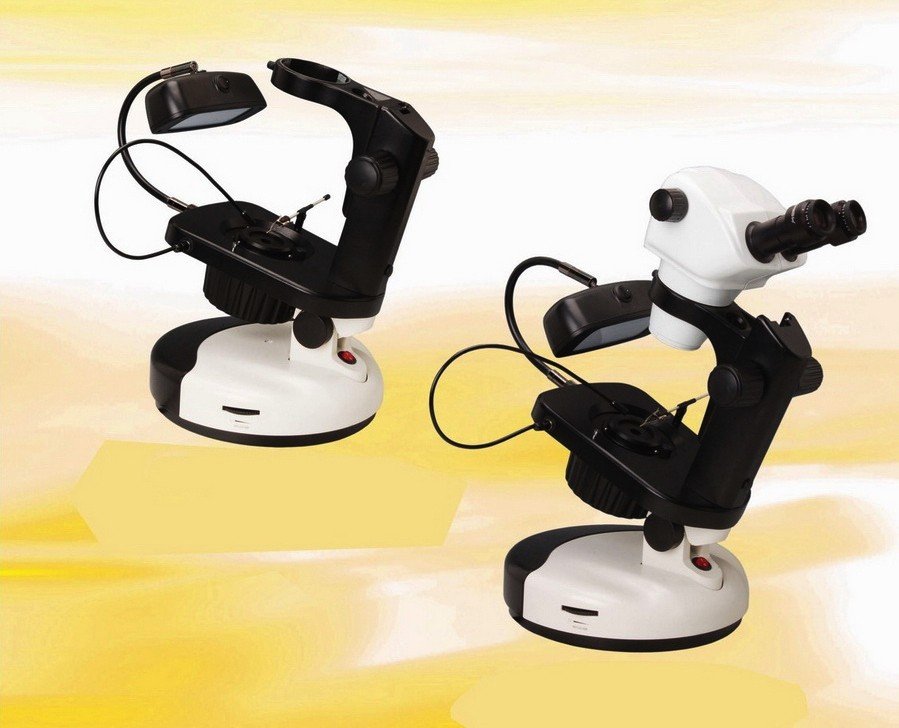

BDM900 Diamond Microscope


A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BDM900 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.

$USD 1,749.00 $USD 2,000.00

A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BDM900 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.

BDM900 Diamond Microscope

1. Offering crisp sharp and high-resolution image with high bright LED point light, dark field illumination and even fluorescent light source. It is a high level professional gemological microscope.

2. Designing with very good idea can greatly improve the working efficiency; it is also easy to operate and makes operators feel more comfortable.

Introduction
A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BDM900 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.

Features
1. Offering crisp sharp and high-resolution image with high bright LED point light, dark field illumination and even fluorescent light source. It is a high level professional gemological microscope.
2. Designing with very good idea can greatly improve the working efficiency; it is also easy to operate and makes operators feel more comfortable.

Application area
BDM900 gemological microscope is usually used to inspect the authenticity of gemstones and in the design, creation, and repair of jewelry. BDM900 gemological microscope is a precision microscope that are capable of inspecting diamonds, emeralds, rubies, and all other types of precious stones.

BDM900 Diamond Microscope

SKU: BDM900 Category:

Specifications

ModelBDM900BBDM900TBDM900D
Viewing HeadBinocular Viewing Head, Inclined at 45°
Trinocular Viewing Head, Inclined at 45°
Digital Viewing Head, Inclined at 45°, 3.2MP(2048×1536)
EyepieceExtra wide field eyepiece WF15×/16 with diopter adjustment
Stereo Zoom BodyZoom ratio 0.8x-5x, zoom ratio 1:6.3, working distance 115mm
 Total magnifications12X – 75X   (using the included 15X eyepeices) ● ● ●
10X – 50X   (use the optional 10X eyepeices) ○ ○ ○
Bright & Dark Field IlluminationIris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable
Illumination7W Fluorescent lamp
LED Point Light
6V/20W Halogen illumination, lamp can be changed
FocusingFocusing range: 100mm, it is suitable for observing different size gem and sample
Gem ClampHigh quality steel clamp is perfect to hold the gem for observation from all directions
StageAt both side, there are two gem clamp fixing holds for you to choose
Stand0-38°Rotatable, so the height and angle of eyepiece can be adjusted, easy to operate
Base0-325° Rotatable

Note: ● Standard Outfit, ○ Optional
