Adjustable LED intensity with USB port (AFDM series)
Single LED on/off switch
Adjustable angle of each LED (horizontal direction or left-right with max +/-30 degree)
Input Power: 12V/2A
Large illuminated field (300mm diameter)
Providing intense and focused shadow-free illumination
Great choice for industrial microscope or stereoscope stand with 75mm diameter bracket
For monocular zoom object /AFDM with 50mm adapter
Adjustable Angle Tiltable Ring LED Light

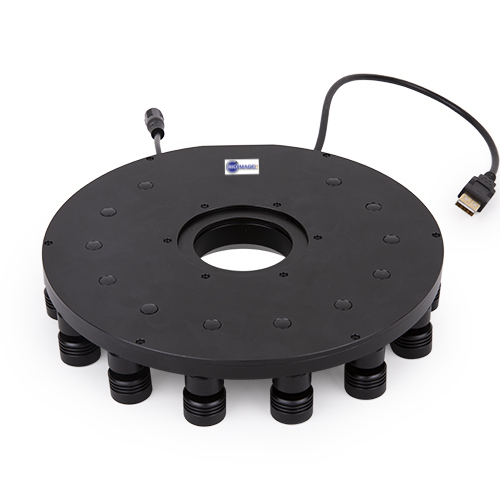

BIL-ISL-202 Ring LED Light is shown in the figures above. Twelve LEDs with individually adjustable angles are distributed on the outer circle with a diameter of 200mm. The mounting column with a diameter of 76mm in the middle can be directly inserted into the microscope bracket hole (such as the A1 bracket of TPS-30A). The diameter of the hole in the mounting column is 50mm, and the single barrel or autofocus microscope of the corresponding adapter can be directly inserted.

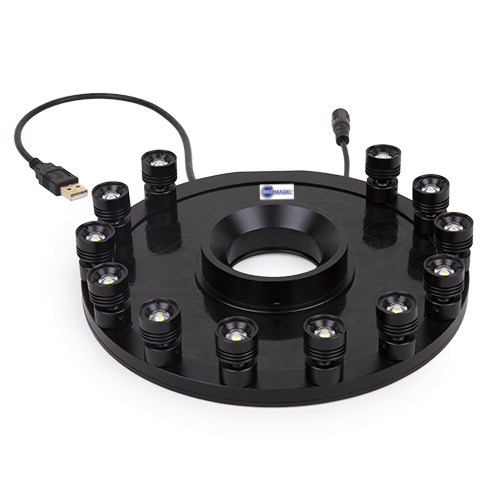

under the condition of LED angle, inward light illumination

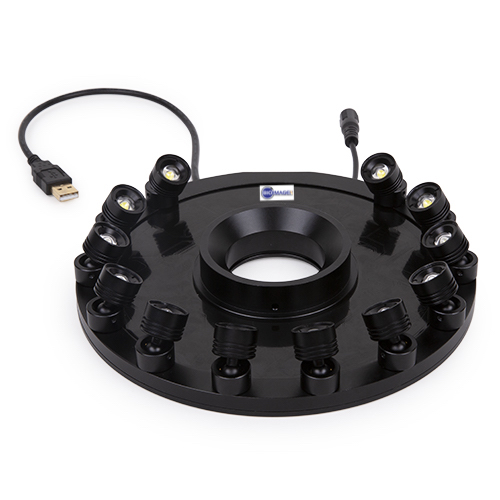

Tilted LED angles, great tool for oblique light illumination
Vertical view of AALRL-200-7650 under the condition of LED angle, inward light illumination

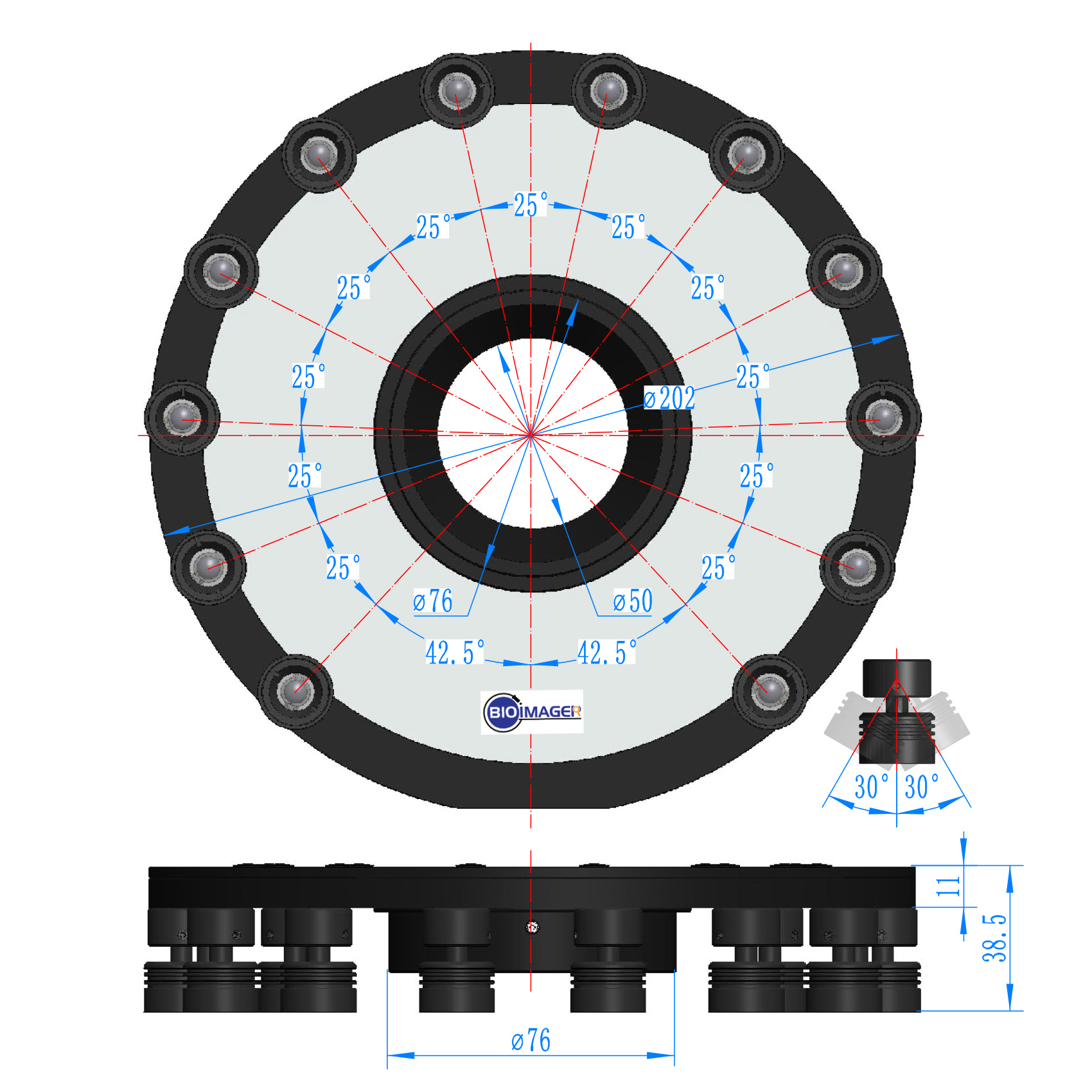

Dimension of the ring: external diameter=202mm, internal diameter=50mm, Mountable Ring Diameter=76mm

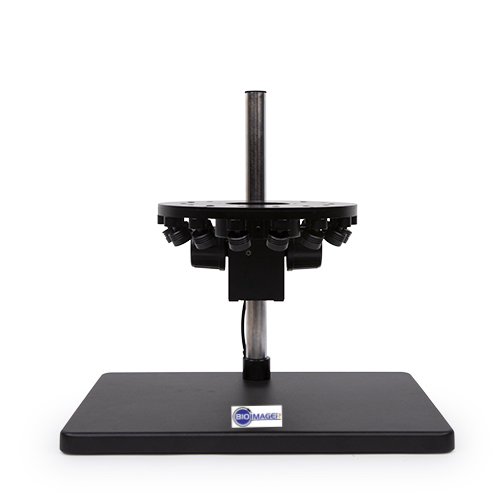

Adjustable Angle mounted on a stand

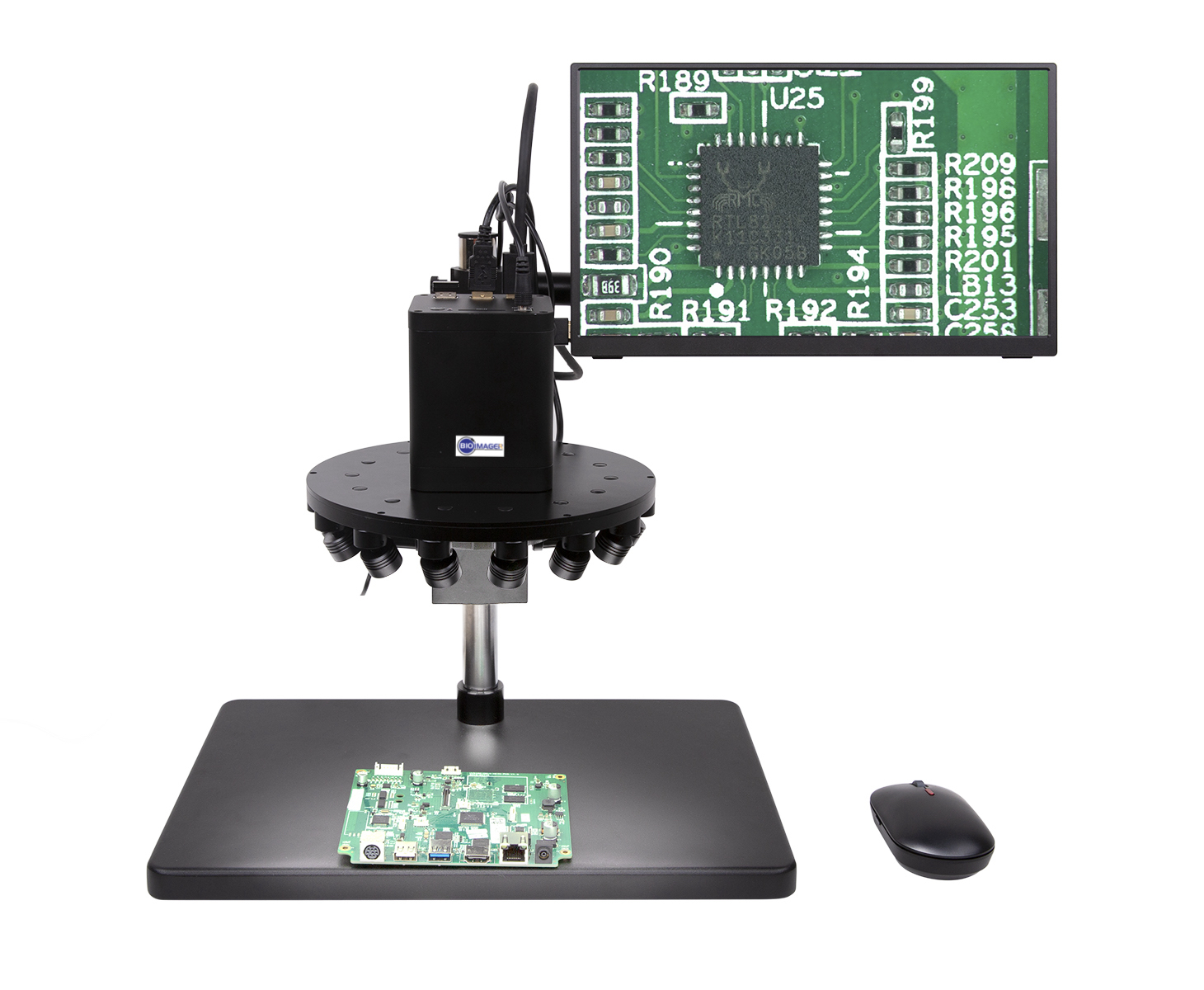

Tilted Angle LED combined with an industrial imaging system
