C-Mount adapter allows you to connect a digital camera to your microscope through trinocular head or photo port (side port or back port depending on the brand and model).
C-Mount adapter for use with a camera with “C” threads. Fits in a 23mm inside diameter trinocular port.
For use with all types of microscopes or use with eyepice mount, we offer a 30.00 and 30.50mm adapters. It is important to match the size of your camera chip to the magnification in your C-Mount adapter.
The chart below lists camera chip sizes and suggested adapters.
Camera Sensor size
1/3”,1/4” or smaler
1/1.8”,1/2”,1/2.5” or smaller
2/3” or smaller
1” or smaler
Suggessted C-Mount Adapter
0.35x
0.45x, 0.5x or 0.55x
0.63x, 0.66x or 0.7x
1x
If you need help, please contact us and specify your microscope brand and model and your camera brand, model and chip size (if you know), Bioimager engineers will help you choose the right adapter magnification;

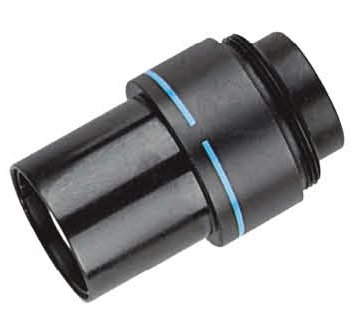

Eyepiece C-Mount Adapter
Sizes:
We offer various size of eyepiece c-mount adapters. The chart below lists camera chip sizes and suggested adapters.
Camera Sensor size
Suggested C-Mount Adapter
1/3”,1/4” or smaller
0.35x, 0.37x
1/1.8”,1/2”,1/2.5” or smaller
0.45x, 0.5x or 0.55x
2/3” or smaller
0.63x, 0.66x or 0.75x
1″ or larger
1x
Adapters:

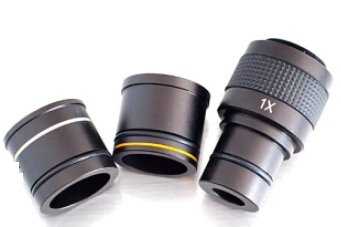

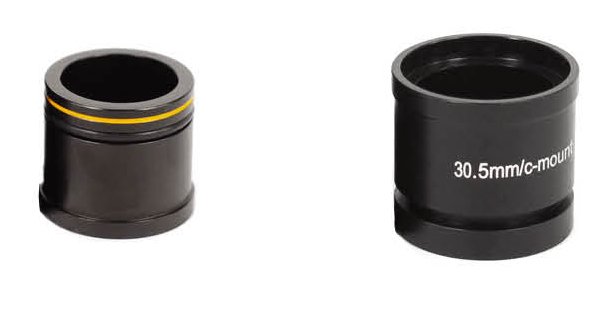

For use with all types of microscopes or use with eyepiece mount, we offer a 30.00 and 30.50mm adapters. It is important to match the size of your camera chip to the magnification in your C-Mount adapter.

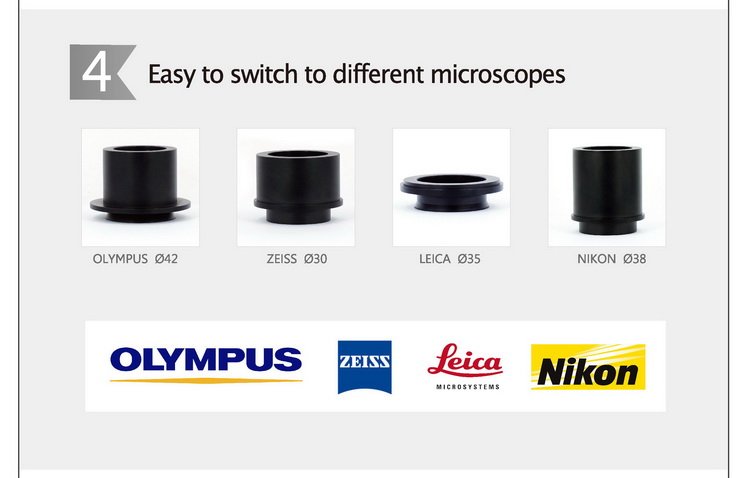

To use this type of 23.0mm eyepiece c-mount adapter with the main video-port of the microscopes, we offer a customized adapter at different sizes: <
Types:
We offer the eyepiece c-mount adapters in two types:
Fixed Focus

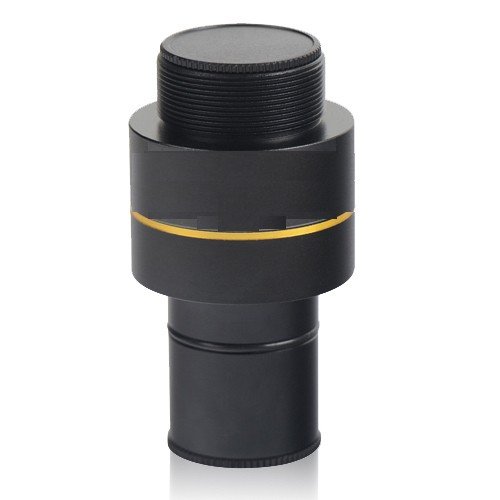

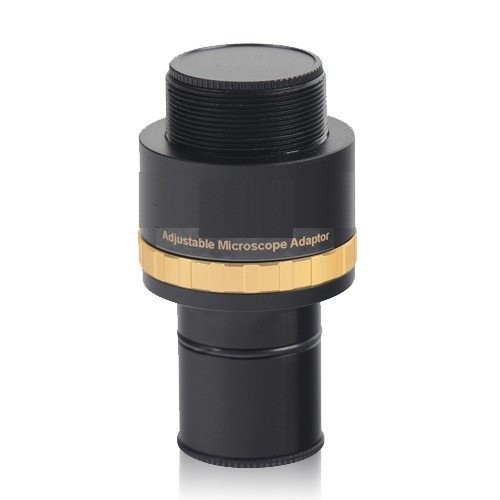

Adjustable Focus
The adjustable focus allows magnifying the image or even making it smaller.
We have three models of 0.37x, 0.5x and 0.75x adjustable focus eyepieces. The 0.37x Adjustable focus c-mount adapter has variable magnifications from 0.35x to 0.5x, while the 0.5x adjustable c-mount adapter covers from 0.38x till 0.63x, the 0.75x can vary from 0.58x till 0.89x and the 1x adjustable focus can cover from 0.90x till 1.1x.
Cat #
Magnification
Camera Sensors
Range of Magnification
BIA-E-0.37xCAF
0.37x
1/3″,1/4″,1/5″, <1/2″
0.35x – 0.5x
BIA-E-0.50xCAF
0.5x
1/2″, 1/1.8″, <2/3″
0.38x – 0.63x
BIA-E-0.75xCAF
0.75x
2/3″, 1/1.2″,1/1.8″,1″
0.58x – 0.89x
BIA-E-1.0xCAF
1.0x
1/1.1″, 1″, 1.1″, 1.2″
0.90x – 1.1x
Video 1. Using A 0.37x C-mount adaptere with 16MP to show transmitted brightfield sample images of BMU500DIC
This video demonstrates the microscopy camera BRC-1600which is a 16MP 1/2.33″ USB 3.0 colorful camera. The camera is connected to one of our upright industrial /metallurgical microscope BMU500DIC with the 0.37x c-mount adapter, Windows 10, and sample images of Tilia (Basswood) are shown at different objective lenses.

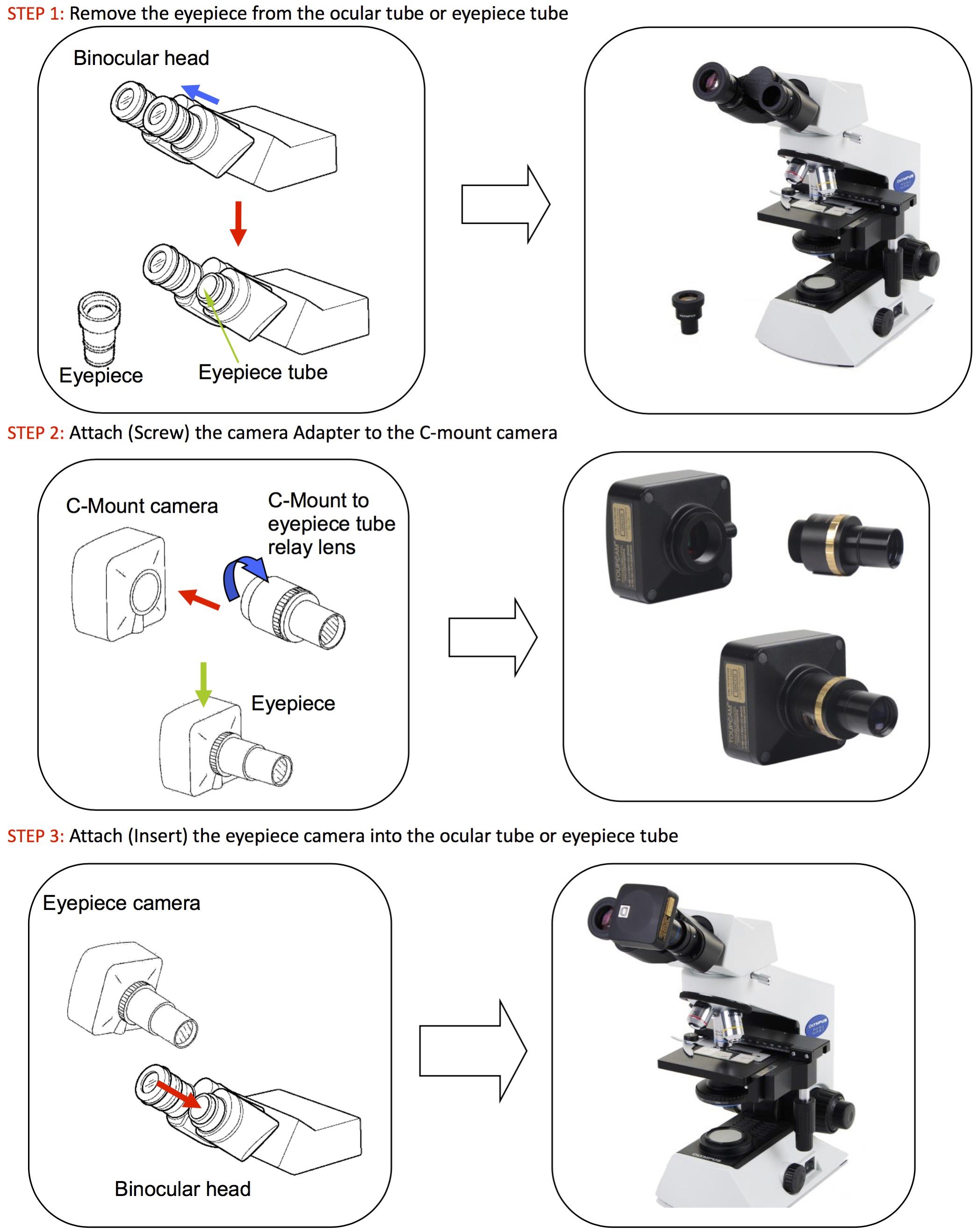

1. Eyepiece C-mount adapter to use with a binocular head
2. Eyepiece C-mount adapter to use with a trinocular head
