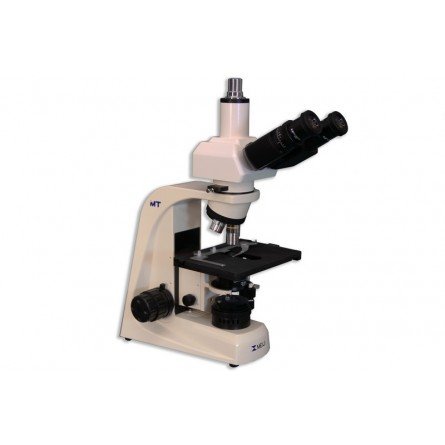

MT9530 Trinocular Gout Testing Microscope

Availability:

In stock


Compare

Meiji Techno MT9500 Series Gout Testing Microscopes for the identification of crystals present in body fluids. The MT9500 has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications. Ergonomic placement of controls allows for stress free operation, increased lab efficiency and maximum productivity.

In stock

$5,100.00 $5,630.00

Meiji Techno MT9500 Series Gout Testing Microscopes for the identification of crystals present in body fluids. The MT9500 has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications. Ergonomic placement of controls allows for stress free operation, increased lab efficiency and maximum productivity.

MT9530 Trinocular Gout Testing Microscope

The MT9500 Microscopes features include:

  • Super Widefield 10X High Eyepoint eyepieces, F.N. 22 are standard
  • Available with Ergonomic comfortable Siedentopf type binocular or Trinocular viewing head
  • Tilting Ergonomic binocular head-adjustable vertically from 10°to 50° (optional models)
  • Smooth operating ball bearing quintuple nosepiece provides effortless objective changes
  • New improved ∞ Infinity Corrected Objectives ICOS Optical System
  • Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate.
  • Ceramic coated, flat top mechanical stage with rounded corners and low positioned left or right handed ergonomic X-Y coaxial controls.  The easy to maintain ceramic coating allows for smooth exchange of speciments while offering maximum protection to the stage surface from abrasions and wear overtime of use.  The super hard coating is durable and rugged enough to provide years of demanding use.
  • Incorporates tension adjustment and safety Auto-focus stage stop lever
  • Newly designed Abbe Condenser 1.25 N.A. in quick change dovetail mount operates and tracks very smoothly and predictably facilitating accurate iris control with improved usability.
  • Choice of LED or 30 watt Halogen illumination with automatic voltage sensing power supply.
  • Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser with built in iris
  • Trinocular models compatible with Digital, CCD, CMOS, Analog Meiji Techno adapters for photomicrography
  • Cast Aluminum Alloy construction with chemical resistant finish
SKU: MT9530 Categories: ,

Includes:
MT9520: Binocular Gout Testing Microscope for the identification of crystals present in body fluids. Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser and strain free ∞ Infinity Corrected objectives.  Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate.
MA815: Binocular head-Siedentopf type Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube ( 30.0mm I.D. eyetube). Inclined at 30°degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Rubber Eyeshield for MA817, SWH10X eyepiece (each)
MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm, ∞ Infinity Corrected
MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm, ∞ Infinity Corrected
MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm, ∞ Infinity Corrected
MA954: Strain free Abbe condenser, N.A. 1.25 with iris diaphragm and dovetail mount
MA918R: Ceramic coated flat-top stage with rounded corners , 190mm x 140mm with 80mm x 52mm  X-Y movement and low positioned right hand ergonomic drop-down coaxial controls (Included in Models MT9520, MT9530, MT9540, MT9550)
Focusing Adjustment: Low positioned controls allows the operator to work with their forearms relaxed on the working surface so ergonomically placed controls are within easy reach, range of travel:23mm, rotation of fine focus: 0.2mm per revolution.  Coaxial coarse and fine focusing controls with graduation reading 2 microns per division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA598: Attachable finger assembly for MA918R and MA918L
MA1043: Intermediate tube with built in analyzer and compensator slot (Requires  MA915/PT#2 -43mm polarizing filter if used with  MT4000 & MT5000 Series)(Factory Installed)
MA1044: Rotatable polarizer with full wave plate (built into stand available as a replacement part only) (Factory Installed)
MA326: Bulb, 6V 30W Halogen (Factory Installed)
MA327: Fuse 3Amp (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models) or
MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)
MA711: Dust cover for MT9500 Series
Manual: Meiji Techno America MT9500 Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 29 lbs (13.1 kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs.)
Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs.)
Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31.0 lbs.)
Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33.0 lbs.)

ModelHeadEyepieces ObjectivesStageCondenserIllumination
MT9520BinocularSWH10x FN22Strain Free S.Plan 4x, 10x, 40xSFixed flat-topAbbe NA 1.25 with iris in dovetail mountTransmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control
MT9530Trinocular
MT9540Ergonomic

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N. 22 are standard.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Meiji Techno offers an assortment of S. Planachromat Polarizing Infinity Corrected objectives.

STAGE
Ceramic coated left or right-handed, flat top stage 190mm x 140mm with travel: 80mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls.

CONDENSER
Strain free Abbe 1.25 NA Condenser with iris diaphragm in dovetail mount.

ILLUMINATION
Powerful 30 watt transmitted light Koehler halogen illumination provides enhanced image quality and brightness for the observation of specimens.

ACCESSORIES
All MT9500 Series models come with an analyzer, full wave plate polarizer, and 29mm filter tray in lamphouse assembly.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

Included:
• MT9530: Trinocular Gout Testing Microscope for the identification of crystals present in body fluids. Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser and strain free ∞ Infinity Corrected objectives.  Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate.
• MA8165: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eye tube (30.0 mm I.D. eyetube) Inclined at 30 degrees Inverted Image. Sliding 80/20 sliding beamsplitter when engaged for photo work, 80% of the image is directed to the phototube and 20% to the eyetubess
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Rubber Eyeshield for MA817, SWH10X eyepiece (each)
MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm, ∞ Infinity Corrected
MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm, ∞ Infinity Corrected
MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm, ∞ Infinity Corrected
MA954: Strain free Abbe condenser, N.A. 1.25 with iris diaphragm and dovetail mount
MA918R: Ceramic coated flat-top stage with rounded corners , 190mm x 140mm with 80mm x 52mm  X-Y movement and low positioned right hand ergonomic drop-down coaxial controls (Included in Models MT9520, MT9530, MT9540, MT9550)
Focusing Adjustment: Low positioned controls allows the operator to work with their forearms relaxed on the working surface so ergonomically placed controls are within easy reach, range of travel:23mm, rotation of fine focus: 0.2mm per revolution.  Coaxial coarse and fine focusing controls with graduation reading 2 microns per division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA598: Attachable finger assembly for MA918R and MA918L
MA1043: Intermediate tube with built in analyzer and compensator slot (Requires  MA915/PT#2 -43mm polarizing filter if used with  MT4000 & MT5000 Series)(Factory Installed)
MA1044: Rotatable polarizer with full wave plate (built into stand available as a replacement part only) (Factory Installed)
MA326: Bulb, 6V 30W Halogen (Factory Installed)
MA327: Fuse 3Amp (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models) or
MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)
MA711: Dust cover for MT9500 Series
Manual: Meiji Techno America MT9500 Manual

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
MA815: Binocular Gout Testing Microscope for the identification of crystals present in body fluids. Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser and strain free ∞ Infinity Corrected objectives.  Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate (Included in Models MT9520)
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees (30.0 mm I.D. eyetube) Erect image (*Included in Model MT9540)

Photo/Video Attachment :
MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used (*Included in Model MT9550)

Eyepieces:
MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)

Semi Planachromat Pol Objectives for Transmitted Light Work:
MA937: Strain free Plan objective 20X/N.A.0.40, W.D. 5.0mm
MA939: Strain free Plan objective 60XS/N.A. 0.85, W.D. 0.2mm
MA940: Strain free Plan objective 100XS/N.A. 1.25 oil, W.D. 0.14mm

Stages:
MA918L:Ceramic coated flat-top stage, 190mm x 140mm with 80mm x 52mm X-Y movement and left hand drop-down coaxial controls

Wave Plates and Compensators:
MA1043: Intermediate tube with built in analyzer and compensator slot for MT4000 & MT5000 Series (requires a MA915/PT#2 43mm polarizing filter)
MA1044: Rotatable polarizer with full wave plate (built into stand-available as a replacement part only)

Replacement Bulbs and Fuses:
MA326: Spare bulb, 6V 30W Halogen
MA327: Spare 3A fuse
