Microscope illuminators and microscope lights include free-standing lights, microscope dual pipe lights (both LED and 150w halogen), and microscope ring lights available in fluorescent, high intensity LED and 150w halogen fiber optic. Some stereo microscopes require ring light adapters when attaching microscope ring lights. When considering which microscope illuminator to purchase, keep in mind that LED light bulbs have a longer life than halogen bulbs do, so they do not need to be replaced as frequently. All microscope illuminators have intensity control that allow the lights to be dimmed.
Overview
BIL-5WE 5W LED Light Source is designed as an auxiliary lighting device for microscope in order to get better observation results. The LED light source provides high quality illumination and saves energy.
Features
1. More stable power supply with CE standard electrical parts and circuit.
2. Enhancing the security with skillful power off device.
3. Reliable with stable structure.
4. Longer working life and lower noisy.
5W LED Cold Light Source
Introduction
BIL-5W-E LED Light Source is designed as an auxiliary lighting device for microscope in order to get better observation results. The LED light source provides high quality illumination and saves energy.
Features
1. More stable power supply with CE standard electrical parts and circuit.
2. Enhancing the security with skillful power off device.
3. Reliable with stable structure.
4. Longer working life and lower noisy.
Specifications
BIL-5W-E-S
BIL-5W-E-D
BIL-5W-E-R
Power Supplier
Input Voltage:85V-240V/ 50-60Hz
●
●
●
5W LED light lamp
Brightness Adjustable
with a 5/8″ Fiber Optic Cable adapter with metal housing
The color temperature is 5600K
Size: 200×85×110mm
Weight 2 kg

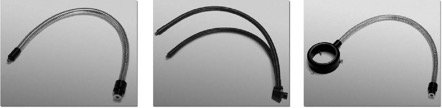

Single Light Guide
Single Hard Fiber, length 550mm, beam diameter 8mm, with collector.
●
Dual Light Guide
Double Hard Fiber, length 550mm, beam diameter 8mm, with collector.
●
Ring Light Guide
Ring Soft Fiber, length 550mm, beam diameter 8mm, with collector, Adapter Ring Size Φ50mm/ Φ60mm
●
Package
1 set/carton, 300*250*210mm, 2.3kg
4 sets/carton, 540*320*470mm, 10kg
Note: ● Standard Outfit, ○ Optional
Specifications
BIL-5W-E-S
BIL-5W-E-D
BIL-5W-E-R
Power Supplier
Input Voltage:85V-240V/ 50-60Hz
●
●
●
5W LED light lamp
Brightness Adjustable
with a 5/8″ Fiber Optic Cable adapter with metal housing
The color temperature is 5600K
Size: 200×85×110mm
Weight 2 kg
Single Light Guide
Single Hard Fiber, length 550mm, beam diameter 8mm, with collector.
●
Dual Light Guide
Double Hard Fiber, length 550mm, beam diameter 8mm, with collector.
●
Ring Light Guide
Ring Soft Fiber, length 550mm, beam diameter 8mm, with collector, Adapter Ring Size Φ50mm/ Φ60mm
●
Package
1 set/carton, 300*250*210mm, 2.3kg
4 sets/carton, 540*320*470mm, 10kg
Note: ● Standard Outfit, ○ Optional
Compatible Microscopes
Fits and works with any stereomicroscopes.
