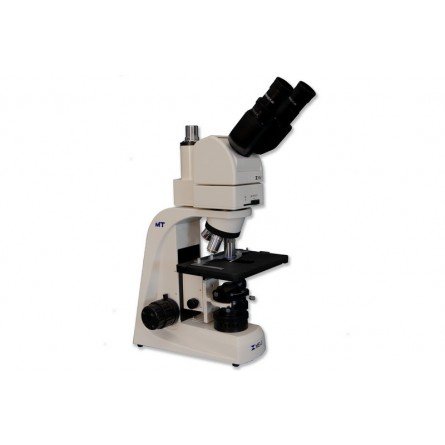

MT5200ED LED Ergonomic Binocular Dermatology Microscope

Availability:

In stock


Compare

Meiji Techno’s laboratory grade upright microscope line is the new and cost-effective MT5000 Series Biological Microscopes. The MT5000 Series employs all new and improved U.Plan optics.

In stock

$4,245.00 $4,715.00

Meiji Techno’s laboratory grade upright microscope line is the new and cost-effective MT5000 Series Biological Microscopes. The MT5000 Series employs all new and improved U.Plan optics.

The MT5000 Series features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing heads
  • Your choice and preference in illumination, halogen or LED
  • Brightfield, darkfield and phase contrastobservation modes
  • Available with motorized stage and focus drive
  • Optional Ergonomic Binocular Viewing Head Available
SKU: MT5200ED LED Category:

Includes:
MT5200ED: Ergonomic Binocular Brightfield Dermatology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
MA957: Ergonomic tilting binocular head- adjustable vertically from 10 to 50 degrees (30.mm I.D. eyetube)
MA817 (x 2):SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA1022: Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
MA918R:Ceramic coated flat-top stage, 190mm x 140mm, with 80mm x 52mm X-Y movement and right hand  drop-down coaxial controls
MA598: Attachable finger assembly for MA917R and MA917L
MA809/10: Removable AC Electric cord with plug for 115V models
LED/SP-1: 3W LED, 5500K color temperature
MA929: Spare fuse 0.5A for MT5000 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA701: Dust Cover for MT5000
Manual: MT5000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 34 lbs (15.4kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)

ModelHeadIlluminationEyepiecesObjectivesStageCondenser
MT5200DBinocularLED IlluminationSWH10x FN22Plan Apo 1.25x Plan Semi Apo 4x, 10x, 20x, 40xCeramic Coated Fixed flat-top left or right-handed controlsAbbe NA 0.90 with swing out top lens
MT5200EDErgonomic Binocular
MT5300DTrinocular
MT5300EDErgonomic Trinocular

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) The optional MA957, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT5300ED).

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 191mm x 140mm with travel: 80mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.

CONDENSER
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.

ILLUMINATION
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

Included:
• MT5200ED: Ergonomic Binocular Brightfield Dermatology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA957: Ergonomic tilting binocular head- adjustable vertically from 10 to 50 degrees (30.mm I.D. eyetube)
• MA817 (x 2):SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA1022: Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
• MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
• MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
• MA918R:Ceramic coated flat-top stage, 190mm x 140mm, with 80mm x 52mm X-Y movement and right hand  drop-down coaxial controls
• MA598: Attachable finger assembly for MA917R and MA917L
• MA809/10: Removable AC Electric cord with plug for 115V models
• LED/SP-1: 3W LED, 5500K color temperature
• MA929: Spare fuse 0.5A for MT5000 LED Illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT5000

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
• MA816: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees Inverted Image (Included in Models MT5300L , MT5300H, MT5210L and MT5310H)
• MA815: Binocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees Inverted Image (Included in Models MT5200D)

Photo/Video Attachment:
MA958: Photo / video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957/05 ergonomic head is used (Included in all Ergonomic Trinocular models)

Eyepieces:
MA407/05: KHW10X-F Compensation Focusing eyepiece, Field No. 20, Tube O.D. 23.2mm (each)
MA200: Eyeshield for MA407 KHW10X eyepiece (each)
MA408:HWF15X Widefield eyepiece, Field No. 12.2, Tube O.D. 23.2mm (each) (no reticle mount)
MA409:HWF20X Widefield eyepiece, Field No. 9, Tube O.D. 23.2mm (each) (no reticle mount)

Objectives:
• MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
• MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
• MA830: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29mm
• MA835: Plan Semi Apo Objective 50X, N.A. 0.87 oil, W.D. 0.28 mm, F.N. 24
• MA837: Plan Semi Apo Objective 100X oil, N.A. 1.25, W.D. 0.23 mm, F.N. 24 (For use with MA910 condenser)

Brightfield Condenser:
MA910: Abbe condenser, N.A. 1.25 with iris diaphragm and dove-tail mount (Optional for use with 100X objective)

Filters:
MA858/05: ND 25 Neutral density filter, 44.0mm diameter, unmounted
MA857/05: Green filter, clear, 44.0mm diameter, unmounted (Included in all phase models)
MA856/05: LB100 Blue Clear filter 44.0mm diameter, unmounted

Stages:
MA918L: Ceramic coated flat-top stage, 190mm x 140mm with 80mm x 52mm X-Y movement, and left hand drop-down coaxial controls
MA598: Attachable finger assembly for MA917R and MA917L (Included with MA917R & MA917L)
MA676: Attachable clinical finger assembly for MA917R and MA917L

Eyepiece Micrometers (21mm diameter for use with MA407 eyepiece)
• MA542: Cross-line reticle with 0.1mm graduations, 25mm diameter
• MA506: 10mm line divided into 100 units, 25mm diameter
• MA509: 5mm line divided into 100 units, 25mm diameter
• MA524: 10mm square divided into 400 parts, each square 0.5 mm, 25mm diameter
• MA510: 10mm square divided into 100 parts, each square 1.0 mm, 25mm diameter

Stage Micrometers
MA285: 1mm divided into 100 units, 0.01mm
MA286: 0.04” divided into 40 units, 0.001”

Replacement Blubs and Fuse
• LED/SP-1: 3W LED, 5500K color temperature (For use wtih MT5000L LED Series models)
• MA929: Spare Fuse 0.5A for MT5000 LED Illuminator

Miscellaneous
MA977: Eye level riser for MT Series stands
