The BSP-Nano-500 Micro-Spectrophotometer is a high-performance device designed for precise and efficient quantification of nucleic acids, proteins, and bacterial concentrations. With a wavelength range of 200-800 nm, minimal sample requirements (0.5-2.0 μL), and advanced fluorescence detection, it is ideal for life science research. Equipped with a 7-inch touchscreen and Android operating system, it offers standalone operation, rapid measurements (<6 seconds), and exceptional accuracy, making it the perfect choice for modern laboratories.
Introduction to the BSP-Nano-500 Micro-Spectrophotometer
The BSP-Nano-500 Micro-Spectrophotometer is a state-of-the-art laboratory instrument designed to deliver precision, efficiency, and versatility for modern life science research. Offering a broad wavelength range of 200-800 nm, this advanced micro-spectrophotometer excels in quantifying nucleic acids, proteins, and bacterial concentrations, making it indispensable for molecular biology, biochemistry, and microbiology applications.
The BSP-Nano-500 stands out with its minimal sample volume requirement of just 0.5-2.0 μL, ensuring accurate results while conserving valuable samples. Powered by a 2048-linear CCD array detector and a durable Xenon flash lamp, it guarantees rapid and precise measurements. Its innovative design incorporates OD600 functionality, enabling seamless bacterial cell concentration measurements, and fluorescence detection with exceptional sensitivity down to 0.5 pg/μL.

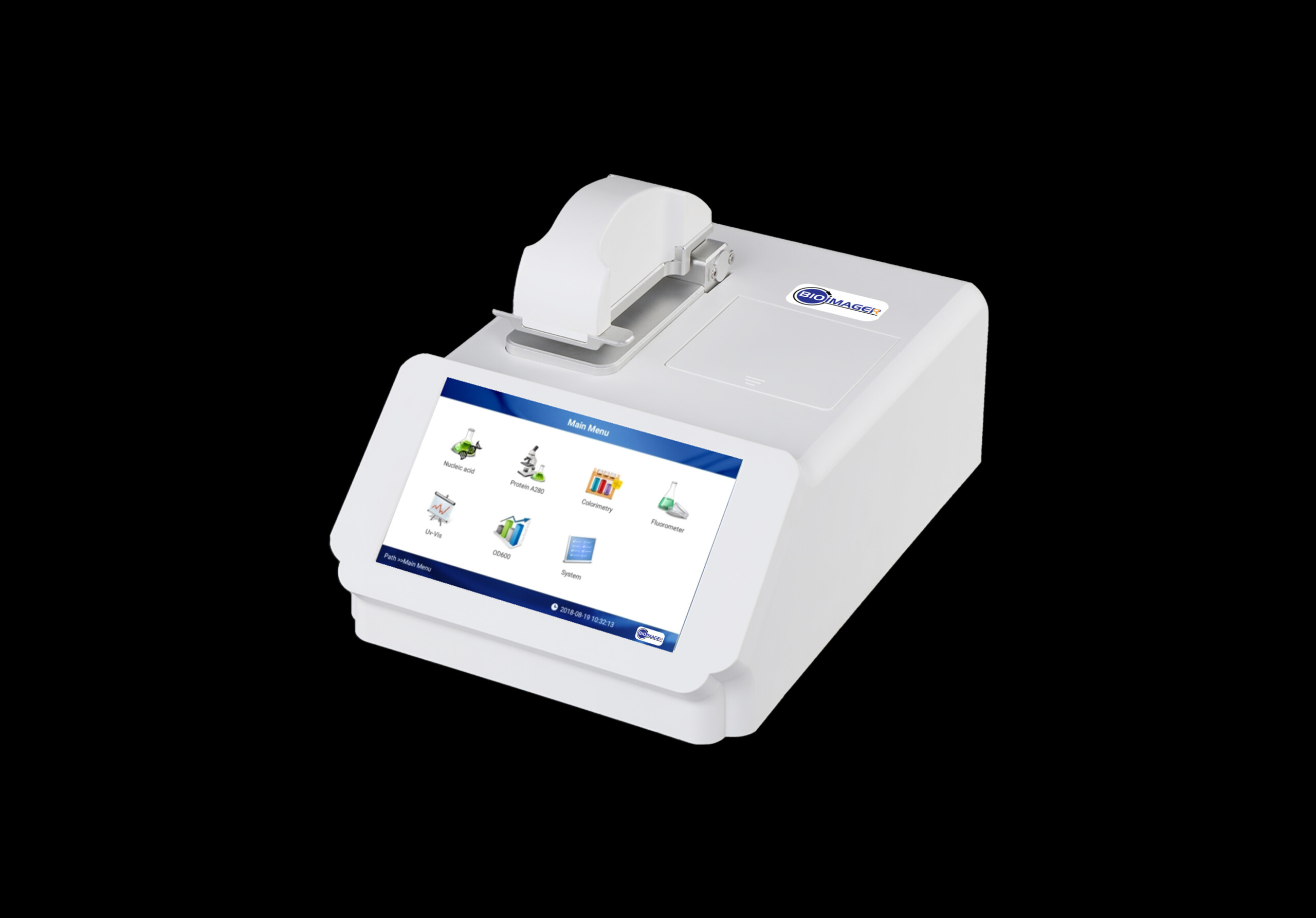

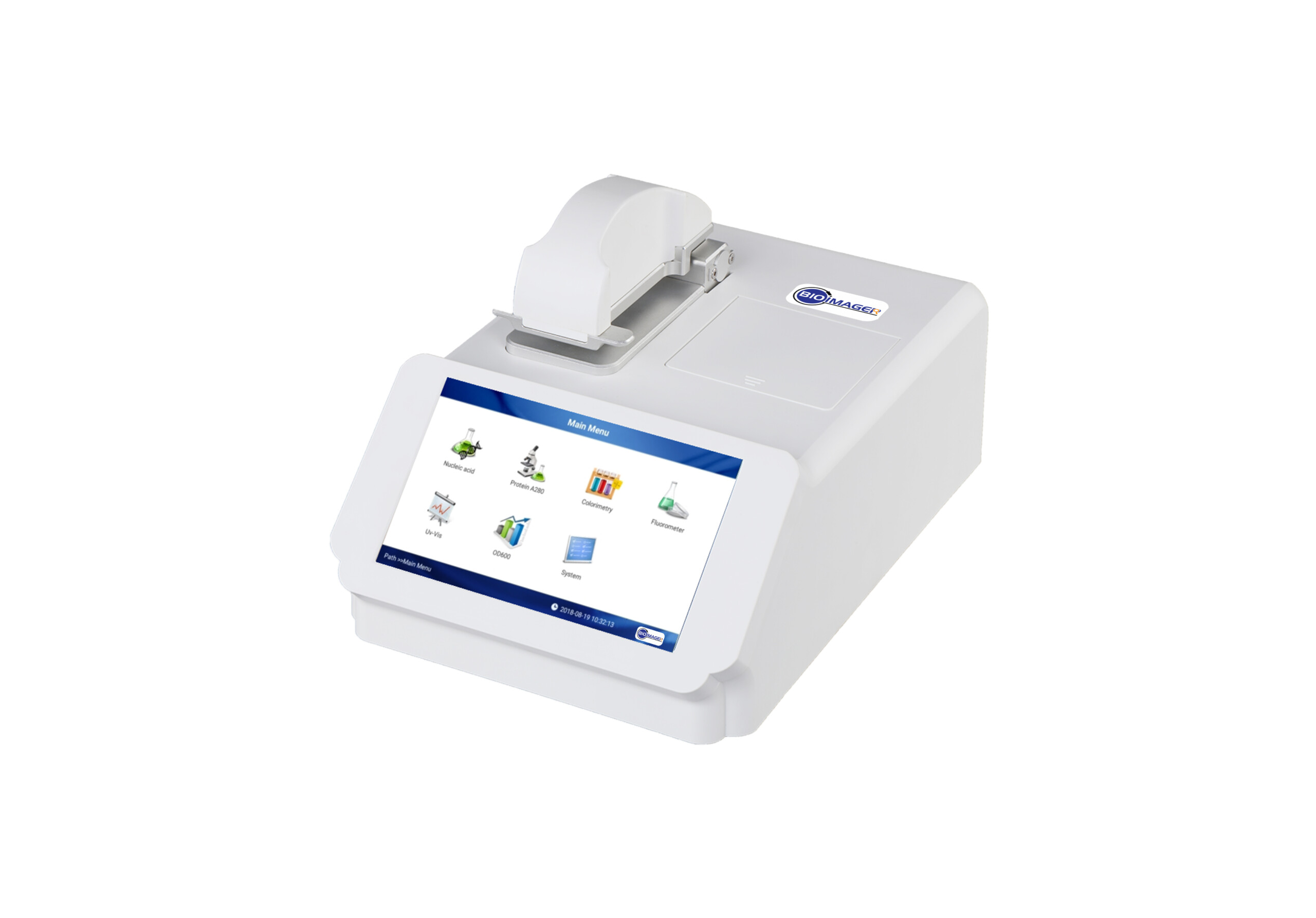

Designed for user convenience, the BSP-Nano-500 features a 7-inch capacitive touchscreen interface integrated with an Android operating system, allowing standalone operation without the need for a computer. This reduces setup complexity and enhances portability, making it a flexible solution for various lab environments.
Durability is another hallmark of the BSP-Nano-500, with its aluminum alloy and quartz fiber sample pedestal ensuring longevity and reliability. With fast measurement times of under 6 seconds, a robust build, and comprehensive data output via USB, this device is engineered to enhance productivity in fast-paced laboratory workflows.
Why Choose the BSP-Nano-500 Micro-Spectrophotometer?
Enhanced Research Efficiency: Save time with rapid measurements and intuitive operation.
Broad Application Range: Supports DNA, RNA, protein quantification, fluorescence detection, and OD600 bacterial concentration measurements.
Compact and Independent: Operates on an Android system with a touchscreen interface—no external computer required.
High Sensitivity and Precision: Fluorescence detection sensitivity of 0.5 pg/μL and a wide detection range of 2-15,000 ng/μL for dsDNA.
Whether you’re conducting cutting-edge research or routine laboratory analysis, the BSP-Nano-500 Micro-Spectrophotometer is your trusted partner in achieving accurate, reliable, and efficient results.
BSP-Nano-500 Features:
Patented Lifting Motor Structure
The innovative design ensures a gentle stretch of the liquid column, preventing breakage caused by structural stress.

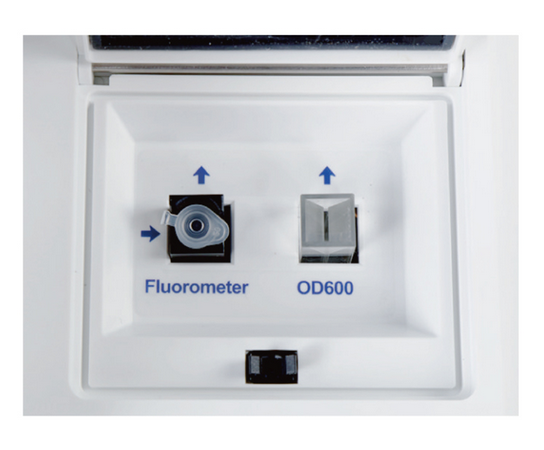

Enhanced OD600 Functionality
Effortlessly measure the concentration of bacteria and microorganisms for more convenient and accurate analysis.
Intuitive Android System
Equipped with a 7-inch capacitive touchscreen and user-friendly app software, offering a seamless and simple user experience.
High-Precision Detection
Utilizes a 2048-element linear CCD array detector, enabling accurate detection and display within just 6 seconds.
Long-Life Pulsed Xenon Light Source
Designed for extended durability and reliable performance.
Flexible Data Management
Results can be printed directly using the built-in printer or exported via USB for advanced data analysis and storage.
Perfect Fusion of Micro-Detection and Fluorescence Detection
Enhanced Optical Path Length
Features a 0.05 mm optical path length, allowing for the detection of concentrations as high as 15,000 ng/μL.
Advanced Fluorescence Detection
Incorporates fluorescence detection functionality, enabling precise quantification of extremely low-concentration nucleic acids with a lower detection limit of 0.5 pg/μL.
Automatic Detection

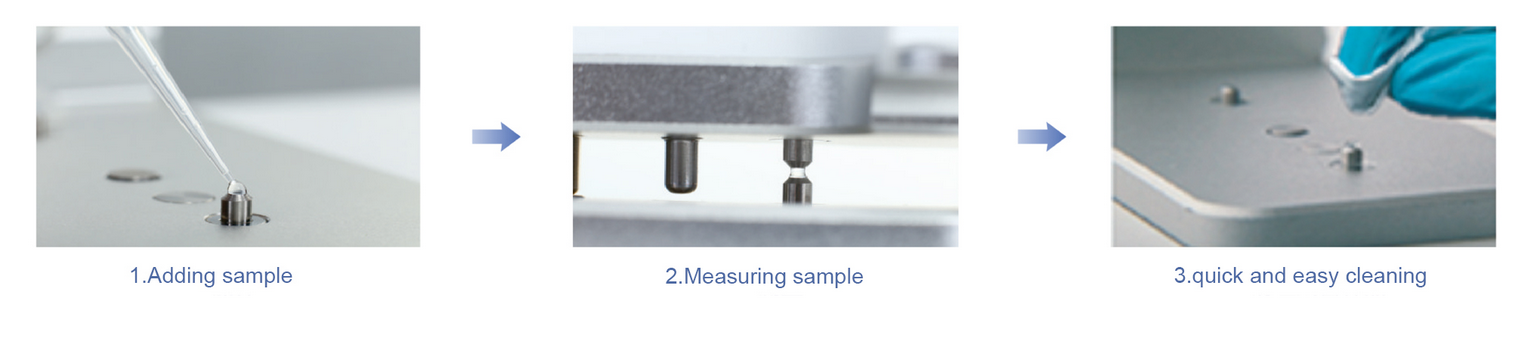

Automatically initiates detection upon lowering the arm, streamlining the workflow for effortless operation.
Application Range
260 nm: dsDNA, ssDNA, RNA
280 nm: A280, BSA, IgG, Lysozyme
562 nm: BCA
595 nm: Bradford
600 nm: Bacterial concentration
650 nm: Lowry
This broad wavelength coverage supports diverse applications, making it a versatile tool for nucleic acid, protein, and bacterial analysis.
BSP-Nano-500 Micro-Spectrophotometer: A Cutting-Edge Solution for Life Science Research
The BSP-Nano-500 Micro-Spectrophotometer is a state-of-the-art upgrade to the Nano-300, offering an expanded wavelength range of 200-800 nm and enhanced functionality. Designed to streamline biological research, it features a newly added capability for bacterium cell concentration measurement (OD600) in a cuvette.
With the ability to measure nucleic acids and proteins using as little as 0.5–2 μL of sample, the Nano-500 matches the speed and precision of its predecessor. Additionally, it comes equipped with a 7-inch touchscreen and an integrated Android operating system, eliminating the need for a separate computer.
The BSP-Nano-500 is the ideal choice for modern biology laboratories, combining innovation and efficiency to advance life science research.
