TwinCam & MultiCam C-Mount Adapters for Multiple Cameras / Spectrometers


TwinCam & Multi-Cam C-Mount Adapter

$7,750.00 $9,000.00

C-Mount Adapters for Multiple Cameras

This problem initially raised by one of our clients in mineralogy, located in Hawaii, USA. He planned to use one camera and one spectrometre together with our Huvitz HRM300 Upright BF/DF/DIC/POL Metallurgical microscope. We found three solutions for him. Here is one of them:

The TwinCam and MultiCam enables two-, three- and four-camera, dual emission imaging from one microscope port

The Cairn TwinCam enables two cameras to be coupled to the same microscope port with pixel alignment. The base unit can accommodate one of our standard filter cubes allowing light to be distributed on the basis of wavelength, polarisation state or focal depth. Each cube has fine mechanical X-Y adjustment for pixel overlay or deliberate image offset. The input of the instrument has a variable rectangular aperture enabling the use of cropped sensor mode on both detectors. Each port can be fitted with different magnification optics to accommodate all popular sensor sizes and a wide range of fields of view. As the internal optics are infinity corrected, manual or motorised filter changers can also be fitted to input and output ports.

Applications

  • Fluorescence Resonance Energy Transfer
  • Simultaneous use of multiple dyes or genetic markers
  • Ratiometric imaging
  • Polarisation studies
  • Simultaneous transmitted light and fluorescence
  • Simultaneous high speed and high resolution
  • Simultaneous multi Z depth imaging

Key Benefits

  • Choice of magnifications
  • Easy alignment and focusing
  • Rapidly interchangeable cubes
  • Output ports available – 0.6X, 1X, 1.3X, 1.5X, 2X

The Cairn MultiCam enables two, three or four cameras to be coupled to the same microscope port with pixel alignment. The base unit can accommodate three of our standard filter cubes allowing light to be distributed on the basis of wavelength, polarisation state or focal depth. Each cube has fine mechanical X-Y adjustment for pixel overlay or deliberate image offset. The input of the instrument has a variable rectangular aperture enabling the use of cropped sensor mode on all detectors. Each port can be fitted with different magnification optics to accommodate all popular sensor sizes and a wide range of fields of view. As the internal optics are infinity corrected, manual or motorised filter changers can also be fitted to input and output ports.
camera/duocam-with-bits-intact_IMG_4069.jpg

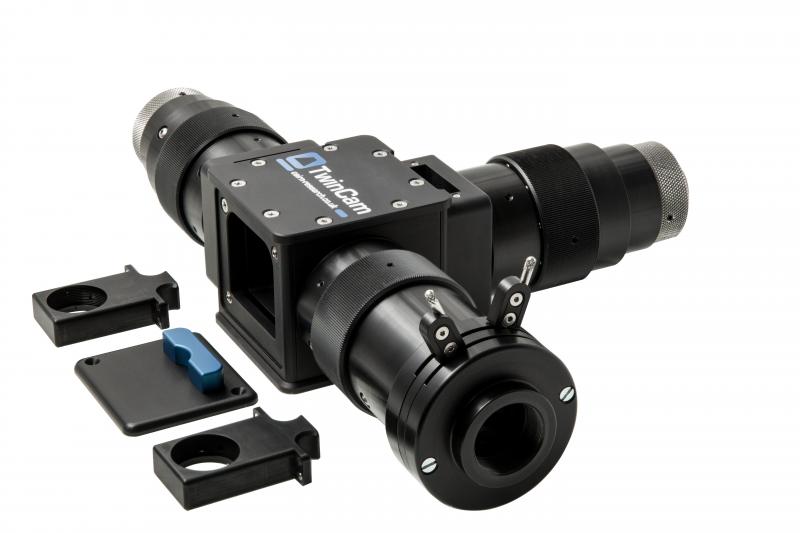

camera/duocam-bits-laid-out_IMG_4066.jpg
camera/Josh-Redman-Photography_IMG_8125.jpg

SKU: TwinCam Categories: ,
