Zeiss 0.65x C-Mount Adapter

Original price was: $USD 600.00.Current price is: $USD 473.00.

-21%

Convert the Cral Zeiss trinocular microscope phototube/head/port to traditional C-Mount type With different built-in reduction lens (1X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head suitable for 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″ or 1/4″ inch CCD or CMOS sensor chips).

Guaranteed Safe Checkout

Zeiss 0.65x C-Mount Adapter

Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)
outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);

With different built-in reduction lens (1X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);

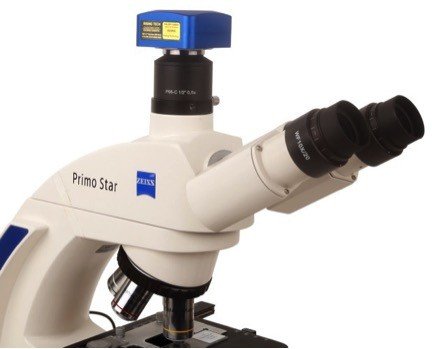

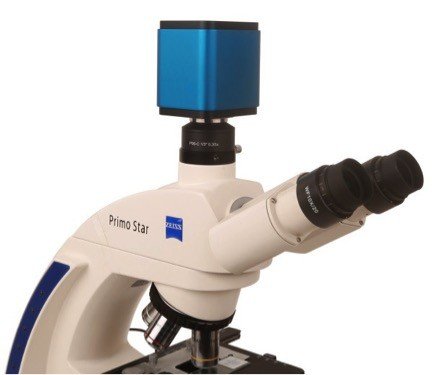

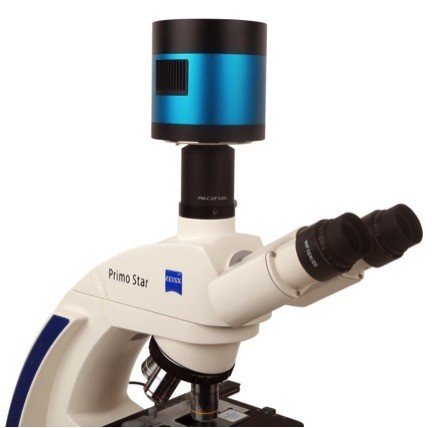

Can be installed in Zeiss UIS trinocular tube such as:
Zeiss PrimoStar series
Zeiss Stemi series
Zeiss Primo vert series

Build of material: anodized aluminum;
Telecentric optics with low light deficiency;
Parfocal with different microscope objective lenses;
Diffraction limited MTF;
Aperture totally coupled with UIS microscope objective’s exit pupil;
Zeiss 0.65x C-Mount Adapter

Carl Zeiss C-Mount Adapter

Zeiss 0.65x C-Mount Adapter
Zeiss Microscope C-Mount Adapter

  • Convert the Cral Zeiss trinocular microscope phototube/head/port (have standard 34 mm outer diameter for the insertion end to phototube) to traditional C-Mount type (25.4 mm or 1 inch diameter with 32 threads per inch);
  • With different built-in reduction lens (1X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head
  • suitable for 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″ or 1/4″ inch CCD or CMOS sensor chips);
  • Build of material: anodized aluminum; Telecentric optics with low light deficiency;
  • Parfocal with different microscope objective lenses; Diffraction limited MTF;
  • Aperture totally coupled with UIS microscope objective’s exit pupil;

All Carl Zeiss Scopes made after 2000 except Axiovert 40 MAT model.

Axiolab, Axiophot-2, Axioplan-2, Axioskop-2, Axiostar, Axiotech.

Axiovert 100, Axiovert 135, Axiovert 135M,Axiovert 200IM (with Zeiss trinovular tube #452902)

Stemi 2000-C, Stemi 2000-CS, Stemi DRC (with phototube #455005), SV6, SV11

Zeiss  Phototube to C-Mount Adaptor
Zeiss 0.65x C-Mount Adapter

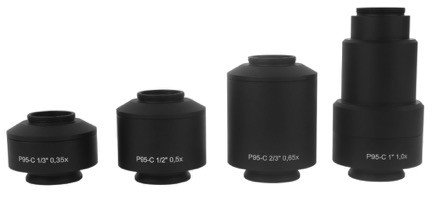

 Our Catalogue #

BCA-Z-1x

BCA-Z-0.66x

BCA-Z-0.5x

BCA-Z-0.35x

Magnification

1X

0.66X

0.5X

0.35X

Sensor Size

1″, 2/3″

2/3″,1/1.8″,1/2″

1/1.8″,1/2″,1/2.5″

1/1.8″,1/2″,1/2.5″

Microscope

listed above.

If you need help, please contact us and specify your microscope brand and model and your camera brand, model and chip size (if you know), Bioimager engineers will help you choose the right adaptor magnification;
