UNIVIS-500 Portable Inverted Biological Microscope
Features

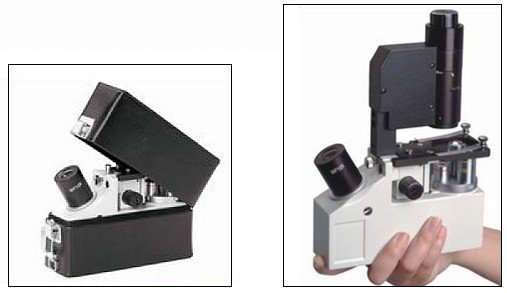

- Small hand-held microscope, simple, great performance, high-definition.
- Inverted-design is available to observe biological samples.
- Fits inside incubator or hood.
- Easy connect a camera for time-lapse imaging or screening analysis
- Compact design, built-in power, easy to carry out to take wildlife observation and inspect protozoa in factory effluent and microbiology.

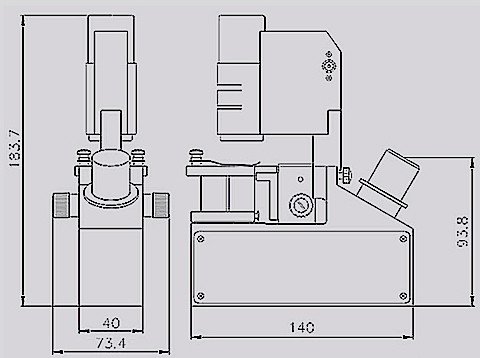

- Small Size for easy portable: 14*4*18.5CM
Specifications
| Eyepiece | 10x/ Φ18mm |

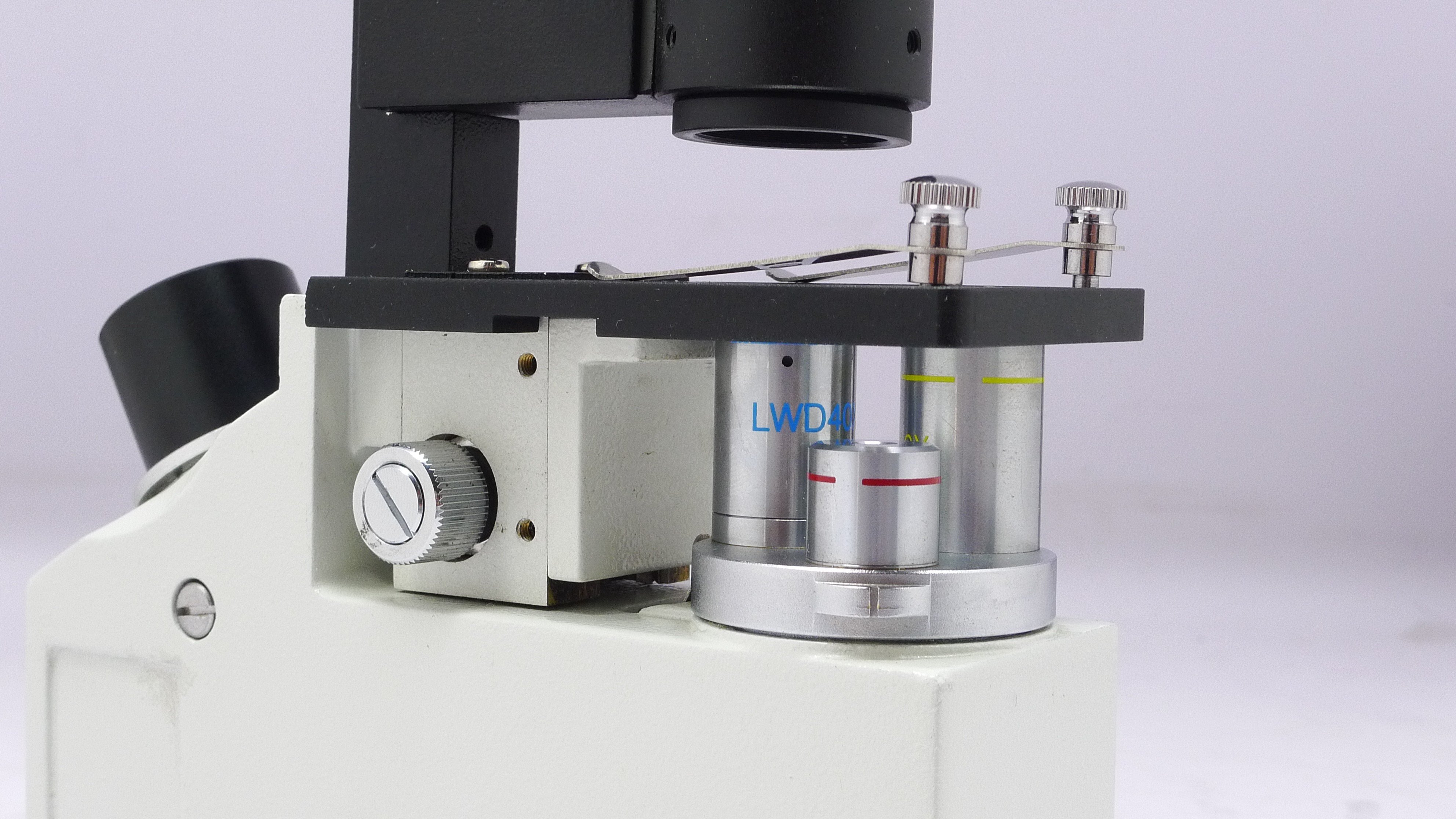

| Objective | Long Working Distance Achromatic 4x/0.08, W.D.16mm |
| Long Working Distance Achromatic 10x/0.25, W.D.3.6mm | |
| Long Working Distance Achromatic 40x/0.6, W.D.0.6mm | |
| Nosepiece | Triple |
| Stage | Plain Stage with Slide Clips |
| Range of Vertical Stroke | Up 1.6mm, down 1.0mm, total 2.6mm |
| Illumination | Brightfield, LED Illumination, AA Battery * 2 |
Optional Items
| Phase Contrast | Phase Contrast 10x | UNIVIS500-10x |
| Phase Contrast 20x | UNIVIS500-20x | |
| Phase Contrast 40x | UNIVIS500-40x | |
| Phase Contrast, LED Illumination, AA Battery *2 | UNIVIS500-LED | |
| Box | Portable Carring Box | UNIVIS500-case |
