Tokai-Hit (Japan) ThermoPlate, Standard Type, for Olympus Inverted Microscopes

Availability:

In stock


Compare

Thermoplate provides high quality and high performance temperature control.

In stock

$2,736.00 $3,600.00

Ensures more accurate and more reliable thermal control of the specimens during the observation under a microscope.

Wide product range supports Biotechnology Science and Industry.

Former Types: MATS-U series

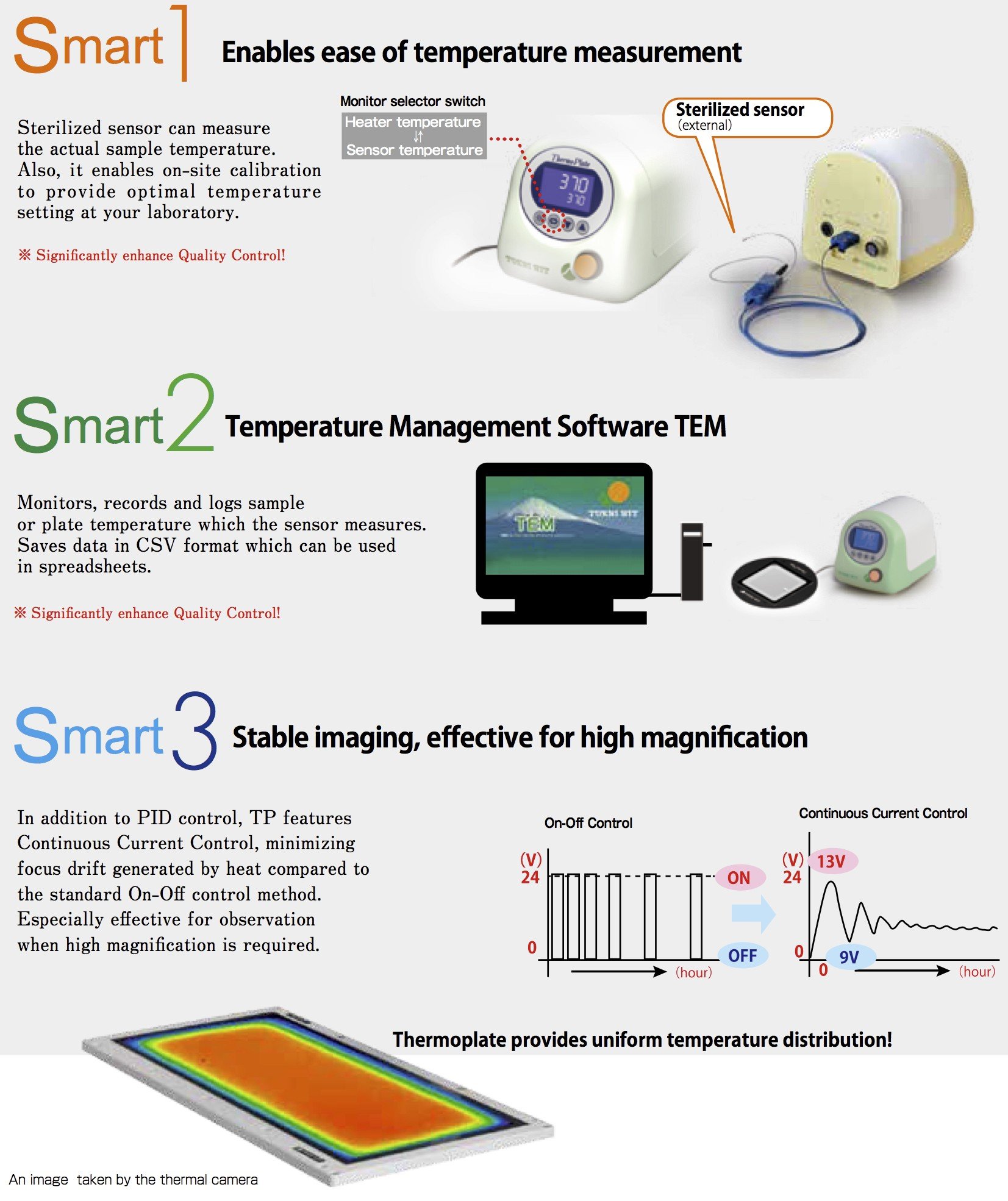

  • Ensures more accurate and more reliable thermal control of the specimens during the observation under a microscope.
  • Environmentally and user-friendly design

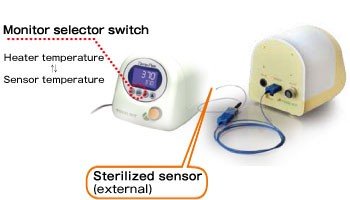

  • Enables ease of temperature measurement
    • Sterilized sensor can measure (external) the actual sample temperature. Also, it enables on-site calibration to provide optimal temperature setting at your laboratory.

Tokai-Hit (Japan) ThermoPlate, Standard Type, for Olympus Inverted Microscopes

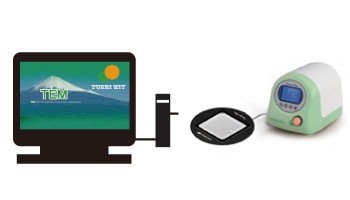

  • Temperature Management Software TEM

Tokai-Hit (Japan) ThermoPlate, Standard Type, for Olympus Inverted Microscopes

Monitors, records and logs sample or plate temperature which the sensor measures. Saves data in CSV format which can be used in spreadsheets.

  • Significantly enhance Quality Control!



  • Stable imaging, effective for high magnification

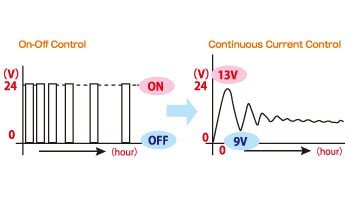

In addition to PID control, TP features Continuous Current Control, minimizing focus drift generated by heat compared to the standard On-Off control method. Especially effective for observation when high magnification is required.

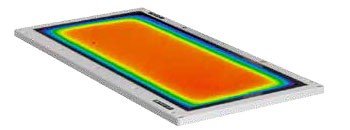

  • provides uniform temperature distribution!
  • Glass plate
  • Preset Temperature: room temperature ~ 50°C
  • Glass plate thickness: 1.0/1.3/1.6mm uniform or 0.5mm at plate center (50x50mm)

Tokai-Hit (Japan) ThermoPlate, Standard Type, for Olympus Inverted Microscopes

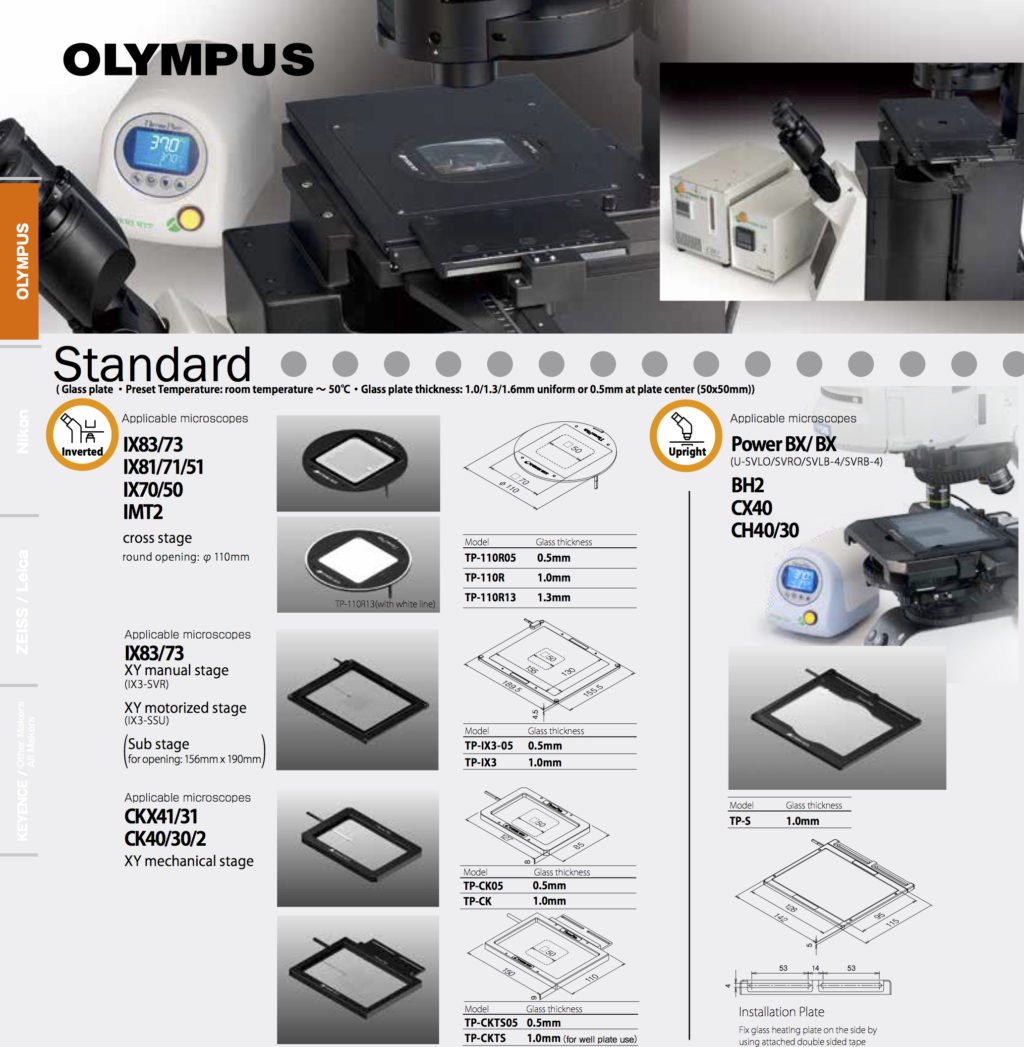

Item #Microscope & Xy Stage ModelApplicationComments
TP-110R05IX2-SFR/IX-SVL2Thermo Plate for IX2Former type: MATS-U55R30
TP-110RF20IX2-SFR/IX-SVL2Thermo Plate for IX2Former type: MATS-U55R-20
TP-SQ05XY motorized stageThermo Plate for CKX, CKFormer type: MATS-UAXK-D
TP-SQXY motorized stageThermo Plate for CKX, CKFormer type: MATS-UAXKW-D
TP-SQP05Prior H117Thermo Plate for CKX, CKFormer type: MATS-UAXKP-D
TP-SQPPrior H117Thermo Plate for CKX, CKFormer type: MATS-UAXKPW-D
TP-CKTS05IX-MVR/CK40-MVR
Attachable mechanical stage
Thermo Plate for CKX, CKFormer type: MATS-CKTS
TP-CKTSIX-MVR/CK40-MVR
Attachable mechanical stage
Thermo Plate for CKX, CKFormer type: MATS-CKTSW
TP-CK05IX-MVR/CK40-MVR
Attachable mechanical stage
Thermo Plate for CKX, CKFormer type: MATS-CK2-30
TP-CKIX-MVR/CK40-MVR
Attachable mechanical stage
Thermo Plate for CKX, CKFormer type: MATS-CK2

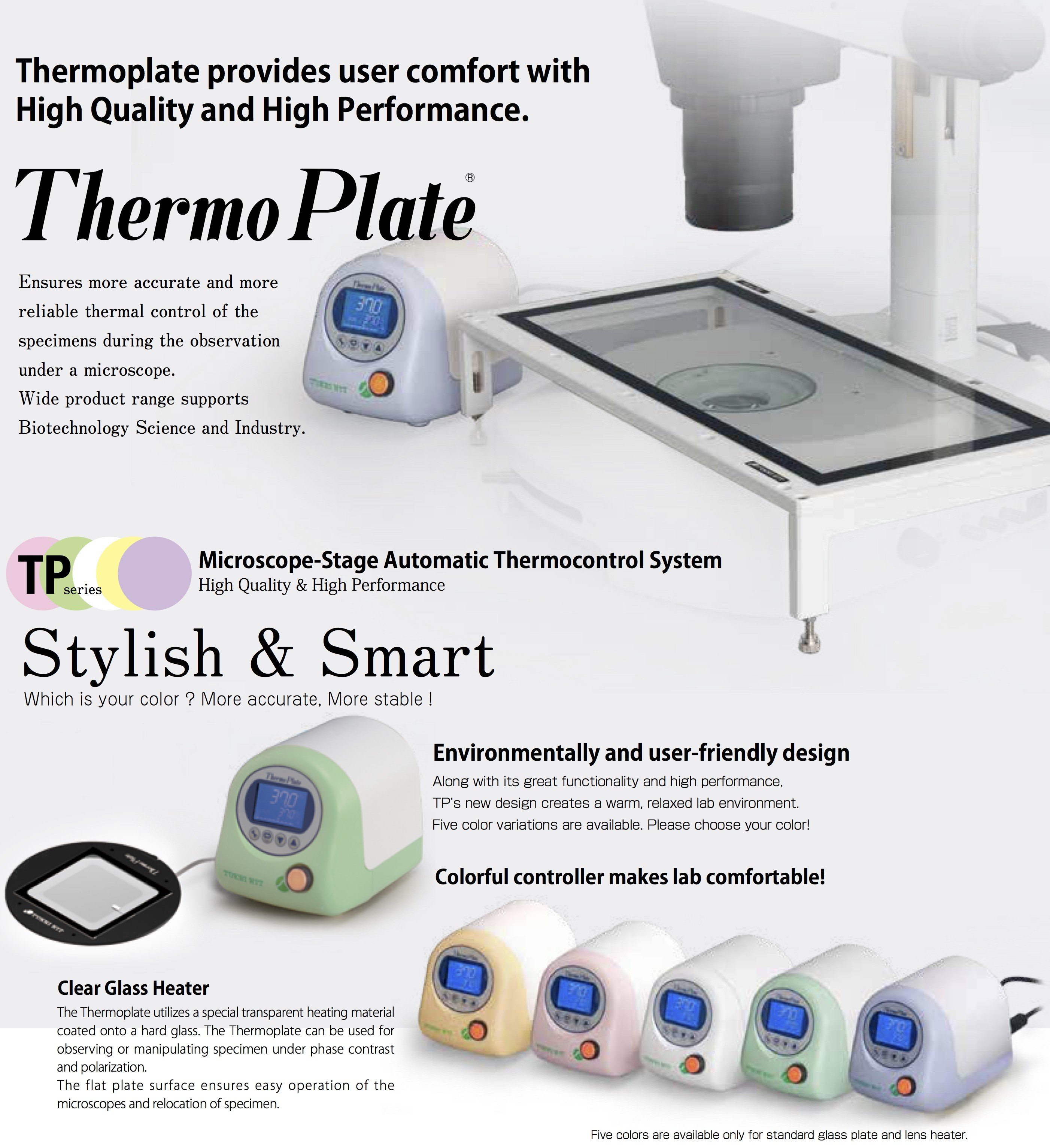

Thermoplate Brochure
