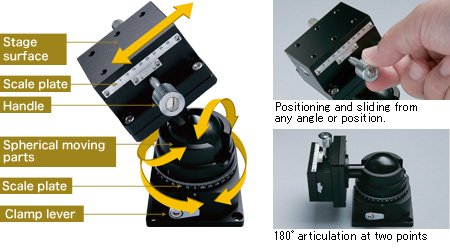

Spherical configuration of the main moving parts allows operation that was not possible with convention products. The unique concept of this stage features maximum 180° bending and 360° rotation, allowing complete flexibility in positioning.

Almost 30% thinner than conventional combinations, this is a disk-shaped, compact and multi-function stage. Rotation and sliding action along X and Y axes.
* XYR-90 side has different stages, making it ideal for applications such as the following.



 Miruc Other Drive Construction Stages  Miruc Other Drive Construction Stages  Miruc Other Drive Construction Stages  Miruc Other Drive Construction Stages

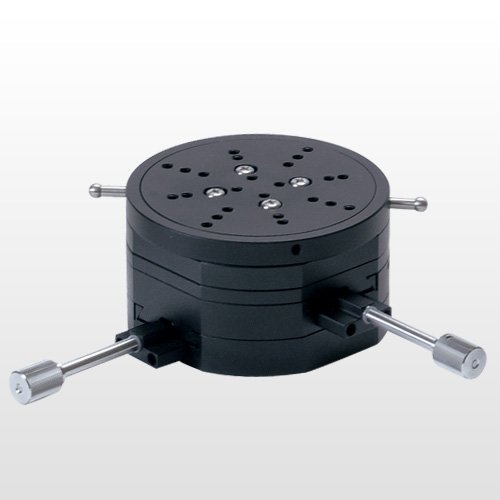

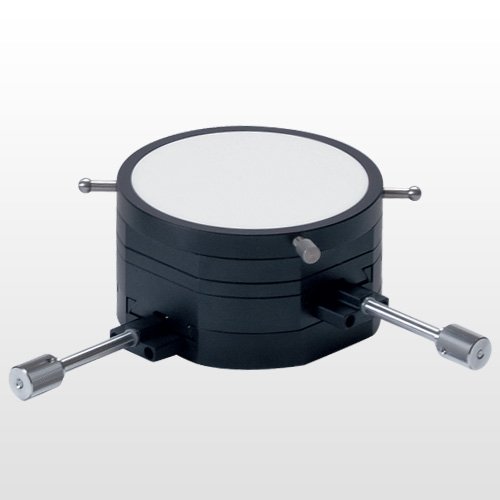

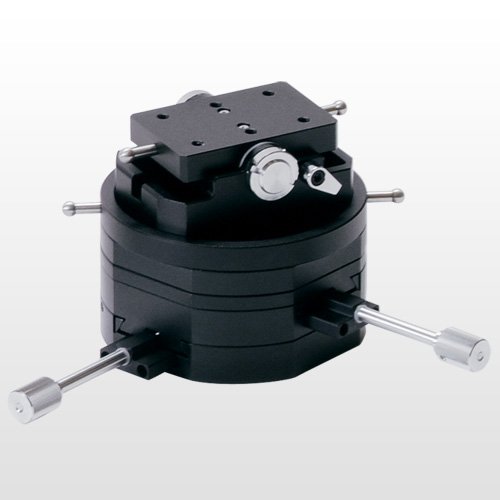

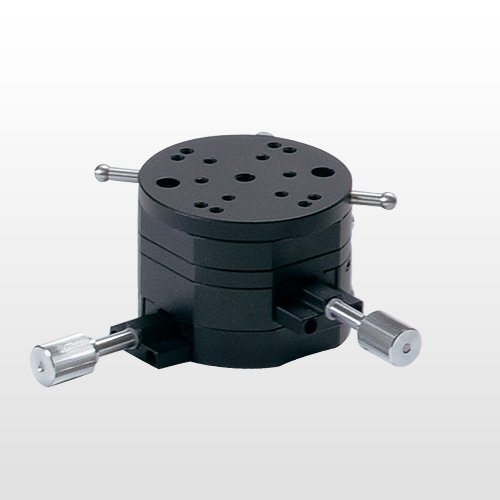

XYR-60 XYR-90A XYR-90B XYR-90C



Examples of RC-60 and XJK-60 combination

Combination with a dovetail stage adds gate turning functionality to straight forward sliding, enabling positioning from any attitude.

* Loosen the set screw and rotate the scale ring to set the reference position to 0.



Gate Turning Stage

RC-60 and XJK-60

Combination with a dovetail stage adds gate turning functionality to straight forward sliding, enabling positioning from any attitude.
* Loosen the set screw and rotate the scale ring to set the reference position to 0.

Almost 30% thinner than conventional combinations, this is a disk-shaped, compact and multi-function stage. Rotation and sliding action along X and Y axes.
* XYR-90 side has different stages, making it ideal for applications such as the following.

""

Thin XY Rotational Stage

Almost 30% thinner than conventional combinations, this is a disk-shaped, compact and multi-function stage. Rotation and sliding action along X and Y axes.
* XYR-90 side has different stages, making it ideal for applications such as the following.



 Miruc Other Drive Construction Stages  Miruc Other Drive Construction Stages  Miruc Other Drive Construction Stages  Miruc Other Drive Construction Stages
XYR-60 XYR-90A XYR-90B XYR-90C



Model Stage surface(mm) Degree of movement(mm) Degree of movement per handle rotation(mm) Movement precision (μm) Load bearing N(kgf) Weight(kg)
Straightness Degree of parallelism during operation
XYR-60 φ 60 ± 21  360° 4.2 30 30 34.3 (3.5) 0.39
XYR-90A φ 90 ± 35  360° 4.2 30 30 34.3 (3.5) 0.88
XYR-90B φ 90 ± 35  360° 4.2 30 30 34.3 (3.5) 0.84
XYR-90C φ 90 ± 35  360°  ± 20° 4.2 30 30 29.4 (3) 1.03

* Material: stage body: aluminum alloy, surface treatment: matt black alumite



Thin XY Rotational Stage

Model Stage surface(mm) Degree of movement(mm) Degree of movement per handle rotation(mm) Movement precision (μm) Load bearing N(kgf) Weight(kg)
Straightness Degree of parallelism during operation
XYR-60 φ 60 ± 21  360° 4.2 30 30 34.3 (3.5) 0.39
XYR-90A φ 90 ± 35  360° 4.2 30 30 34.3 (3.5) 0.88
XYR-90B φ 90 ± 35  360° 4.2 30 30 34.3 (3.5) 0.84
XYR-90C φ 90 ± 35  360°  ± 20° 4.2 30 30 29.4 (3) 1.03

* Material: stage body: aluminum alloy, surface treatment: matt black alumite

 Drawings



PDF DXF
XYR-60 XYR-60
XYR-90A XYR-90A
XYR-90B XYR-90B
XYR-90C XYR-90C

Examples of RC-60 and XJK-60 combination

Combination with a dovetail stage adds gate turning functionality to straight forward sliding, enabling positioning from any attitude.
* Loosen the set screw and rotate the scale ring to set the reference position to 0.



Gate Turning Stage

Brochures / Drawing:



PDF DXF
XYR-60 XYR-60
XYR-90A XYR-90A
XYR-90B XYR-90B
XYR-90C XYR-90C

Miruc Other Drive Construction Stages
Miruc Other Drive Construction Stages
Miruc Other Drive Construction Stages
Miruc Other Drive Construction Stages
Gate Turning Stage

Brochures / Drawing:



PDF DXF
XYR-60 XYR-60
XYR-90A XYR-90A
XYR-90B XYR-90B
XYR-90C XYR-90C
