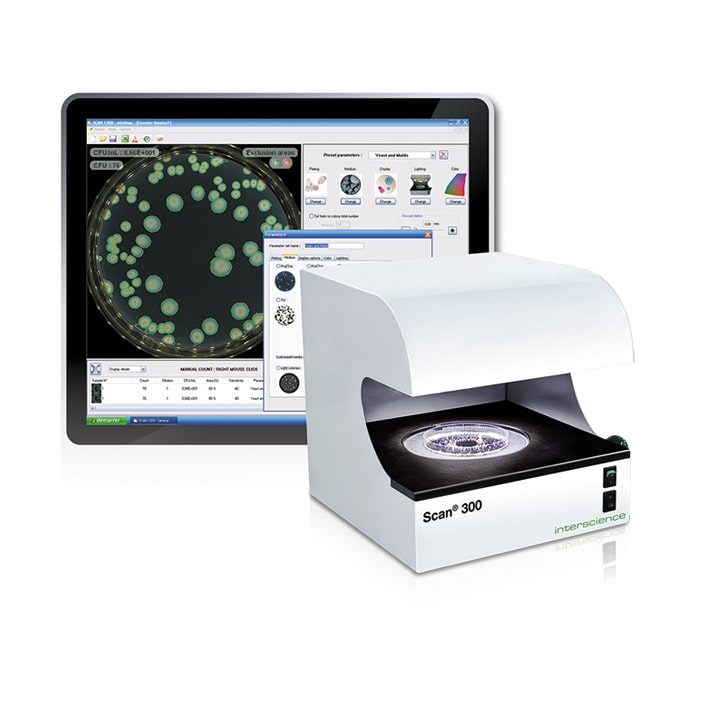

Scan 300 Automatic colony counter

The Scan 300 Automatic Colony Counter offers essential features for precise Petri dish counting, tailored for food microbiology applications like PCA and MRS media.

Detects colonies as small as 0.1 mm
1 megapixel camera with 28x zoom
Compatible with Ø 55-90 mm round Petri dishes
Supports pour, surface, Spiral, and circle counting modes
Language:English, French, Japanese, Chinese, Russian, Spanish, and German

Achieve Unmatched Accuracy and Repeatability with the Scan 300 Automatic Colony Counter

Counting colonies on Petri dishes can be time-consuming, tedious, and prone to human error. The Scan 300 Automatic colony counter revolutionizes this process, offering fast, consistent, and precise colony counting.

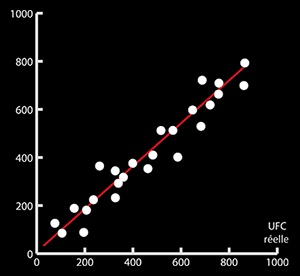

Fast and Accurate: The Scan 300 counts up to 1000 colonies in just 1 second with up to 98% accuracy. It detects even the smallest colonies, starting from 0.1 mm.

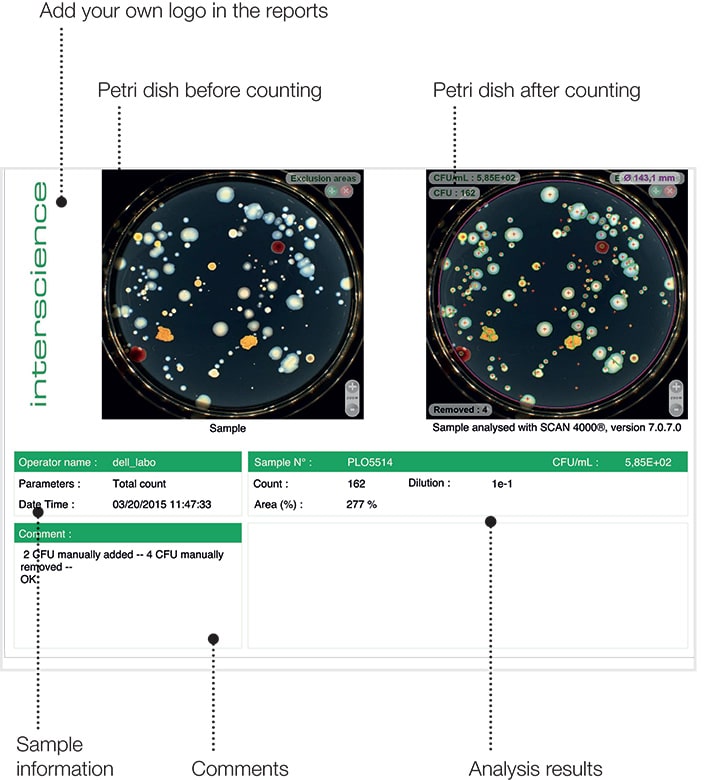

**Before/after counting on total count**

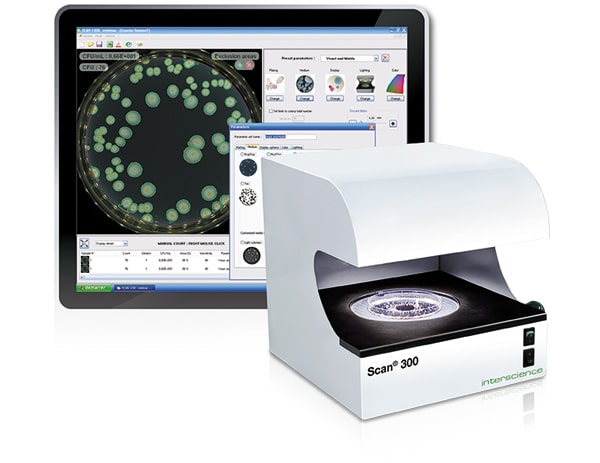

Compliance with 21 CFR Part 11: The Scan 300 software adheres to FDA regulations, ensuring secure and traceable results through audit trails and stringent data protection.
Advanced User Management: With up to 5 levels of user access, the software allows for customized roles, with the Supervisor-Administrator holding full control. Secure password management keeps data safe.
Detailed Reporting: Export all data, images, and results in formats such as PDF, JPG, XLS, CSV, or SCA for easy reporting and record-keeping.

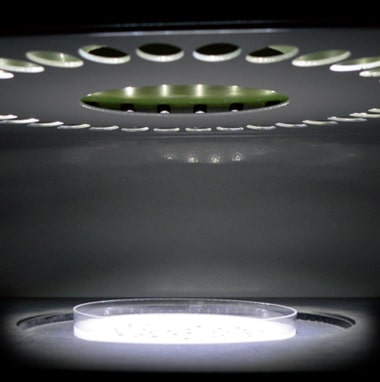

Dark Field lighting technology:Thanks to the Dark Field technology and its low lighting, colonies are easy to count. The operator does not tire his eyes.

Versatile Applications The Scan 300 is ideal for a wide range of industries, including food safety, environmental monitoring, pharmaceuticals, cosmetics, veterinary, and public research institutions.

Scan 300 Automatic colony counter Features:

Counting range:

Pour and surface plating

Counting of pour and surface plating mode on Ø 55 – 90 mm Petri dishes.

Spiral plating:

Counting of Spiral plating mode on Ø 55 – 90 mm Petri dishes.

Circle plating

Counting of circle plating mode on Ø 55 – 90 mm Petri dishes.

Traceability:

Data import

Scan 300 connects to the LIMS in bi-directionality and can be connected to the diluter and automatic plater via dataLink, the traceability system.

Data recording

After each approved counting, the Scan 300 automatically saves and exports the counting parameters and results to a CSV file.

data export

Scan 300 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses. Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan software, all reports are archived.

Export your results to your PC or archive them in CSV, Excel^TM, OpenOffice^TM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.

Print of the results

All data, images, photos and results are exportable in printable reports, sca, pdf, jpg, xls, csv.

Traceability ensured with dataLink

With dataLink, you can track the sample from plating to automatic colony counting.

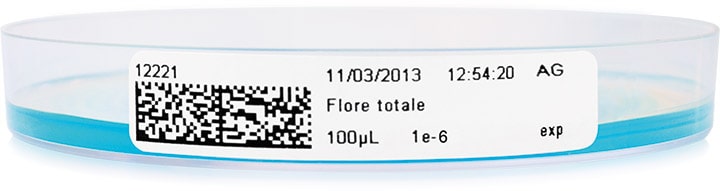

Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.

Introducing the Scan 300 Automatic Colony Counter – Your Ultimate Solution for Accurate and Efficient Petri Dish Counting

Designed to meet the demands of food microbiology, the Scan 300 offers precision and ease of use. This advanced automatic colony counter is ideal for laboratories looking to streamline the process of counting colonies on standard media such as PCA and MRS.

Key Features:

Detects colonies as small as 0.1 mm for accurate results.
Equipped with a powerful 1-megapixel camera and 28x zoom for detailed viewing.
Compatible with round Petri dishes ranging from Ø 55 to 90 mm.
Supports multiple counting modes, including pour, surface, Spiral, and circle.
Available in multiple languages: English, French, Japanese, Chinese, Russian, Spanish, and German.

Optimize your microbiological testing with the Scan 300, delivering reliable performance and versatile functionality. Perfect for laboratories focused on efficiency and precision.

OVERVIEW
Painted stainless steel shell	✔️
LIMS/SIL connection	✔️
USB connection	✔️
Available with dataLink/dataLink pro traceability system	✔️
Counting on pour, surface, Spiral and circle plated Petri dishes	✔️
Automatic counting	✔️

COUNTING
Counting	Automatic with manual control
Automatic separation of clustered colonies	✔️
Creation of polygonal exclusion zones	✔️
Manual control to add or substract colonies	✔️
Counting time	Up to 1000 colonies per second
Minimal size of colony	0.1 mm

SPECIFICATIONS
Color camera	CMOS
Lens	M12 Lens
Zoom	x 28
Resolution (megapixels)	1
White LED Lighting technology	Dark Field
LED Lighting system	Automatic with 6 combinations, top and/or bottom light, white or black background
Petri dish dimensions	Ø 55 mm – Ø 90 mm
Languages	English, French, Japanese, Chinese, Russian, Spanish, German
Voltage – Frequencies	100-240 V~ 50-60 Hz
Fuses	T 3.15 A L 250 V 5×20 mm
Max. Power	20 W
Warranty	3-year (after recording the warranty card)
International protection marking	IP00
Spare parts availability	10 years
Software updates	3 years excluding qualification (after registration of warranty card)
In compliance with	21 CFR Part 11, ISO 7218 and AOAC 977.27

TRACEABILITY
USB Data export	To LIMS, PDF report, jpg, png and bmp images, Excel^TM recountable session
Data security	Modified data traceability in conformity with 21 CFR part 11
Results/traceability	Image / sample number / comments / date / time

PC MINIMUM REQUIREMENTS
Operating sytem	Windows^TM 10 or 11 (or higher)
Processor	Intel i5, 2.8 GHz Quad-Core or higher
RAM	4 GB for use of the Scan
Equipments	USB port free
Screen	1280 X 1024 pixels or higher

WEIGHT AND DIMENSIONS
Dimensions (w x d x h): Scan	28.7 x 27.1 x 28.9 cm
Net weight: Scan	8.42 kg
Box (w x d x h)	50 x 40 x 40 cm
Gross weight: Scan	12 kg

Pour and surface image — Pour and surface
