PCR (Polymerase Chain Reaction) gives you a choice of quantitative methods for gene expression.

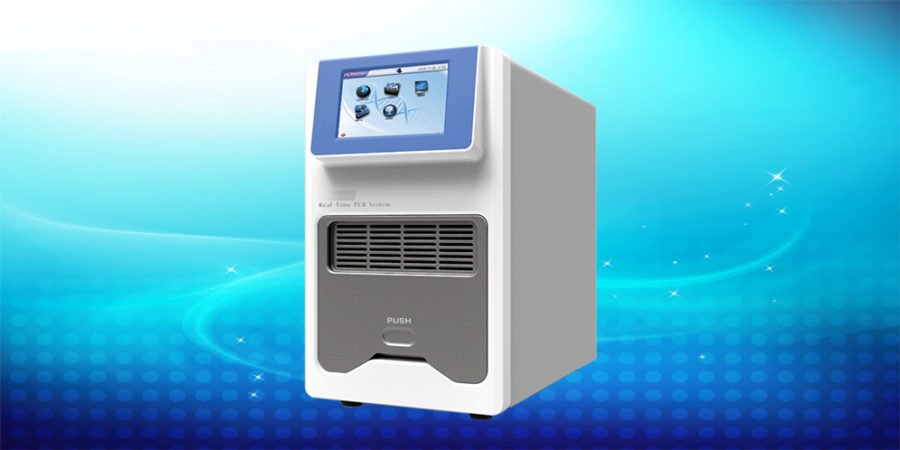

The TL988-II time PCR is very useful and important for life science research and curative evaluation, and it is innovative and pioneering products in Lab for the prevention, diagnosis, evaluation and monitoring of diseases.

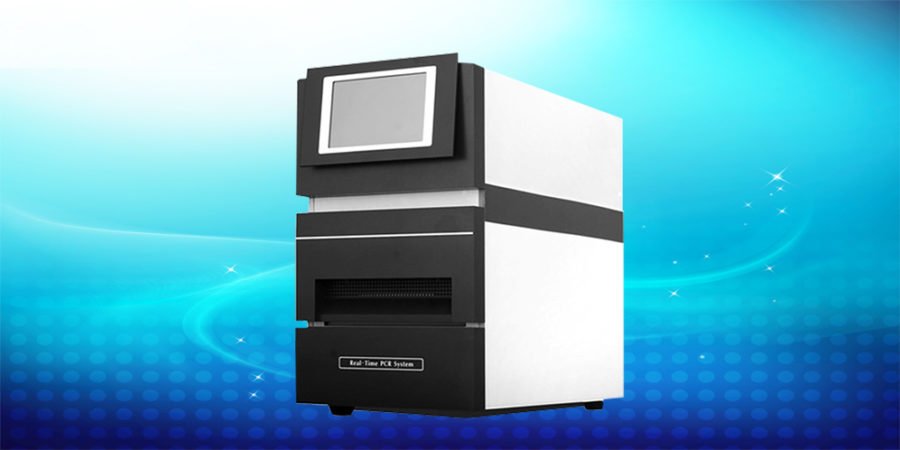

Real-time Quantitative PCR (4 channel) TL988-IV
With capacity of 96 sample positions and touch screen, the 4 channel real-time PCR has more better heating/cooling rate and more precise temperature control.
Applications:
- Diagnosis of clinical disease.
- Diagnosis of animal disease.
- Food security.
- Science and research.
Specifications:
Model |
PCR-TL988-IV |
Sample capacity |
96,include positive and negative control |
Micro plate type |
96 well plate |
Reaction Volume |
5~50ul |
Detector |
Photodiode |
Optical system |
Highlight LED light source |
Temperature range |
4℃~99℃ |
Lid temperature |
100℃~120℃ |
Heating/cooling rate |
0.1~4.2℃/s |
Temperature uniformity |
<+0.2℃ |
Temperature accuracy |
<+0.1℃ |
Testing range |
101-1010 DNA/RNA copy/ml |
Reproducibility |
CV<2.1% |
Correlation coefficient of nucleic acid precision |
R>0.997 |
Temperature steps |
1~99 |
Cycles |
1~999 |
Hold time |
4℃long-term |
Excitation wavelength |
Channel 1: 470nm
Channel 2: 523nm
Channel 3: 571nm
Channel 4: 630nm
|
Emission wavelength |
Channel 1: 525nm
Channel 2: 564nm
Channel 3: 512nm
Channel 4: 670nm
|
Display |
7 inch full-color touch screen |
Power supply |
AC 220/110V+10% ,50/60Hz+10% |
Power consumption |
1100W |
Dimensions(W*D* H) |
540*300*480mm |
Weight |
35kg |
