Portable Microsciopes:


Portable Microsciopes: Compact Design, fits inside hood and incubator.

Request a Quote

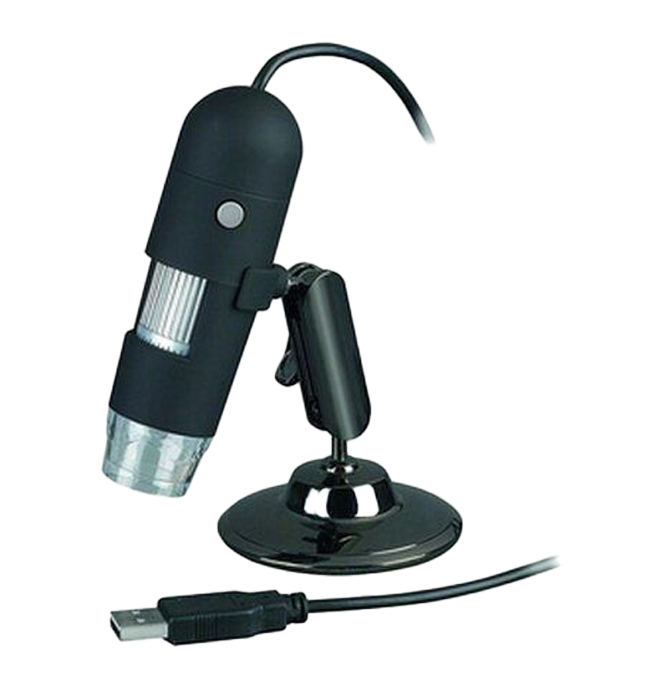

 Portable Microsciopes:BPM-130 Portable USB digital microscope

Easy to use handheld digital microscope with USB output interface

20X to 200X Magnification Ratio, 1.3 Mega Pixels CMOS

Manual Focus from 10mm to 500mm

Rich LED illuminator support, 8 LED adjustable by control wheel

Software with measurement & calibration function

Multi-language support: English, Germany, Spanish, Korean, French, Russian

 portable/bpm300.jpgBPM-300 Series Portable Measuring Microscope

Including BPM-300A, BPM-300B, BPM-300C, BPM-300D based on different magnification (100×, 50×, 40×, 20×)

Eyepiece10× with reticle and diopter adjustment

Mechanical Tube Length 160mm

Focus Range 30mm

Diameter of Bearing Planeφ63mm

particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc

 portable/bpm600.jpgBPM-600 Portable Metallurgical Microscope

Plan eyepiece 10×/Φ6mm, 12.5×/Φ3mm

Objective 10×/0.25 N.A/7.3mm, 40×/0.65 N.A/0.5mm

Total Magnification 100×-500×

Mechanical tube length

Focusing range 25mm

It adopts a rechargeable LED illuminator, it is portable and easy to use. It can work more than 40 hours after one charge.

 portable/bpm600m.jpgBPM-600M Portable Metallurgical Microscope

Plan eyepiece 10×/Φ6mm, 12.5×/Φ3mm

Objective 10×/0.25 N.A/7.3mm, 40×/0.65 N.A/0.5mm

Total Magnification:100×-500×

Mechanical tube length 160mm

Focusing range 25mm

It adopts a rechargeable LED illuminator, it is portable and easy to use. It can work more than 40 hours after one charge.

 portable/bpm620.jpgBMM250 Portable LED Metallurgical Scope

Regular Price: $4,500 Sales Price: $2,000
BMM-250 (with Magnetic base)

Plan eyepiece 10×/18mm, Long work distance plan objective: 10×, 50× , Total Magnification: 100×-500×

Mechanical tube length 160mm

Focusing range 36mm

It adopts a rechargeable LED illuminator, it is portable and easy to use. It can work more than 40 hours after one charge.
