Save $615

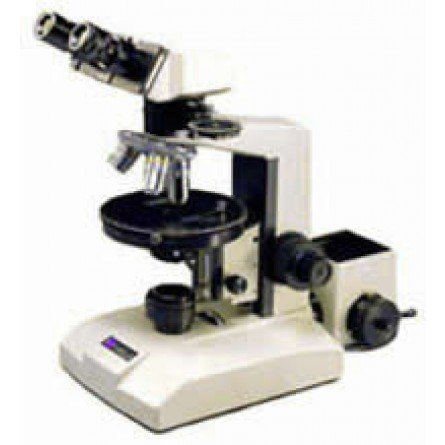

MT9200 / MT9300 Polarizing Microscope with Transmitted Light (Meiji Techno, Japan)

Availability:

In stock


Compare
  • Brightfield Polarizing Compound Microscope
  • Meiji Techno (Japan) product
  • Transmitted Light
  • Halogen (6v/30W) or LED
  • Binocular or Trinocular Vieiwng Head
  • Infinity Corrected Optical System, F=200mm
  • centerable quadruple nosepice
  • Strain-free Plan 4x, 10x, S40x objective lenses
  • 175mm ceramic coated rotatable stage with vernier and 360′ degree graduation
  • Mica 1/4 wave length, first order Red Plate,
  • Centrable Bertrand lens
  • Crossline reticle

In stock

$5,535.00 $6,150.00

Brightfield:
The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.

Polarizing Light:
A type of optical microscopy techniques involving polarized light. Simple techniques include illumination of the sample with polarized light. Directly transmitted light can, optionally, be blocked with a polarizer orientated at 90° degrees to the illumination. More complex microscopy techniques which take advantage of polarized light include differential interference contrast microscopy and interference reflection microscopy.

The MT9200 & MT9300 Series Transmitted Light Polarizing Microscope that has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications such as forensic analysis, polymer, crystal identification. This series is the most suited in generating interference figures and in mineralogy in the scientific study of crystal structure and physical (including optical) properties of minerals. Specific studies include process of mineral origin and formation, classification of minerals, their geographic distribution as well as their utilization. Transmitted 6V 30W Koehler Halogen illuminator or LED Koehler illuminator with newly engineered high performance optics strain free ∞ Infinity Corrected objectives reduce internal strain to an absolute minimum. Our redesigned polarizing condensers enhance performance in polarized light, yielding unmatched image contrast, provide exceptionally bright, crisp images with good color rendition and superior flat fields of view. Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate.

The MT9200 & MT9300 Series microscopes are used in research, industry and training in many scientific fields such as:
• Environmental Research – Analysis of materials, dust and fiber
• Medicine and Biology – Determining composition of calculi, sediments and bio-crystallates
• Forensics – Identification of trace elements and materials such as explosives
• Materials Analysis – Metal, ceramics, glass, building materials, etc.
• Geology – Mineralogy, petrography, core drilling sample analysis, thin section identification
• Chemistry – Quality control of in-process or end products, compounds, pharmaceutical analysis and identification of precipitates

The MT9200 & MT9300 Series is a prefect instrument for geology, petrology, mineralogy, forensics, material science, manufacturing, crystallography, medical research, environmental science and industrial quality control and quality assurance applications.

The MT9000 Series features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing heads
  • 30W Transmitted Koehler Halogen Illuminator
  • 30W Vertical Incident Koehler Halogen Illuminator
  • Strain Free Optics Throughout
  • Brightfield and Polarized Light observation modes
  • Optional Point Counting Stage

polarizing/CenterableNosepiece.jpg

BPM500 Polarizing Transmitted with swing-out condenser -10797
Meiji Techno America’s MT9000 Series Transmitted Light Polarizing Microscope is an investigative tool for isotropic and anistropic materials. The MT9000 has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications such as forensic analysis, polymer, crystal identification. Ergonomic placement of controls allows for stress free operation, increased lab efficiency and maximum productivity. Transmitted 6V 30W Koehler Halogen illuminator or LED Koehler illuminator with newly engineered high performance optics strain free ∞ Infinity Corrected objectives reduce internal strain to an absolute minimum. Our redesigned polarizing condensers enhance performance in polarized light, yielding unmatched image contrast, provide exceptionally bright, crisp images with good color rendition and superior flat fields of view. Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate. A perfect instrument for geology, petrology, mineralogy, forensics, material science, manufacturing, crystallography, medical research, environmental science and industrial quality control and quality assurance applications.

Reflected & Transmitted

Included:
• MT9200L: Binocular LED Transmitted Light Polarizing Microscope with transmitted LED illumination is an investigative tool for isotropic and anistropic materials.  Newly improved strain-free ∞ Infinity Corrected Objectives ICOS Optical System and Abbe condenser.  Transmitted LED Koehler illuminator and ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360°, with 1°increments and vernier reading to 0.1°. Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate. A perfect instrument for geology, petrology, mineralogy, forensics, material science, manufacturing, crystallography, medical research, environmental science and industrial quality control and quality assurance applications.
• MA952: Binocular head – Siedentopf type, inclined at 30°degrees with reticle angle compensation, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube. (23.2.0 mm I.D. eyetube). (Included in models MT9200 & MT9200L)
MA407CP: Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount (Tube O.D. 23.2mm)
MA407: KHW-10X Compensating eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm) (qty#1)
MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm, ∞ Infinity Corrected Objectives
MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm, ∞ Infinity Corrected Objectives
MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm, ∞ Infinity Corrected Objectives
MA954: Strain free Abbe condenser, N.A. 1.25 with iris diaphragm and dovetail mount
Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA946: Stainless steel Stage Clips (qty#2)
MA469/05: 1/4 Wave-length test plate (Mica 147.3nm) for MT9000 Series (20mm x 6mm x 80mm)
MA470/05: First order red compensating plate for MT9000 Series (20mm x 6mm x 80mm) (530nm, also called Gypsum or Sensitive Tint Plate)
MA471/05: Analyzer in sliding mount for MT9000 Series (26mm x 6mm x 80mm)
MA289/05: Blue clear filter, 29.8mm diameter, unmounted, for transmitted light
• LED/SP-1: 3W LED Bulb, 5500K color temperature (Factory installed in LED models)
• MA929: Fuse 0.5A for LED illuminator (Factory installed in LED models)
MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models) or
MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220Vmodels)
MA494/PT#1: Nosepieces centering screws (each) (qty# 2)
MA711: Dust cover for MT9000 Series
MA905: Interference Color Chart
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90° (Factory installed)
Manual: Meiji Techno America MT9000 Manual

Includes:
MT9200L: Binocular LED Transmitted Light Polarizing Microscope with transmitted LED illumination is an investigative tool for isotropic and anistropic materials.  Newly improved strain-free ∞ Infinity Corrected Objectives ICOS Optical System and Abbe condenser.  Transmitted LED Koehler illuminator and ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360°, with 1°increments and vernier reading to 0.1°. Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate. A perfect instrument for geology, petrology, mineralogy, forensics, material science, manufacturing, crystallography, medical research, environmental science and industrial quality control and quality assurance applications.
MA952: Binocular head – Siedentopf type, inclined at 30°degrees with reticle angle compensation, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube. (23.2.0 mm I.D. eyetube). (Included in models MT9200 & MT9200L)
MA407CP: Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount (Tube O.D. 23.2mm)
MA407: KHW-10X Compensating eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm) (qty#1)
MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm, ∞ Infinity Corrected Objectives
MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm, ∞ Infinity Corrected Objectives
MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm, ∞ Infinity Corrected Objectives
MA954: Strain free Abbe condenser, N.A. 1.25 with iris diaphragm and dovetail mount
Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA946: Stainless steel Stage Clips (qty#2)
MA469/05: 1/4 Wave-length test plate (Mica 147.3nm) for MT9000 Series (20mm x 6mm x 80mm)
MA470/05: First order red compensating plate for MT9000 Series (20mm x 6mm x 80mm) (530nm, also called Gypsum or Sensitive Tint Plate)
MA471/05: Analyzer in sliding mount for MT9000 Series (26mm x 6mm x 80mm)
MA289/05: Blue clear filter, 29.8mm diameter, unmounted, for transmitted light
• LED/SP-1: 3W LED Bulb, 5500K color temperature (Factory installed in LED models)
• MA929: Fuse 0.5A for LED illuminator (Factory installed in LED models)
MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models) or
MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220Vmodels)
MA494/PT#1: Nosepieces centering screws (each) (qty# 2)
MA711: Dust cover for MT9000 Series
MA905: Interference Color Chart
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90° (Factory installed)
Manual: Meiji Techno America MT9000 Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 33 lbs (9.06 kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head type: 263 mm(D) x 456mm (H) x 212mm(W) (9.06kg)( 33.0 lbs.)
Trinocular head type: 263 mm(D) x 510mm(H) x 212mm(W) (9.75Kg)(35.0 lbs.)

ModelHeadIlluminationEyepiecesObjectivesCondenserStage
MT9200BinocularTransmitted 30W KoehlerKHWF10XCP FN20Strain Free S.Plan 4x, 10x, 40xSStrain Free Abbe NA 1.25 with iris in dovetail mountRotatable 360 degree, graduated with vernier
MT9300Trinocular
MT9200LBinocularLED Illumination
MT9300LTrinocular

VIEWING HEADS
Model MA952 is the Siedentopf-type binocular head and Model MA953 is the trinocular head for camera integration. Each head has the 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.

Each head has the new integrated reticle angle compensation system. When the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV.

EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard. A Widefield High Eyepoint 10X focusable eyepiece that has a 21mm crossline reticule and guide pin is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Meiji Techno offers an assortment of S.Planachromat Infinity Corrected objectives for Transmitted Light or Incident Light.

STAGE
Ceramic coated 360 degree rotatable fully indexed stage with vernier and stage clips.

ILLUMINATION
Powerful 30 watt Koehler halogen illumination in either transmitted and/or vertical incident, provides enhanced image quality and brightness for the observation of specimens.

POLARIZING ACESSORIES
All MT9000 Series come standard with 1/4 wave plate, Bertrand lens and first order red plate. Optional Senarmont compensator and quartz wedges are available along with attachable point counting stage.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
MA953: Trinocular head – Siedentopf type, inclined at 30 degrees with reticle angle compensation, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2.0 mm I.D. eyetube). (Included in models MT9300 & MT9300L)

Eyepieces:
MA407/05: KHW-10X Compensating Focusing eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm)

Semi Planachromat Pol Objectives for Transmitted Light Work:
MA937: Strain free Plan objective 20X/N.A.0.40, W.D. 7.29mm
MA939: Strain free Plan objective 60XS/N.A.0.85, W.D. 0.2mm
MA940: Strain free Plan objective 100XS/N.A.1.25 oil, W.D. 0.14mm

Condensers:
MA976/05: Strain free Abbe condenser with swing out top lens, N.A. 0.90 with iris diaphragm and dovetail mount

Stage:
MA299: Attachable mechanical stage for MT9000 Series
MA945: Attachable mechanical stage for MT9000 Series with Point Counter

Wave Plates and Compensators:
MA654/05: Quartz Wedge, 6 order, ungraduated for MT9000 Series (20mm x 6mm x 130mm)
MA654N/05: Quartz Wedge, 6 order, graduated for MT9000 Series (20mm x 6mm x 130mm)
MA904/05: Senarmont compensator – A highly accurate 1/4 wave plate used to measure retardation, for use with MA956 rotating analyzer
MA956: Rotatable analyzer with 360 degree graduations (34mm x 6mm x 156mm) (For use with MT9200 and MT9300)

Filters:
MA475/05: Blue clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot
MA198: ND13 neutral density filter, 19.5mm in diameter in metal mount, fits 25mm filter slot

Bulbs and Fuses:
• LED/SP-1: 3W LED Bulb, 5500K color temperature (Factory installed in LED models)
• MA929: Fuse 0.5A for LED illuminator (Factory installed in LED models)

MT9200L LED Binocular Polarizing MicroscopeMT9200L LED Binocular Polarizing MicroscopeMT9200L LED Binocular Polarizing MicroscopeMT9200L LED Binocular Polarizing MicroscopeMT9200L LED Binocular Polarizing MicroscopeMT9200L LED Binocular Polarizing Microscope

Download Brochure.

Polarizing Microscopy Basics & Applications
