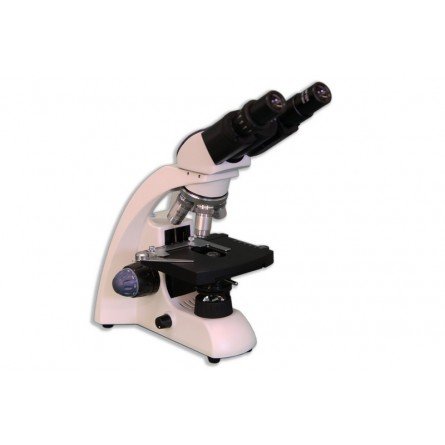

MT-30 Binocular Entry-Level Advance Compound Microscope


The MT-30 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

Request a Quote

The MT-30 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

MT-30 Binocular Entry-Level Advance Compound Microscope

The MT-30 Series features include:

  • Ergonomic Hand Grip for portability and ease of storage
  • Low positioned Ergonomic Coaxial Focus Control
  • Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability
  • Revolving Quadruple reverse nosepiece on ball bearings
  • Achromatic DIN Semi Plan Standard 4x, 10X, 40X, 100x objectives
  • Anti-Fungus treated optical parts for mold prevention
  • Mechanical stage with lock safety stop to prevent slide glass breakage
  • Digital models available with built in 1.3MP 1/2 chip CMOS USB2 Camera
  • LED variable intensity illumination generating even illumination and low electrical consumption
  • Rechargeable batteries, cordlessfeature enables use of the instrument without an outlet.
  • 2 year Warranty
SKU: MT-30 Categories: ,
Model Head Magnification Rechargable Mechanical Stage

MT-30

Binocular S Plan
4X, 10X, 40X, 100X

MT-31

Binocular with Camera

VIEWING HEADS
Binocular 30° inclined tube The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280 x 1024 pixels

EYEPIECES
Paired DIN WF 10x/18mm

OBJECTIVES
All models are equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 andS100x/1.25 objectives.

All optical parts are anti-fungus treated.

NOSEPIECE
Revolving quadruple reversed nosepiece on ball-bearings.

STAGE
130 mm x 130 mm stage with integrated mechanical stage.

CONDENSER
Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability.

FOCUSING ADJUSTMENT
Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment.

ILLUMINATION
1 W intensity adjustable LED illumination with internal power supply / charger and 3 rechargeable NiMH AA batteries.

SOFTWARE
ImageFocus 4 capture & analysis software is supplied with each digital microscope model.
The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bit platforms.
