Meiji Techno’s MC Series Brightfield/Darkfield Precision Measuring Systems are capable of brightfield, darkfield, and simple polarization observation modes. They are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.
Meiji Techno’s MC Series Brightfield/Darkfield Precision Measuring Systems are capable of brightfield, darkfield, and simple polarization observation modes. They are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.

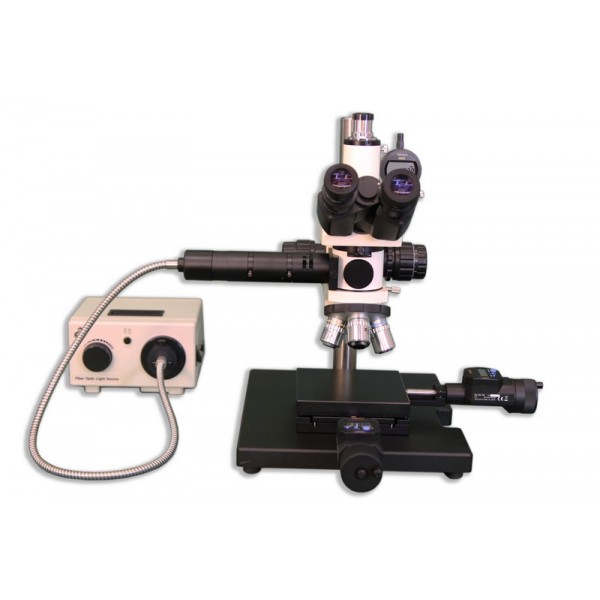

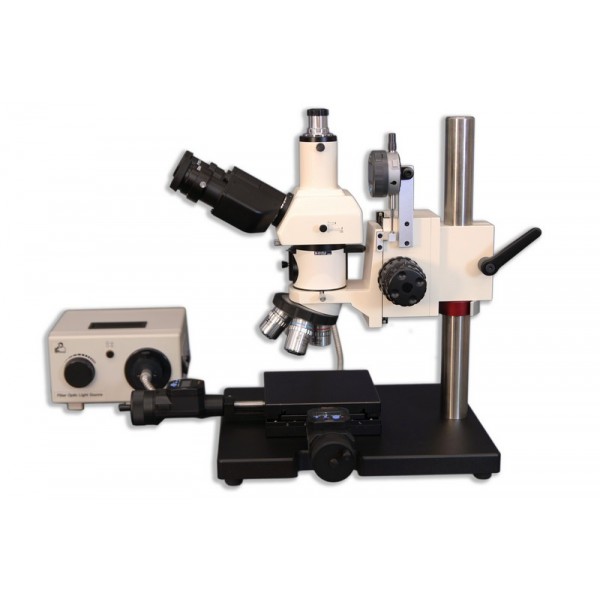

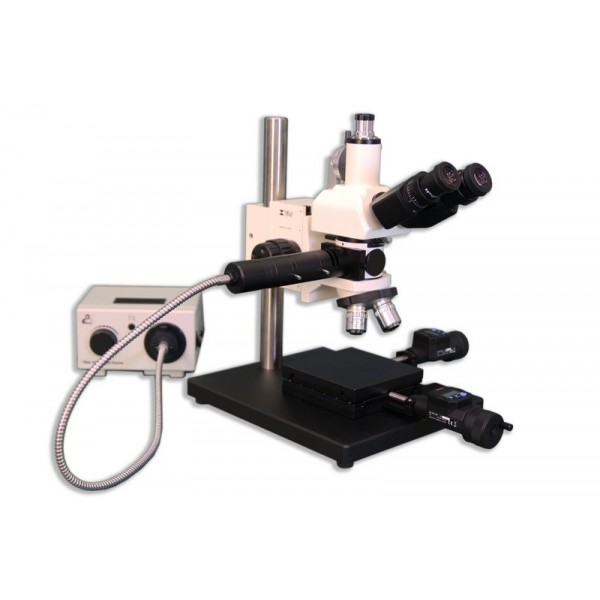

Our Model MC-70 is a reflective light brightfield/darkfield measuring microscope with trinocular head.
| Model | Head | Illumination | Eyepieces | Objectives | Stage |
| MC-60 | Binocular | Vertical Koehler illuminator, focal length 200mm, with sliding rotatable polarizer, infinity tube lens. Filter Set: Blue Clear, Green Clear, Neutral Density ND25, and Polarizing filters in metal mounts. Port to accept FL150/12 flexible 36″ (914.4mm) single arm fiber optic light guide. Flexible 36″ (914.4mm) single arm fiber light guide for FL150/115.
Light source: 115V, 50-60Hz halogen lamp, 21V 150W. Light source: 230V, 50-60Hz halogen lamp, 21V 150W |
Focusing eyepiece SWH 10X with cross-line reticule and guide pin. High eyepoint eyepiece SWH 10X, FN: 22, accepts optional 25mm diameter reticle | Plan Epi BD 5X, N.A. 0.10, W.D. 17.0mm Plan Epi BD 10X, N.A. 0.25, W.D. 7.48mm Plan Epi BD 20X, N.A. 0.40, W.D. 5.20mm Plan Epi BD 50X, N.A. 0.75, W.D. 0.38mm |
Reflected light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement |

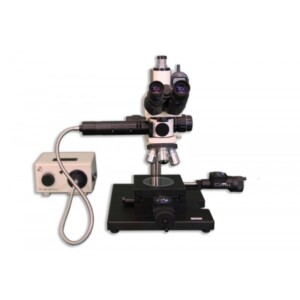

| MC-60T | Transmitted light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with glass stage plate | ||||
| MC-70 | Trinocular | Reflected light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement | |||
| MC-70T | Transmitted light measuring stage: 150mm x 150mm with 50mm x 50mm X-Y movement with glass stage plate |
OPTIONAL COMPONENTS & ACCESSORIES BELOW
Digimatic Indicators:
• MTI164-164: Mitutoyo Digimatic Indicator for X-Y axis movement: Range 50mm (2”)( 2 Required)
• MTI543-392: Mitutoyo Digimatic Indicator (lug back) for Z axis movement: Range 12.7mm (0.5”) (1 Required) (MA721 is required)
• MA721: 1.5” (38 mm) Extension rod for Z axis digital indicator (Required for MTI543-392)
• MA807: Mounting brackets for digital “Z” axis indicator (Included with FU1010)
Viewing Heads:
• MA816: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees (Included in Model MC-70 & MC-70T)
• MA979: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated
diopter on left eye tube
Eyepieces:
• MA817: SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
• MA859CF: SWH10X-Focusing eyepiece with reticle mount with cross-line reticle. Eye-tube O.D. 30.0 mm (each) (MA859CF accepts 25mm diameter reticle)
• MA906: Eyeshield for MA817 SWH 10X eyepiece (each)
Brightfield/Darkfield Plan EPI Objectives:
• MA989: Plan Semi Apo Epi Objective BD 100X, N.A. 0.90. W.D. 0.37 mm, F.N. 22
• MA686/05: Adapter to mount RMS thread objective to BF/DF nosepiece
Illuminator:
• MA993: Vertical Koehler illuminator, with sliding rotatable polarizer, infinity tube lens, focal length 200mm, with clear blue, clear green, ND 25 neutral density and polarizing filter in metal mounts. Port to accept FL150/12 flexible 36” single bundle light guide
Filters:
• MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA275/30: Green clear filter, 20.0mm diameter filter in metal mount, fits 30mm filter slot
• MA275/50: N.D.50 neutral density filter, 20.0mm diameter filter in metal mount, fits 30mm filter slot
• MA959: Polarizing filter, 20mm diameter filter in metal mount, fits 30mm filter slot
Eyepiece Micrometers:
• MA279: Cross-line reticle, 19mm diameter
• MA539: Cross-line with 0.1mm graduations, 19mm diameter
Stage Micrometers:
• MA285: Stage micrometer, 1mm divided into 100 units, each unit 0.01mm
• MA286: Stage micrometer, 0.04” divided into 100 units, each unit 0.001inch
• MA292: Metal stage micrometer, 0.01mm, for reflected light
Bulbs:
• FL150/70: Spare bulb, 21V/150W (For FL150/100 or FL150/200)
Miscellaneous:
• MA569: Replacement glass stage plate for MA729 transmitted light stage
