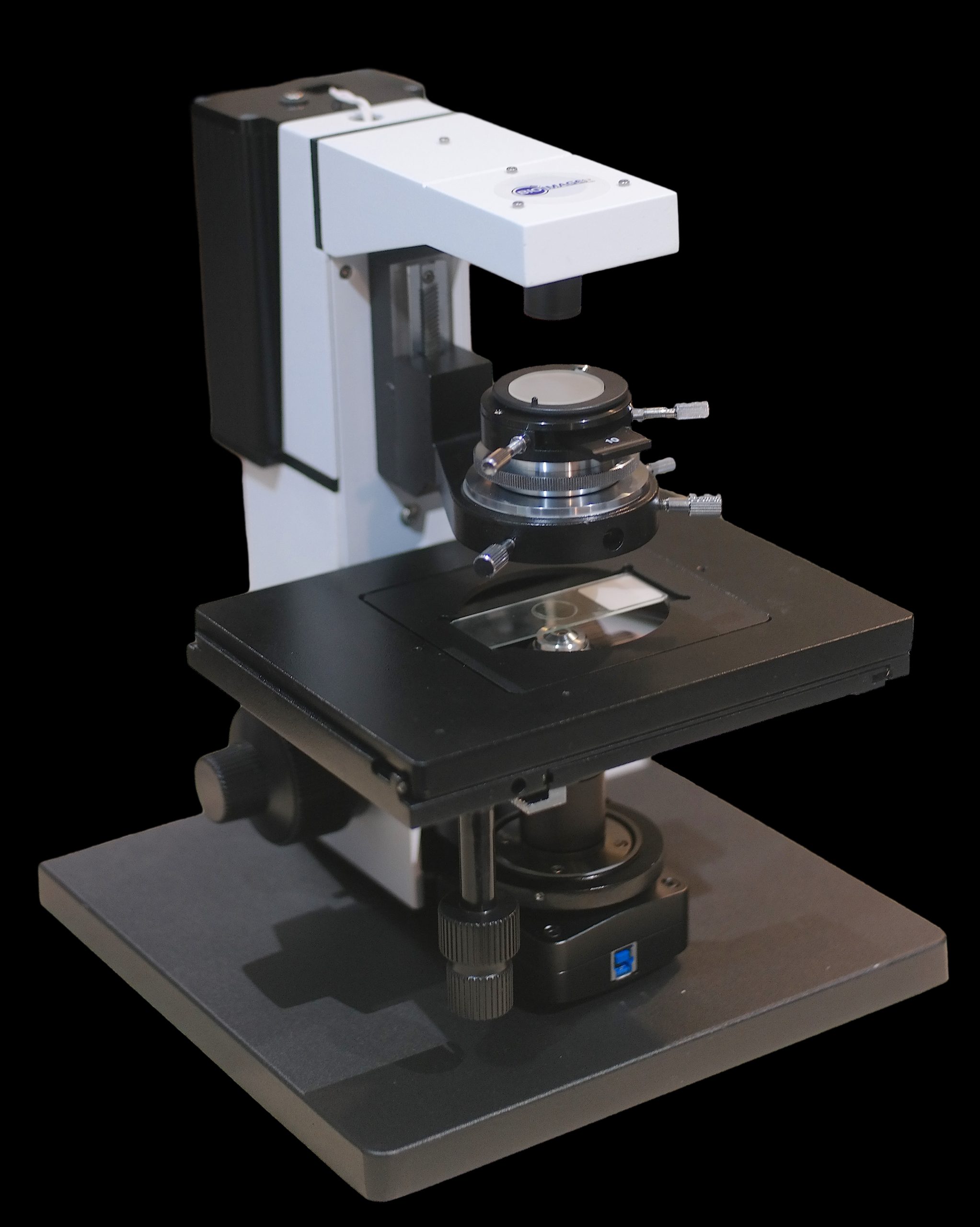

IS220Ph left view 0 BBG scaled
IS220Oh front right WBG
IS220Oh front right BBG scaled

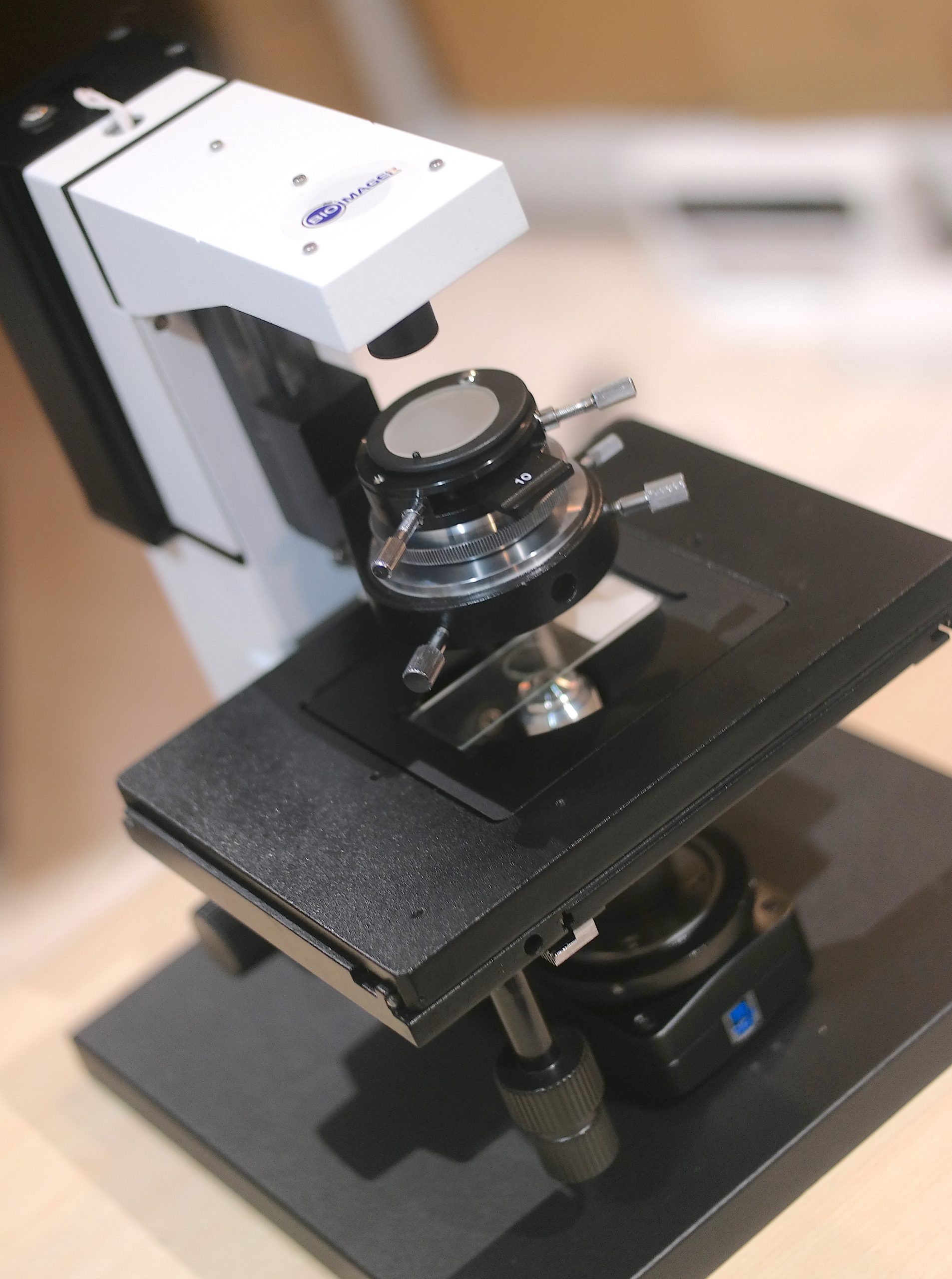

IS220Ph left top view scaled

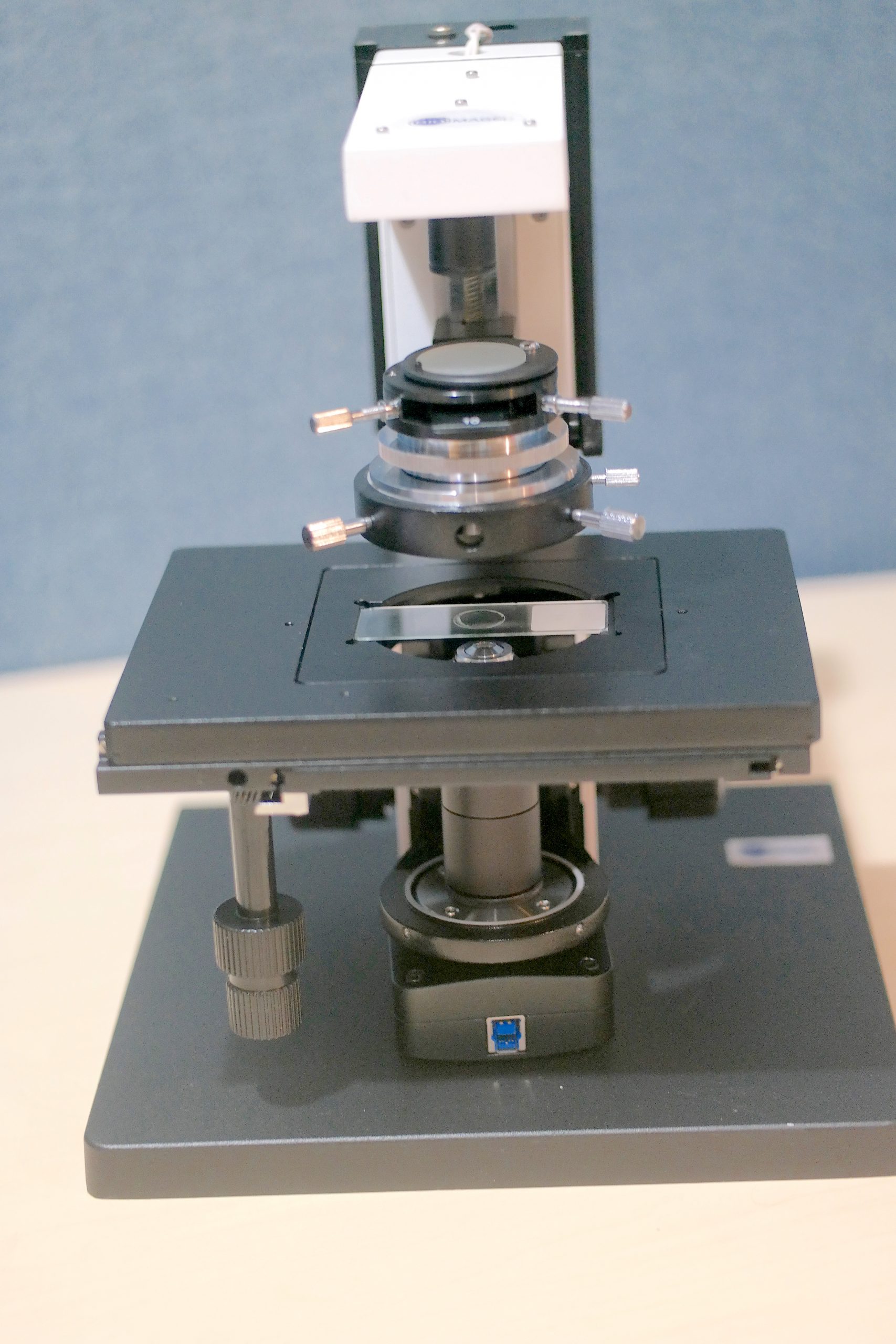

IS220PH front 5 scaled
IS220PH phase contrast mask 10x scaled
IS220Ph condenser scaled

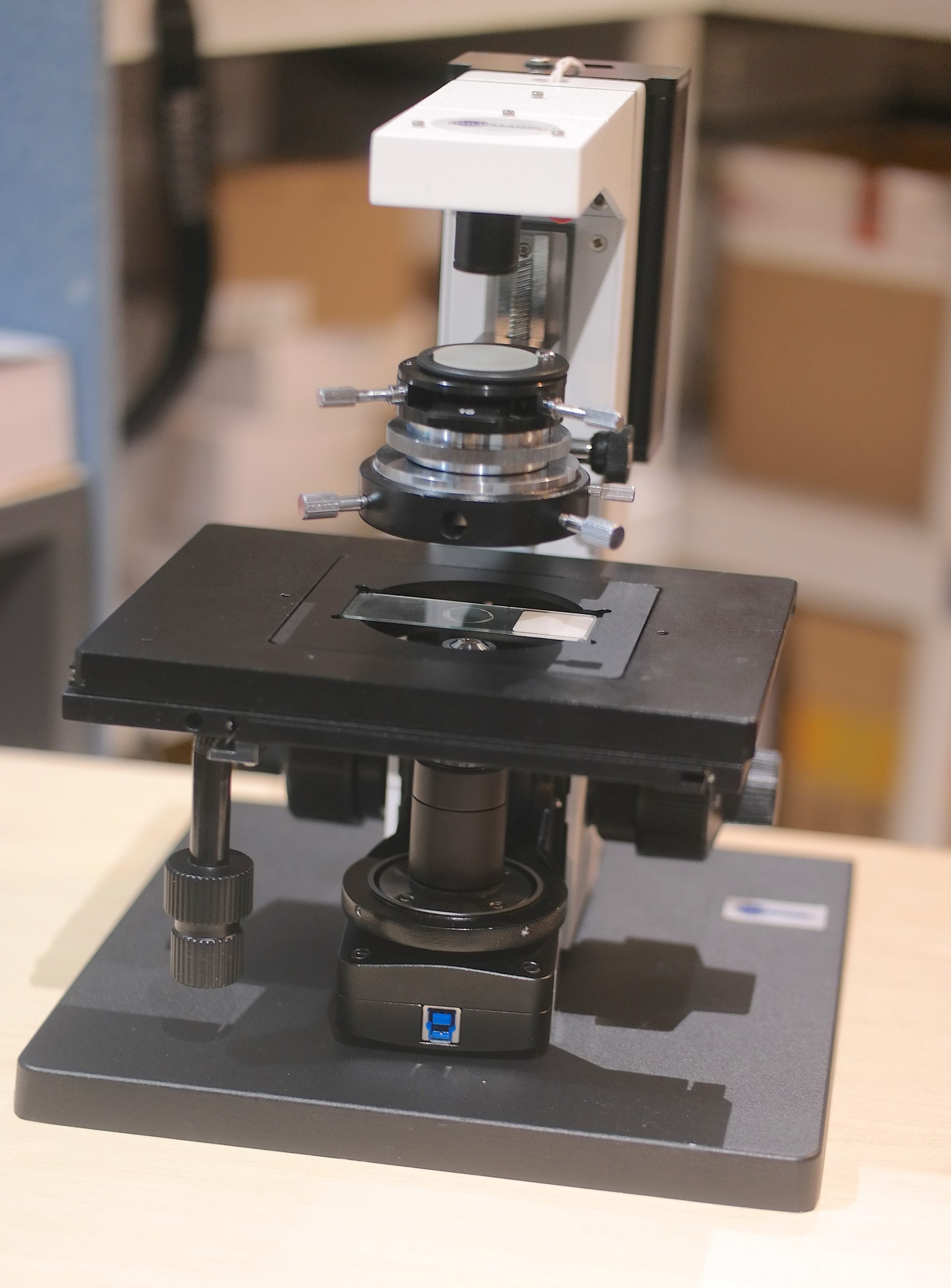

IS220Oh front right scaled
IS220Ph XY stage scaled
IS220Ph camera scaled
IS170 LED fluorescence illuminator filters
1s170 fla.jpg
IS220Ph left View scaled
IS220Ph front view scaled
IS220PH front view 4 scaled
IS220Ph Front View 2 scaled
Square Sensor & Long Rectangular Chip Cameras Request a Quote
BioCam 3D-20 3-Dimensional Super EDF Auto-Focus Measuring Camera System Request a Quote
Sale!

IS220 Smart Incubator Phase Contrast Microscope

Original price was: $USD 10,000.00.Current price is: $USD 5,995.00.

-40%
  • The smallest phase contrast microscope in the world
  • Simple, small and smart digital inverted  fluorescence biological microscope
  • Small enough to fit inside an incubator, hood or be part of another device
  • LED fluorescence imaging with 2 or 3 channels
  • Custom Camera, selection based on speed (up to 500fps), resolution( 1.5MP to 20MP), sensor size (1/3″ to 2″) and more,
  • Advanced live cell imaging software (optional)
  • Reasonable Price
Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

IS220 Smart  Incubator Microscope

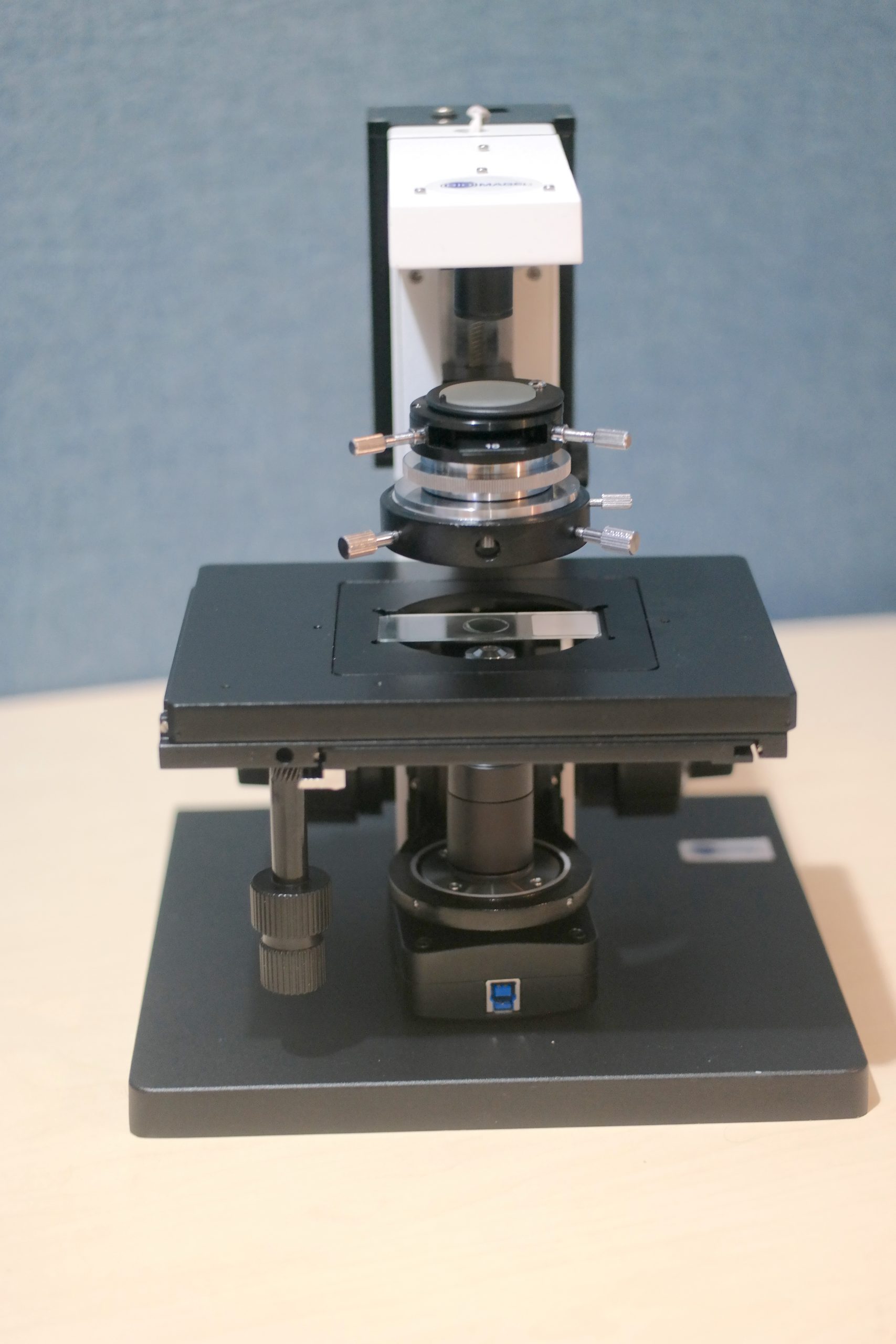

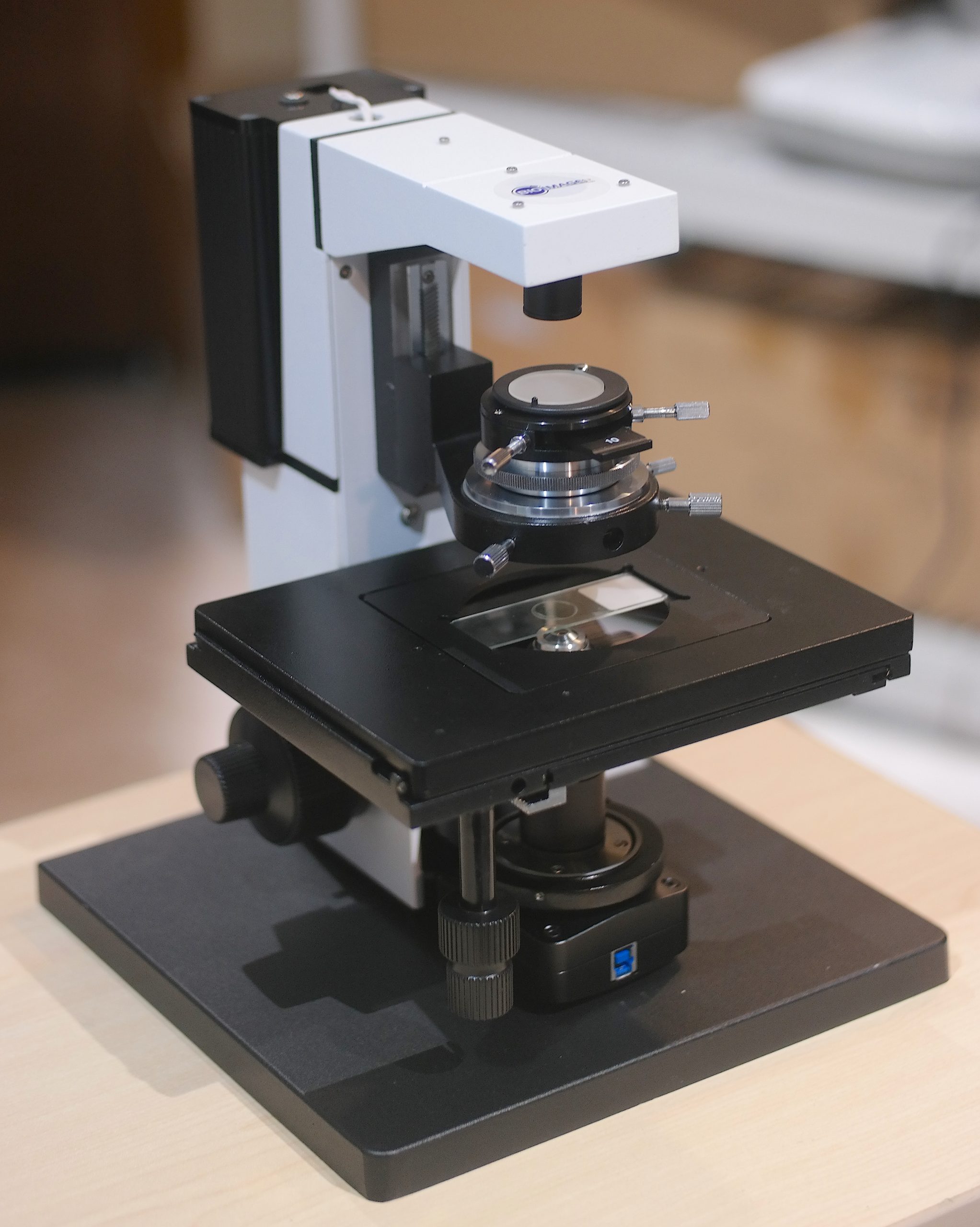

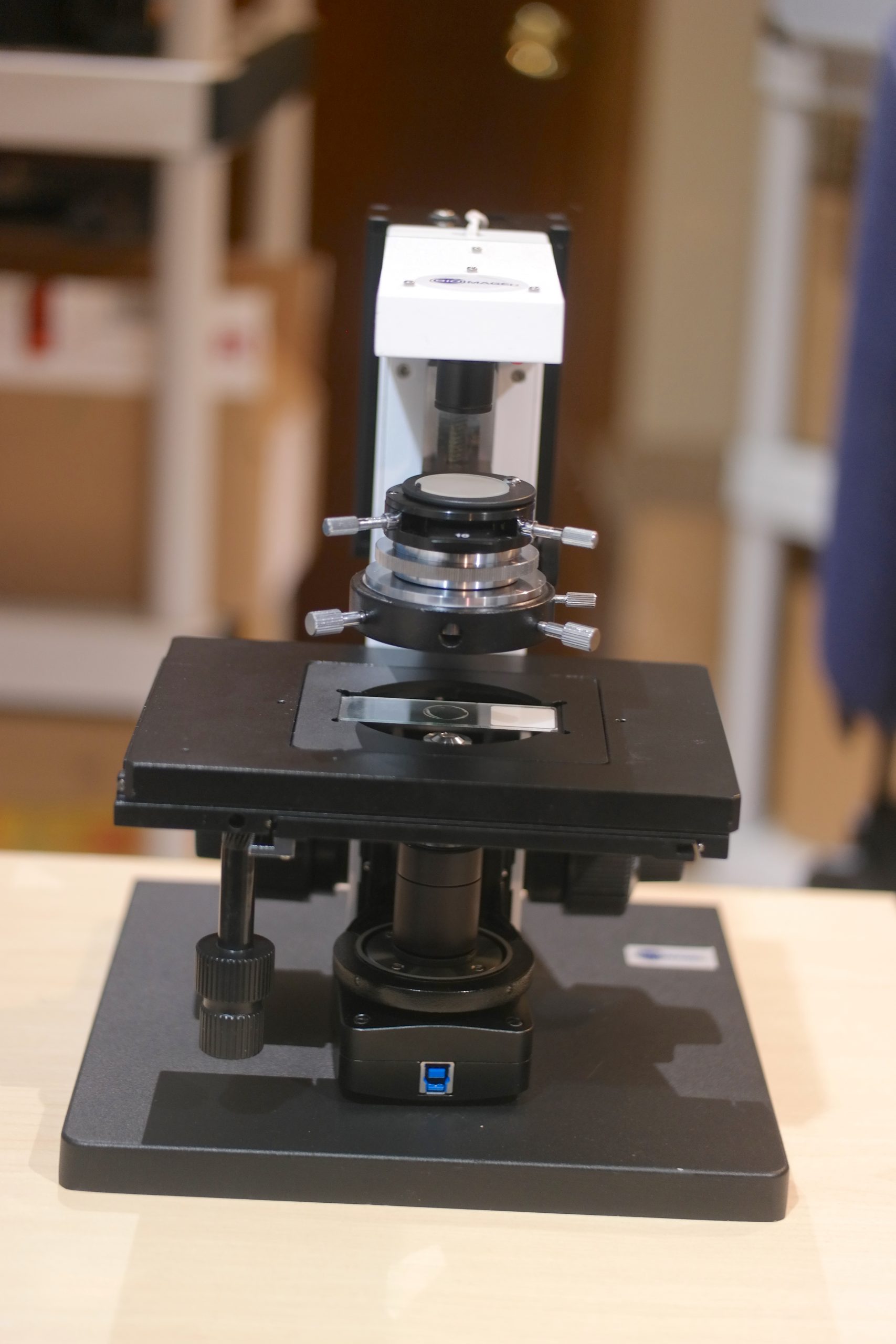

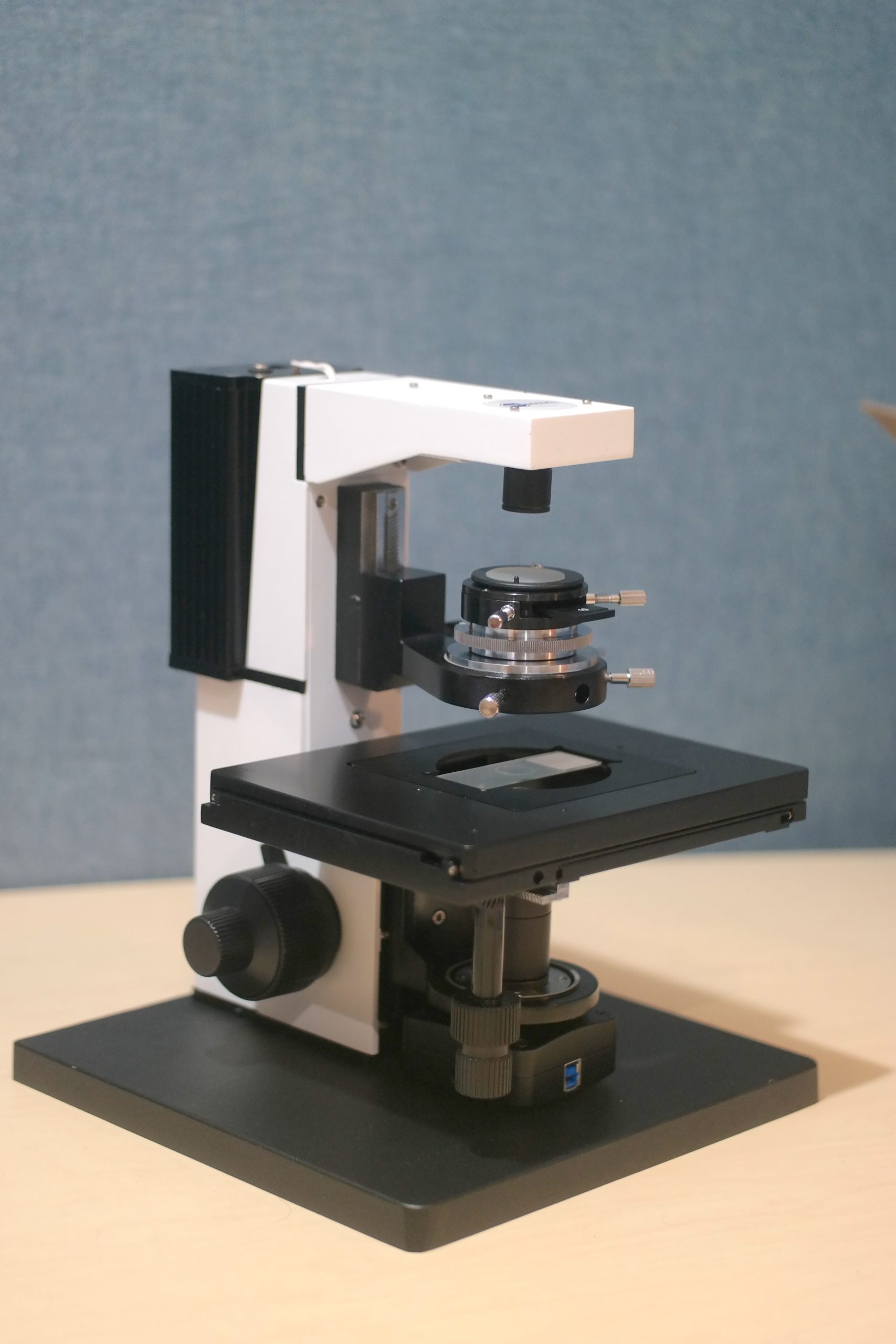

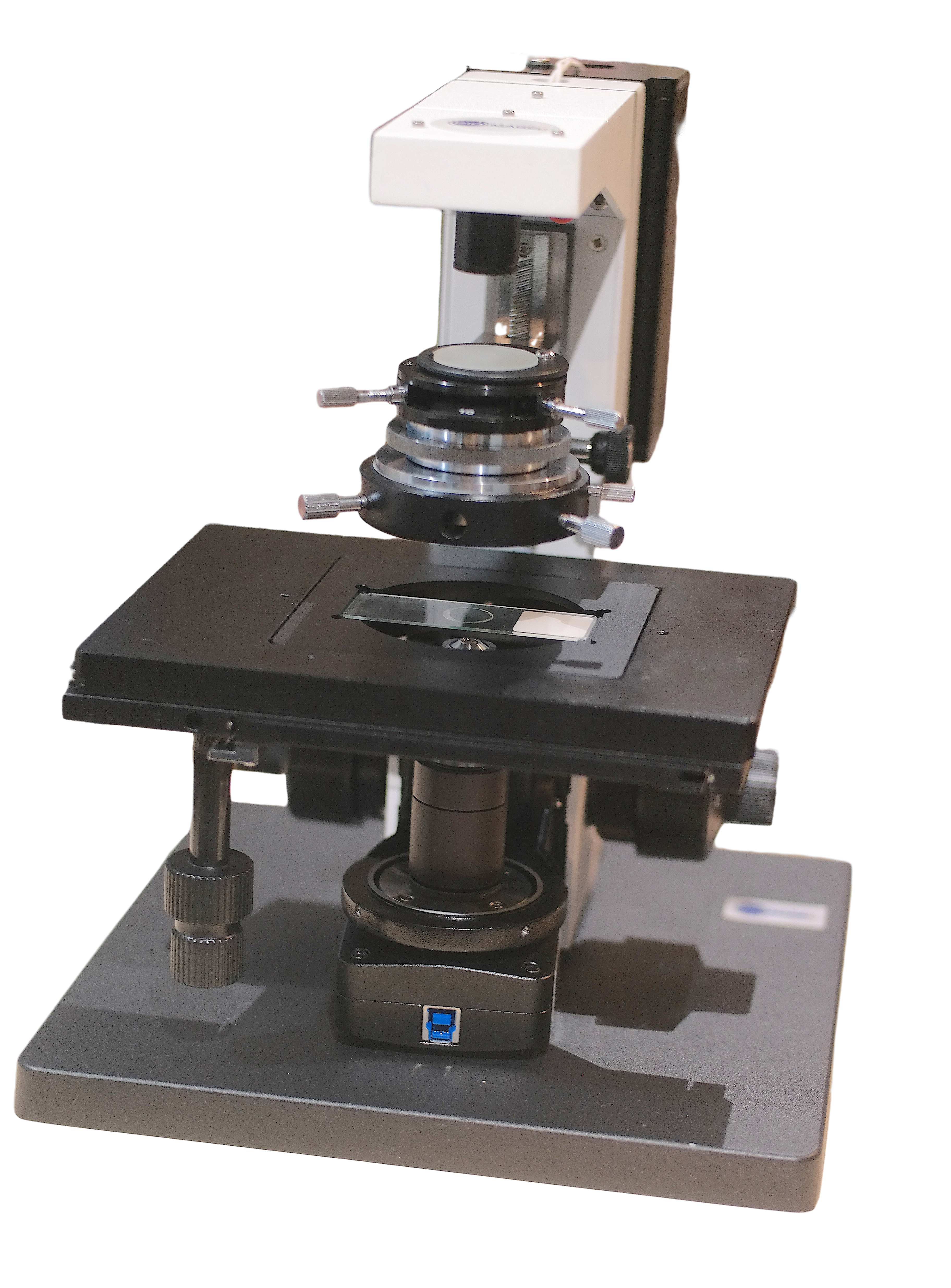

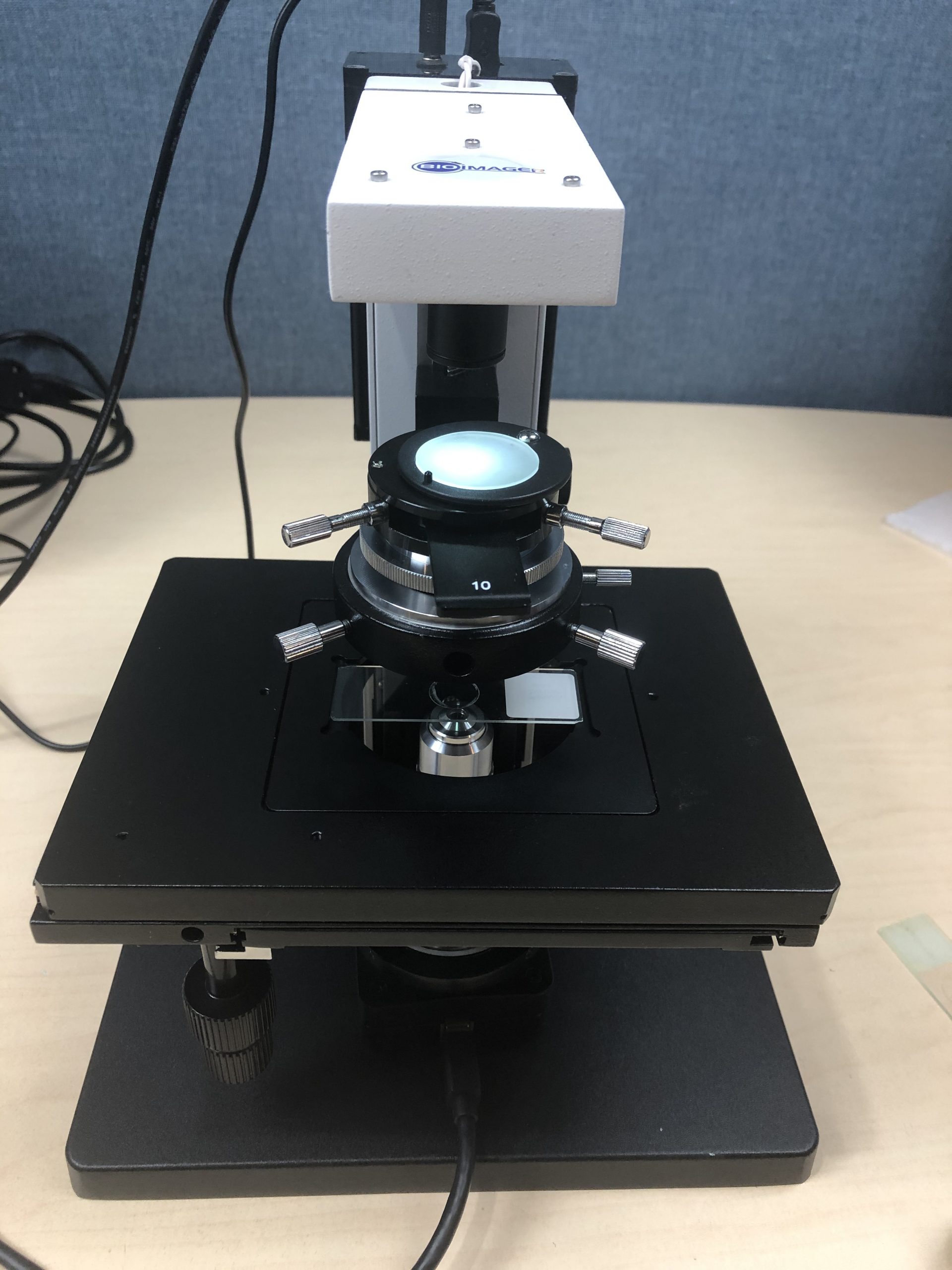

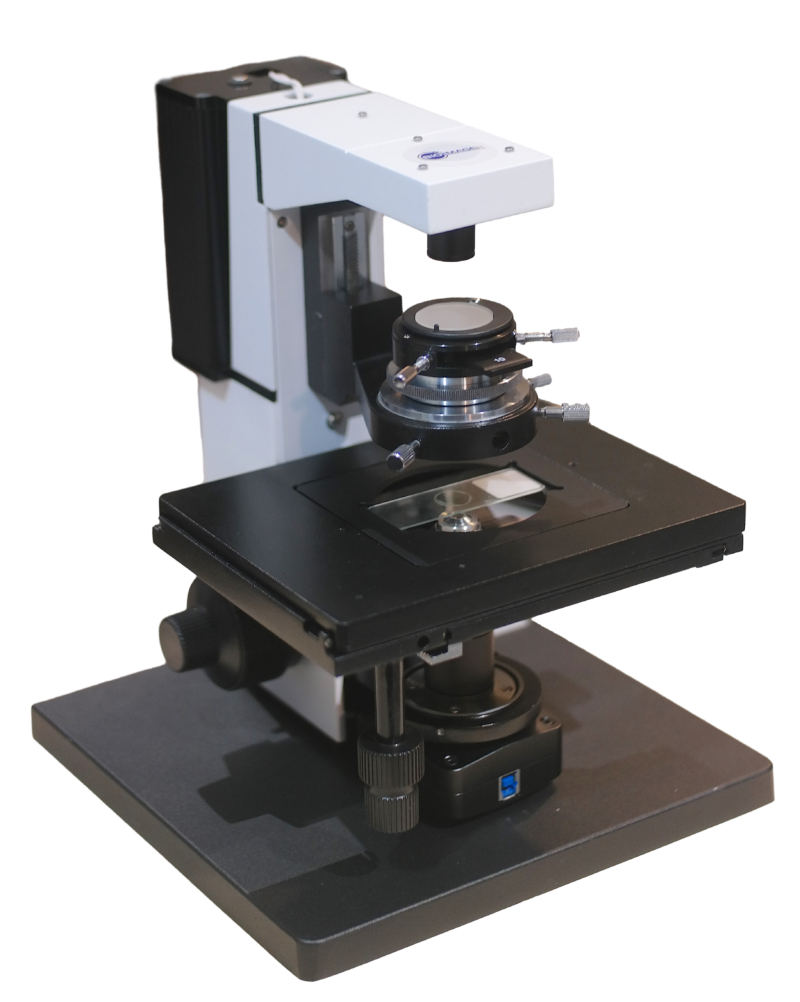

Brief introduction: IS220 is an inverted biological microscope with brightfield, phase contrast and optional fluorescence imaging capabilities. It has the smallest phase contrast module among the inverted biological microscopes. It uses a smart fluorescence sliding kit which allows up to 4 filters and LEDs. The overall size of the microscope for digital imaging is just 220mm length (why this is called IS220), 245mm depth and 305mm height (8.7″ L x  10″ D x 12″ H). Thus, this easily fits inside a regular incubator, biological hood while it can be used as a stand-alone microscope on a bench.

The application of the IS220 is limitless due to its small footprint, simple use and smart design. It can control LED to turn on/off. This means you save paying for mechanical shutter to avoid photobleaching and phototixicity during the waiting time for next time point. It is an excellent choice for video time-lapse microscopy and live cell imaging. It can be used for cell culture imaging, kinetics of growth study, cell  mortality rate, cell proliferation, differentiation, apoptosis, toxicity. Microfluidics labs and lab on chip research labs or companies love this product for several reasons. Developmental biology labs, cancer cell study labs, plant cells, IVF, vet and stem cell labs find this product extremely helpful.

  • The smallest phase contrast microscope in the world
  • Small enough to fit inside an incubator, hood or be part of another device
  • LED fluorescence imaging with 1, 2 or 3 channels, one at a time.
  • Various choices of  camera, selection based on speed (up to 500fps), resolution( 1.5MP to 20MP), sensor size (1/3″ to 2″)
  • Advanced live cell imaging software (optional)
  • Reasonable Price (save 40% in comparison to the competitors).

IS220 Smart Incubator Phase Contrast Microscope

1. Phase Contrast

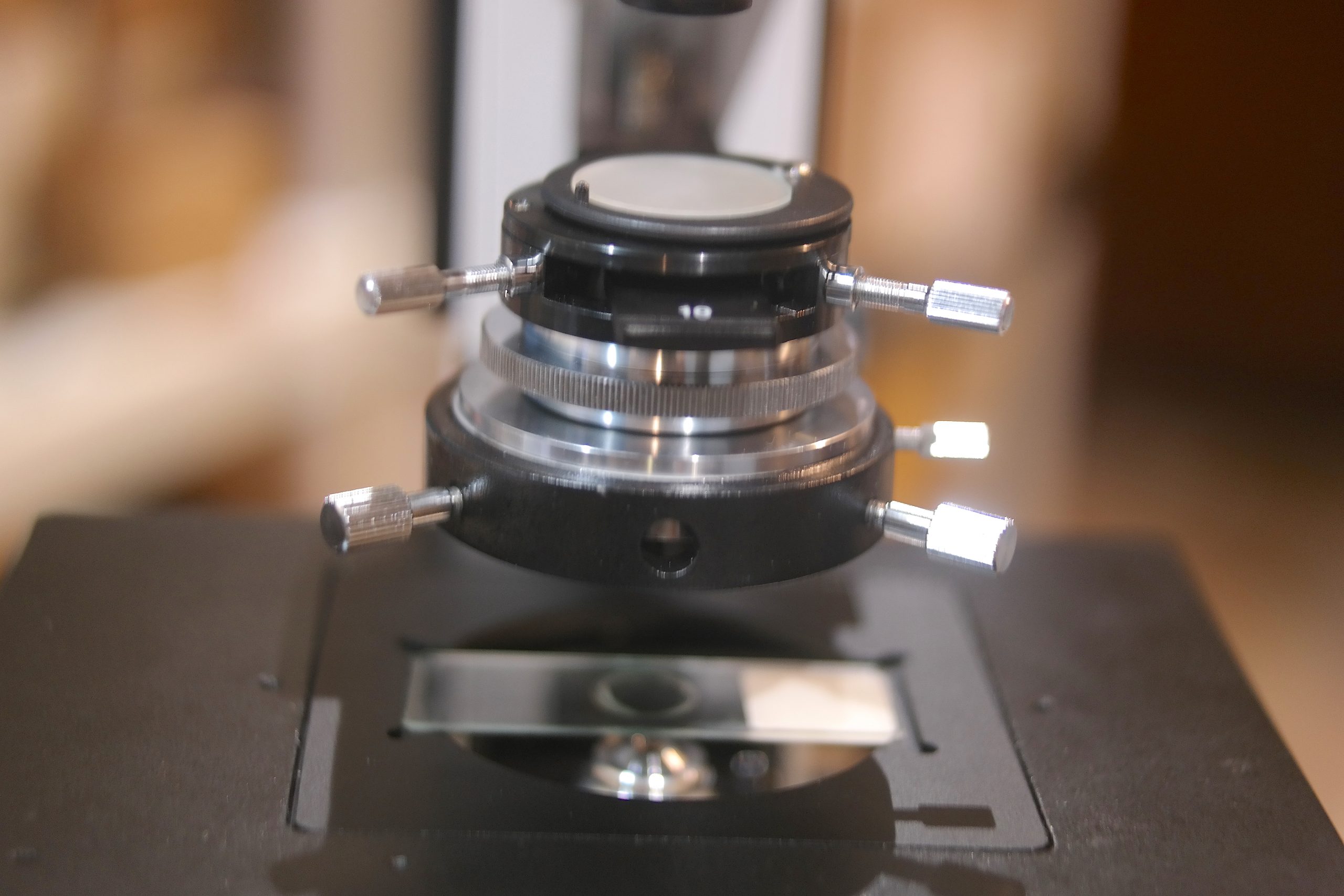

IS220Ph condenser

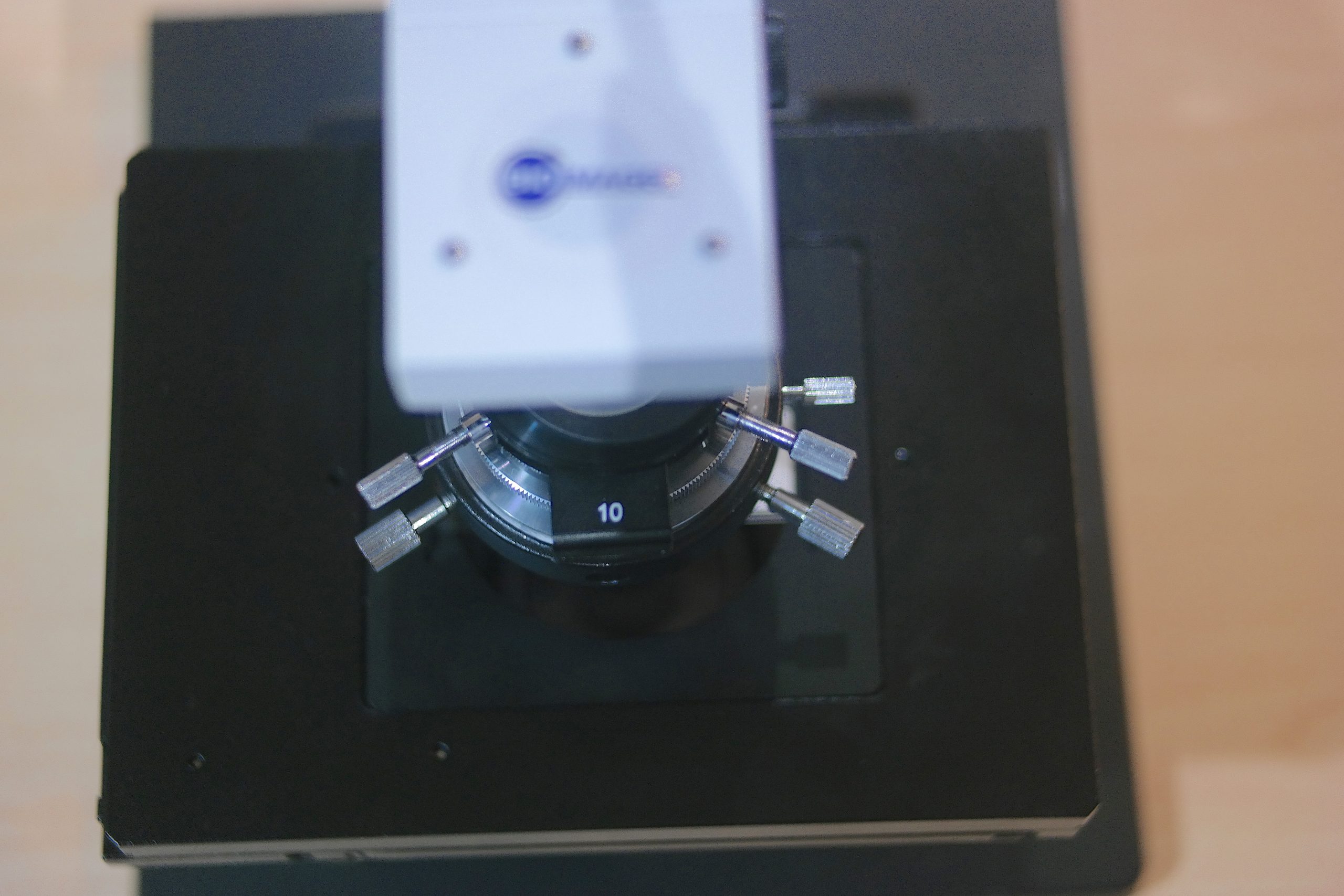

The system uses 10x, 25x and 40x phase contrast lenses.

2. Fluorescence Module (Optional)

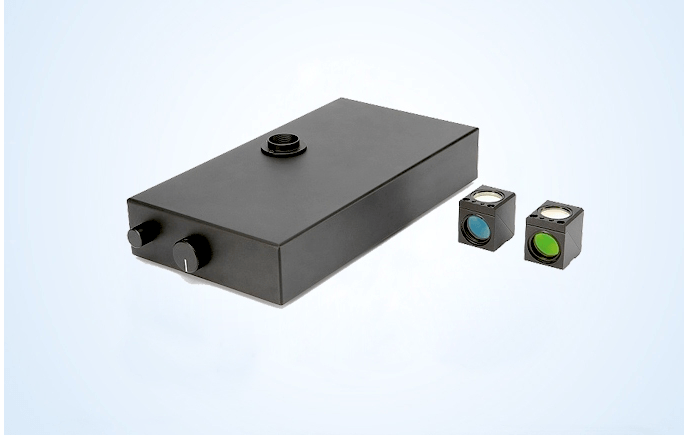

1s170 fla.jpg

This microscope uses a smart epi-fluorescence module slider. The module can be with 2 or 3 channels. The two channels are B and G filters for GFP/FITC, TRITC/mCherry, or B,G, U for Dapi/Hoechst as well.

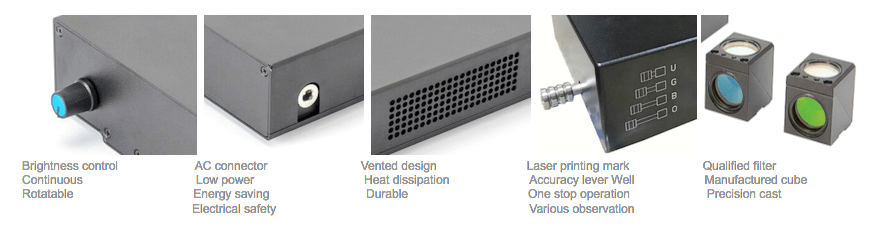

1s170 fla description.jpg

The slider is a cubic shape, sits underneath of the nosepiece, has a 3W LED for each channel. A lever can move the filter slider and brings to a right position, with a click-stop sound /touch. Other filters and LEDs are available for customization.

Plan semi-apo, plan apo and plan fluor lenses at different magnifications form 1.25x to 150x are available for customization.



3. Camera

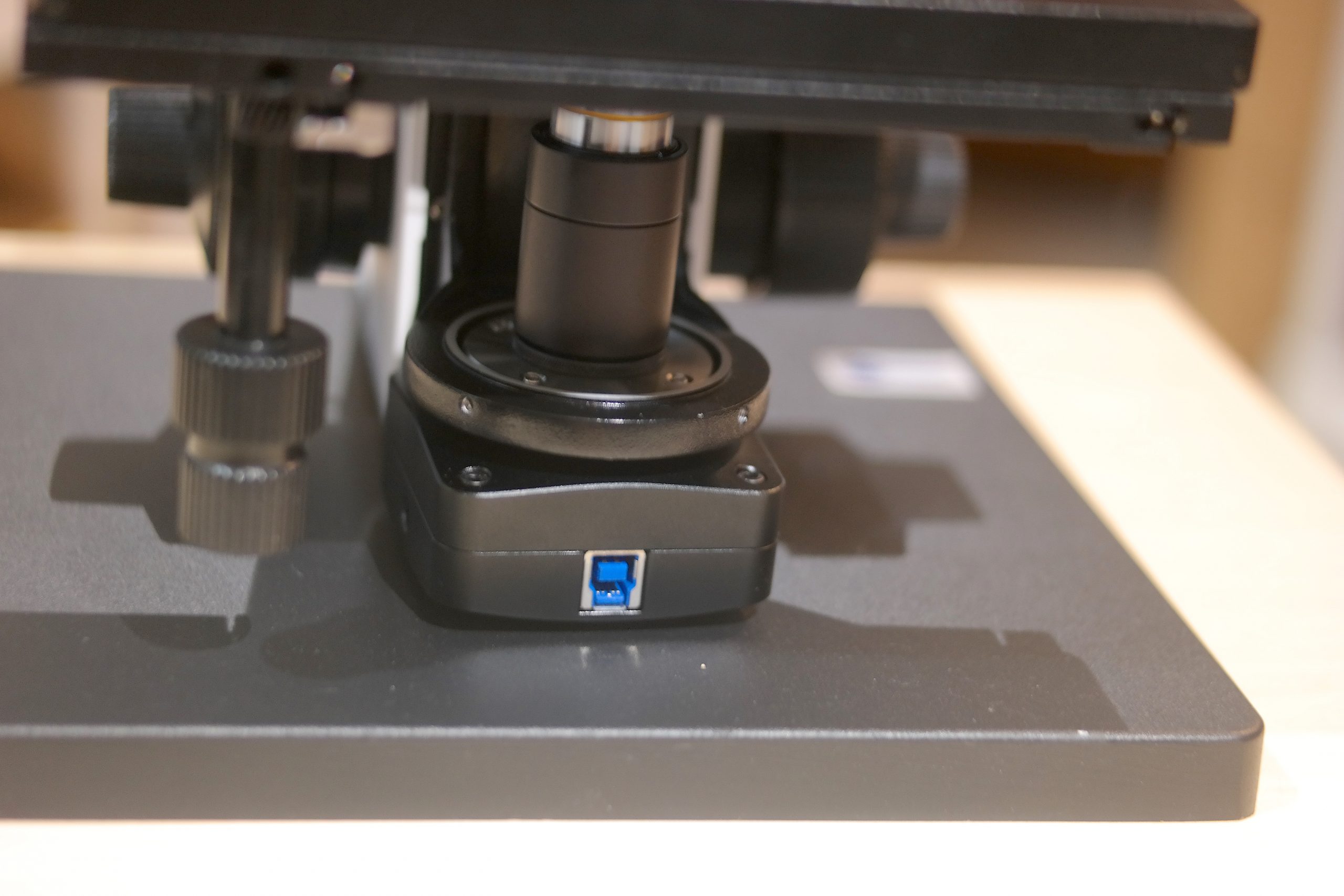

IS220Ph camera
There are several options of cameras; different speed (up to 500 fps), resolution (1.5mp to 20mp), sensor size ( 1/2″ till 2″), sCMOS (scientific CMOS), CMOS, CCD (cooled or uncooled), and HD. Please check the “Specification” tab.



4. Software

The default software of cameras allows capture of images, videos and time-lapse imaging.

We offer an advanced software for live cell imaging, called IncuView, which can control the LEDs. This requires a special PCB to be attached prior shipping.

Please check “software” tab for the details of IncuView.

5. Accessories

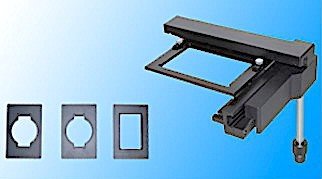

Sample holders fro glass-slide, 35mm petri-dish, 50mm PD, terasaki holder, T-25 flaks holder, T-75 flask holder, micro-well plate holder:

IS170MB3 05 mechanical stage

1. Optics

Infinity plan achromatic objectives Bright field (Optional) PLL 10X/0.25 Work distance:4.1mm
PLL 20X/0.45 Work distance:2.5 mm
Phase contrast objectives

(One lens is included)

 PLL 10X/0.25 PHP Work distance:4.1 mm
PLL 25X/0.45 PHP Work distance:5.0 mm

PLL 40X/0.58PHP Work distance:2.5mm
Optional Fluor objectives 1.25x, 2x, 2.5x, 4x, 5x, 10, 20x, 40x, 50x, 60x, 100x, 150x
40x (oil), 50x (oil), 100x (oil)
Phase contrast ring plate 10X, 25X and 40X
Focus system Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm.
Nosepiece Quintuple nosepiece,ball bearing with anti fungus device

(can be offered for Ph contrast only).

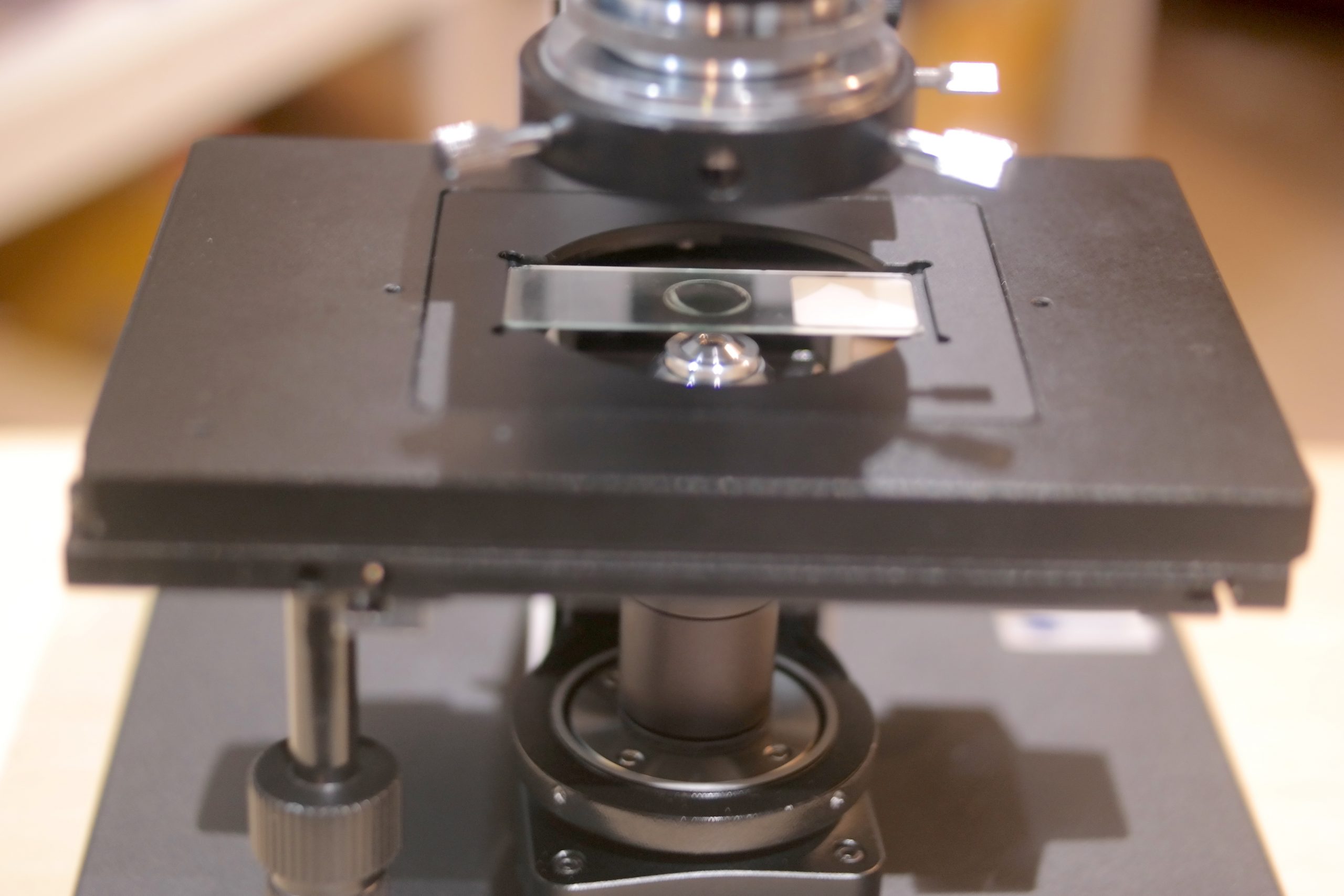

Stage Fixed stage overall size is 227mmX208mm
Glass rotundity stage overall size is Ф118mm, inner size is Ф68mm
Mechanical moving device, moving range is 77mm (longitudinal)X135mm (transverse)
Culture dish holder 1 Inside locating slot size: 86mm (W)X129.5mm (L), (suitable for circular culture dish Ф90mm)
Culture dish holder 2 Inside locating slot size: 34mm (W)X77.5mm (L),  (suitable for circular culture dish Ф68.5mm)
Culture dish holder 3 Inside locating slot size:57mm (W)X82mm (L),

(suitable for circular culture dish Ф60mm)
Culture dish holder 4 Inside locating slot size:29mm(W)X77.5mm (L),

(suitable for circular culture dish Ф35mm)
Transmitted illumination system 3W white LED lamp with brightness adjustable
Push-pull type condenser, working distance 55mm
Tool Allen driver
Others Dust cover

2. Fluorescence (Optional)

Blue LED wavelength EF 480/40nm; DM LP505nm; EM LP520nm
Green LED wavelength EF 530/40nm; DM LP570nm; EM LP590nm
UV LED wavelength EF 350/50nm ; DM LP400nm; EM LP425nm
Light source 3W LED lamp
Support observation mode Bright field, fluorescent
Filter cube transfer Pull-push at four positions

( Blue, green, UV and bright field)
Brightness adjustment Continuous adjustment
Input power DC 4.2V 2A

3. Camera

Order Code Sensor &Size (mm) Pixel (μm) G Sensitivity
Dark Signal		 FPS/Resolution Binning Exposure
BIC-E3S-2.0 2.0MPIMX385(C)

1/2″(7.20×4.05)

 3.75 x3.75 2350mv with 1/30s
0.15mv with 1/30s		 125 @1920×1080 1×1 0.1ms ~15s
BIC-E3C-2.3 2.3MPIMX185(C)

1/1.9″

(7.20×4.50)

 3.75×3.75 1120mv with 1/30s
0.5mv with 1/30s		 38@1920×1200
66@960×600		 1×1,2×2 0.244ms~2s
BIC-E3C-2.3G 2.3MPIMX249 (C,GS )
1/1.2“(11.25×7.03)		 5.86×5.86 1016mv with 1/30s
0.15mv with 1/30s		 30@1920×1200 1×1 0.244ms~2s
BIC-E3S-3.1G 3.1MPIMX265 (C, GS)

1/1.8″(7.07×5.30)

 3.45×3.45 1146mv with 1/30s
0.15mv with 1/30s		 53 @2048×153685 @1024×768 1×1 0.1ms ~15s
BIC-E3S-5G 5.0MPIMX264(C, GS)
2/3” (8.45×7.07)		 3.45×3.45 1146mv with 1/30s
0.15mv with 1/30s		 35 @2448×2048
50 @1224×1024		 1×1 0.1ms ~15s
BIC-E3S-6.3 6.3MP*IMX178(C)

1/1.8″(7.37×4.92)

 2.4×2.4 425mv with 1/30s
0.15mv with 1/30s		 30 @3072×2048
38 @1536×1024		 1×1,2×2 0.1ms ~15s
BIC-E3S-9.0G 9MIMX305 (C, GS)

1″(14.13×7.45)

 3.45 x3.45 1146mv with 1/30s
0.15mv with 1/30s		 34@4096×2160
60@2048×1080		 1×1,
2×2,		 0.1ms ~15s
BIC-E3S-20.0 20MPIMX183(C)

1″

(13.06×8.76)

 2.4 x 2.4 462mv with 1/30s
0.21mv with 1/30s		 15@5440×3648
50 @2736×1824
60@1824×1216		 1×1,
2×2,
3×3		 0.1ms~15s

* Suitable only for brightfield and phase contrast-imaging.

**: C: Color, GS: Global Shutter, M: Monochrome





IncuView Advanced Live Cell Imaging Software (Optional)

Features:

  • Time-lapse mode
  • Controls each LED separately
  • Turn ON/OFF option for the LEDs, i.e. digital shutter
  • Live view and image capture
  • Label image color
  • Merge images
  • Color and monochrome images
  • Manual and automatic exposure time and gain
  • Captures BF and FL images separately
  • Zoom in / Zoom out with a touch of mouse wheel
  • Full screen of the live image, resizable tabs

IncuScope Models Imaging Modes Objective Lens XY Stage Z Focus FL channel

IS220

 BF, PH One lens at a time manual manual 0,1 or 2

IS250

 BF,PH, FL, Pol, DF(partially) 4 lenses manual manual 0,1 or 2

IS500

 BF,PH, FL,POL, DF One lens at a time manual manual 0,1 or 2

BX-200

 BF,PH, FL One lens at a time manual auto 2
IncuScope BX-300A

BX-300A

BF, PH,FL (Coming)

 One lens at a time auto auto

0 to 1-2 (TBD)

BioXcopei600A

 BF,PH, FL,POL, DF, 3D E,boss Contrast, Hoffman Module 5 objective lenses automated auto 0 to 3

(manual)
BIM1000A microscope

BIM1000A

 BF, PH, FL, POL, DF, 3D Emboss Contrast, Hoffman Module 5 objective lenses auto auto 0 to 4

(auto)
