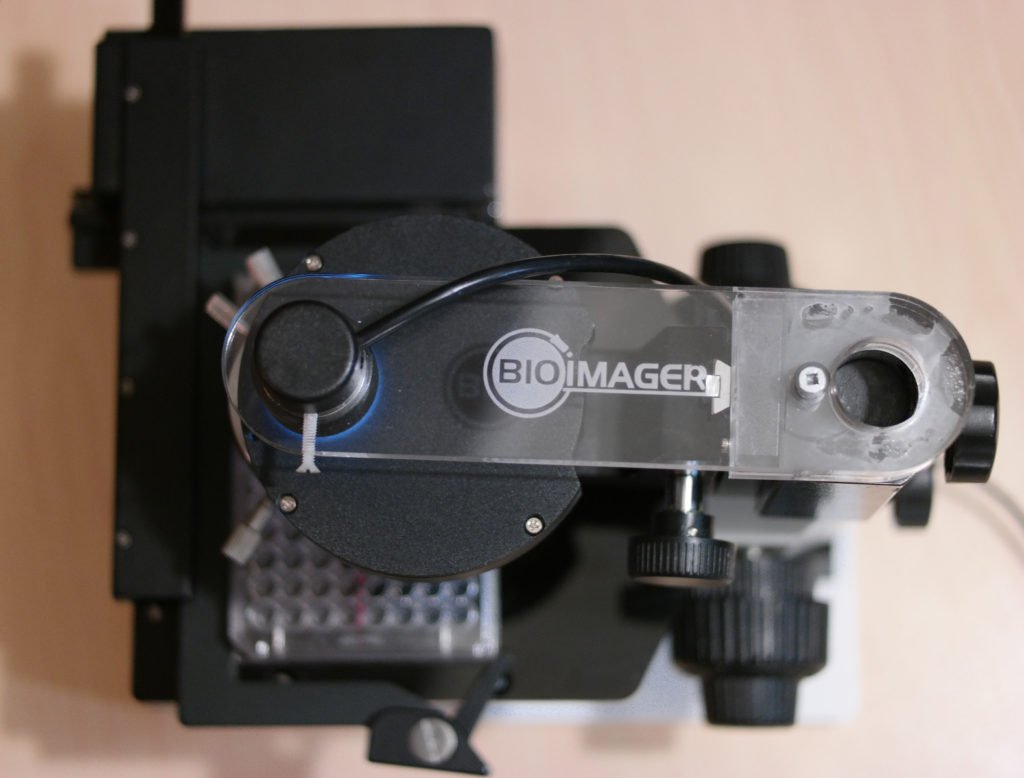

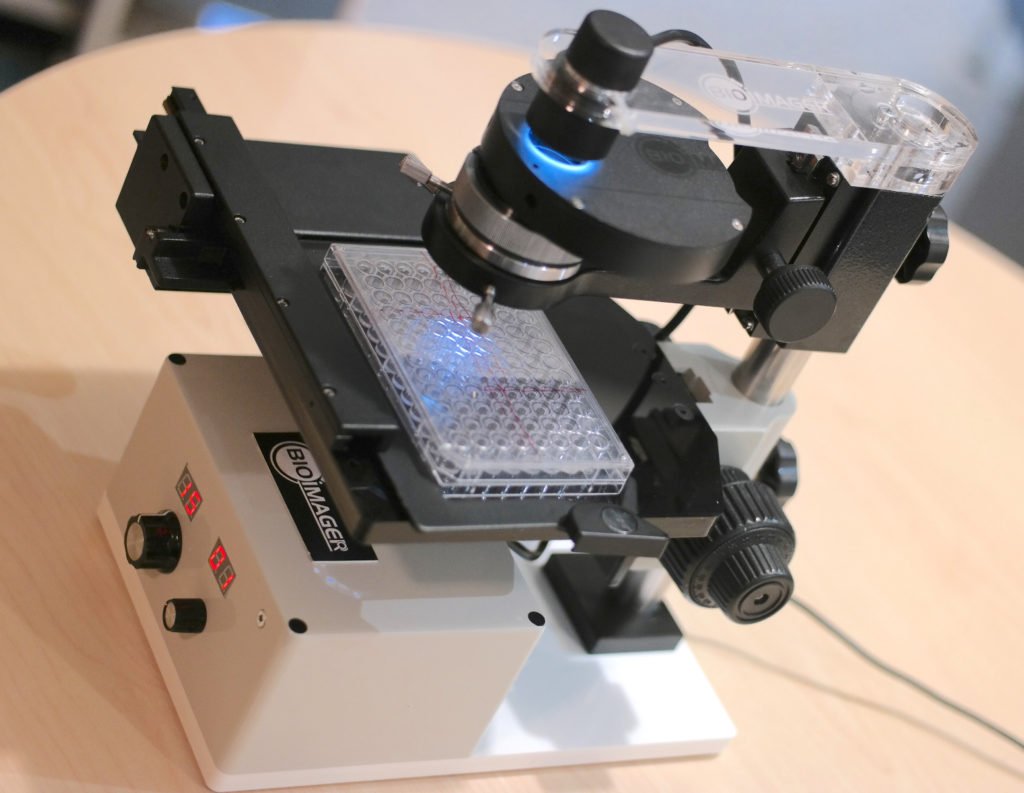

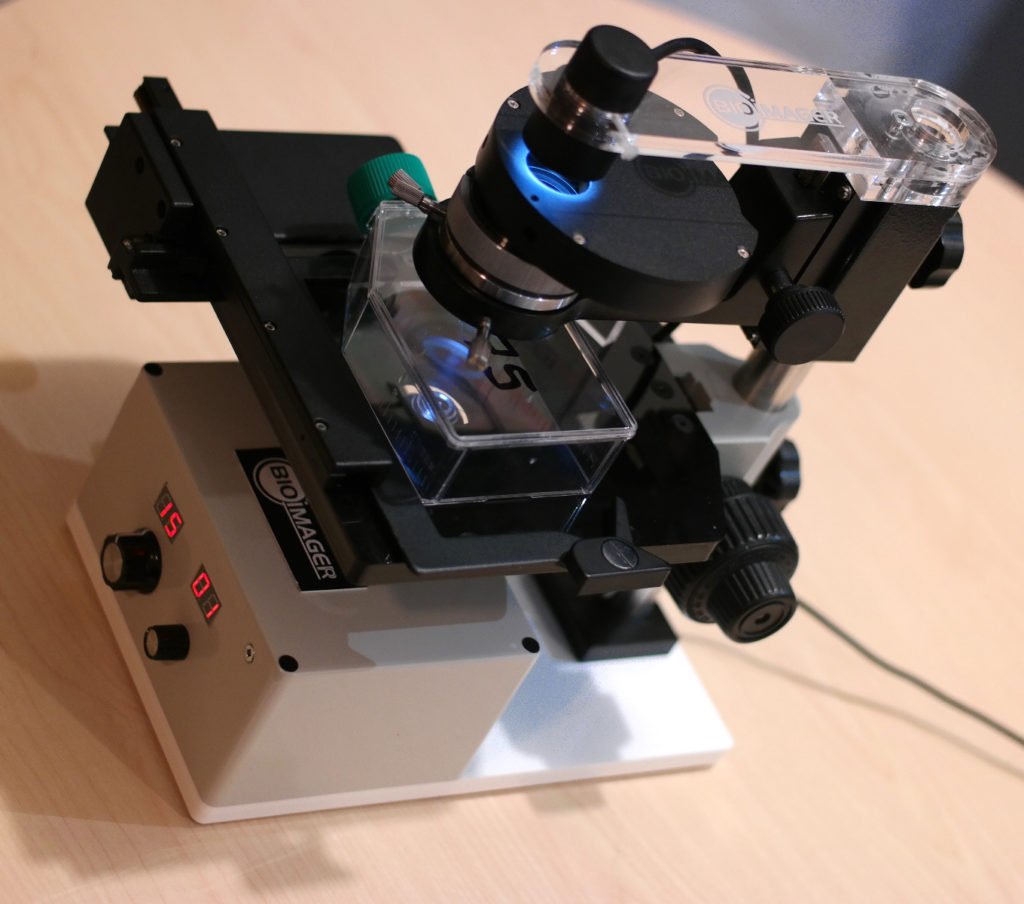

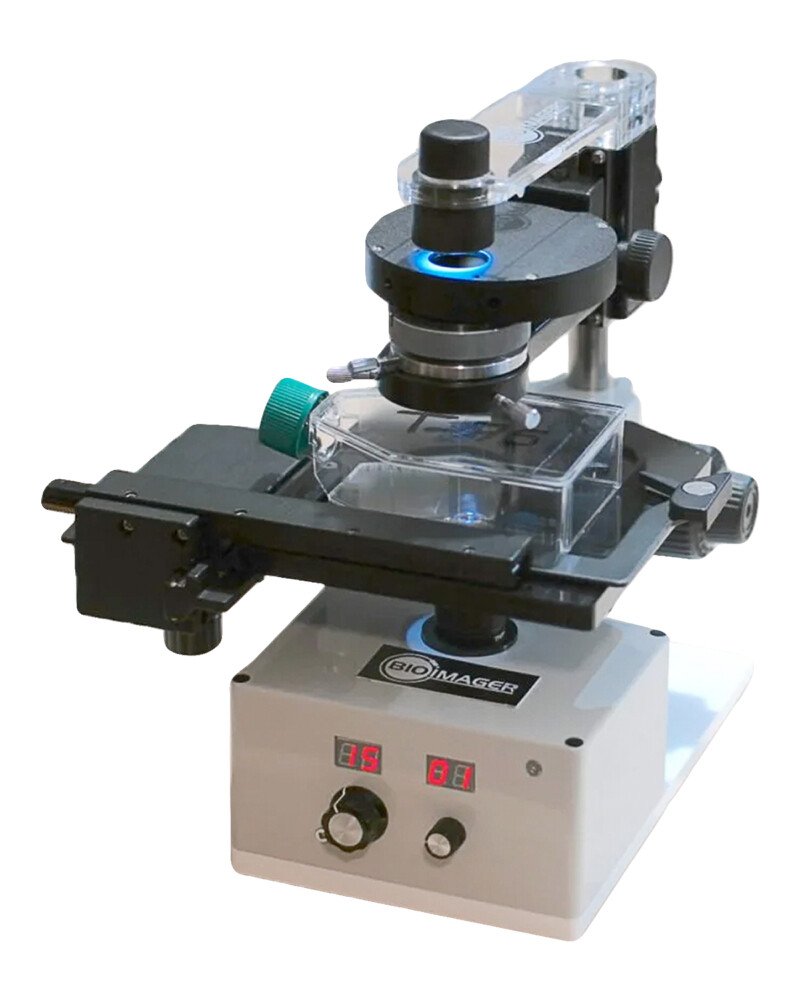

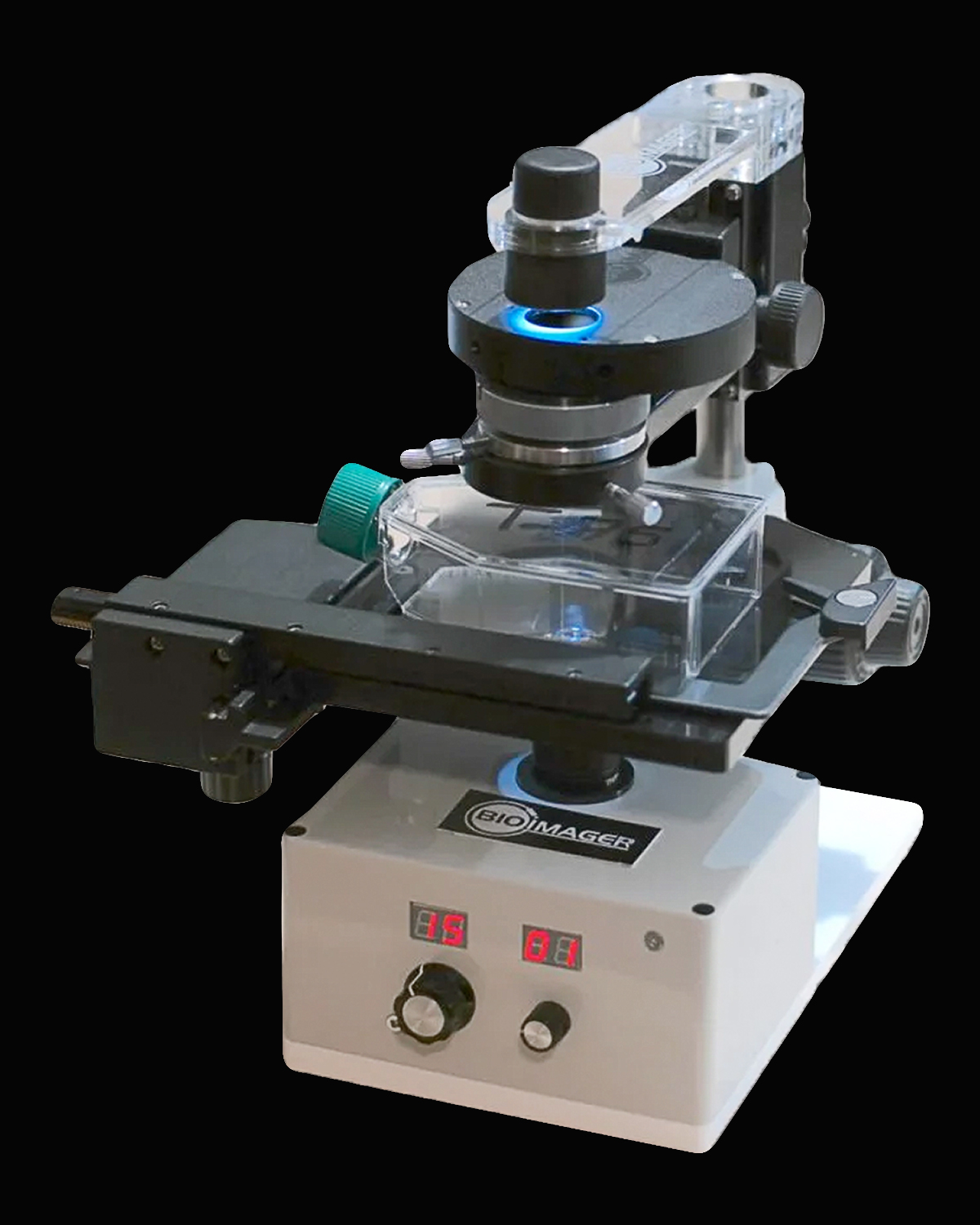

IncuScope IS500Ph Hoffman Phase-Contrast Inverted Incubator Microscope

Availability:

In stock


  • Inverted Biological Microscope
  • Brightfield and Phase-Contrats Imaging, with optional fluorescnce imaging
  • Excellent Phase Contrats imaging; Hoffman Modulation Contratst,
  • Puller-type phase contrast Condenser WD:55mm
  • 10x Ph (incldued), and optional 20x Ph, 40x Ph, and brightfield 1.25x-500x objective lenses.
  • 2.3 MP Built-in Camera
  • Fits inside hood or incubator
  • Great Time-Lapse Imaging Software with turn on/off lights (digital shutter)

$4,229.00

In stock

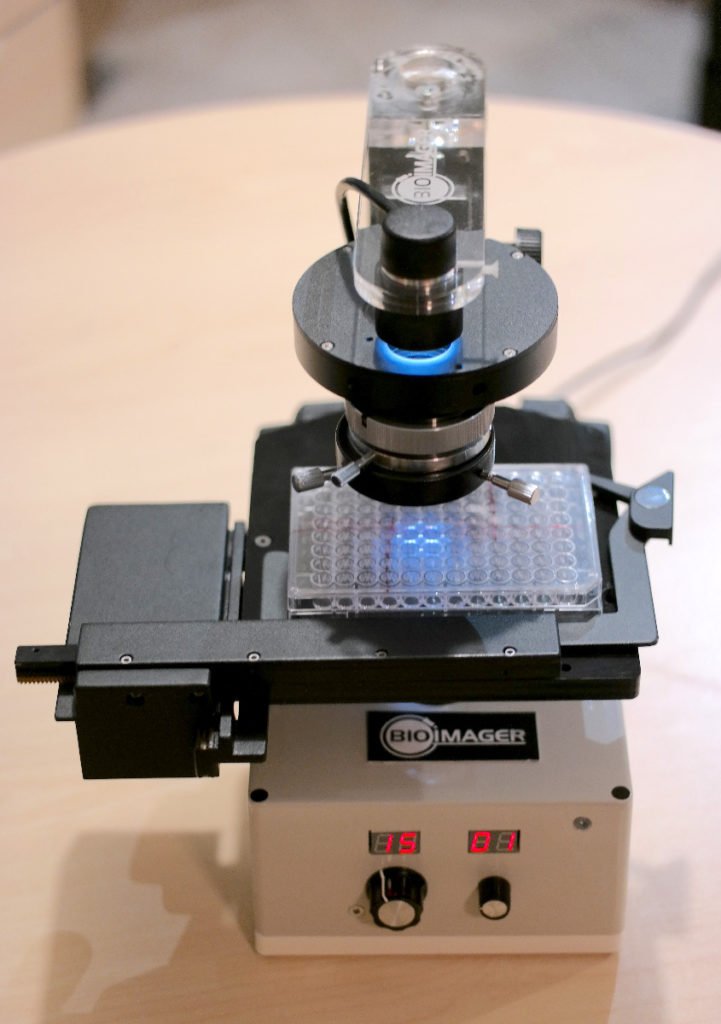

What is IncuScope?

The IncuScope is a low price, small, compact, USB-based, portable digital inverted brightfield, phase-contrast and optional epi-fluorescence microscope. The microscope fits on a shelf inside an incubator or inside a hood. It has a built-in digital camera and light source. This runs on a laptop or desktop using just one USB cable and captures fluorescence and/or brightfield images. Avilable with a variety of objective lenses from 1x to 500x. The software allows doing time-lapse study and controlling the light to turn on/off to avoid photo-bleaching and photo-toxicity. Thus, this saves paying for heating stage or miniature incubator, mechanical shutter, digital camera and fluorescence attachment which are important components for live cell imaging application. Its price is the lowest in the live cell imaging field. A side-by-side comparison with similar products such as Lumascope, Juli, EVOS, this has better images. When it comes to the price, this is the most economic choice. Last but not least, you can check your cell culture inside an incubator via Internet or smart-phone if you connect the IncuScope computer to Internet / WiFi and use our remote-control software.

Contact Us for Free Demo, a Quote , and Custom Design with 6 colors or OEM.

Specifications

Model

IncuScope-500

BF

PH

Optics

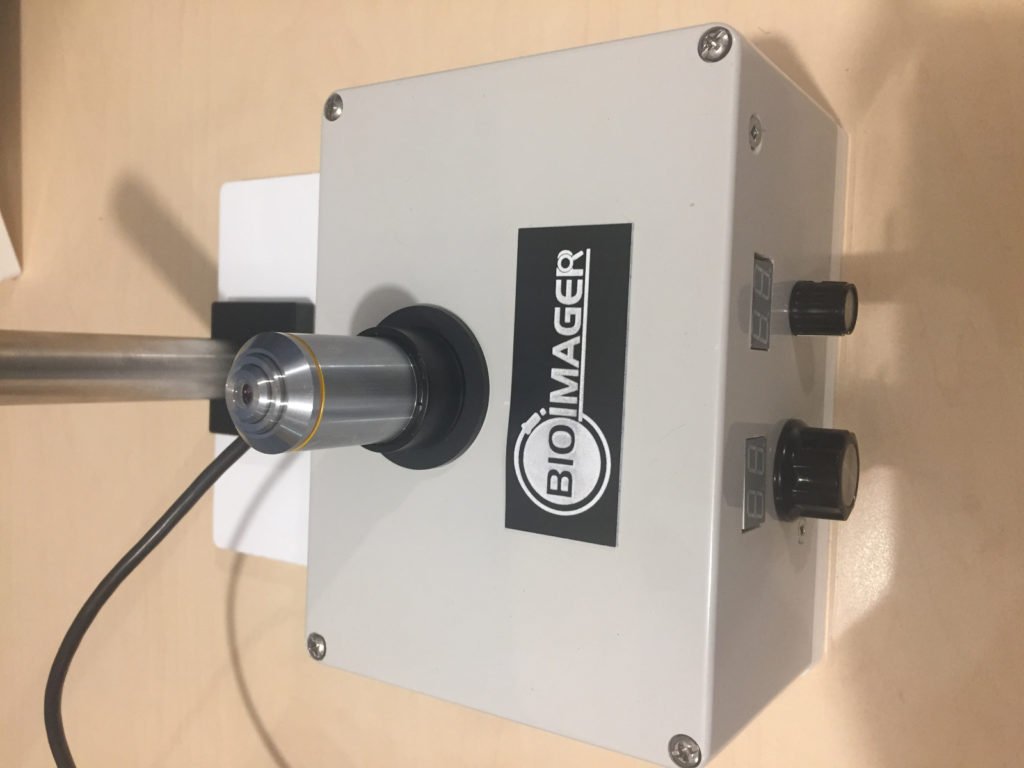

Infinity-corrected objective with an RMS thread type

Imaging Modes

Brightfield (via white transmitted LED)

Fluorescence

Phase Contrast

Condenser

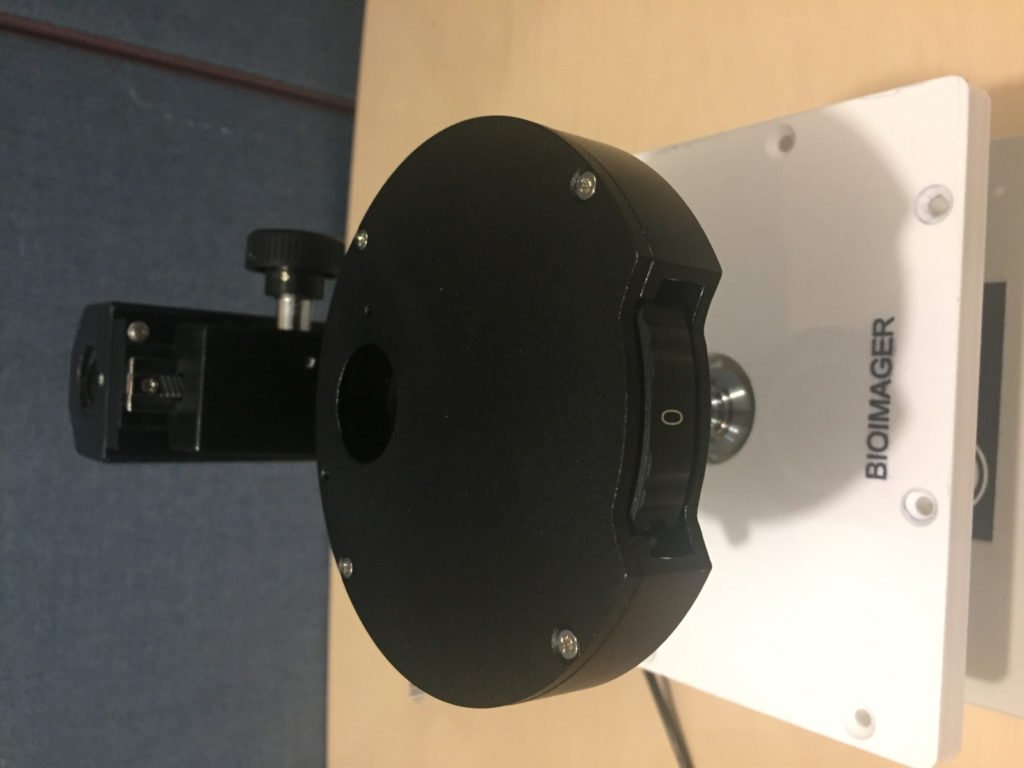

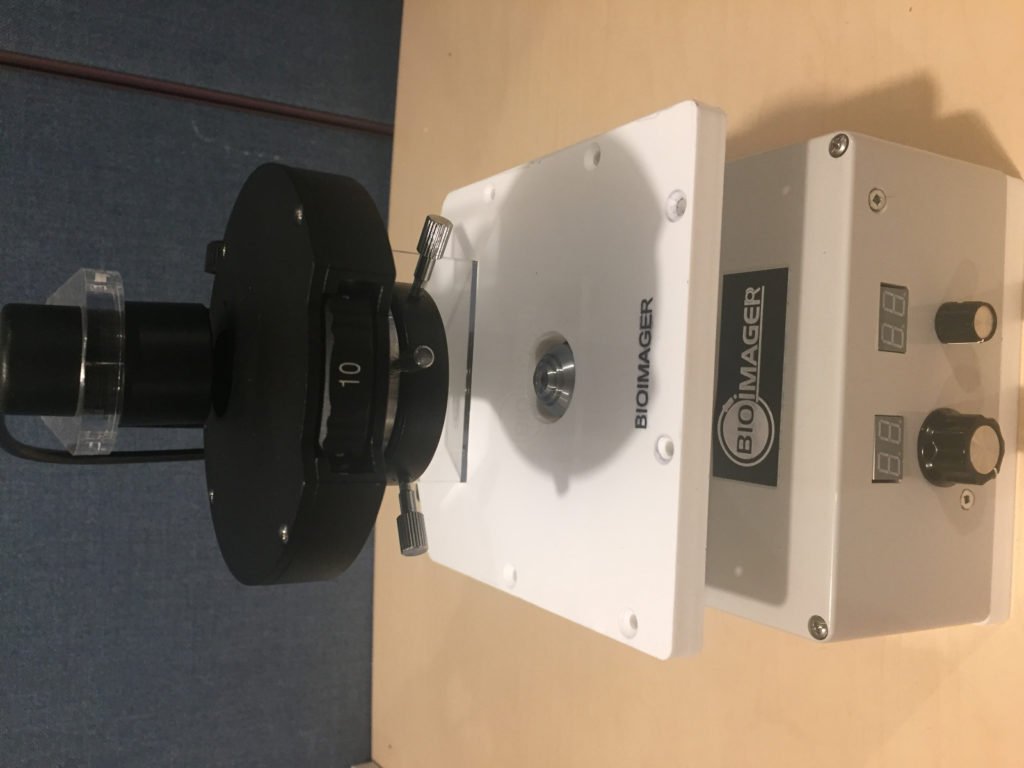

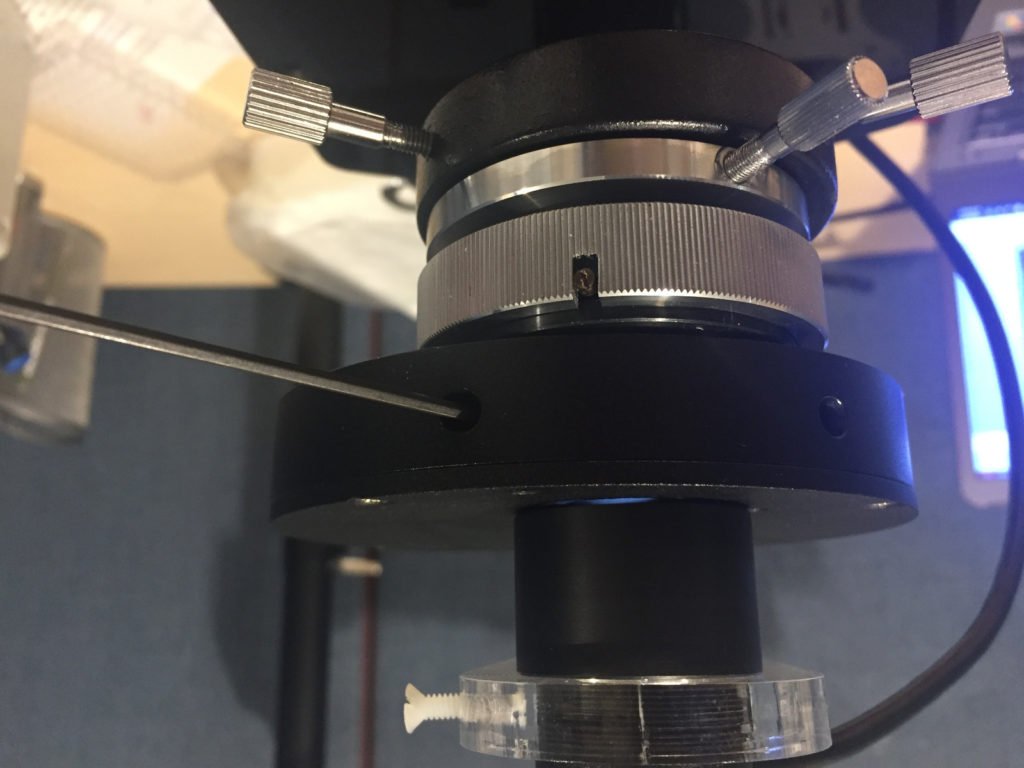

Turnplate phase contrast condenser,  Puller-Type, working distance is 55mm

Phase Contrast Objective lenses

  • Cover Glass 1.2mm
  • PLL10x/0.25 PHP1, WD 4.3mm (included)
  • PLL20x/0.40 PHP1, WD 8.0mm
  • PLL40x/0.60 PHP2, WD 3.5mm

Brightfield

Objective Lenses

1x, 1.25x, 2x, 2.5x, 4x, 5x, 10x, 20x, 40x (dry or oil), 50x (dry or oil), 60x, 100x (dry or oil), 150x, 200x, 300x, 500x

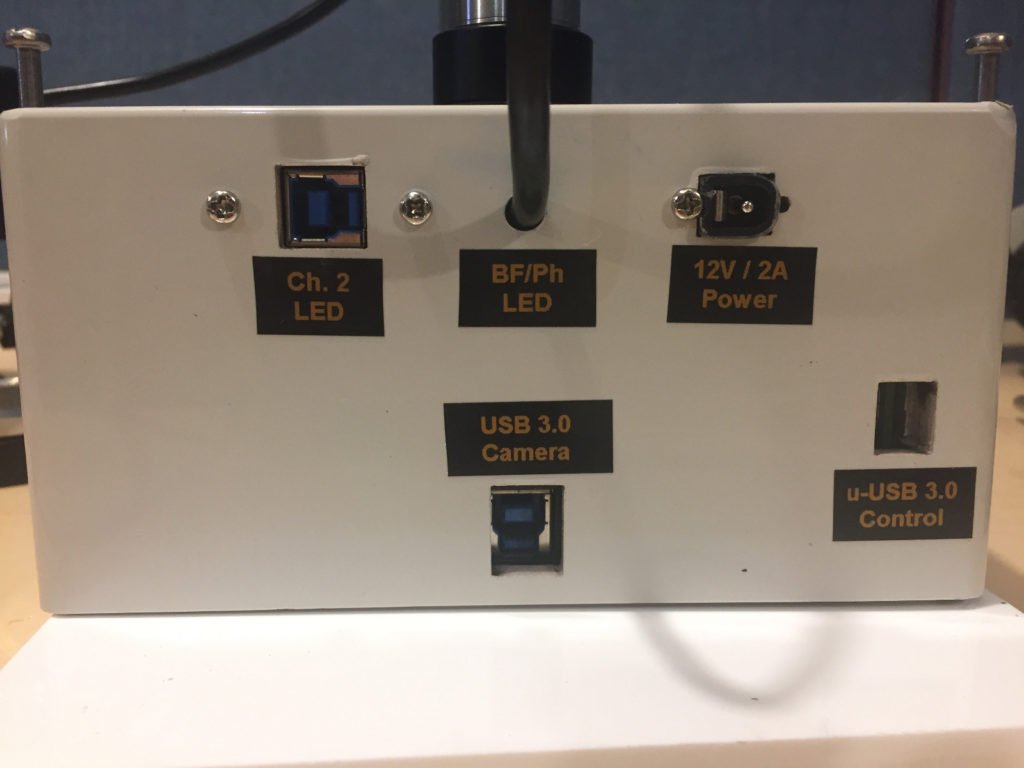

PC communication

USB 3.0 port

Camera Model

BIC-T3C-2C2

Sensor

IMX185 Color, 1/1.9″, 7.20mm x 4.5mm

Pixel

2.3MP or 1920×1200, 3.75 μm/pixel

Speed

[email protected]×1200; [email protected]×600

(super-high speed cameras available)

G Sensitivity

Dark Signal

1120mv with 1/30s

0.5mv with 1/30s

Exposure time

0.244ms~2000ms

OS

Windows 7, 8, 10. 32-bit / 64-bit

Mechanical Parts

Coarse Focus

Enclosure

Power

AC-DC adapter for 12V

LED Life Time

> 20,000 hours

Operating Condition

0°C- 42°C, 5%-99% RH non-condensing

Dimenison

Width: 160mm / 6.3″

Depth: 260mm /10.2″

Height: 300mm / 11.8″

Warranty

1 year

incuView Software Interface

Features:

– Time-lapse mode

– Controls each LED separtely

– Turn ON/OFF option for teh LEDs, i.e. digital shutter

– Live view and image capture

– label image color

– Merge images

– Color and monochrome images

– Manual and automatic exposure time and gain

-Captures BF/Ph and FL images separately

– Zoom in / Zoom out with a touch of mouse wheel

– Full screen of the live image, resizable tabs
