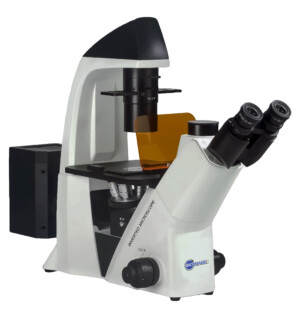

BIM640FL Inverted Epi-Fluorescnce Biological Microscope
IncuScope BX-200 Box Incubator Microscope with Autofocus Ph, 2 FL, 3 LED
Original price was: $USD 12,000.00.$USD 8,850.00Current price is: $USD 8,850.00.

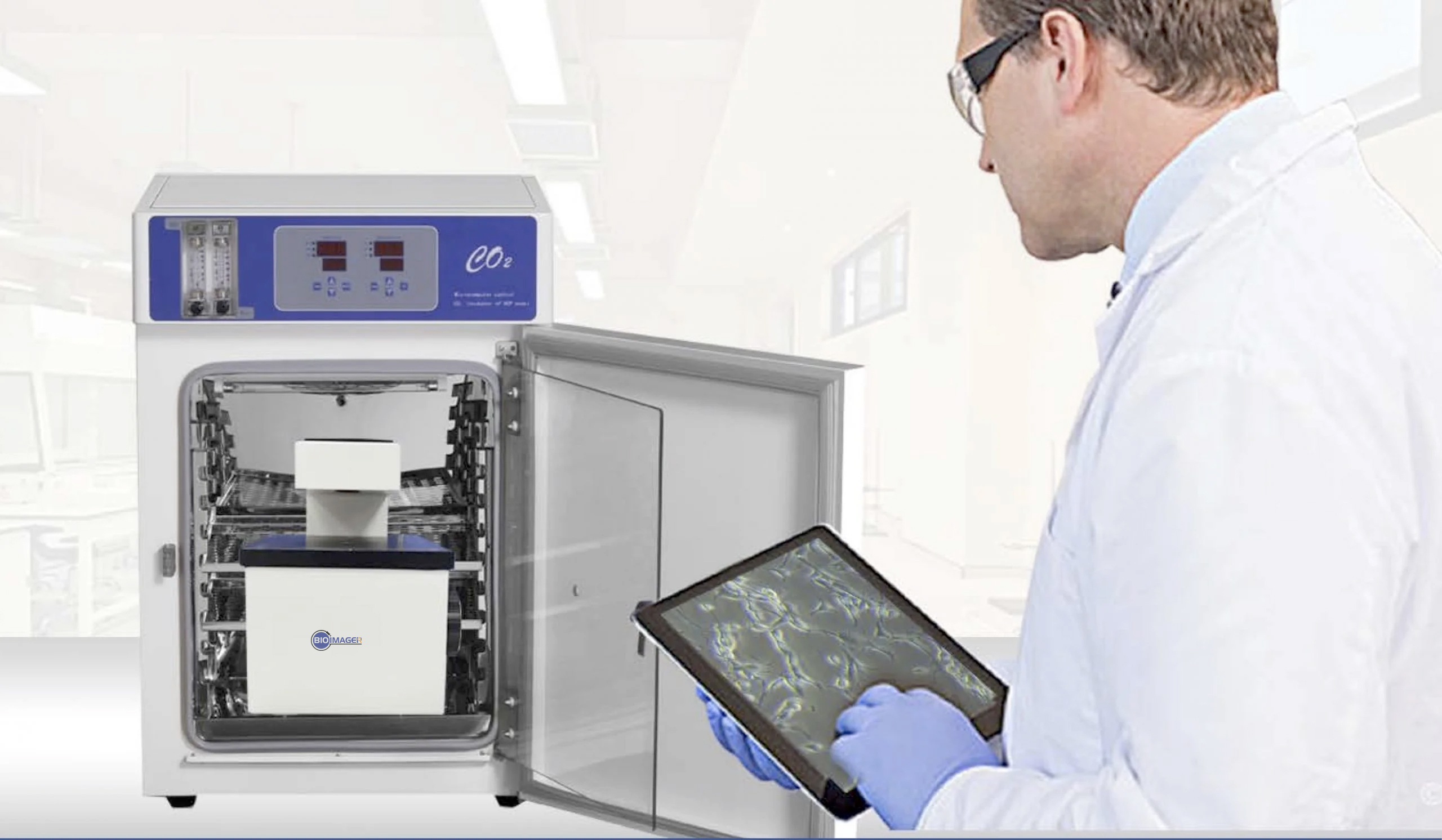

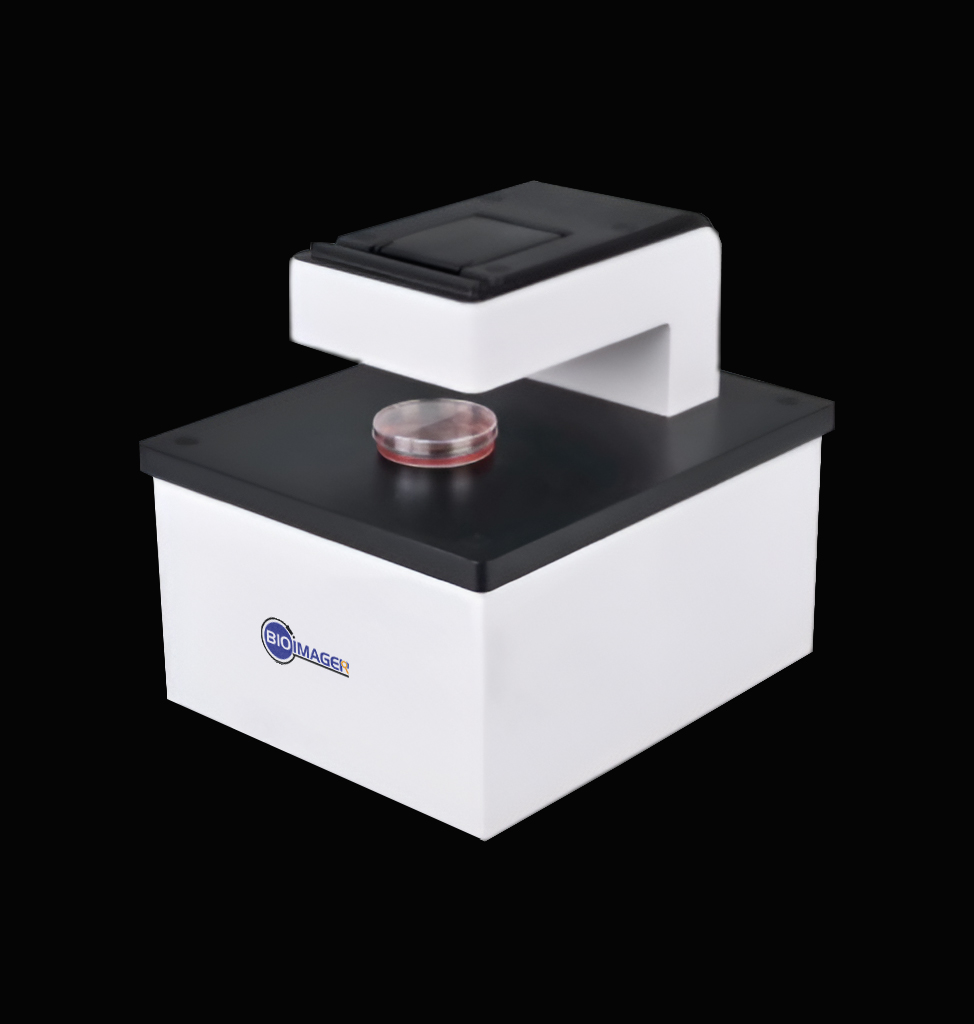

-26%- Box Microscope, fits inside an incubator or hood
- 10x Obj lens with optional from 2x to 150x
- Brightfield/Phase Contrast and 2-channel fluorescence imaging capability
- Great Autofocus Mechanism

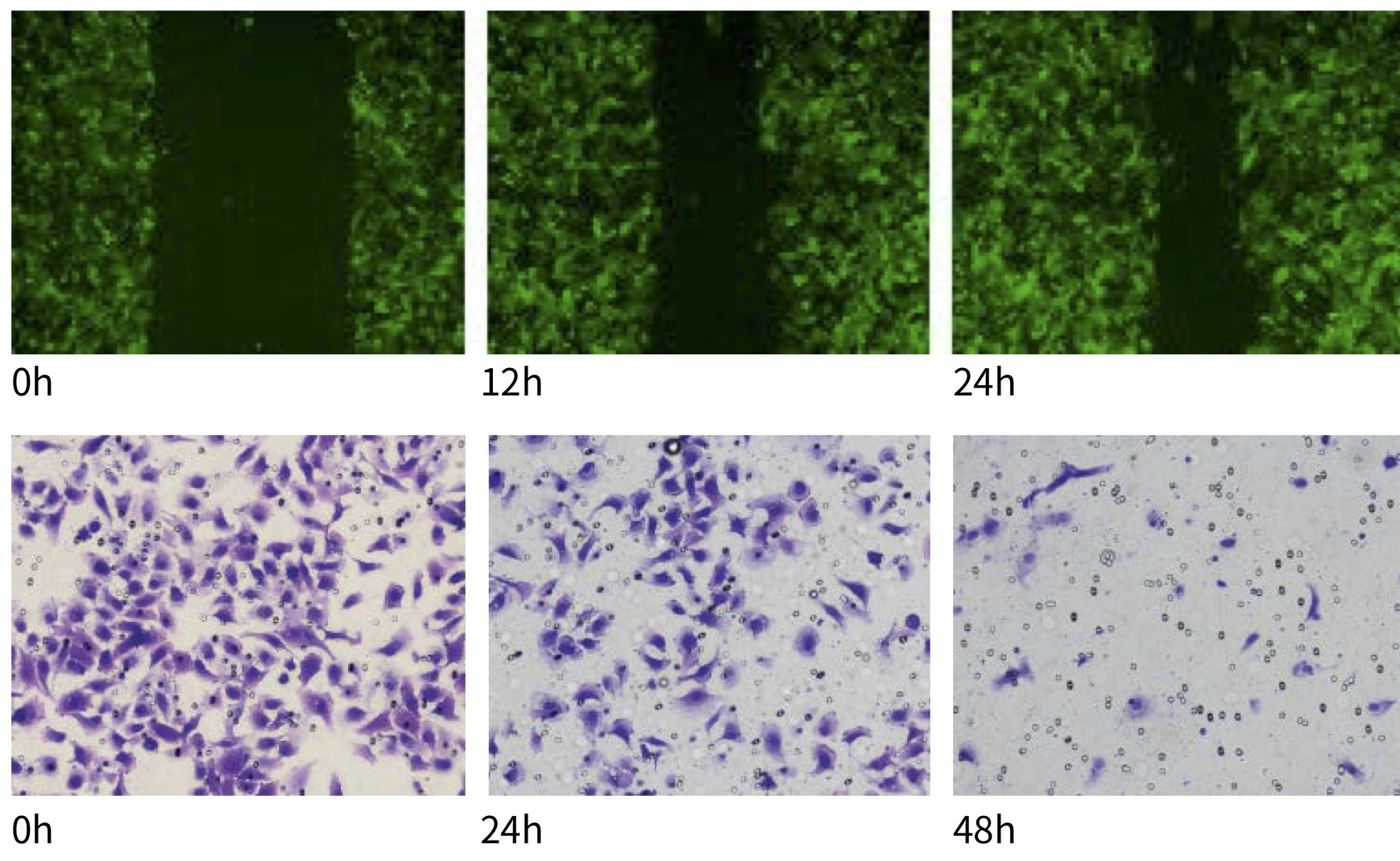

- Time-Lapse Imaging
- Compact Size and light weight.
- Windows OS, USB 3.0 interface
IncuScope BX-200 Box Incubator Microscope with Autofocus Ph, 2 FL, 3 LED
- Introduction
- Features
- Description
- Specification
- Images
- Configuration
- Softwares
- Links
- Reviews 0
- Contact
- Digital compact microscope
- Fully sealed optomechcnial system (no worry of water leakage)
- Single obj lens
- Widnows 7/8/10 OS
- Bids Leica, Olympus box microscopes and Lumascope in quality and/or price.

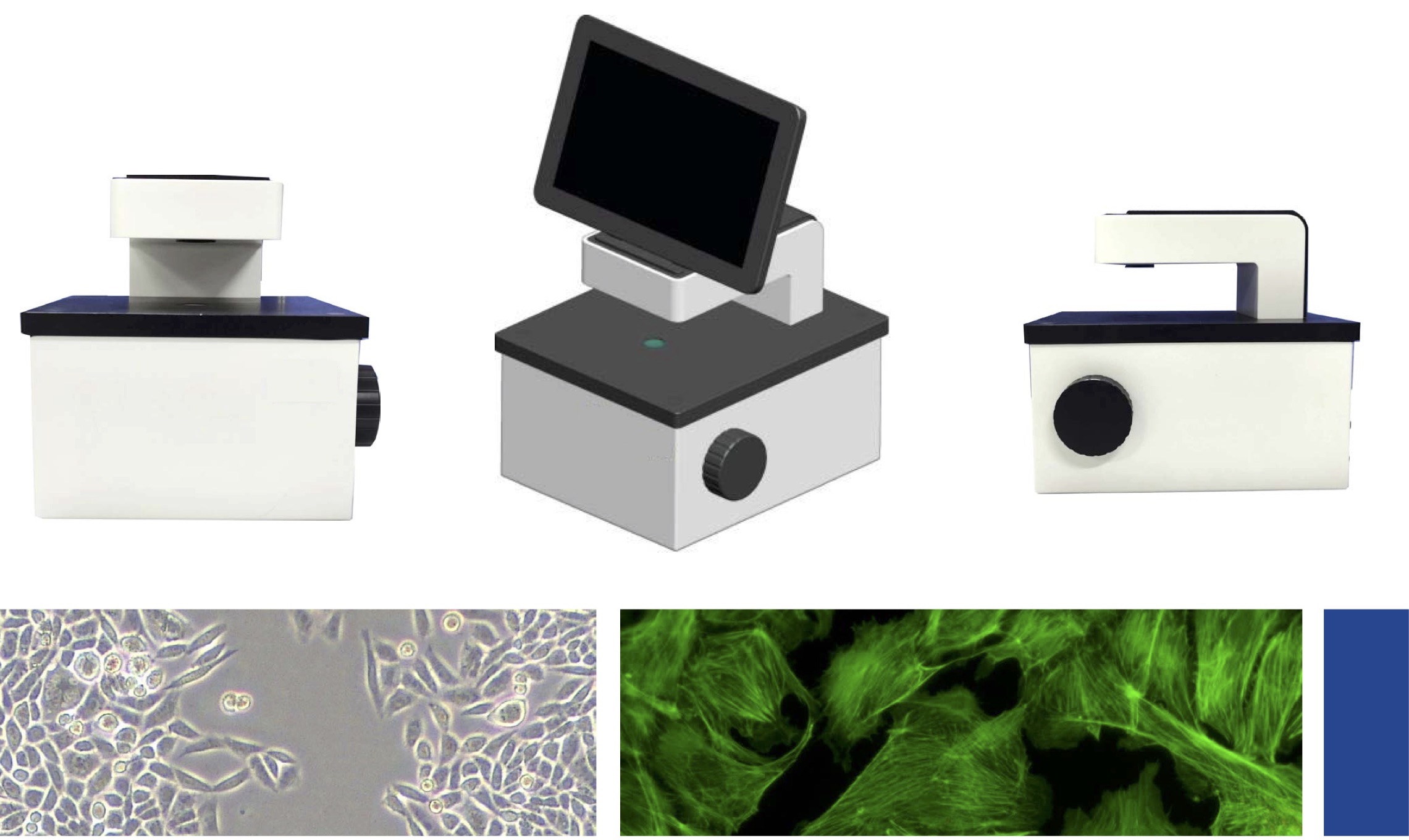

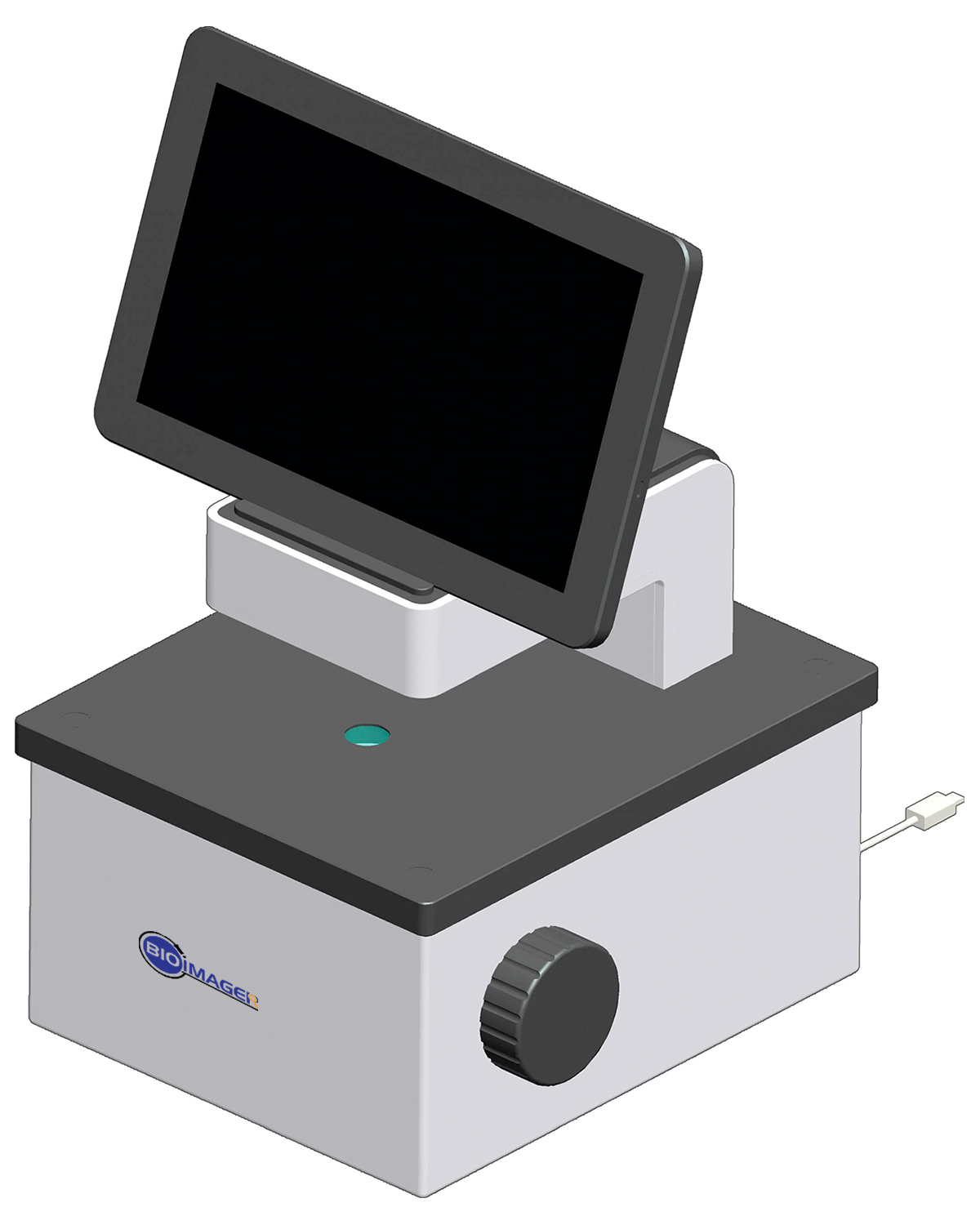

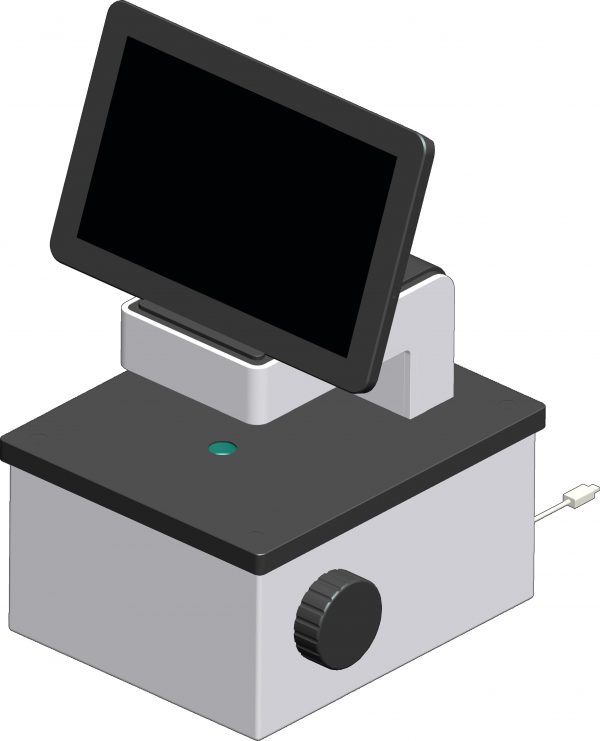

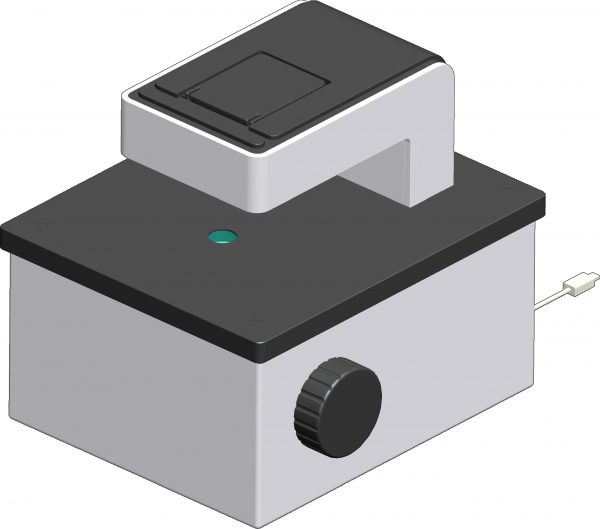

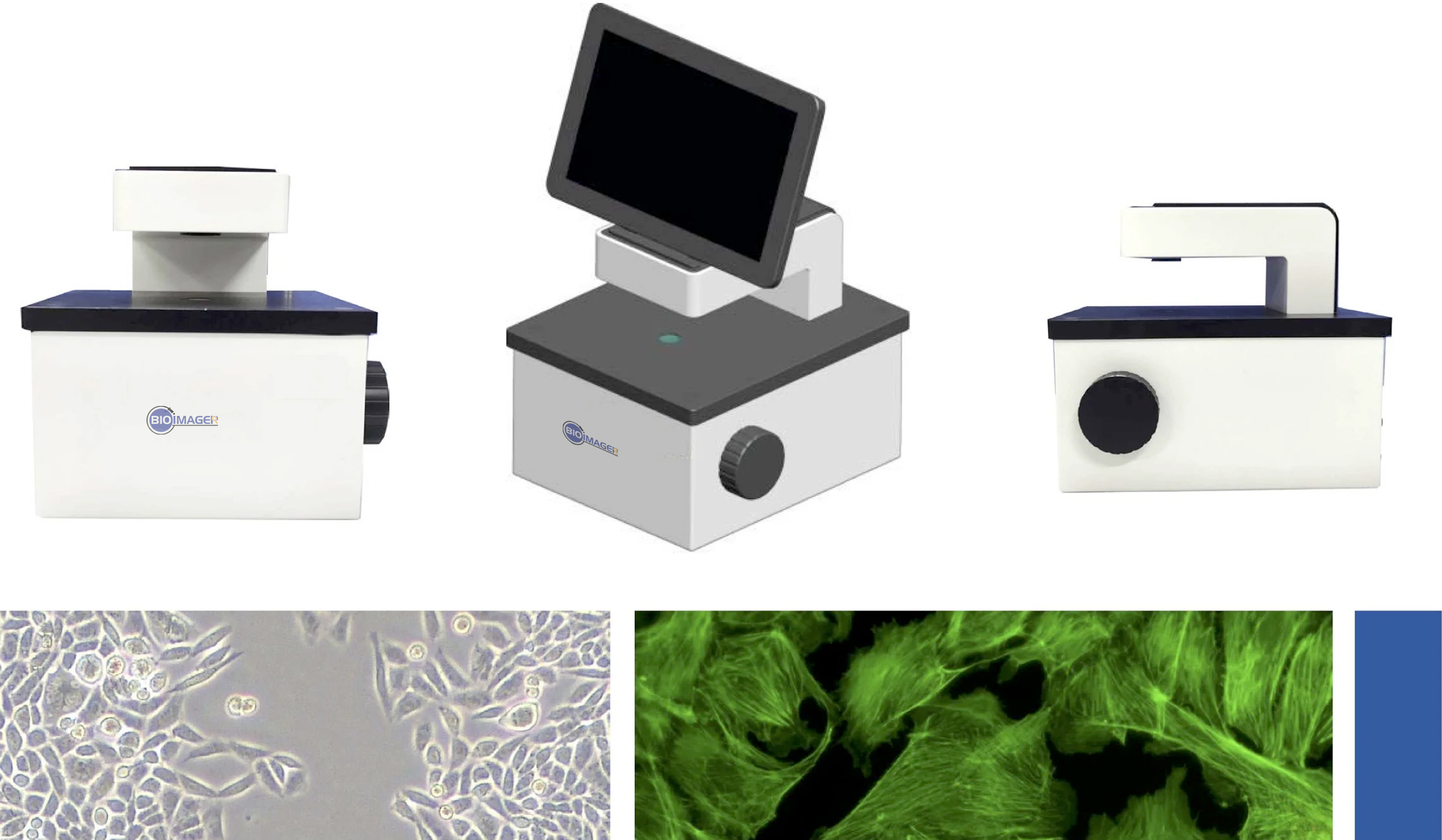

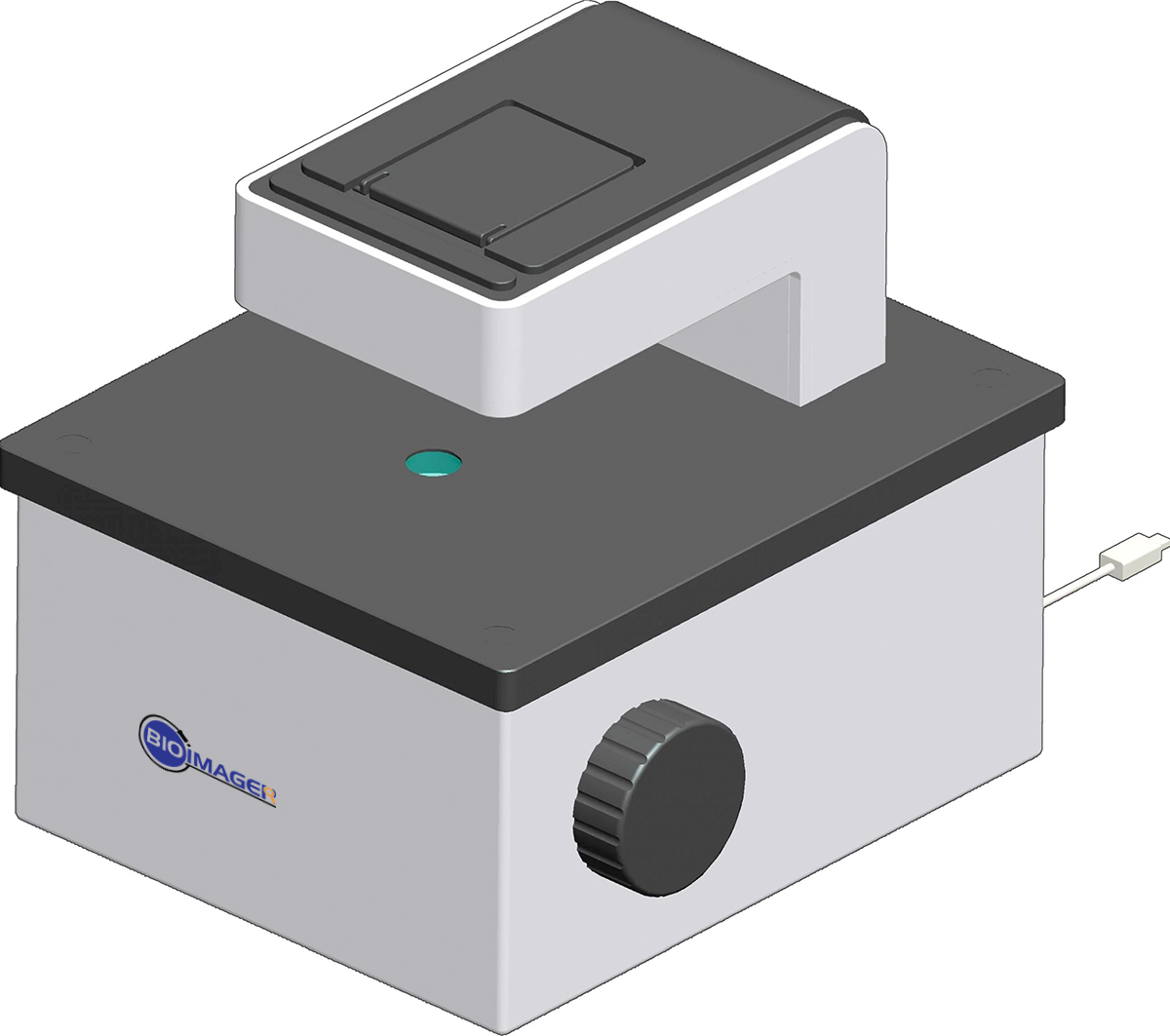

IncuScope BX-200 Box Incubator Microscope
| IncuScope BX-200 | |
| Operating System | Microsoft Windows 7, 8, 10 |
| Image Resolution | 5MP, CMOS Sensor |
| Image Formats | BMP, TIF (8-bit), GIF, JPG, PNG.
compression is available (%20-100) |
| Optics | Chroma Filters, diffraction limit |
| Image Size | 100 kB-3.5 MB |
| Objectives | 10x/NA=0.25/WD=7.3mm /inf. (default)
Optional: 2x, 2.5x, 4x, 5x, 10x, 20x, 25x, 40x, 50x, 60x, 80x, 100x (oil), 150x (dry) |
| LED | BF/Ph: 3W 627nm (red, Default) for Phase Contrast
FL: 3W 485nm (blue) and 525nm (green), excitation LEDs and others available upon request. |
| Fluorescence
(example)
|
Channel 1:
Excitation: 475/35 BrightLine Bandpass Channel 2: EX: 480-550nm EM:590nm DM: 570nm |
| 2-Channel (Blue and Green Excitation) FL imaging (Optional) | |
| Image Storage | Defined by PC |
| Network connection | Through PC |
| Remote Viewing | Yes, browser-based |
| PC communication | USB port, USB 3.0 |
| Power | USB, AC adapter is optional |
| LED Life Time | > 50,000 hours |
| Dimension | 8.7″ x 10.4″ x 9.4″ inches or 220 x 264 x 240 mm (Length x Depth x Height) |
| Operating Condition | 0°C- 42°C, 5%-99% RH non-condensing |
| Warranty | 1 year |
Dimensions
System Configuration:
- Imaging Mode:
- Brightfield only,
- Phase Contrast Only,
- Fluorescence (1- or 2-Channel),
- Phase Contrast & FL (1- or 2- Channels)
- Objective Lenses:
- PH: 10x Ph, 20x Ph, 40x Ph
- FL: 2x, 2.5x, 4x, 5x, 10x, 20x, 25x, 40x, 50x, 60x, 100x, 150x
- Polarization: 4x, 5x, 10x, 20x, 40x, 50x, 100x (dry)
- Custom FOV is available upon request.
- LEDs and Filters/Fluorpohores: 400-950nm range (from UV to IR); Customization offered
- Camera (from 1.2MP to 20MP resolution, 5fps to 400fps speed, 50us to 15min exposure time)
- Focus Mechanism
- Manual (Fine/Medium Coarse)
- Automated (fine, medium and coarse speeds are available digitally)
Below is a list of customers who purchased this product recently (2023):
 |
NYU Tandon School of Engineering, New York, NY, USA |  |
| NIH, NIDDK, MDB, Bethesda, MD, USA |  |
| IncuScope Models | Imaging Modes | Objective Lens | XY Stage | Z Focus | FL channel |
|
BF, PH | One lens at a time | manual | manual | 0,1 or 2 |
|
BF,PH, FL, Pol, DF(partially) | 4 lenses | manual | manual | 0,1 or 2 |
|
BF,PH, FL,POL, DF | One lens at a time | manual | manual | 0,1 or 2 |
|
|
BF,PH, FL | One lens at a time | manual | auto | 2 |
|
BF, PH,FL (Coming) |
One lens at a time | auto | auto |
0 to 1-2 (TBD) |
|
BF,PH, FL,POL, DF, 3D E,boss Contrast, Hoffman Module | 5 objective lenses | automated | auto | 0 to 3
(manual) |
|
BF, PH, FL, POL, DF, 3D Emboss Contrast, Hoffman Module | 5 objective lenses | auto | auto | 0 to 4
(auto) |
