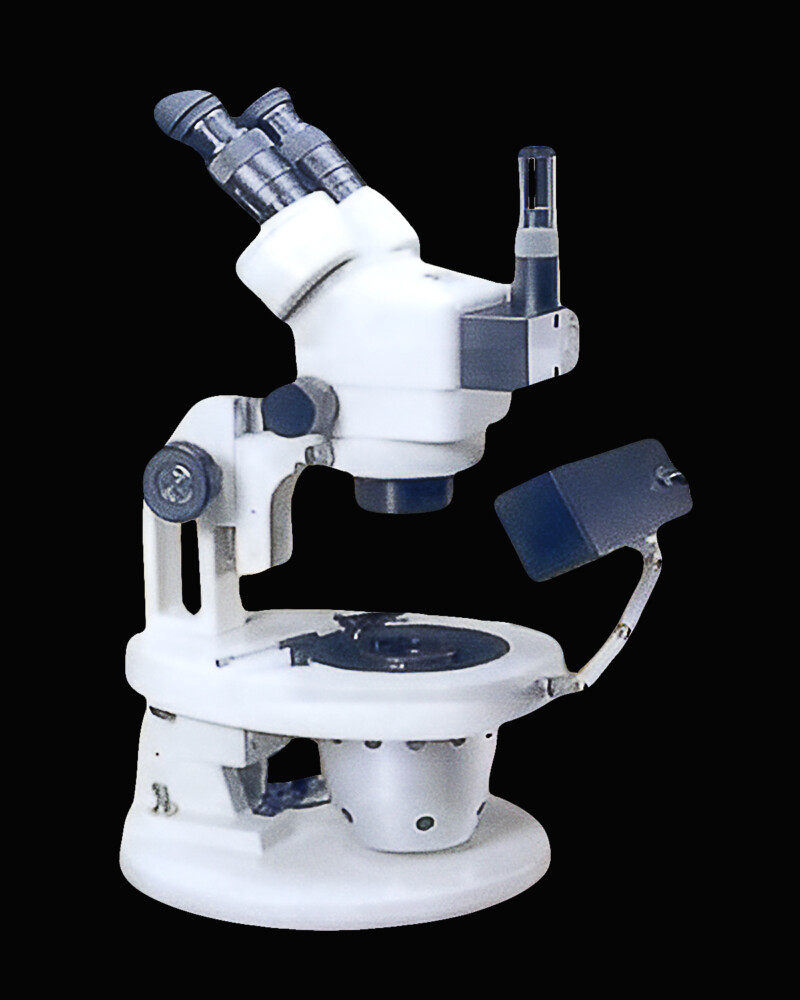

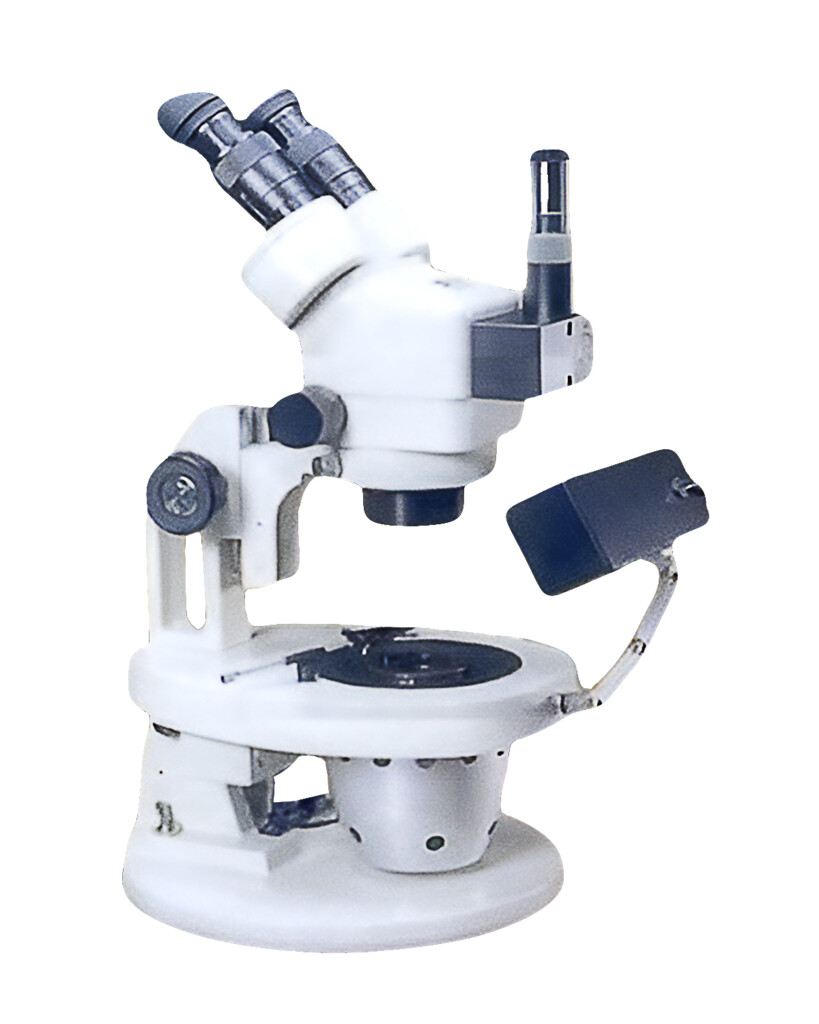

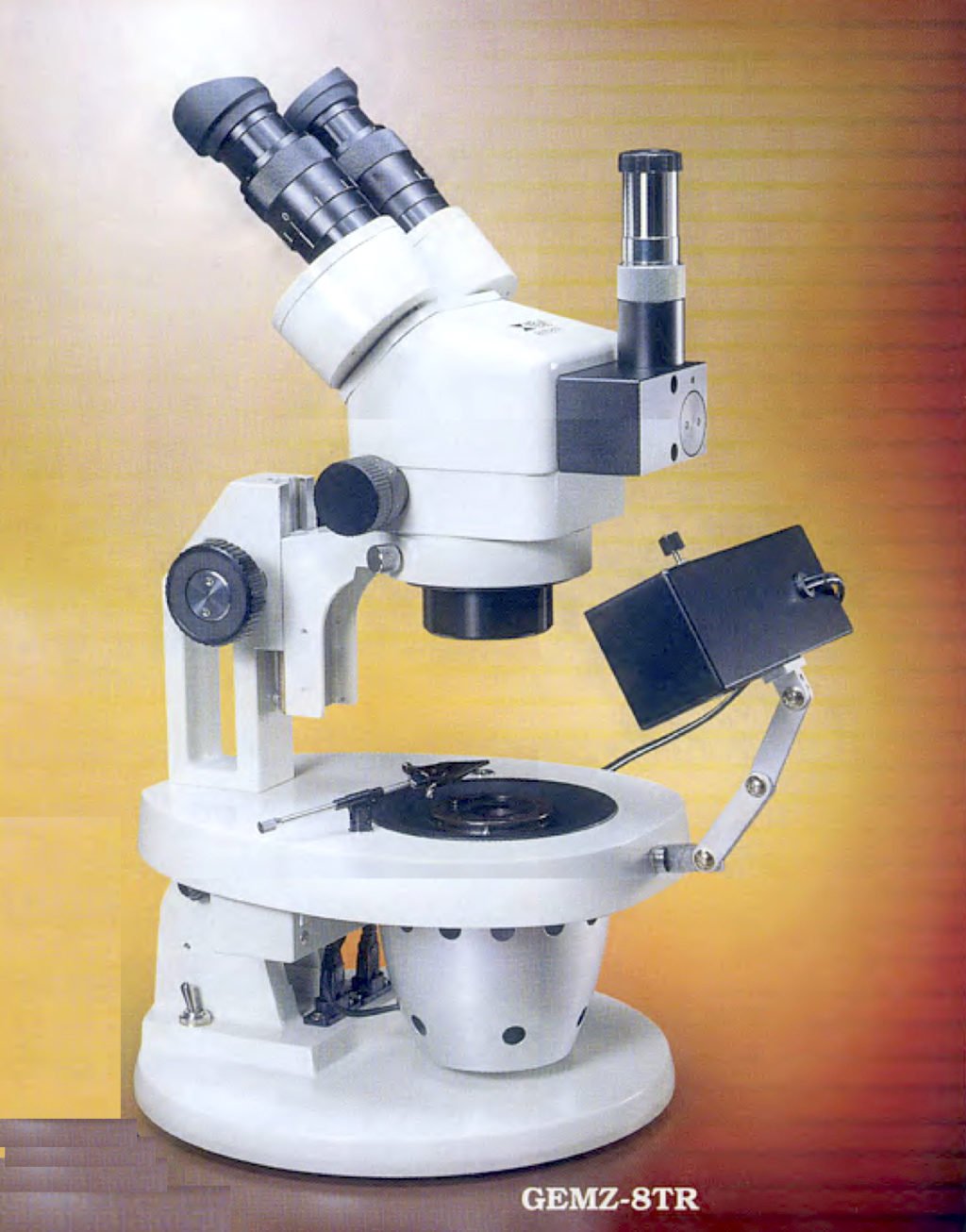

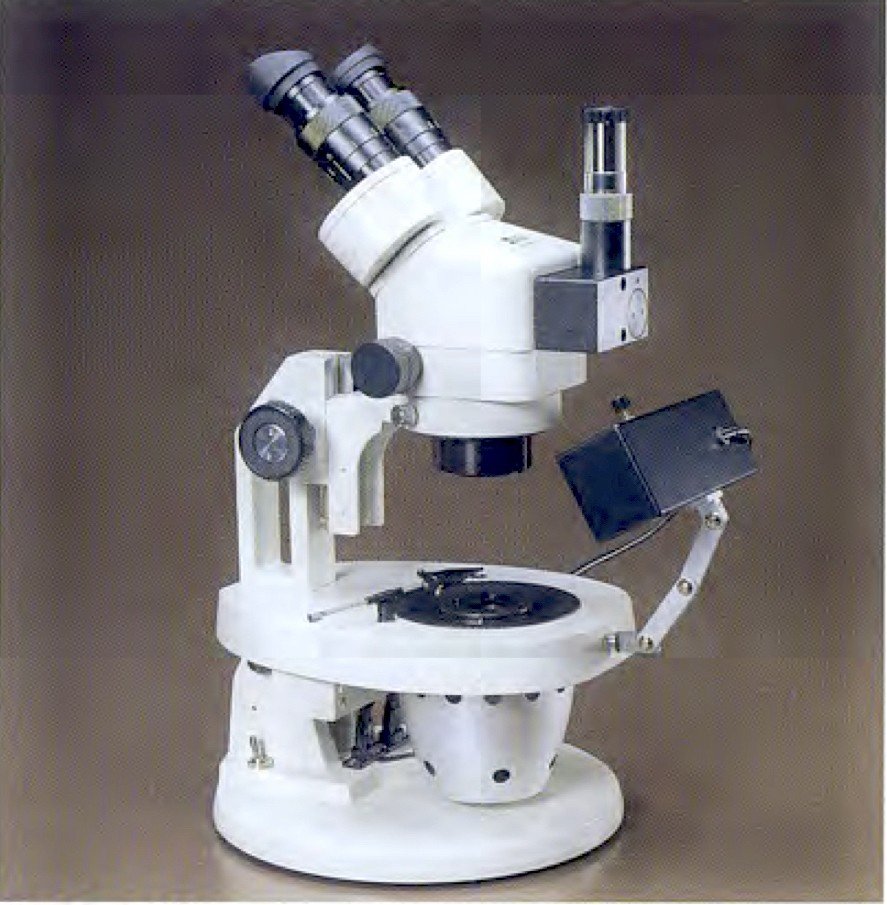

GEMZ-8TR Gemological Trinocular Zoom Stereo Microscope (Japan)

The GEM Series of professional gemological microscopes are based on Meiji Techno (Japan) EM Series stereo microscope bodies. These gem stereoscopes have earned Meiji Techno a great reputation for excellent optics, rugged dependability, versatility, and economy that no other manufacturer can match. Choose from zoom bodies or turret bodies mounted on a full-sized gem stand that offers powerful darkfield transmitted illumination suitable for photomicrography. Systems are equipped with a 2-stage fluorescent incident illuminator useful for viewing inclusions. All models are available in either 115V or 220/240V. All GEM Series microscopes come with dust covers, and rubber eyeshields.

Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color.

Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:
All GEM Series stereo bodies feature adjustable diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45° for convenient fatigue free viewing. All GEM Series feature tilting bases for additional user comfort. A choice of a continuous magnification Zoom stereo body or a two-power Turret type stereo body. Optional eyepieces, supplementary lenses, 35mm and video camera components allows the user to design a system to fulfill their specific requirement.

• Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
• Trinocular Port: 23.2mm I.D, 25.2mm O.D
• Zoom Ratio: 6.5:1
• Zoom Range: 0.7x – 4.5x
• Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
• Zoom Control: Dual, graduated, bilateral
• Magnification: 7x – 45x  (10x eyepieces)
• Objective Lens: Brass Construction
• Field of View: 32mm – 5.1mm
• Working distance: 104mm
• Eyetube Inclination: 45°
• Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
• Interpupillary Distance: 54mm – 75mm
• Dioptric Adjustment: Dual (+/- 5 diopters)
• Extended Mag Range: 2.45x – 202.5x (With auxiliary lenses and eyepieces)
• Extended Working Distances: 57mm – 250mm (With auxiliary lenses and eyepieces)
• Auxiliary Lenses: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)
• Manufacturer: MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Eyepieces:
• MA502: Super widefield eyepiece 10X (paired), FN: 23
• MA503: Super widefield eyepiece 15X (paired), FN: 15.4
• MA535: Super widefield eyepiece 15X high-eyepoint (paired), FN: 16
• MA504: Super widefield eyepiece 20X (paired), FN: 11.5
• MA600: Eyeshields for SWF eyepieces (paired)

Stands:
• GEMZ/PT: Professional GEM stand, inclineable, with built in darkfield transmitted light illumination system, 30 W tungsten lamp. (For use with EM Series Zoom bodies)
• GEMZ/BF-DF: Professional GEM stand, inclineable, with built in brightfield/darkfield transmitted light (slider) illumination system, 30 W tungsten lamp. (For use with EM Series Zoom bodies)
• GEMZ/SV: Professional GEM stand, inclineable and rotatable, with built in darkfield transmitted light illumination system, 30 W tungsten lamp (For use with EM Series Zoom Stereo microscope bodies.)
• GEMZ/SVH: Professional GEM stand, inclineable and rotatable, with built in darkfield transmitted light illumination system, 30 W halogen lamp and variable intensity control (For use with EMZ Series Zoom Stereo microscope bodies)
• GEMZ/SVH/BD: Professional GEM stand, inclineable and rotatable, with built in brightfield/darkfield (Slider) transmitted light illumination system, 30 W halogen lamp and variable intensity control (For use with EMZ Series Zoom Stereo microscope bodies, fluorescent box illuminator with transformer not included but can be added as an option)

Illuminator:
• MA309/100: Fluorescent box illuminator with 2-4W bulbs articulating arm and 110V transformer
• MA309/200: Fluorescent box illuminator with 2-4W bulbs articulating arm and 220/240V transformer
• MA309/PT#1: Fluorescent box illuminator with articulating arm GEMZ/SV/KIT Swivel base retrofit kit. Converts GEMZ/PT or GEMT/

Bulbs and Fuses:
• MA309/05: Replacement bulb for fluorescent illuminator, 4W each (MA309/100 requires 2 bulbs)
• MA326: Replacement 6V, 30W Halogen bulb
• MA350/10: Replacement tungsten bulb for (transmitted light) GEM stand, 117V 30W
• MA350/20: Replacement tungsten bulb for (transmitted light) GEM stand, 220/240V 30W
• MA929/05: Replacement 1 Amp fuse

Miscellaneous:
• GEMZ/SV/KIT: Swivel base retrofit kit. Converts GEMZ/PT or GEMT/PT to GEMZ/SV or GEMT/SV
• MA555/10: Inclusion pointer

GEMZ-8TR Brochure
