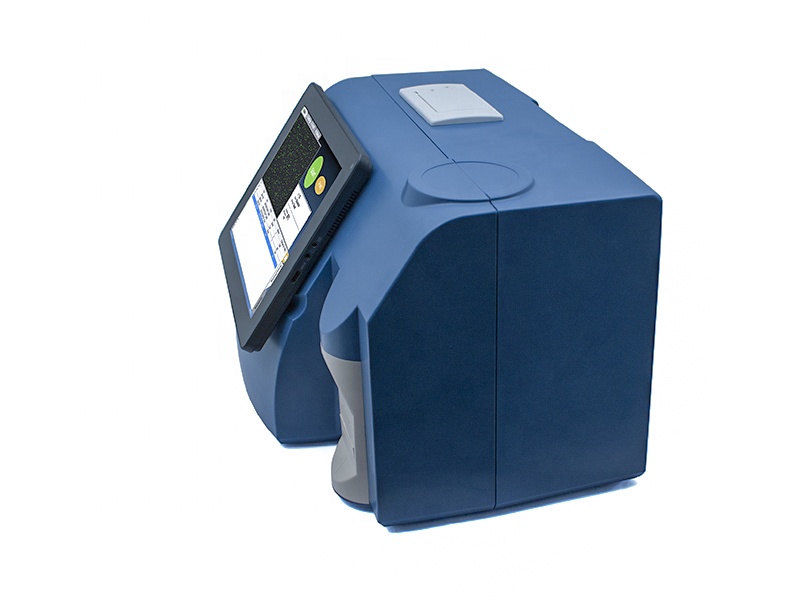

FLUORESCENT SOMATIC CELL COUNTER LactoScan BSCC-500


  • Fluorescent Somatic Cell Counter
  • Advanced Low-magnification fluorescent microscope with autofocus, automated XY stage, Flow Cytometer
  • Easy operation and quick results, within 20 to 60 seconds
  • A reference method analysis
  • Fast, accurate, reliable somatic cell analysis for cow, sheep, goat, buffalo and human milk or dairy-derived products.
  • The lowest cost per test for counting the somatic cells

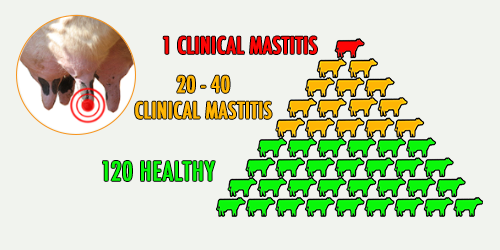

  • Detects subclinical and clinical mastitis
  • A 10” fully functional touchscreen tablet
  • Use of 4 channel disposable LACTOCHIPS
  • Smart and user-friendly software

Request a Quote

Introduction to somatic cell counting

The LactoScan BSCC-500 Somatic cell counter is based on fluorescent image cytometry for counting cells in milk. This device fully complies the methodology in the ISO 13366-1 / IDF 148-1; i.e. a microscopic method (reference method) for quantitative analysis of somatic cells in both raw and chemically preserved milk, considering the definition of the cells to be counted, size and number to be reported. The somatic cell counter offers visual control and excludes the accidental errors. The measuring range of the counter is within 2 to 30 µm size and the results are presented as the number of cells per mL (milliliters). The result analysis is shown within just 20 to 60 seconds depending on the type of analysis. There is no need for extra calibration, only a graduated scale on a LACTOCHIP is used for verification of the magnification as per requirements of ISO 13366-1:2008 (IDF 148-1:2008) Milk — Enumeration of somatic cells — Part 1: Microscopic method (Reference method).

Why LactoScan?

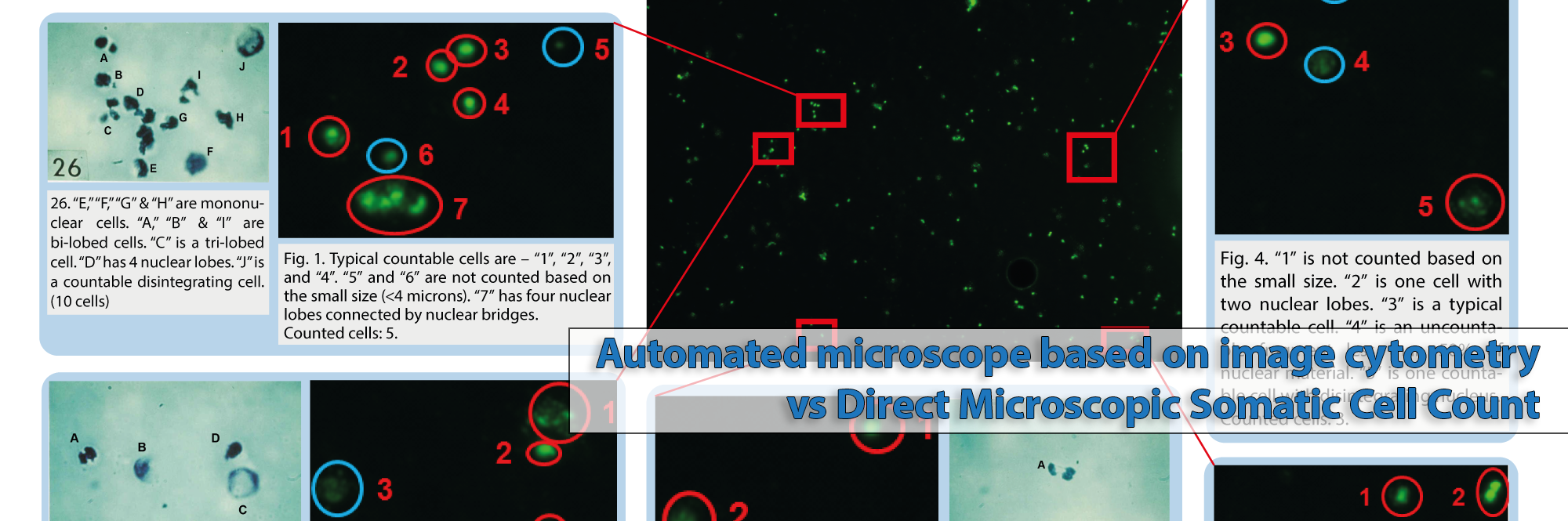

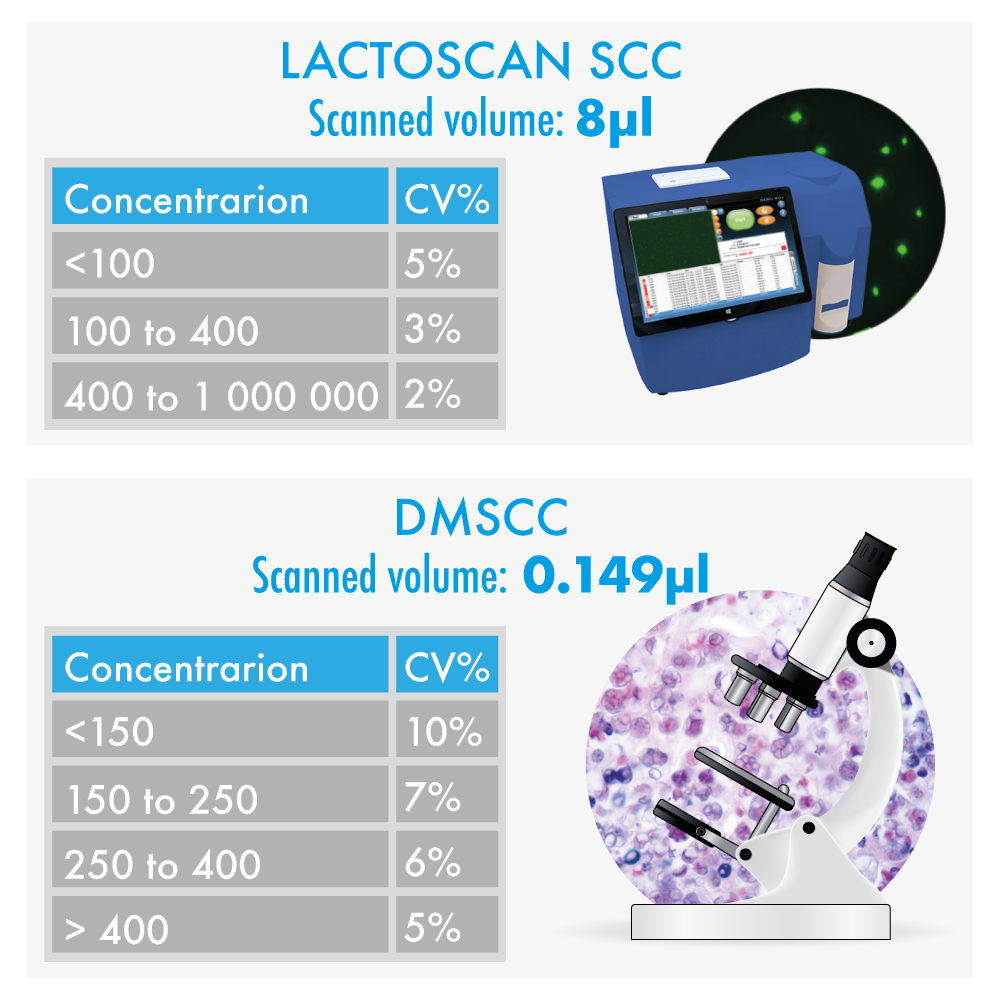

The LactoScan has several superior features over direct microscopic somatic cell counting (DMSCC), as described below. LactoScan possesses the largest volume of scanned sample up to 9 µl that guarantees the low coefficient of variation, which is better than the direct microscopic counting.

Direct Microscopy Somatic Cell Counting (DMSCC)LactoScan BSCC-500
AnalysisMicroscope, human-based judgement, ManualMicroscope, Cytometer, Smart Software, Automated
Sample Volume0.149 µl9 µl

Concentration (x10^3 cells/mL):

      <100

     100-400

    > 400

Coefficient of Variation / CV (%)

7-10%

6%

5%

Coefficient of Variation / CV (%)

5%

3%

2%



Features:

  • Advanced low magnification fluorescent biological microscope with fast autofocus and cell counting software
  • Fast, accurate, reliable somatic cell analysis for cow, sheep, goat, buffalo and human milk or dairy-derived products.
  • A reference method analysis
  • Detects subclinical and clinical mastitis
  • The lowest cost per test for counting the Somatic Cells
  • Easy and quick results, within 20 to 60 seconds
  • Up to 60 images by software controlled X-Y movements of the samples and advanced image processing software

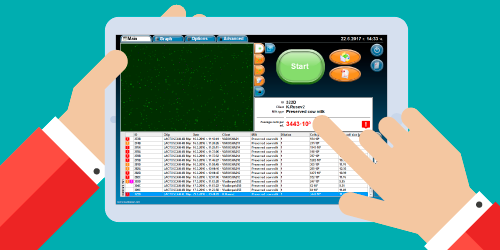

Software:

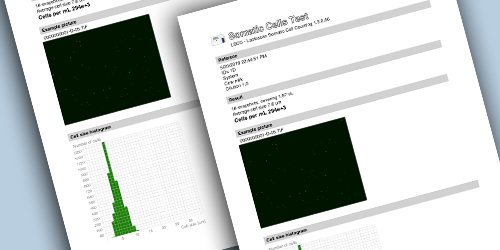

  • Stores unlimited number of records in the database
  • Results are color coded
  • Automatic software update and remote service
  • Portable and compact design

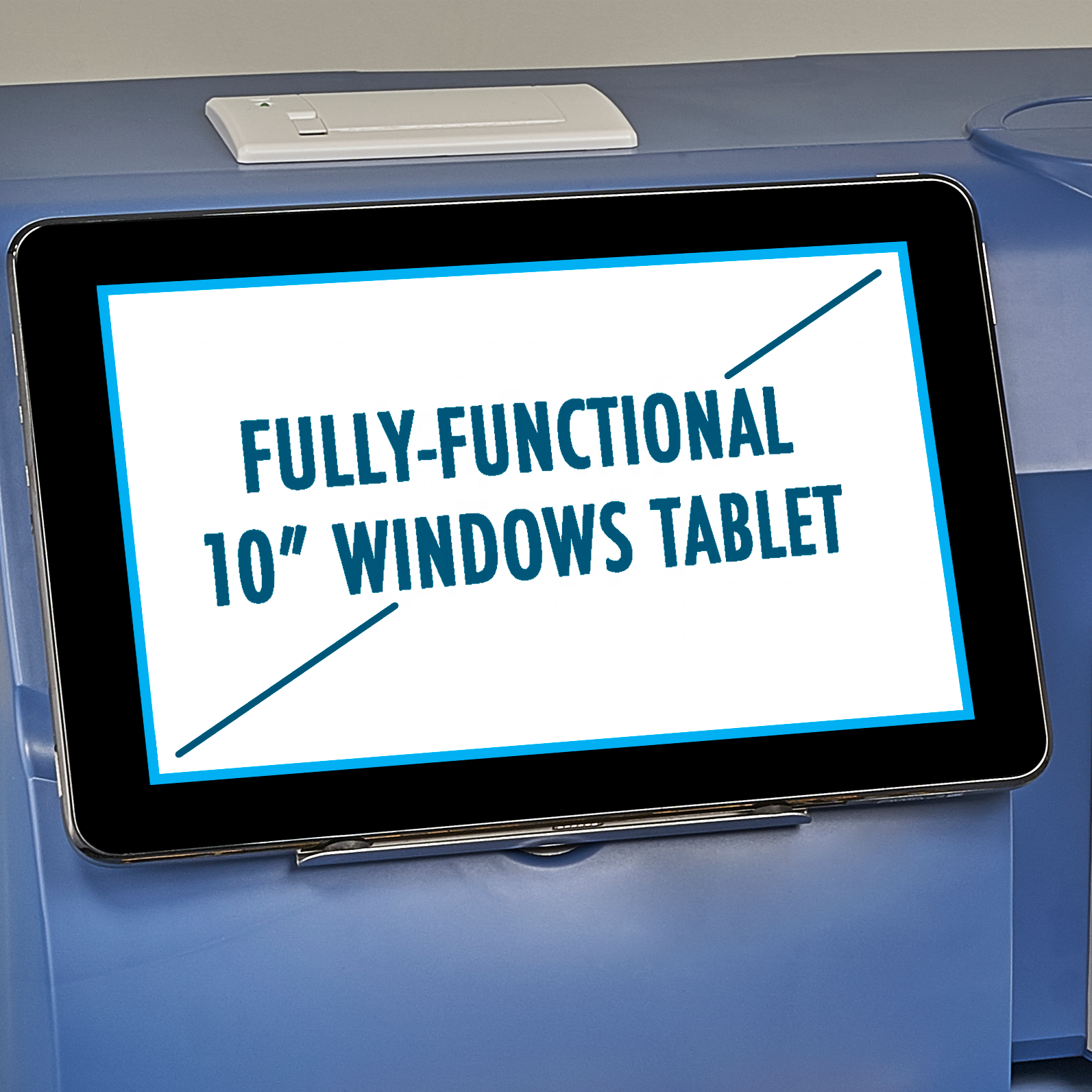

  • A 10” fully functional touchscreen tablet
  • Embedded thermal printer
  • Wireless keyboard and mouse
  • Use of 4 channel disposable LACTOCHIPS
  • Low-power consumption

FLUORESCENT SOMATIC CELL COUNTER LactoScan BSCC-500

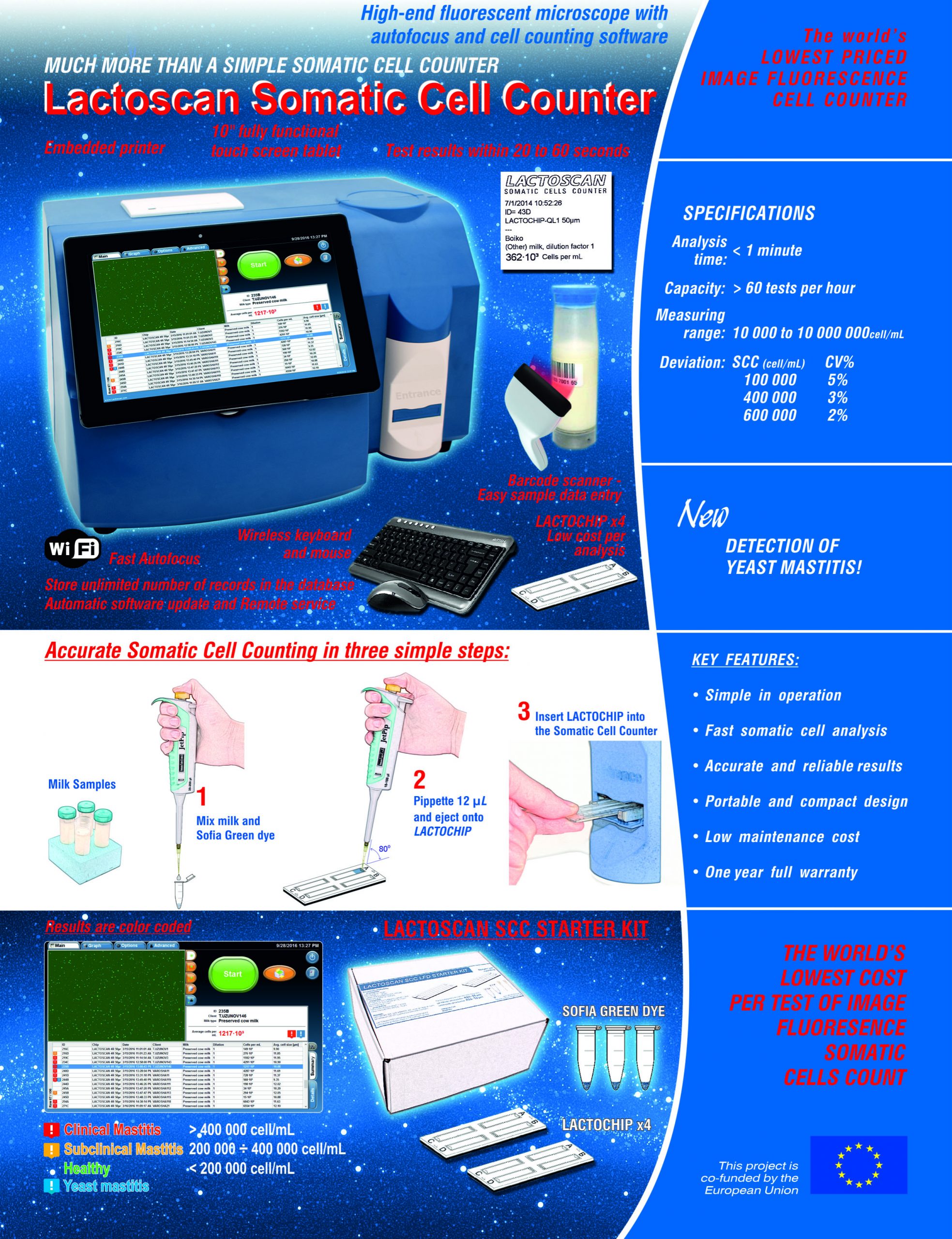

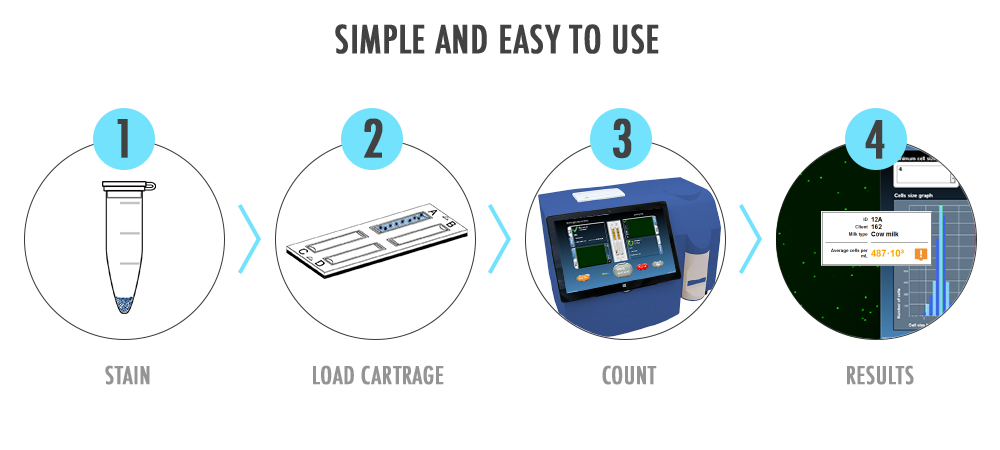

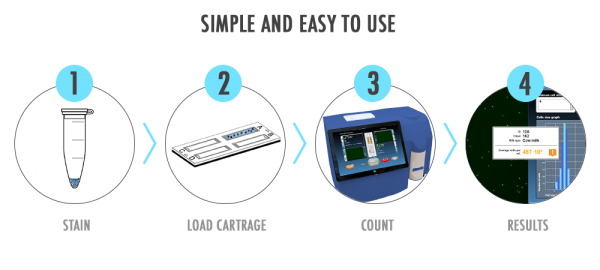

Only 4 easy and simple steps

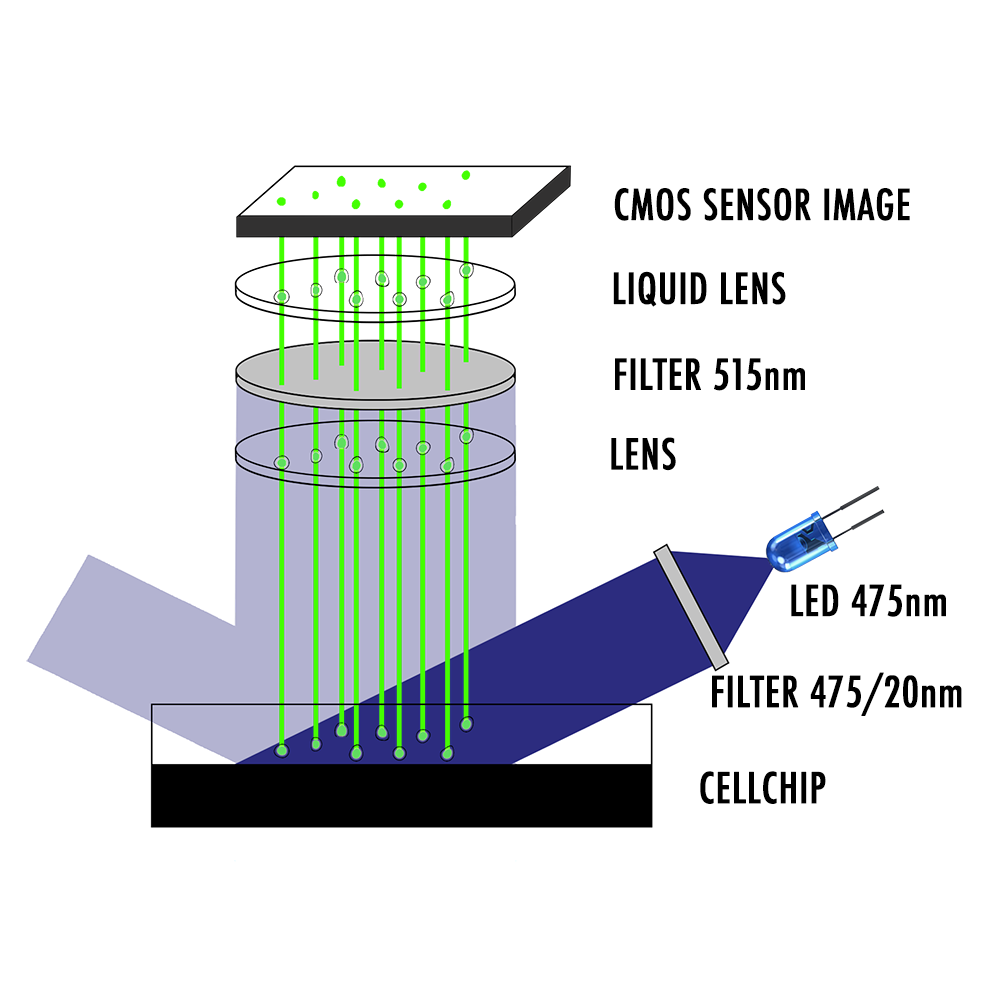

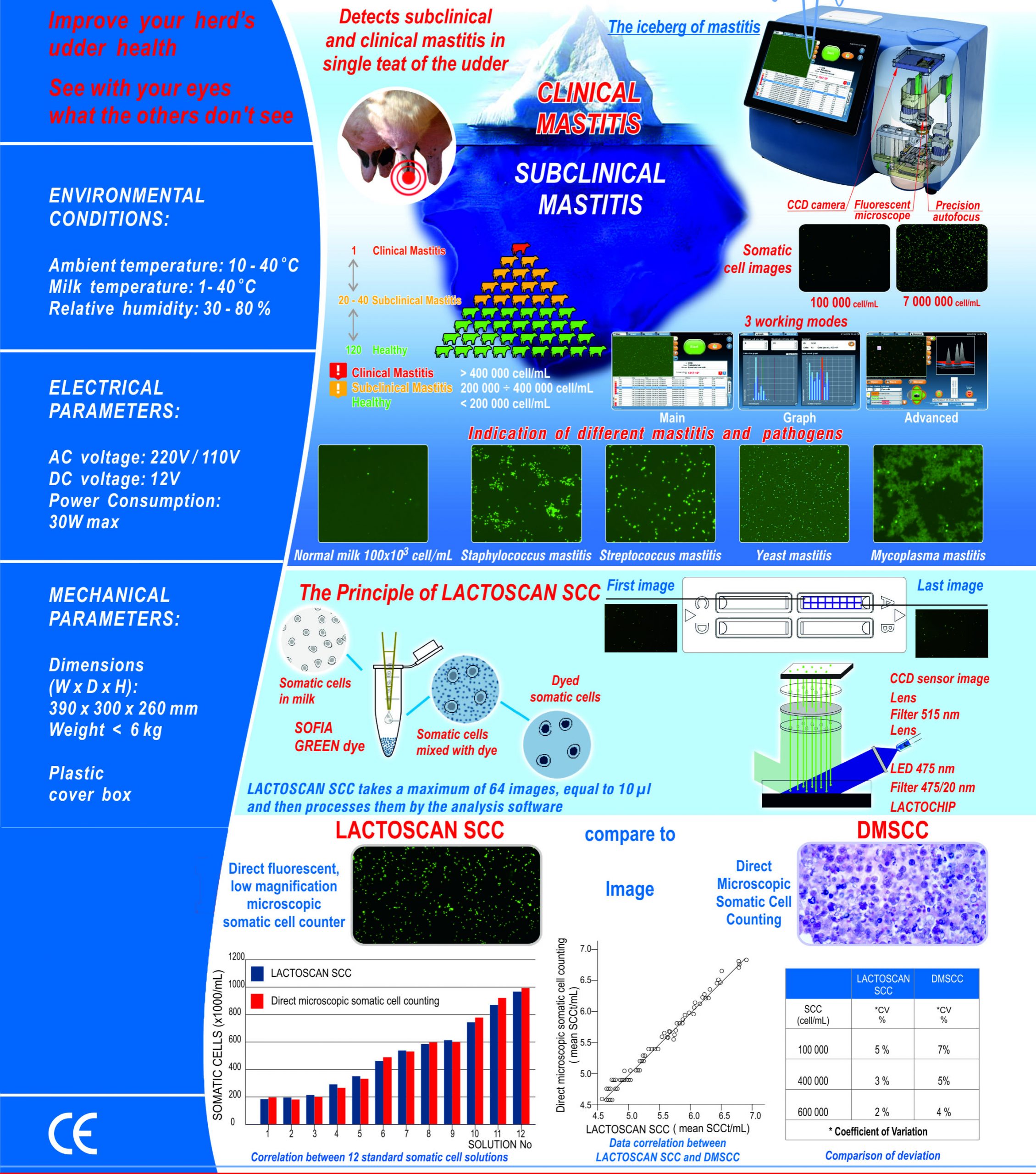

Working principle

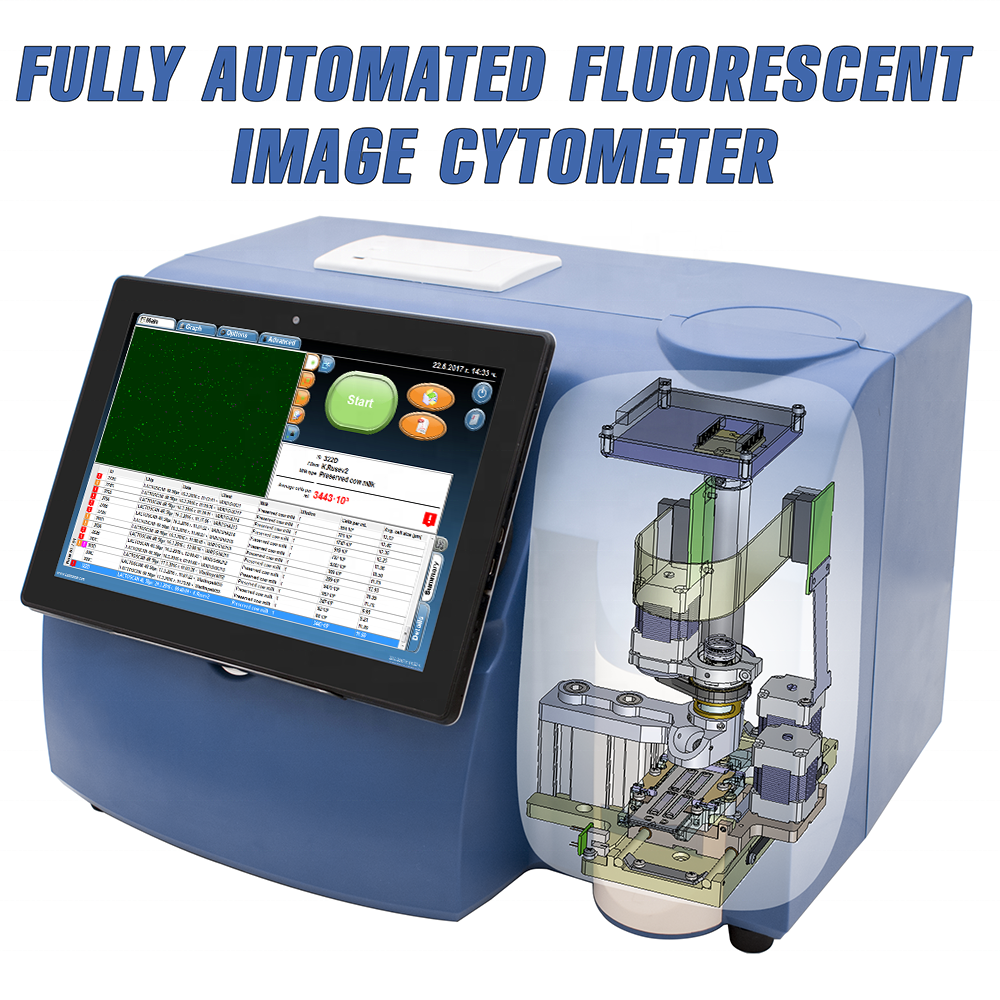

The BSCC-500 somatic cell counter is an automated fluorescence microscope / cytometer. The analysis of the milk is precise, reliable and fast – thanks to the fluorescent dye, laser diode, microscopy optics, CMOS imaging sensor and smart software used in the design of this flow cytometer, i.e. LactoScan BSCC-500.

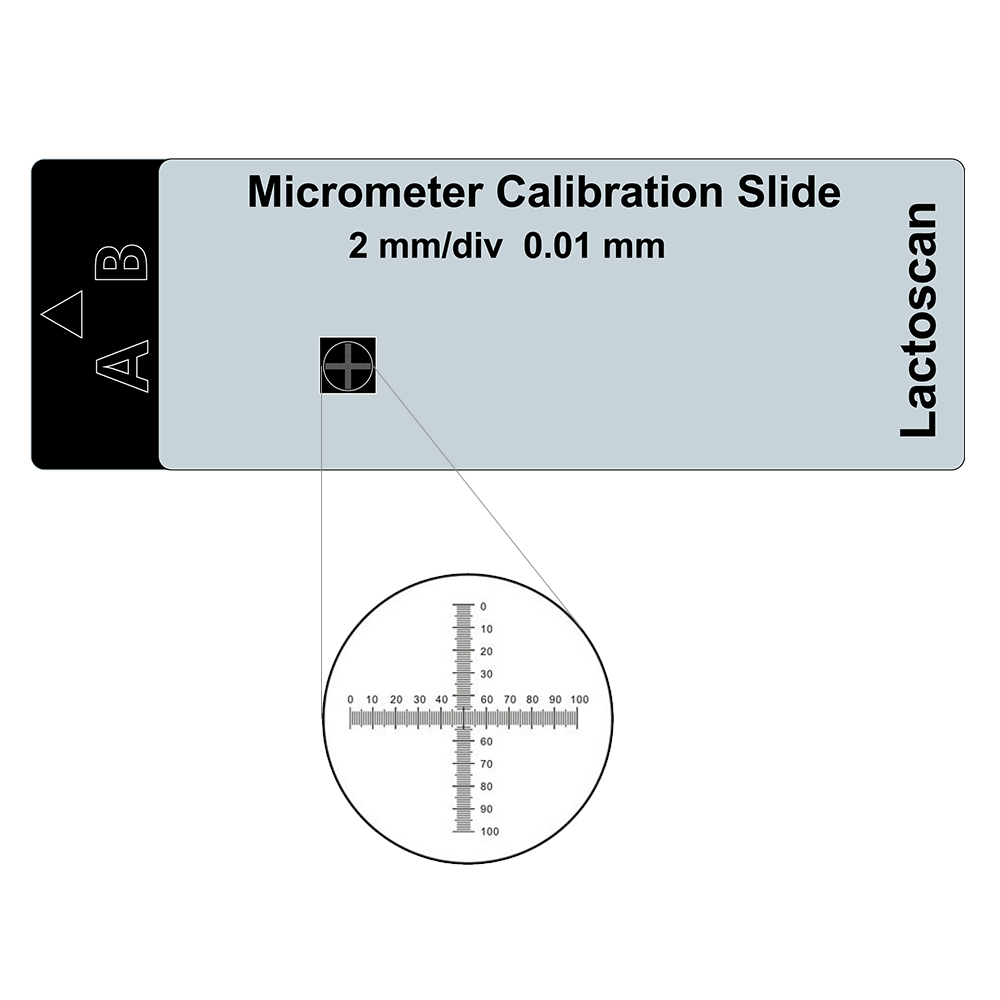

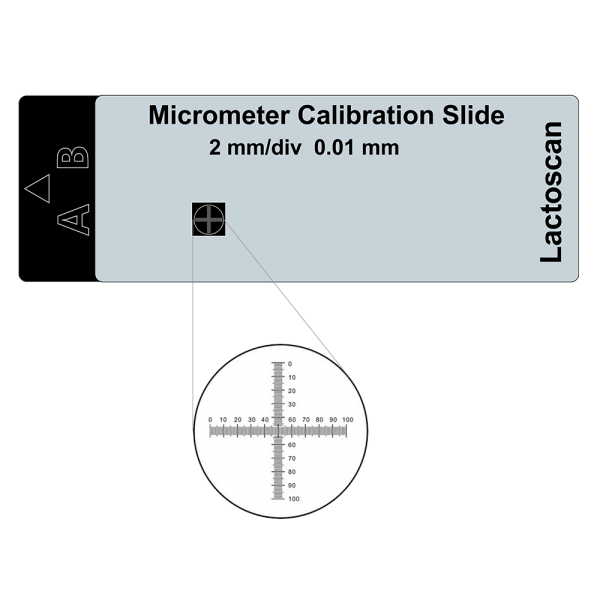

Verification as microscope

There is no need of calibration, only a graduated scale on a LACTOCHIP is used for verification of the magnification as per requirements of ISO 13366-1 : 2008 (IDF 148-1:2008) Milk — Enumeration of somatic cells — Part 1: Microscopic method (Reference method).

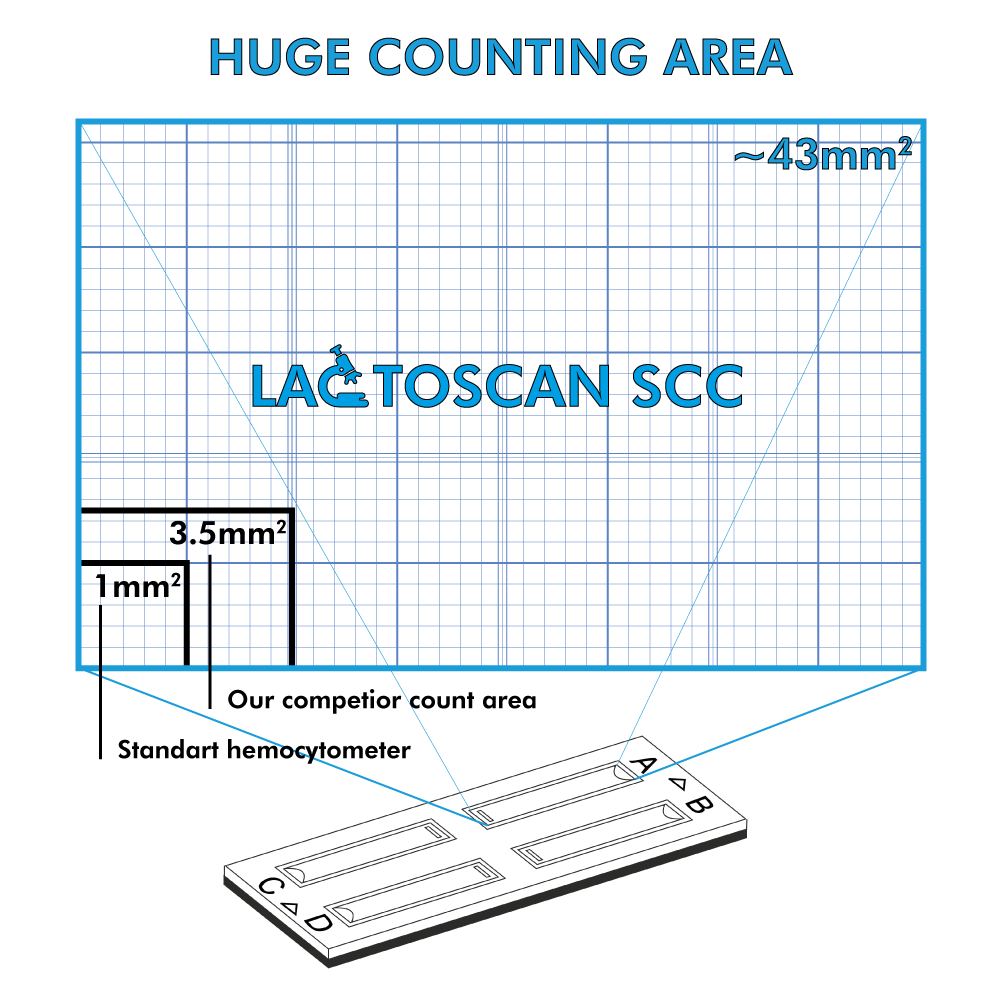

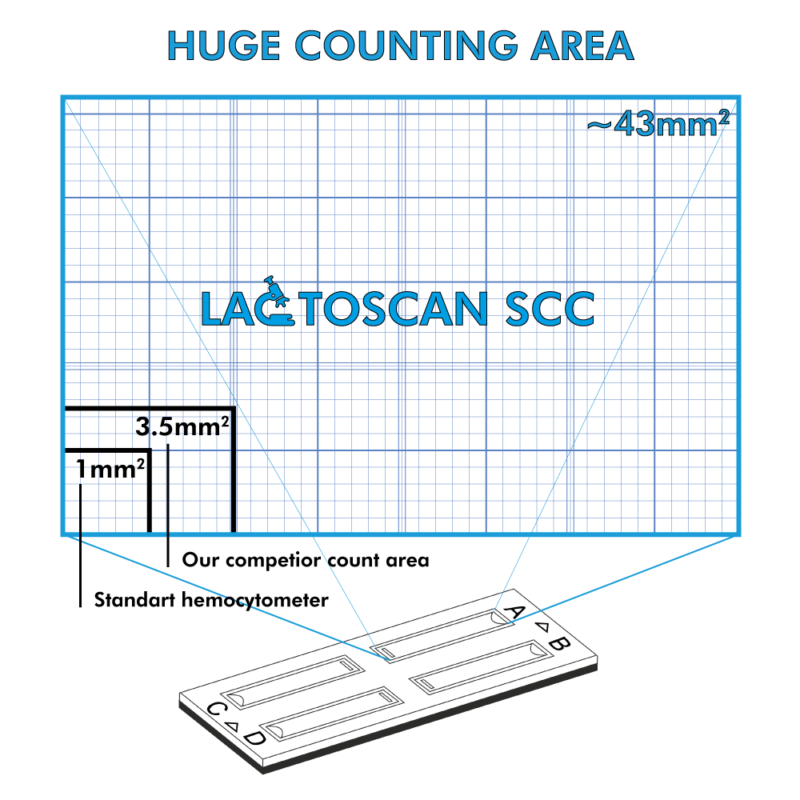

Counting Area

The counting area of the LACTOSCAN SCC has 43 times larger area than a standard hemocytometer and 12 times larger area than similar instruments.

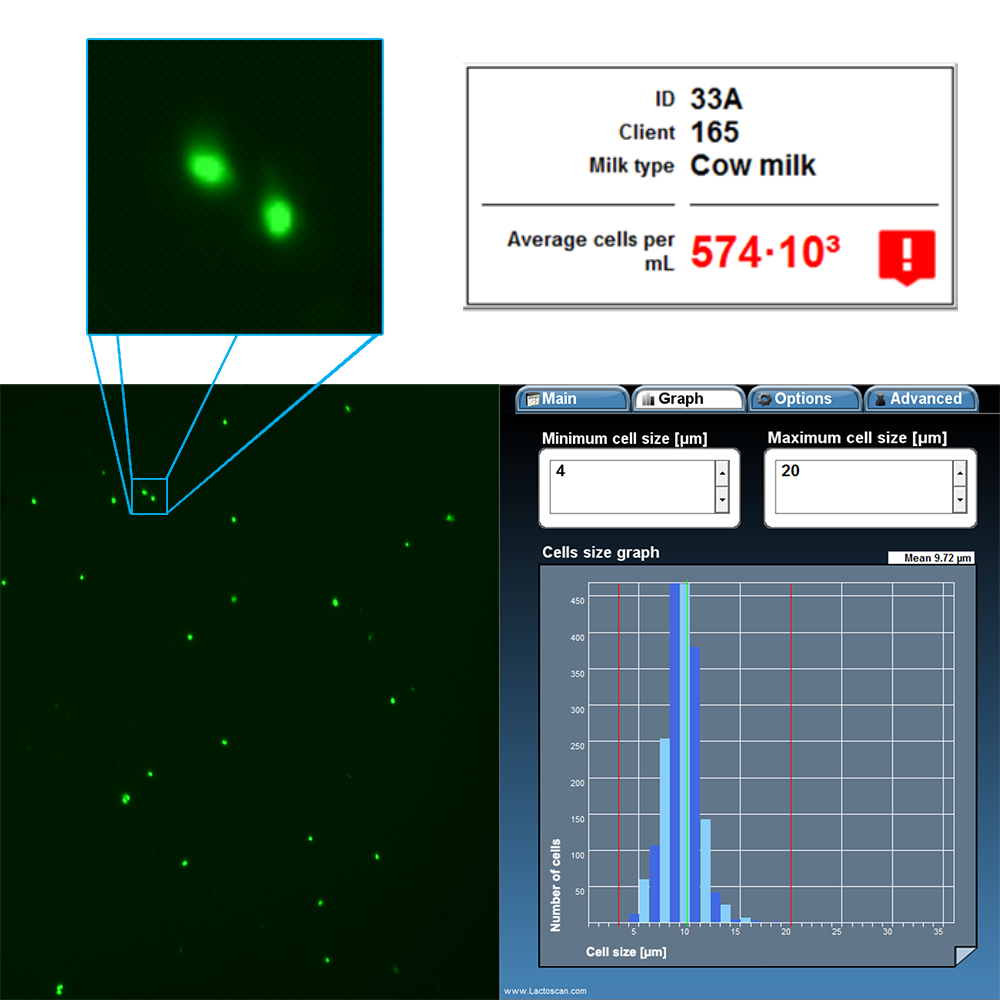

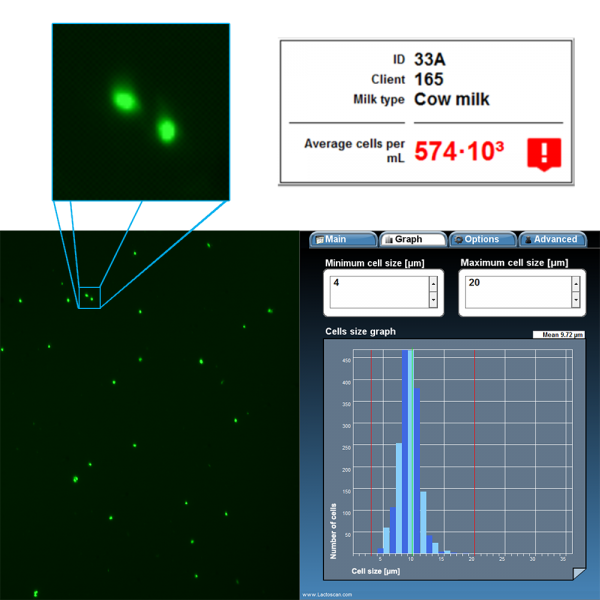

Analysis Results:

Analysis time: 20-60 sec
Measuring range: 0 – 10,000, 000 cell/ml
Measuring cell size range: 2-30 µm
Color indication for sub-clinical and clinical mastitis.

Specifications

Model:BSCC-500
Analysis Time:20-60 seconds
Capacity:> 60 tests per hour
Measuring Range:10, 000 to 10,000,000 cell/mL / (10^4-10^7 cells/ml)

(Counting 2 to 30 µm cells)

Ambient air temperature

Relative Humidity:

10°C – 40°C

30% – 80%

Milk Temperature:1°C – 40°C
Power Consumption:

AC Power Supply:

DC Power Supply:

60W

110V/ 220V

12V, 5A

Dimensions (W x D x H)

Weight

390x300x260 mm / 15.4 x 12 x 11 inches

7.3kg / 16lb

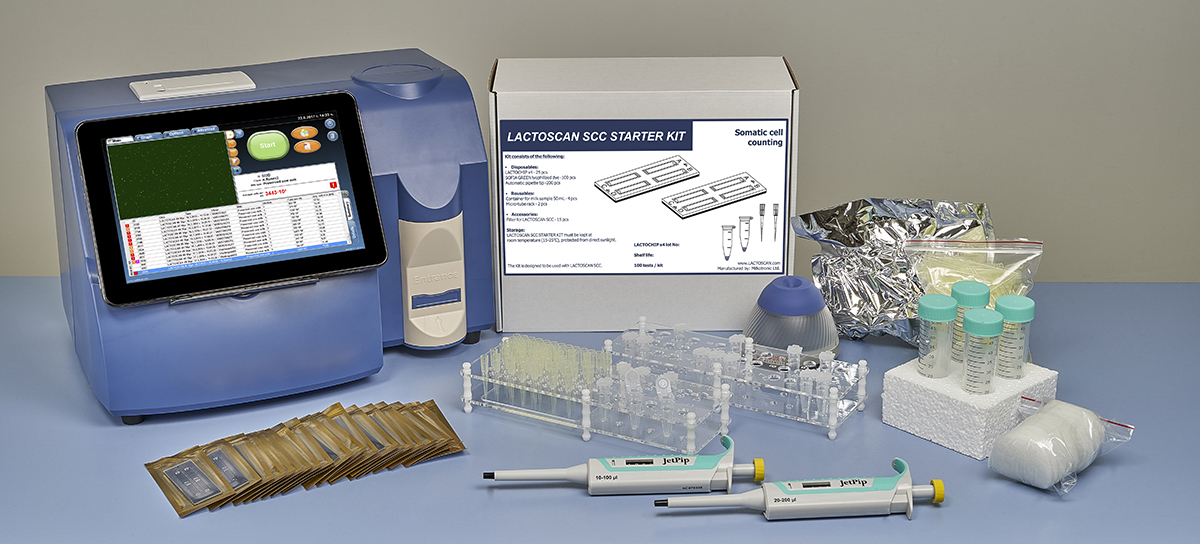

Standard AccessoriesSCC Somatic Cells Counter, SCC STARTER KIT,

12V power adapter, Quick start guide,

Automatic pipette 10 -100 µL – set at 8 µL,

Automatic pipette 20 – 200 µL – set at 100 µL,

Mini Vortex, USB wireless keyboard with batteries,

USB wireless mouse with batteries

Instrument ClassificationClass I
Warranty12 Months





Software Features

  • Stores unlimited number of records in the database
  • Results are color coded
  • Automatic software update and remote service
  • Portable and compact design
  • A 10” fully functional touchscreen tablet
  • Embedded thermal printer
  • Wireless keyboard and mouse
  • Use of 4 channel disposable LACTOCHIPS
  • Low-power consumption
