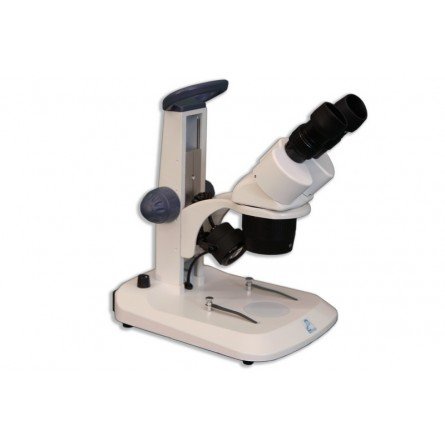

EM-30 Binocular Entry-Level Dual 1x,3x Turret Microscope System


Meiji Techno America’s EM-30 Series meets the demand for a complete Advanced-level Binocular Dual turret style stereo microscopes with a built in 1x, 3x objectives giving the user 10X, 30X magnification with the standard 10X eyepiece.

Request a Quote

Meiji Techno America’s EM-30 Series meets the demand for a complete Advanced-level Binocular Dual turret style stereo microscopes with a built in 1x, 3x objectives giving the user 10X, 30X magnification with the standard 10X eyepiece.

EM-30 Binocular Entry-Level Dual 1x,3x Turret Microscope System

The EM-30 features include:

  • Complete Configured system with Microscope Body, Stand , Eyepiece
  • Turret Style Objective Changer with Triple Magnifications 1X, 3X
  • Robust Alloy metal stand with smooth rack & pinion design
  • New design, Ergonomically placed focus knobs
  • Light weight, compact body, easy to carry with top hand grip for ease of transport
  • LED Transmitted and Incident illuminators feature a long life with low power consumption
  • Transmitted and incident LED illumination equipped with variable intensity
  • All optical parts are anti-fungus treated
  • 2 year manufactures warranty
  • Dust Cover for EM-30 included
  • Rubber Eyeguards for EM-30 included
  • Meiji Techno Instruction Manual included for EM-30
SKU: EM-30 Categories: ,

Includes:
• Dust Cover for EM-30 Series
• Rubber Eyeguards for the EM-30 Series (paired) included
• EM-30 Series Meiji Techno Instruction Manual included

Product Information:
Manufactured: 100% MADE IN HOLLAND
Warranty: 2 YEARS WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 11lbs (4.95kg)
Box Size: 20 x 14 x 12 inches
Footprint: 8.75 mm (D) x 10.5 mm (W)

ModelHeadBodyMagnification
EM-30
BinocularTurret
1X-3X
10X & 30X
EM-31
BinocularTurret
2X-4X
20X & 40X
EM-32
BinocularZoom
0.7X-4.5X
7X – 45X
EM-33
TrinocularZoom
0.7X-4.5X
7X – 45X

VIEWING HEADS
Binocular or Trinocular 45° inclined tubes Two diopter adjustments Interpupillary distance adjustable between 55 mm and 75 mm All optical parts are anti-fungus treated

EYEPIECES
Paired WF 10x/20mm eyepieces

TURRET OBJECTIVES
Nosepiece with dual 1x/3x or 2x/4x revolving objectives Magnifications 10x/30x or 20x/40x Field of views 20 mm/6.6 mm or 10 mm/5.0 mm Working distance 100 mm

STAND
Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated.

ILLUMINATION
The 3 W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately.

FOCUSING ADJUSTMENT
Coarse adjustment with tension control.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
