DOM1000x Digital Optical Microscope

Availability:

In stock


Compare

The digital video zoom microscope combines the tradtional optical technology and digital imaging technology and offers high quality video images. It can solve the problems generated by using a traditional microscope that requires a strict environment. Equipped with high performance Nickel hydrogen rechargeable battery, it can be used for longer inspection time in fieldwork.

In stock

$1,999.00 $2,500.00

The digital video zoom microscope combines the tradtional optical technology and digital imaging technology and offers high quality video images. It can solve the problems generated by using a traditional microscope that requires a strict environment. Equipped with high performance Nickel hydrogen rechargeable battery, it can be used for longer inspection time in fieldwork.

With powerful functions of real-time micro-photography, video recording and measurement, on-site high-speed image acquisition, digital image input to PC for inspection, image storage, video recording, measurement at micron-level and image output can be realized. It is a good substitute for a traditional optical magnifier, stereo microscpe, comparing microscope, video measurement system and micro-photographing instrument. When used in long-distance scene evidence identification, the images of on-site evidence samples can be captured, inspected, compared and measured, and the on-site scene can enter the micro-world instantly.

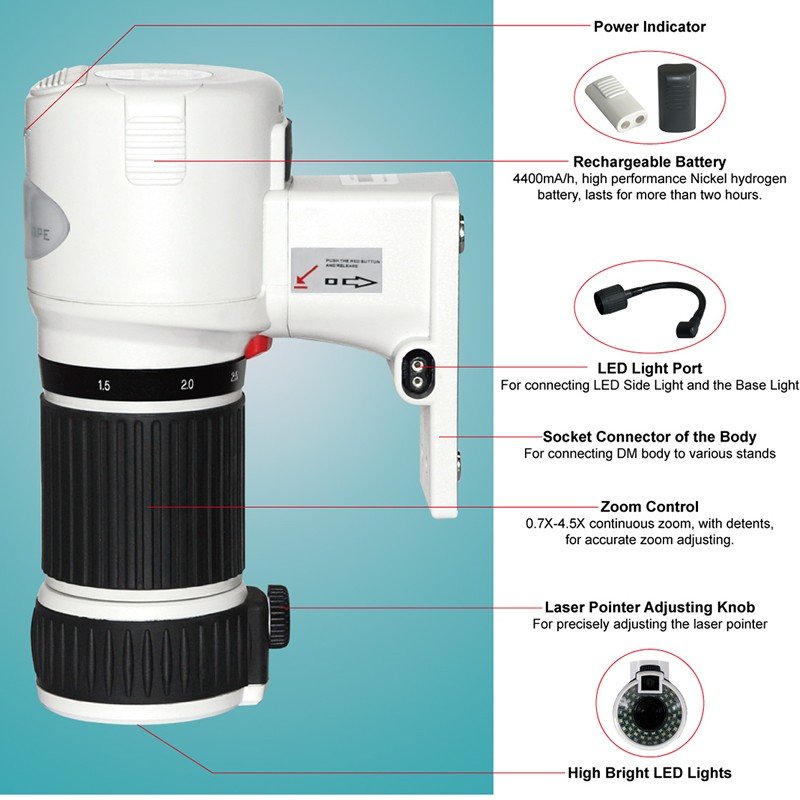

Measuring/0601_L04.jpg

DOM100-601 Digital Video Zoom Specification
Zoom Body of Zoom Range0.7x-4.5x
Zoom Ratio1:6.5
Total Magnification4.7x-1000x
Semi-plan Achromatic Objective0.3x, 0.5x, 0.75x, 1.5x and 2x are optional
High-Power Objective Lens5x and 10x
Image Sensor1.3M pixel 1/2″ color CMOS( standard)
Pixel Size5.2um x 5.2um
Spectrum Response400nm-1000nm
Scanning TypeProgressive scanning
Exposal TypeERS
Resolution1280×1024
Transmission Rate16f/[email protected]*1024, 30f/[email protected]*480, 30f/[email protected]*240
White BalanceAutomatic operation supported
Exposal ControlManual opertion supported
Image OutputUSB2.0, 480Mb/s
FunctionImage capture, video recording and measuring function
Laser PointerWave length: 650nm
Working Temperature0-50 degree
Minimum System RequirementWindows 2000, XP and Vista Operation System
PIII 800 CPU or above
256MB Memory or above
64MB video memory or above
USB2.0 interfaces
1024*768 resolution monitor or above
Dimensions of Body212x90x148mm
Weight of Body1.235kg/2.723Ib
Optional Accessories
Objectives0.3x, Semi-Plan, Outer Dia.30mm, W.D.331mmDOM52.0626-03
0.5x, Semi-Plan, Outer Dia.30mm, W.D.198mmDOM52.0626-05
0.75x, Semi-Plan, Outer Dia.30mm, W.D.131mmDOM52.0626-75
1.5x, Semi-Plan, Outer Dia.30mm, W.D.63mmDOM52.0626-15
2.0x, Semi-Plan, Outer Dia.30mm, W.D.46mmDOM52.0626-20
5x Infinity corrected long working distance objectiveDOM52.0627-5
10x Infinity corrected long working distance objectiveDOM52.0627-10
Illumination AccessoriesIris DiaphragmDOM56.0606
LED side lightDOM56.0607
Tripod & AccessoriesTripod,Full Size, 3.5Kgs, with Panhead.DOM50.0604-11
Tilt Ball HeadDOM50.0604-12
Super Mag Slider, Made of Magnesium AlloyDOM50.0604-13
Extension Bar, Total Length 600mmDOM50.0604-14
Laptop TrayDOM50.0604-15
Tilt Ball Head AdapteDOM50.0604-16
Polarizing MicroscopePolarizerDOM5P.0602
Rechargeable Battery4.8V 2200mA/h, Nickel hydrogen batteryDOM50.0602
Battery Charger, Input Voltage 100-240V 50/60Hz, Output Voltage 6.0-6.5V, Current 250-350mADOM50.0602-R
