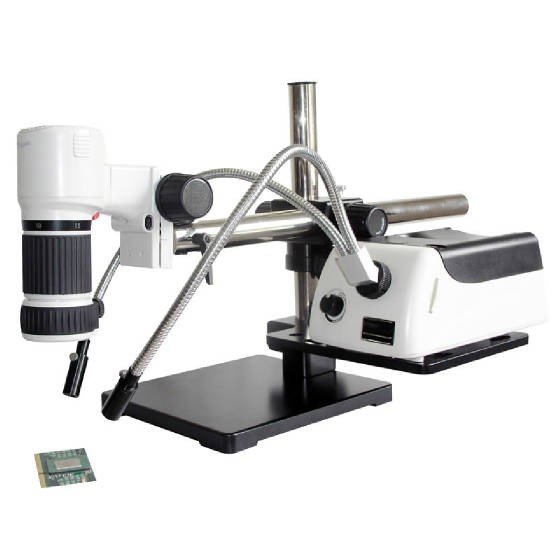

DOM1000DPL Digital Optical Microscope 100X


The digital video zoom microscope combines the tradtional optical technology and digital imaging technology and offers high quality video images. It can solve the problems generated by using a traditional microscope that requires a strict environment. Equipped with high performance Nickel hydrogen rechargeable battery, it can be used for longer inspection time in fieldwork.

$USD 3,999.00 $USD 4,600.00

The digital video zoom microscope combines the tradtional optical technology and digital imaging technology and offers high quality video images. It can solve the problems generated by using a traditional microscope that requires a strict environment. Equipped with high performance Nickel hydrogen rechargeable battery, it can be used for longer inspection time in fieldwork.

With powerful functions of real-time micro-photography, video recording and measurement, on-site high-speed image acquisition, digital image input to PC for inspection, image storage, video recording, measurement at micron-level and image output can be realized. It is a good substitute for a traditional optical magnifier, stereo microscpe, comparing microscope, video measurement system and micro-photographing instrument. When used in long-distance scene evidence identification, the images of on-site evidence samples can be captured, inspected, compared and measured, and the on-site scene can enter the micro-world instantly.

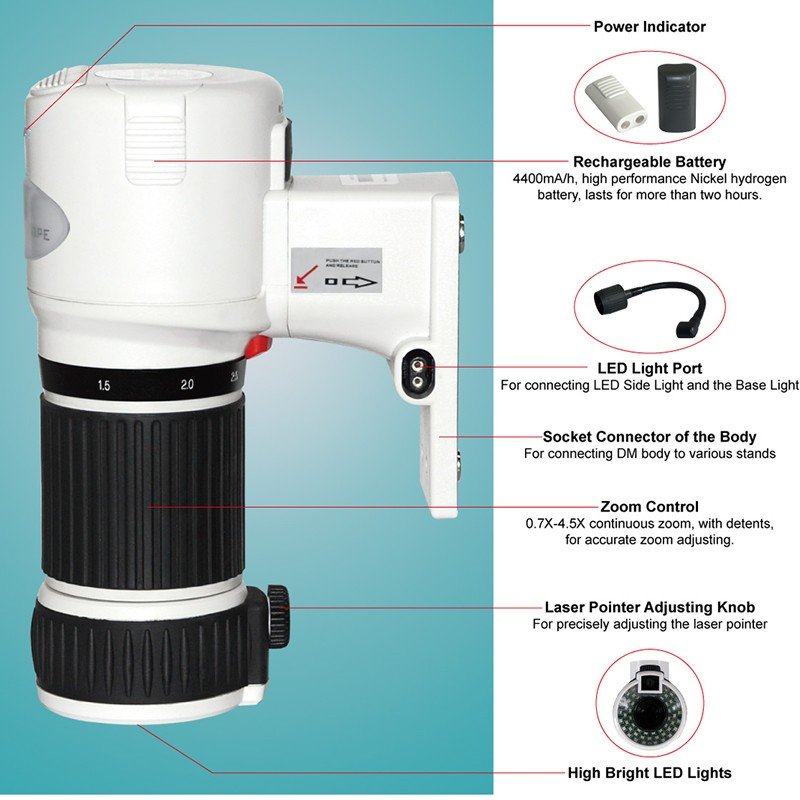

Measuring/0601_L04.jpg

SKU: DOM1000DPL Category:



Digital Video Zoom Specification
Zoom Body of Zoom Range0.7x-4.5x
Zoom Ratio1:6.5
Total Magnification4.7x-1000x
Semi-plan Achromatic Objective0.3x, 0.5x, 0.75x, 1.5x and 2x (optional)
High-Power Objective Lens5x and 10x (optional)
Image Sensor1.3M pixel 1/2″ color CMOS
Pixel Size5.2um x 5.2um
Spectrum Response400nm-1000nm
Scanning TypeProgressive scanning
Exposal TypeERS
Resolution1280×1024
Transmission Rate16f/[email protected]*1024, 30f/[email protected]*480, 30f/[email protected]*240
White BalanceAutomatic operation supported
Exposal ControlManual opertion supported
Image OutputUSB2.0, 480Mb/s
FunctionImage capture, video recording and measuring function
Laser PointerWave length: 650nm
Working Temperature0-50 degree
Minimum System RequirementWindows 2000, XP and Vista Operation System
PIII 800 CPU or above
256MB Memory or above
64MB video memory or above
USB2.0 interfaces
1024*768 resolution monitor or above
IlluminatorFiber optic illuminator
Dual pipe light guide
Fiber optical illuminator holder
StandBoom stand
76mm E-arm
Optional Accessories
Objectives0.3x, Semi-Plan, Outer Dia.30mm, W.D.331mm
0.5x, Semi-Plan, Outer Dia.30mm, W.D.198mm
0.75x, Semi-Plan, Outer Dia.30mm, W.D.131mm
1.5x, Semi-Plan, Outer Dia.30mm, W.D.63mm
2.0x, Semi-Plan, Outer Dia.30mm, W.D.46mm
5x Infinity corrected long working distance objective
10x Infinity corrected long working distance objective
Illumination AccessoriesIris Diaphragm
LED side light
Tripod & AccessoriesTripod,Full Size, 3.5Kgs, with Panhead.
Tilt Ball Head
Super Mag Slider, Made of Magnesium Alloy
Extension Bar, Total Length 600mm
Laptop Tray
Tilt Ball Head Adapte
Polarizing MicroscopePolarizer
Rechargeable Battery4.8V 2200mA/h, Nickel hydrogen battery
Battery Charger, Input Voltage 100-240V 50/60Hz, Output Voltage 6.0-6.5V, Current 250-350mA
