The BUM600 features the NIS Infinity Optical System, offering high contrast and exceptionally flat images up to an FN (Field Number) of 22. With FN 22 wide-field eyepieces, users can expect sharp, high-resolution imaging with an excellent signal-to-noise ratio.
22mm Wide Field of View
Designed for comprehensive observation, the BUM600 provides a 22mm wide field of view using 10x eyepieces. These eyepieces are engineered with a flat field, distortion-free design, eliminating edge blurring and stray light, ensuring clear and accurate observations.
Versatile Observation Methods
Recognizing the diverse needs of scientific research, the BUM600 supports various observation modes. It is a versatile and upgradable microscope, allowing users to extend its capabilities from basic models to more advanced configurations, accommodating a wide range of research requirements.
Infinity Optical System
The BUM600 is designed for a wide range of microscopic applications, making it ideal for beginners and users who perform extended micro-operations. The Green series microscopes within the BUM600 are fully optimized to meet these needs, offering exceptional image quality and ease of use.
Plan Objectives
With infinity plan objectives, the BUM600 provides flat images with high imaging accuracy across the entire field of view.
100x Water-immersion Objective
Unlike traditional 100x oil-immersion objectives that require cedar oil and subsequent cleaning with potentially harmful substances like ether alcohol or xylene, the BUM600 features a 100x water-immersion objective. This uses water as the medium, effectively eliminating air pollution and improper cleaning issues, thereby reducing harm to both the user and the environment.
Water is used instead of cedar oil for 100x
water-immersion objective. Excellent
image, easy to operate and better for
environment.

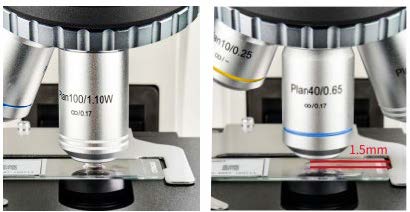

40x LWD Objective
The 40x Long Working Distance (LWD) objective of the BUM600 offers a working distance of up to 1.5mm. This design helps prevent damage from residual immersion oil or water when switching between 100x and 40x objectives, ensuring seamless and efficient operation.

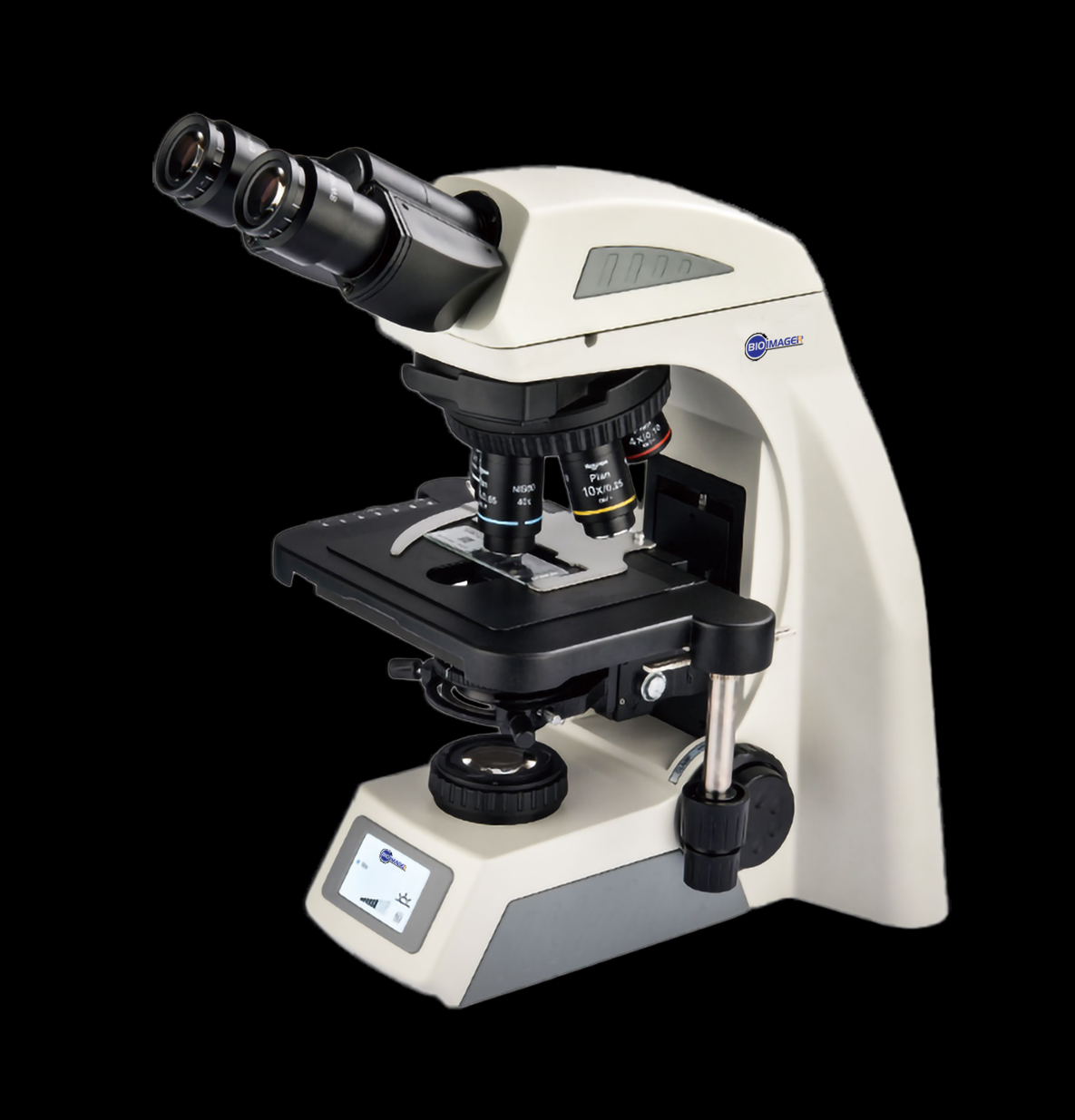

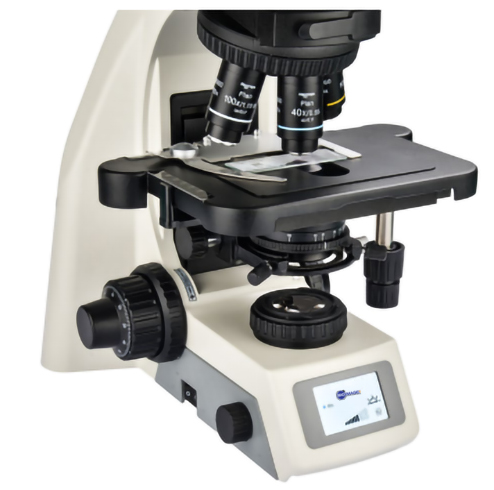

BUM600 Biological microscope

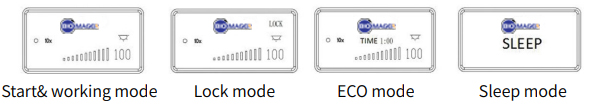

The display of microscope use state
The LCD on the front of the microscope can display the using status of the microscope, including
magnification, light intensity, sleepy model, and so on.
Use a dimming knob to achieve multiple functions
One Click: Enter standby status
Double Clicks: Light lock or unlock Rotation: Adjust brightness.
Press + Up-spin: Switch to the upper light source Press + Down-spin: Switch to the under light source Press 3 seconds: Set the time of turning off the light
after leaving

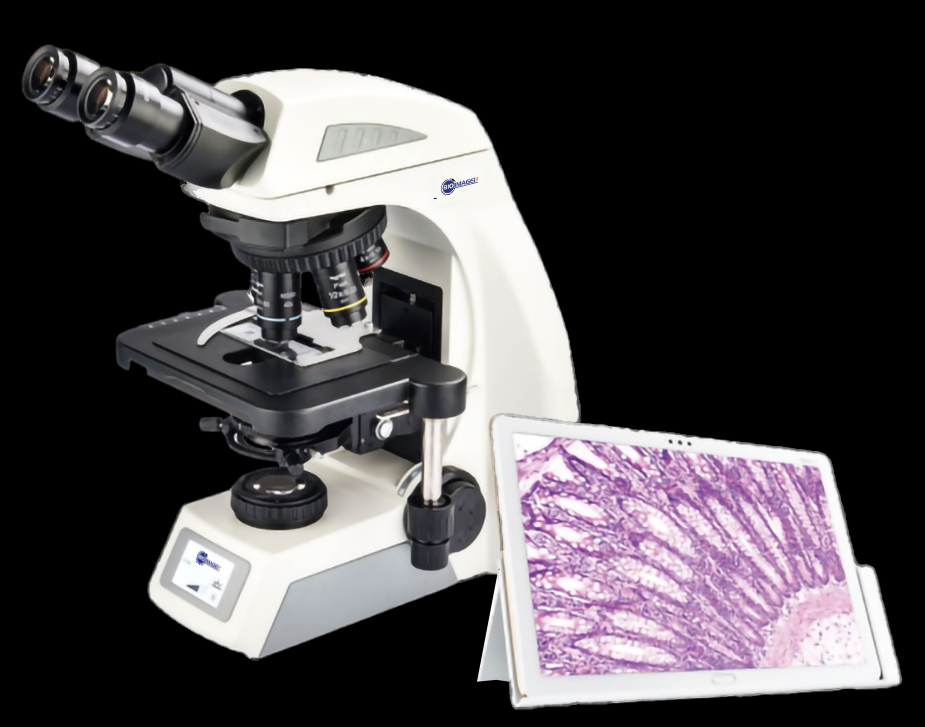

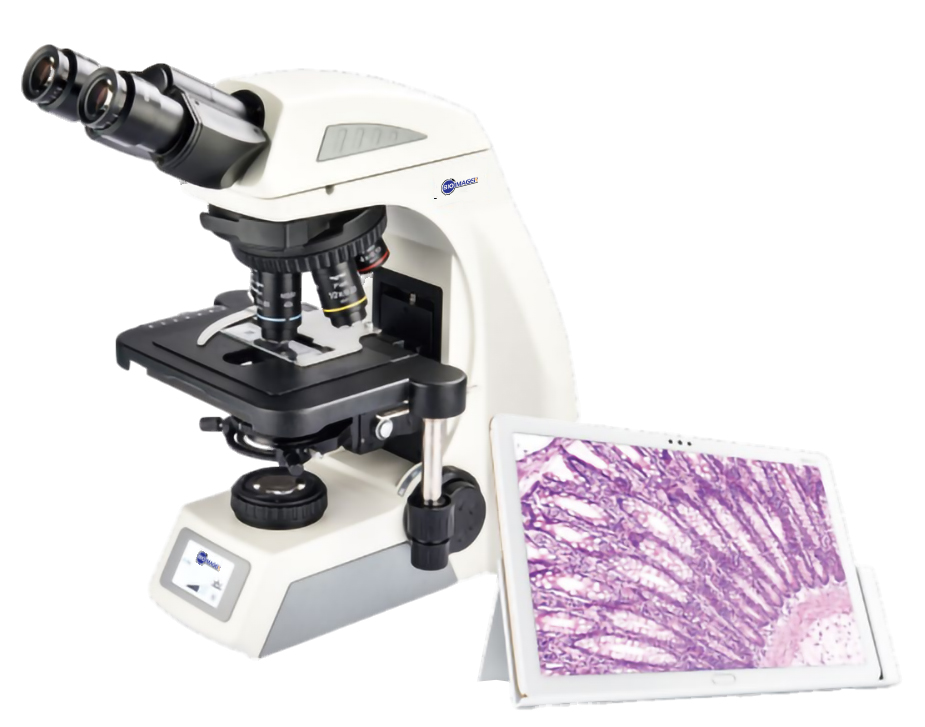

This is an unbounded microscope
BUM600 Biological microscope has the multifunctional digital head, the user does not have to be confined in front of the microscope. Instead, it can be used for mobile
microscope teaching and outdoor field observation through mobile terminals and external mobile power. The objective, eyepiece, and observation tube
are effectively anti-mold treated, so you can ensure a consistently clear image and extend the life of the microscope, even when working in hot and
humid environments. Multifunctional Digital Head
Built-in camera, supporting Android, IOS, Windows operating system, wired and Wifi modes
The image under the microscope can be output to the external device in real time, and
there is no data line connection, and the operator can move more freely. Professional microscopic imaging software
Microscopic imaging observation, analysis and processing can be performed on external
devices, including photographing, measurement, image adjustment, storage, synthesis,
etc.

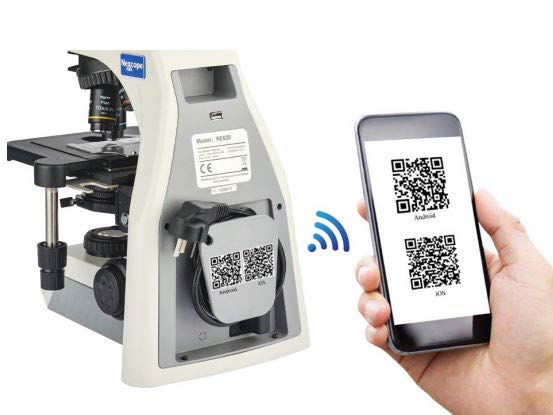

Mobile devices perform image browsing and processing by scanning code
By scanning the QR code on the microscope, installing the APP and identifying the
microscope, you can view the microscopic image on your phone and tablet.

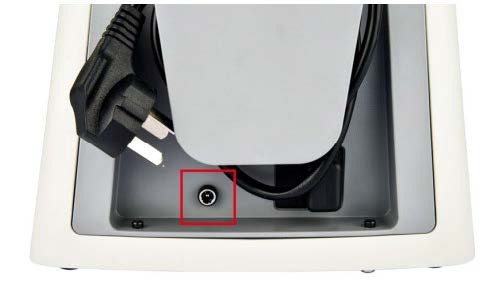

External rechargeable battery
A USB charging port is reserved on the body, which can be used as a microscope power source. This microscope can also be used outside and during power
outages to get rid of the microscope’s dependence on the power outlet.

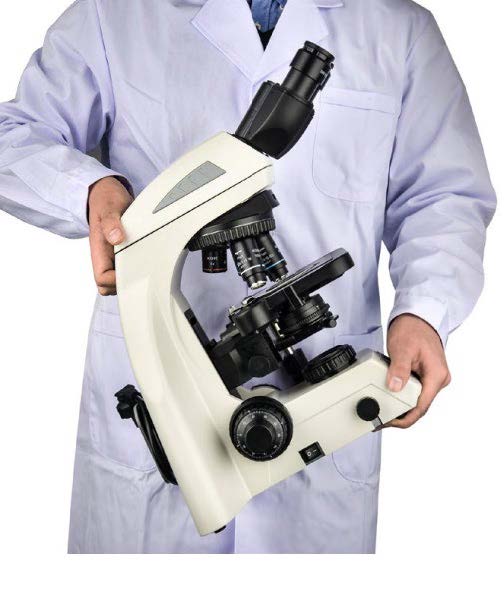

Easier to store, transport and accept

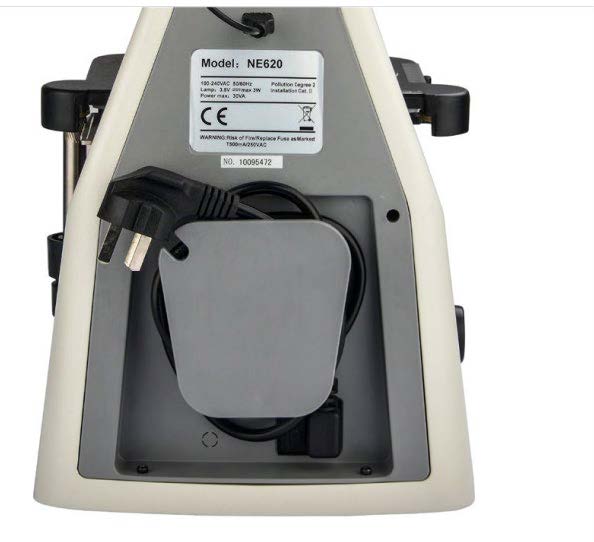

The microscope is compact and can be placed in an ordinary classroom closet. It has a special carrying handle, and is also lightweight and stable. The microscope back plate is designed with a hub device to effectively store the long power cord, improve the cleanliness of the laboratory, and reduce the tripping accident caused by the long power cord during the carrying process. The wooden storage box is an
optional accessory that is very convenient for storage and carrying.

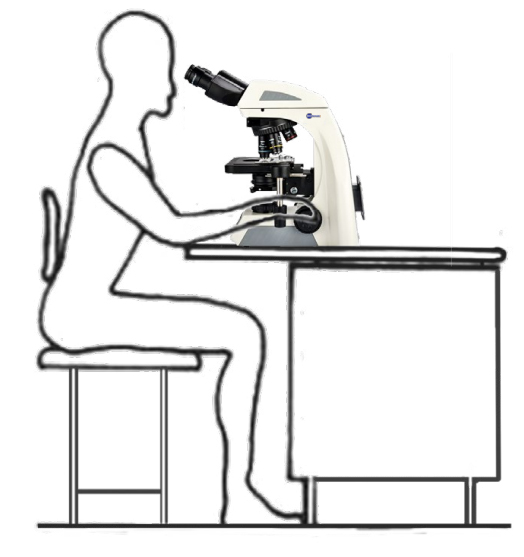

Ergonomic Design
In daily scientific research teaching and pathological diagnosis, working in front of the microscope for a long time has become the norm, and the consequent use fatigue often leads to physical discomfort, thereby reducing work efficiency and effectiveness. This Green microscope uses an ergonomic design, high eye-point, low-hand focus mechanism, lowhand stage and other ergonomic designs to ensure the user can perform microscope operation in the most comfortable situation. . The focus knob, illumination control knob and stage handle are all in close proximity. The user can put both hands on the table while working, and can operate Green with minimal movement.

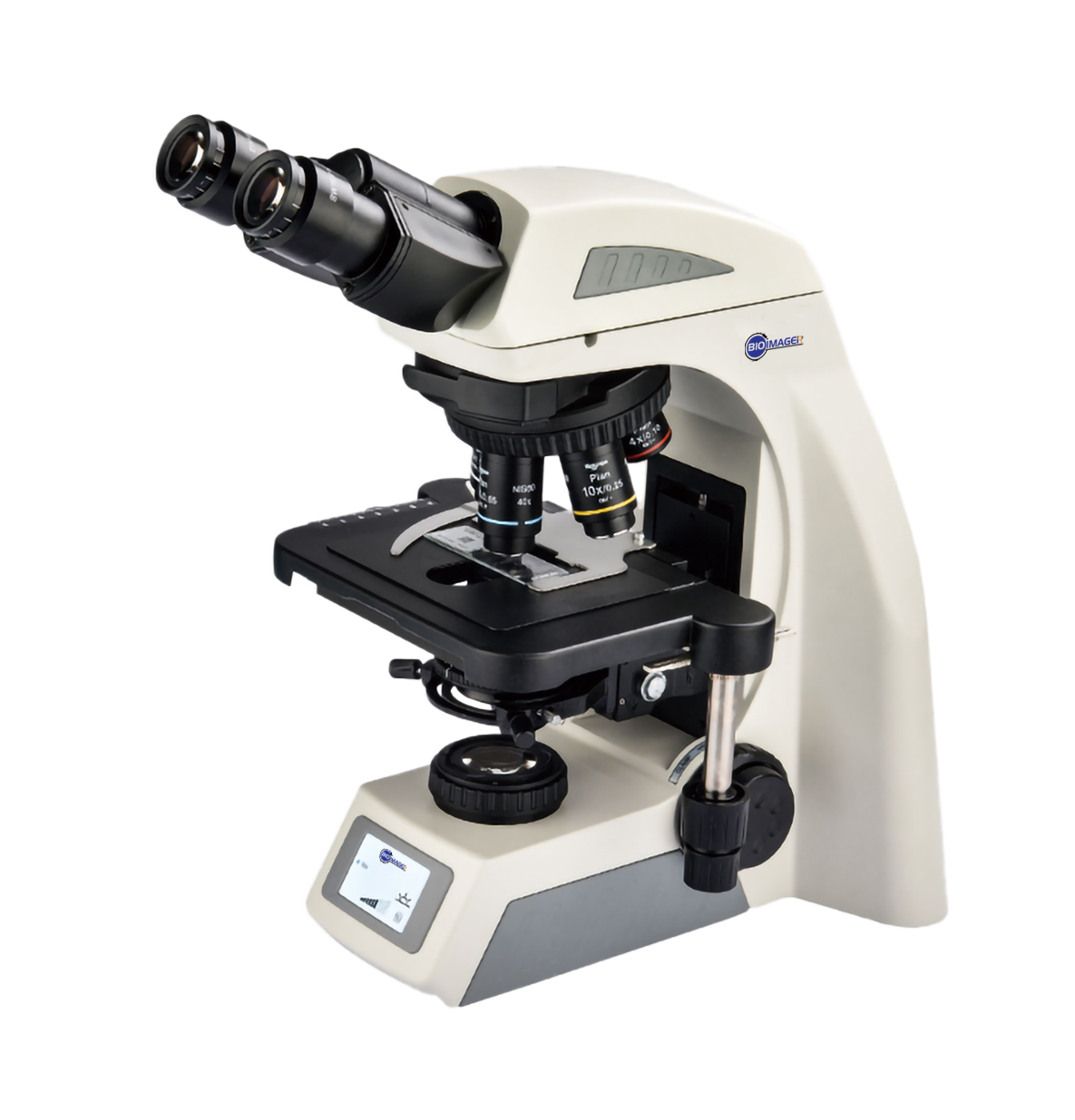

BUM600 Biological microscope
Environmentally Friendly
Operating Comfort
High Performance

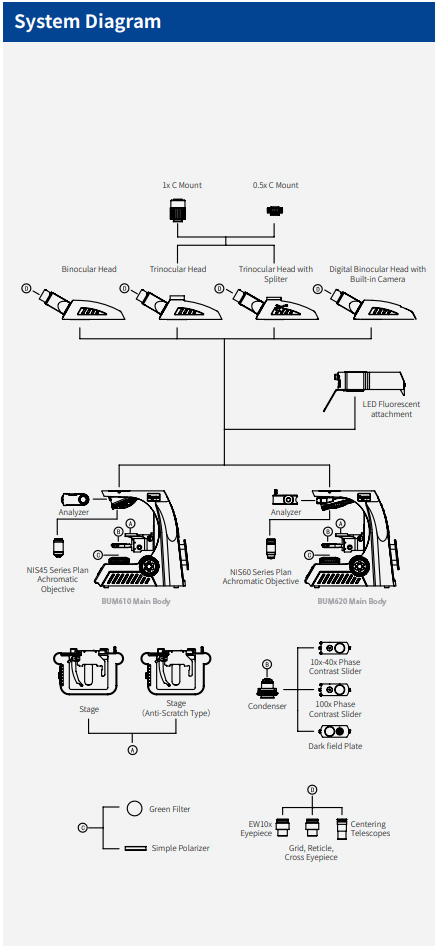

GREEN SERIES OUTFIT
Item
Specification
BUM610
BUM620
Optical System
Infinity Optical System
●
●
Eyepiece
EW10x/22mm
●
●
Viewing Head
Infinity Seidentopf Binocular Viewing Head, Inclined at 30°， Interpupillary 47-78mm
●
●
infinity, Seidentopf Trinocular Viewing Head, Inclined at 30°， Interpupillary 47-78mm, Splitting ratio 50/50 (100/0 or 0/100 is optional)
○
○
Wireless Digital Head with Built-in 5MP Camera
○
○
Inclinable Binocular Viewing Head
–
○
Objective
Infinity Plan Objective NIS45
●
–
Infinity Plan Objective NIS60
–
●

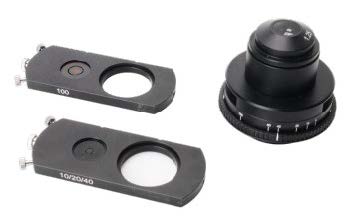

Infinity Phase Contrast Objective NIS45
○
–
Infinity Phase Contrast Objective NIS60
–
○
Nosepiece
Backward Quintuple Nosepiece(Non-coding)
●
–
Backward Quintuple Nosepiece(Coding)
–
●
Rackless Stage
Rackless Stage 230mm x 150mm, Moving Range 78mm x 54mm
Water is used instead of cedar oil for 100x
