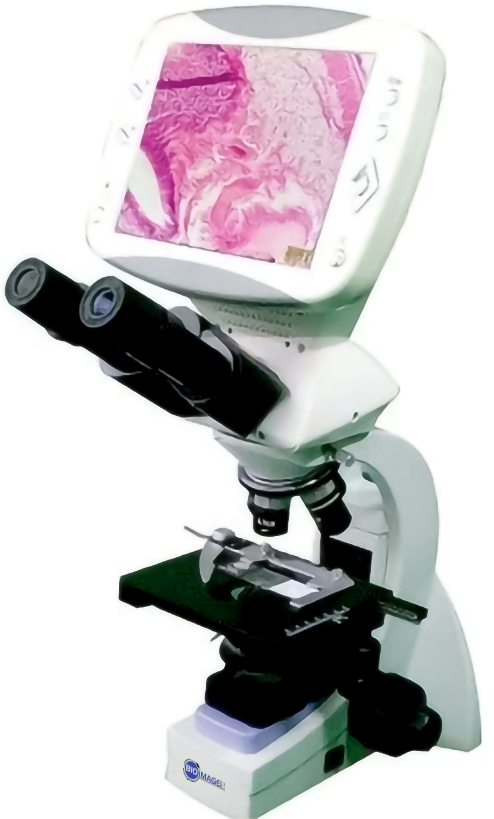

BUM260LCD Digital LCD Upright Biological Microscope
Introduction
BUM260LCD Series digital LCD biological microscopes are built in a 5.0MP camera, they can be directly connected to a PC. They can be used both traditional eyepieces and an LCD screen for convenient and comfortable viewing by yourself and to share with others. These patented microscopes make the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope for a long time.
It is not only features high resolution of LCD display to reverting genuine photo and video, but also features for quick and easy snapshots or short videos. This unit integrates magnification, digital enlarge, imaging, display, capture photo and video, store captured photos and videos on the optional SD card or transfer them to your personal computer via included USB cable.
Features

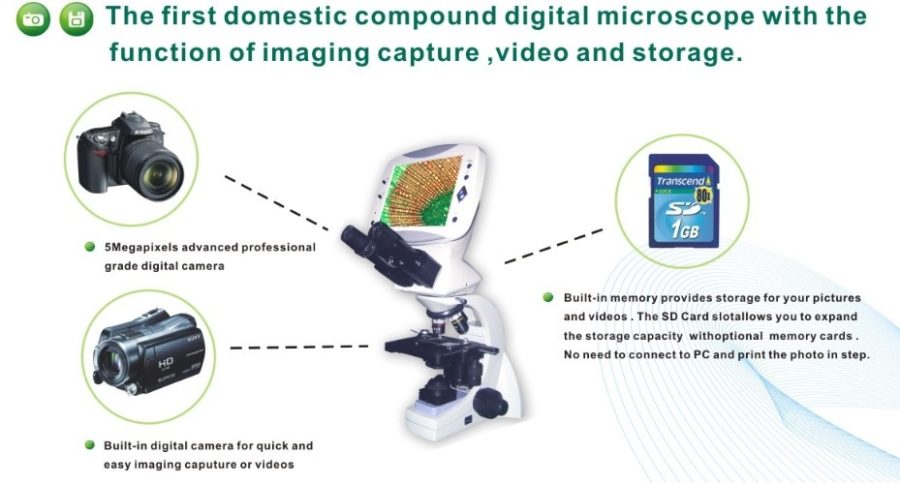

- Built-in 5 megapixel digital camera, image data can be easily stored on the SD card without external computers, can improve the efficiency of research and analysis.

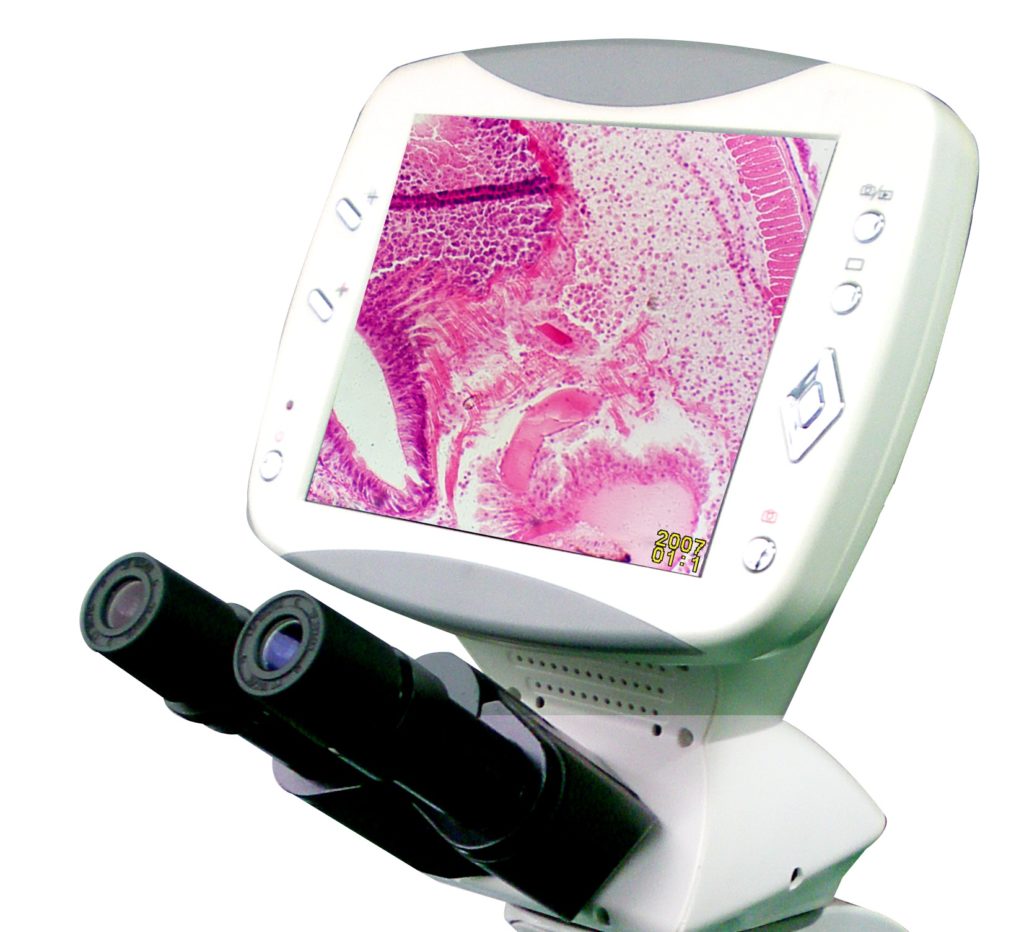

- 9-inch HD digital LCD screen, high definition and bright colors, easy for people to share.

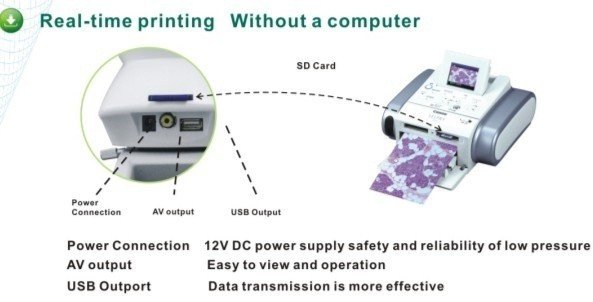

- Large storage capacity, with SD card, print pictures instantly without being connected to PC.
- LED lighting systems.
- Two kinds of observation modes, binocular eyepiece and LCD screen, which can meet different needs. Combine the compound microscope, digital camera and LCD together.
Application
With the features of easy observation, intelligence and convenient operation, complete functions and economy, it is widely used in medical and sanitary establishments, academic demonstration and research, laboratories, institutes, colleges and universities.
Sample Images
Specification
| Digital Parts | Model | BUM260LCD |
| Resolution | 5 Mega Pixel | |
| Photo Resolution | 2560X1920-1600X1200 | |
| Video Resolution | 640X480 | |
| Sensor Size | 1/2.5 Inches | |
| LCD Screen | 9 Inches HD LCD Screen, Resolution is 1280×800 | |
| Video Output | AV Output (NTSC/PAL) | |
| Data Output | USB2.0 | |
| Menu Language | English | |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4GB) | |
| Scene Mode | Standard / Softness / Vivid | |
| Exposure Mode | Auto Exposure | |
| Date Mode | Year, Month, Day, Hour, Minute |
| Optical Parts | Model | BUM260LCD-P | BUM260LCD |
| Viewing Head | Compensation Free Binocular Head, Inclined 30° | ||
| Eyepiece | Wide Field Eyepiece WF10×/ 16 | ||
| Objective | Infinity Semi-plan Achromatic 4X/0.10,10X/0.25,40X/0.65(Spring),100X/1.25 (Spring,Oil) | Infinity Achromatic 4X/0.10,10X/0.25,40X/0.65(Spring),100X/1.25 (Spring,Oil) | |
| Nosepiece | Quadruple | ||
| Stage | Double Layers Mechanical Stage 140mmX140mm ；Moving Range:75mmX50mm | ||
| Focusing System | Coaxial Coarse/Fine Focus System with Tension Adjustable, Limit Stopper ,Range 24mm, Fine Division 0.002mm | ||
| Illumination | 3.7V,3W LED Lamp, Brightness Adjustable | ||
| Condenser | NA1.25 Abbe Condenser with Iris Diaphragm & Filter( Blue and Green ),Rack & Pinion Adjustment | ||
| Optional Parts | Eyepiece | High Point and Wide Field Eyepiece , WF16X/11mm | |
| Wide Field Eyepiece WF10X /20mm with a Reticle, Single Line , 10mm/100 Cross, Hair(0.1mm Micro-meter) | |||
| Condenser | Dark Field | Dry NA0.75/ Wet NA1.25 | |
| Infinity Phase
Contrast Unit |
Eyepiece | Centering Telescope | |
| Objective | Infinity Phase Contrast Plan Achromatic 10X,20X,40X,100X | ||
| Simple Polarization Attachment | Polarizer (360°Rotatable ) | ||
| Analyzer | |||
| Illumination | 6V,20W Halogen Lamp, Brightness Adjustable | ||
