BUM240FLE Series LED fluorescence microscopes are newly developed microscopes, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

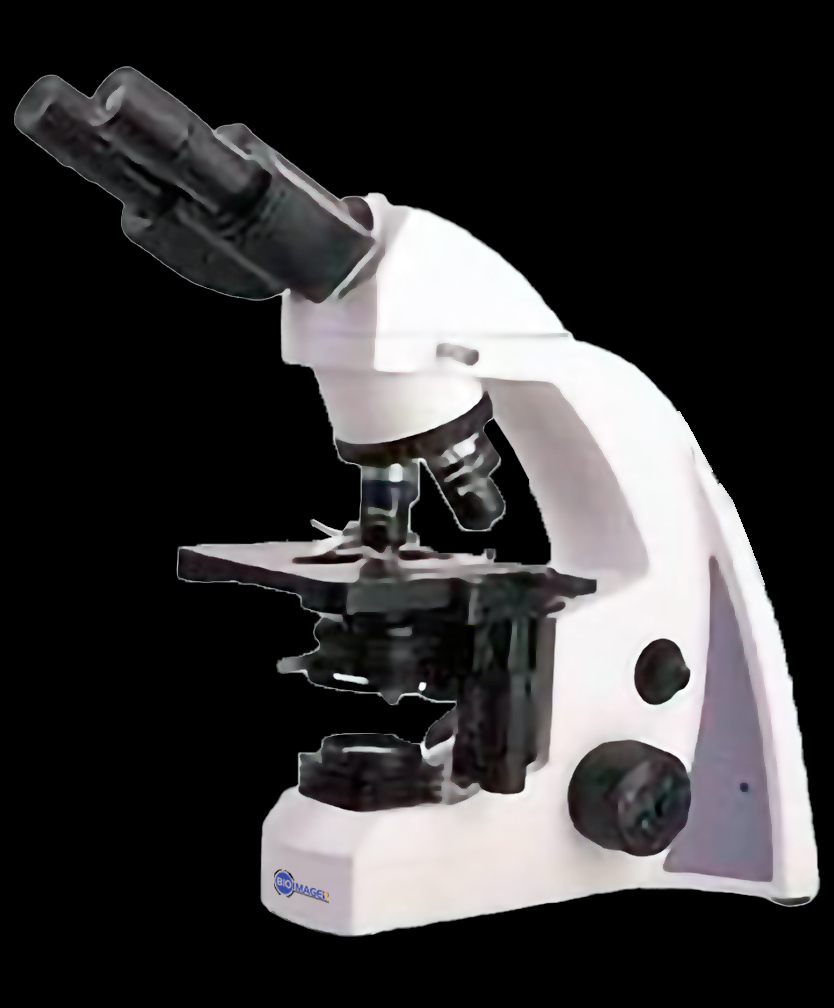

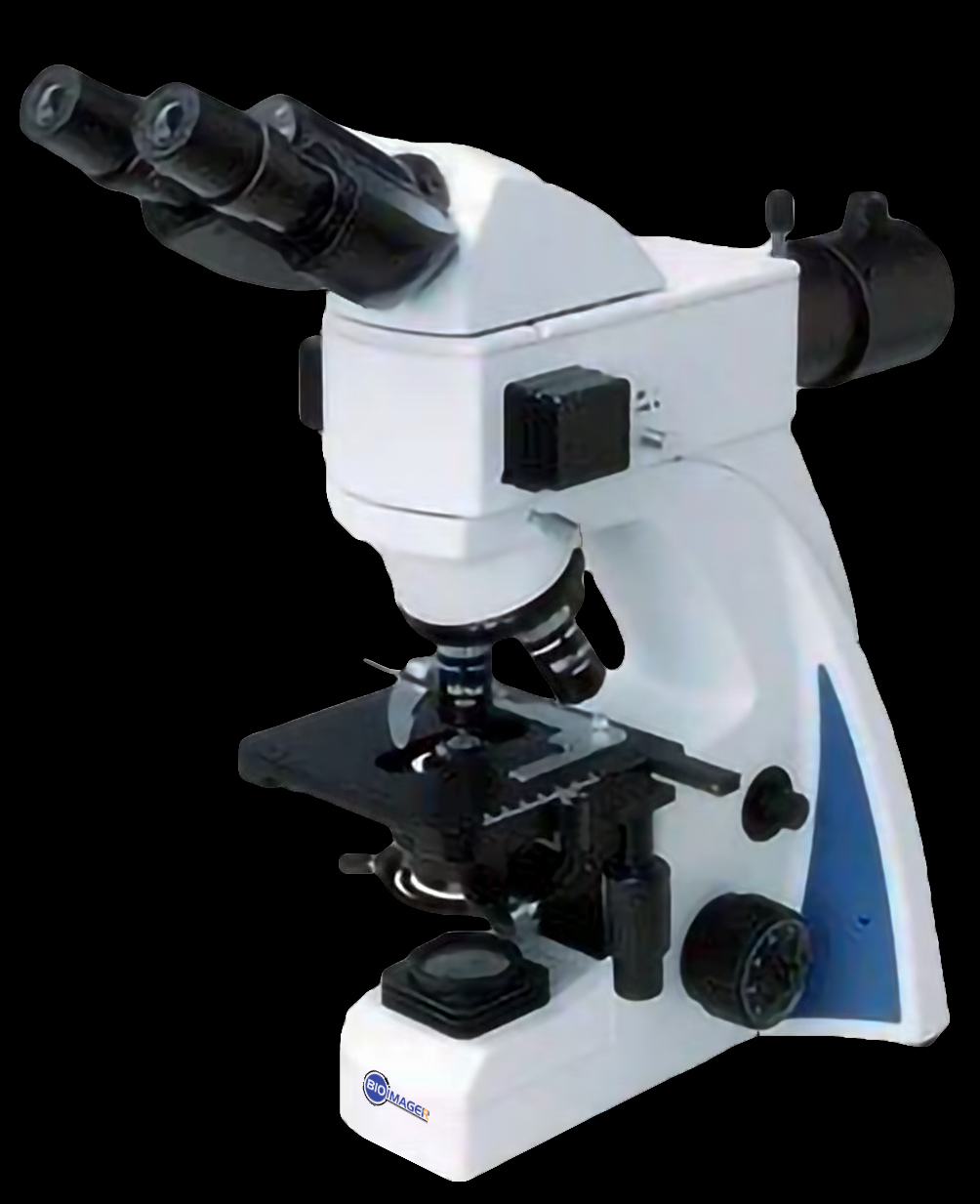

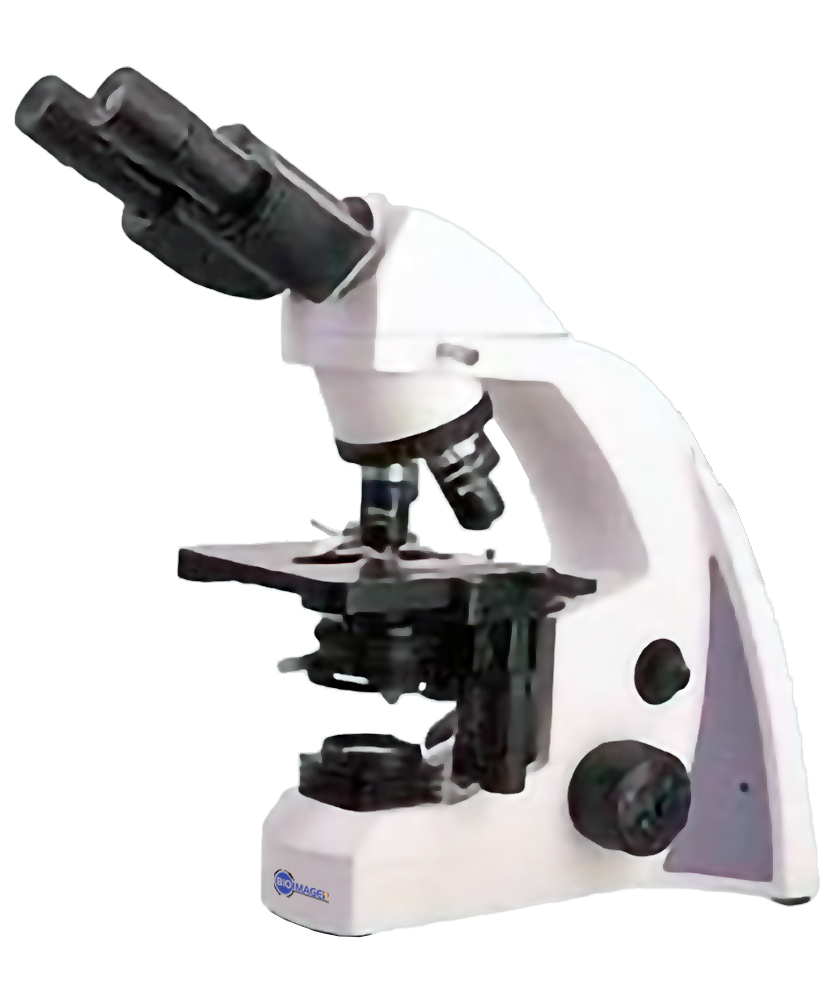

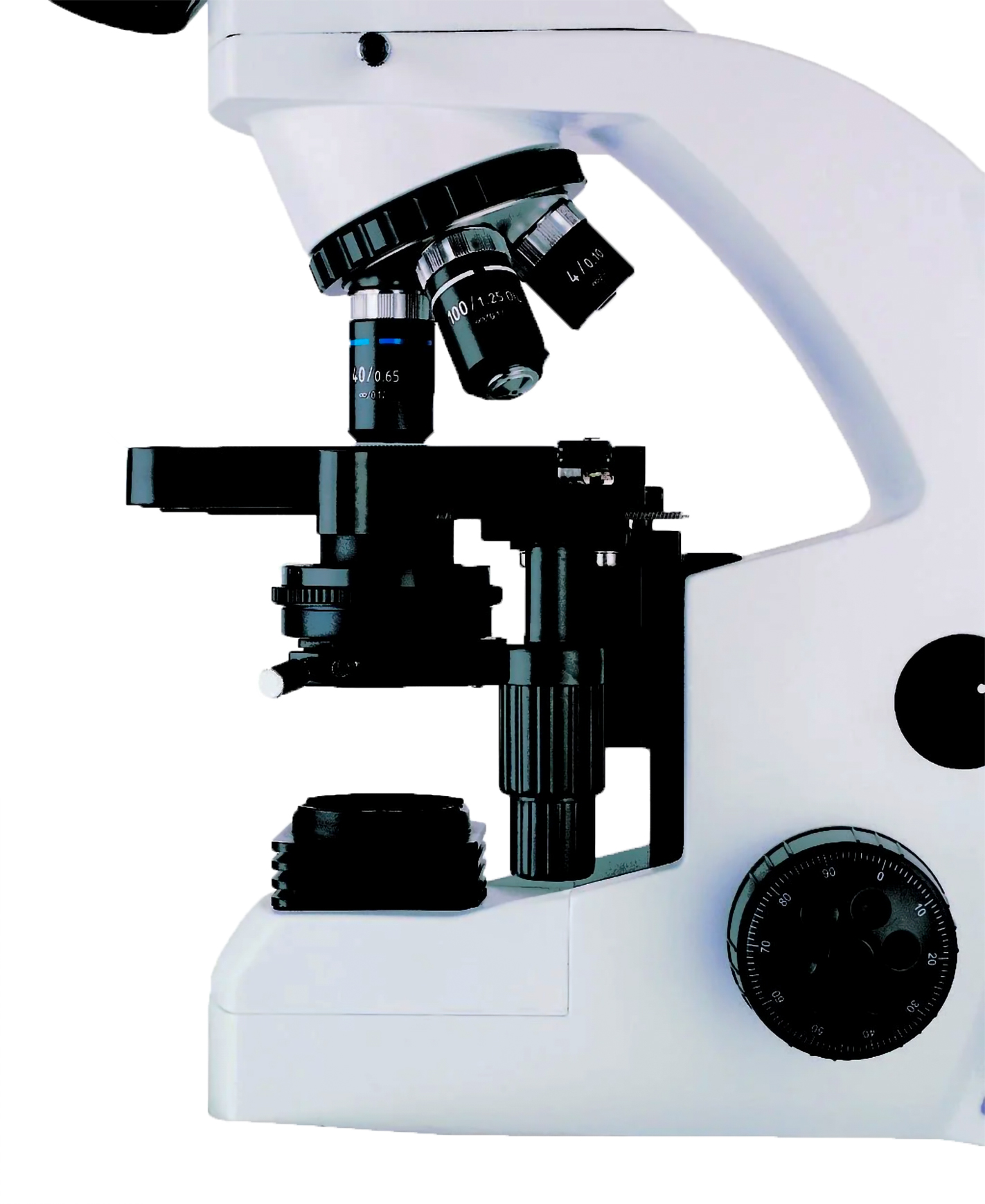

BUM240FL Biological LED Fluorescent Microscope
$USD 2,849.00
-30%BUM240FLE Series LED fluorescence microscopes are newly developed microscopes, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.
- Excellent fluorescent image with infinite optical system.
- LED illumination with 50,000 hours life span.
- No need for cooling system and protection device due to LED cold light source.
- 465-476nm excited wavelength with high SNR.
- Convenient to use, no need warm-up.
- More fluorescent filters are available for different applications.

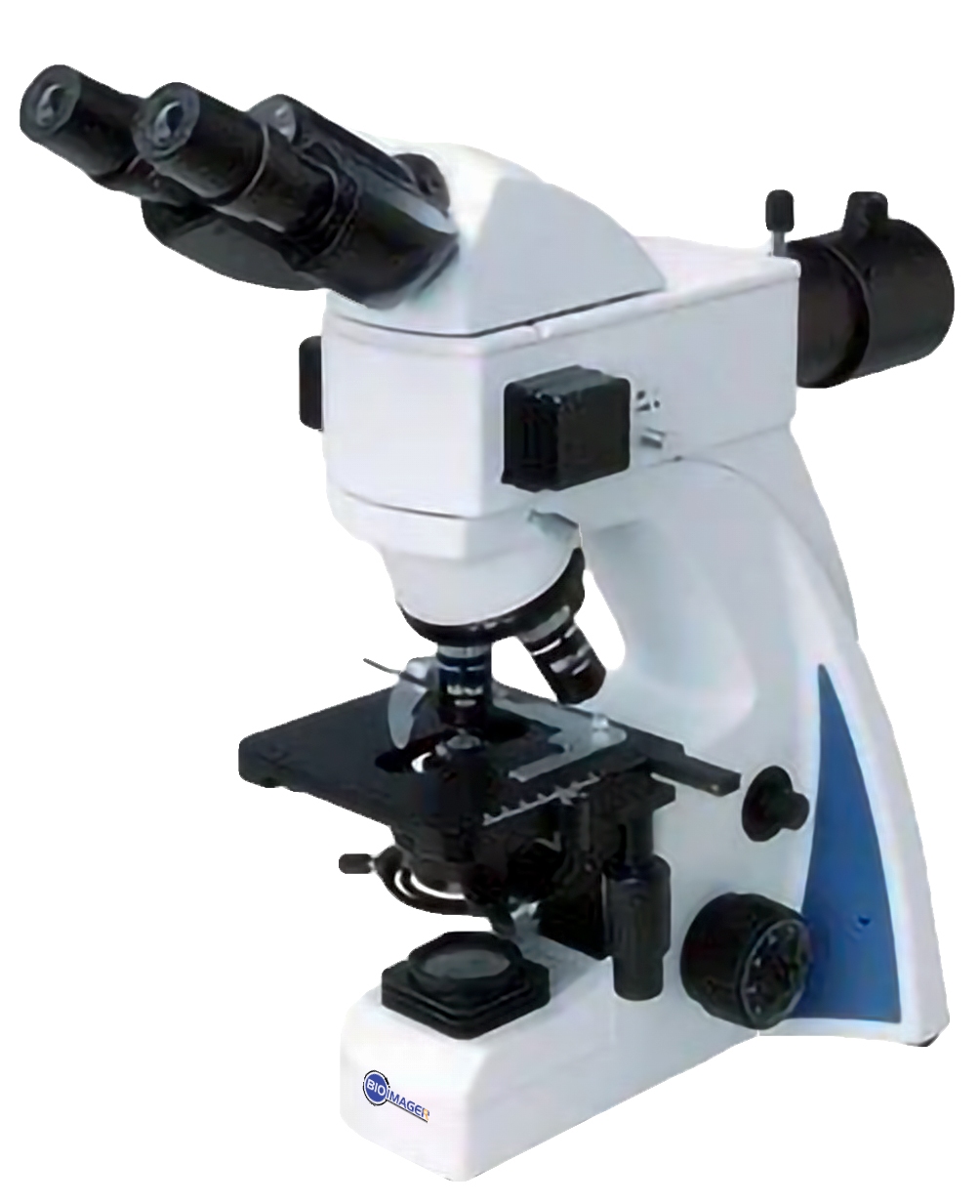

BUM240FLE Biological LED Fluorescent Microscope
Application area
BUM240FLE LED Fluorescence microscope is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.
Sample Images
Specifications
BUM240FLE B |
BUM240FLE T |
|||||
Optical System | Infinite Optical System | ● | ● | |||
Viewing Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary 48-75mm | ● | ||||
Seidentopf Trinocular Head, Inclined at 30°, Interpupillary 48-75mm | ● | |||||
Eyepiece | Wide Field Eyepiece WF10×/18 | ● | ● | |||
Nosepiece | Backward Quadruple Nosepiece | ● | ● | |||
Objective | Infinite Semi-plan Achromatic Objective: 4×, 10×, 40×, 100× | ● | ● | |||
Infinite Semi-plan Achromatic Objective: 20×, 60× | ○ | ○ | ||||
Infinite Plan Achromatic Objective: 4×,10×,20×,40×, 60×, 100× | ○ | ○ | ||||
Infinite Plan Fluorescent Objective: 4×,10×,20×,40×, 100× | ○ | ○ | ||||
Condenser | Sliding-in Centerable Condenser NA 1.25 | ● | ● | |||
Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | ● | ● | |||
Stage | Double Layers Mechanical Stage 140×140/ 75×50 mm | ● | ● | |||
Photo Adapter | ○ | |||||
Video Adapter | ○ | |||||
Illumination | Halogen Lamp 6V/20W | ● | ● | |||
Reflected Light Source | Excitation | Dichroic Mirror | Barrier Filter | |||
Blue excitation | BP460~490 | DM505 | BA515 | ● | ● | |
Green excitation | BP510~550 | DM570 | BA590 | ● | ● | |
Lamp | 3W LED Lamp(465-476nm) | ● | ● | |||
3W LED Lamp(525-530nm) | ○ | ○ | ||||
Immersion Oil | Fluorescent Free Oil | ● | ● |
Note: ●Standard Outfit, ○Optional
