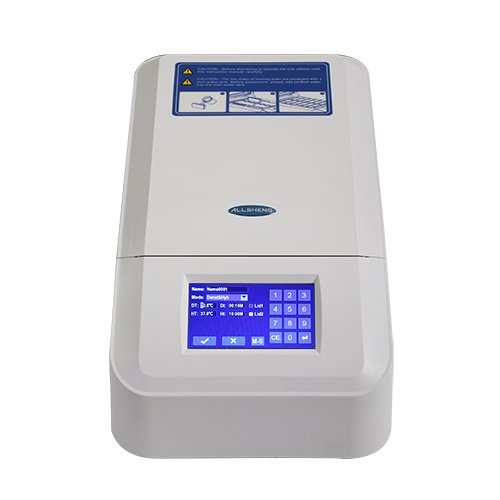

BTDH-500 Denaturation & Hybridization System

  • Programmable Temperature and Humidifying Controlled Slide FISH or ISH Hybridization System

$USD 3,995.00 $USD 5,000.00

Programmable system and humidifying that automates the steps in a slide-based FISH procedure, and provides

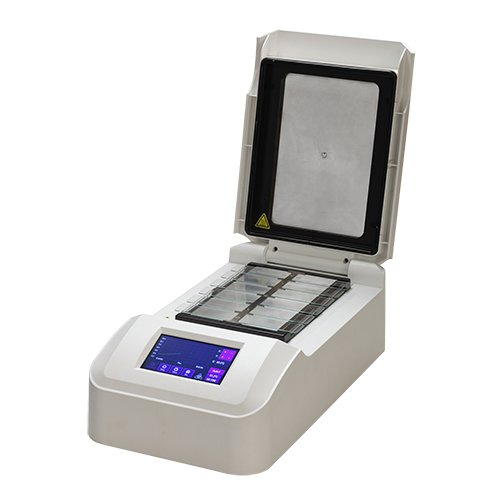

walk-away convenience for clinical and research personnel. Up to 12 slides can be easily be added or removed

with one hand. Two-side heating of slides thatallows achieving exact correspondence of the set and actual
temperature and maintaining uniform temperature across all slide positions.

To built upon the innovative design, TDH-500 is ideally suited for the needs of cytogenetic laboratories to provide a good instrument.

  • Touch screen allows for easy to read, program and use
  • it can run In-situ PCR experiments
  • Possibility to export cycles data via USB memory
  • Four operation modes: denaturation / hybridization, hybridization fixed temperature, custom, In-situ PCR
  • Can be used as a fixed temperature slide warmer
  • Rapid temperature warmp-up and accuracy of ±1°C
  • Superior temperature uniformity accross all slide positions
  • Perfect humidity control system

FISH Hybridization System

  • Programmable Temperature and Humidifying Controlled Slide FISH or ISH Hybridization System 1. TDH-500 Hybridization System provides an easy, safe, system for in-situ hybridization procedures. The programmable, open system automates the denaturation and hybridization steps in slide-based FISH procedures.2. TDH-500 is easy to use and reduces hands-on time by more than 50% while ensuring overall precision and accuracy in all slide-based assays.

1. Touch screen diaplay, easy programmable setting

2.  Perfect hummidity control system
3. Possibility to expert cycles data

Technical Specifications

Temperature Control Range RT+5°C~99.9°C
Temperature Accuracy ±1°C
Temperature Uniformity ±1°C
Processing Timer 1min~99h59min or 1sec~99min59sec
Temp. Display Accuracy ±0.1°C
Heating Time (37°C to 95°C) ≤3min
Cooling Time (95°C to 45°C) ≤7min
Temperature Control 30°C -100°C  (Programmable)
Operation mode Denaturation/Hybridization, Hybrridization fixed temperature, Custom and In-situ PCR
Capacity 12 Slides
Display Touch Screen
Overall Dimensions 225×420×143mm (L x D x H)
Weight 5.8kg
