BSM320 Academic Zoom Stereo Microscope


  • Binocular / Trinocular head, inclined at 45°, Diopter adjustable
  • Wide field eyepiece 10×/ Φ20
  • Zoom objective 0.7×-3×/ 1×-4.5×, Zoom ratio 1:4.3/ 1:4.5
  • High resolution, Wide viewing field, Long working distance of 97mm
  • High quality, high function and excellent cost performance. Ideal instrument in academic, medical and industrial field.

$USD 588.00 $USD 600.00

Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BSM320 Stereo Zoom Microscope on a post stand offers upright, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

BSM320 is a very popular zoom stereomicroscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BSM320 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

BSM320 Academic Zoom Stereo Microscope in one look

  • Binocular / Trinocular head, inclined at 45°, Diopter adjustable
  • Wide field eyepiece 10×/ Φ20
  • Zoom objective 0.7×-3×/ 1×-4.5×, Zoom ratio 1:4.3/ 1:4.5
  • High resolution, Wide viewing field, Long working distance of 97mm
  • High quality, high function and excellent cost performance. Ideal instrument in academic, medical and industrial field.

Features

  1. High quality, high function and excellent cost performance.
  2. Ergonomic design, sharp image display, wide viewing field and easy to operate,.
  3. Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
  4. Ideal instrument in academic, medical and industrial field.
BSM320 Academic Zoom Stereo Microscope

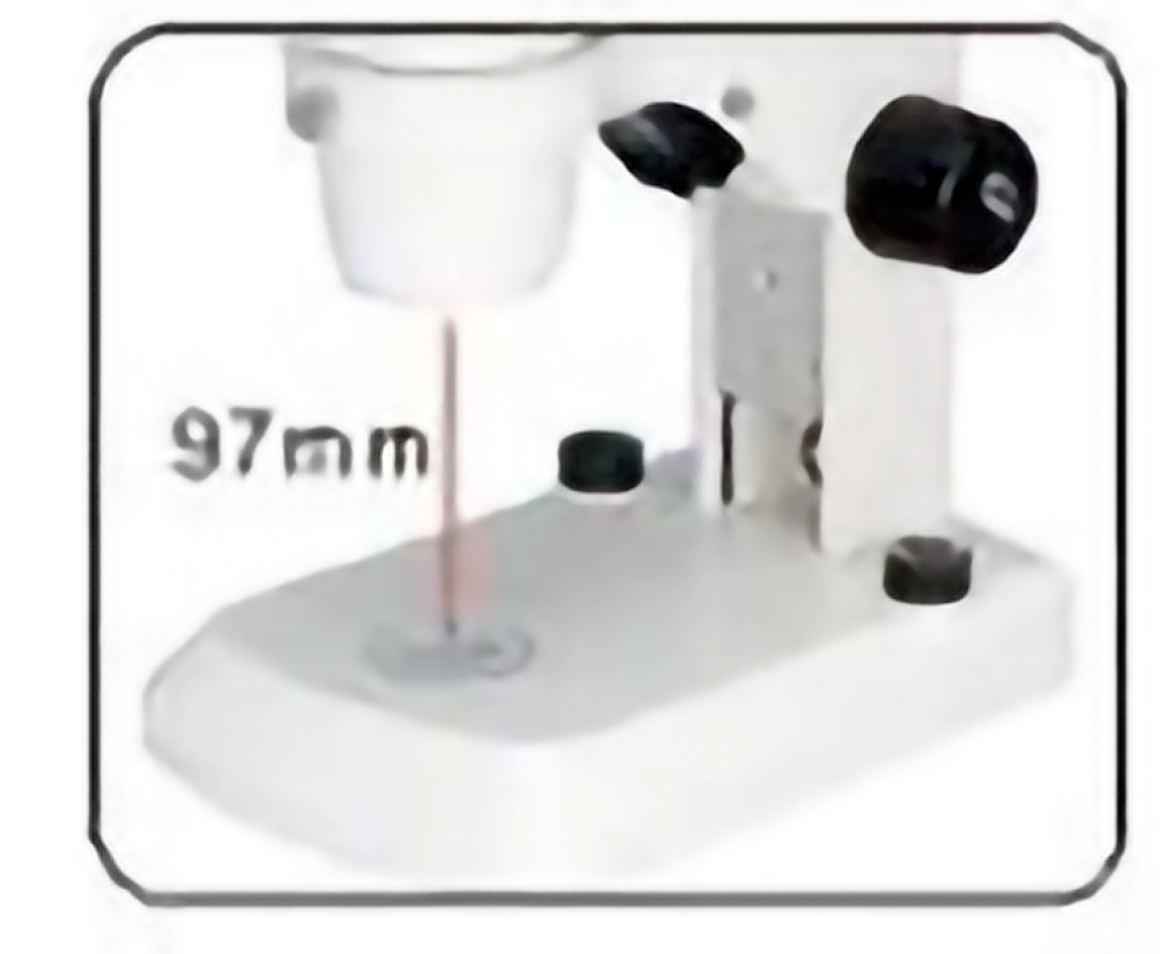

High resolution, Wide viewing field, Long working distance

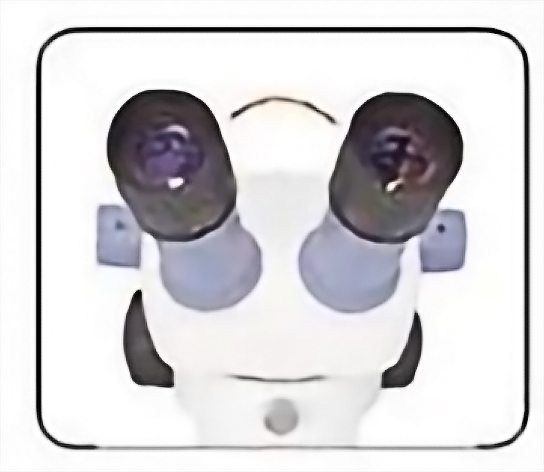

BSM320 Academic Zoom Stereo MicroscopeDiopter adjustable
BSM320 Academic Zoom Stereo Microscope

Zoom objective 0.7×-3×/ 1×-4.5×, Zoom ratio 1:4.3/ 1:4.5

BSM320 Academic Zoom Stereo Microscope

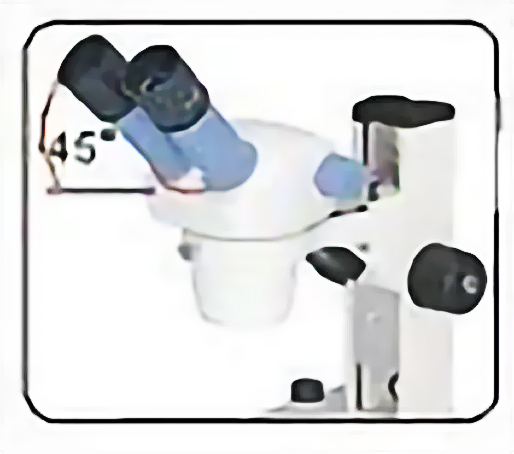

Binocular head inclined at 45°, Interpupillary 55-75mm

BSM320 Academic Zoom Stereo Microscope

BSM320 Academic Zoom Stereo MicroscopeBSM320 Academic Zoom Stereo Microscope

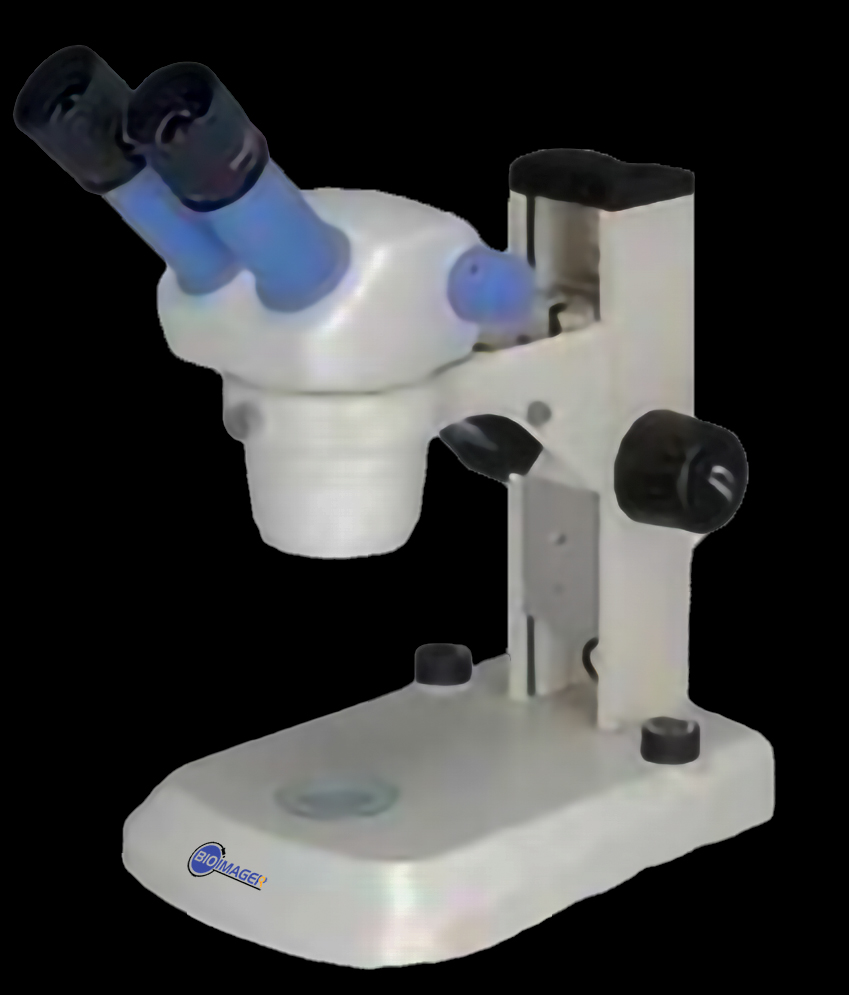

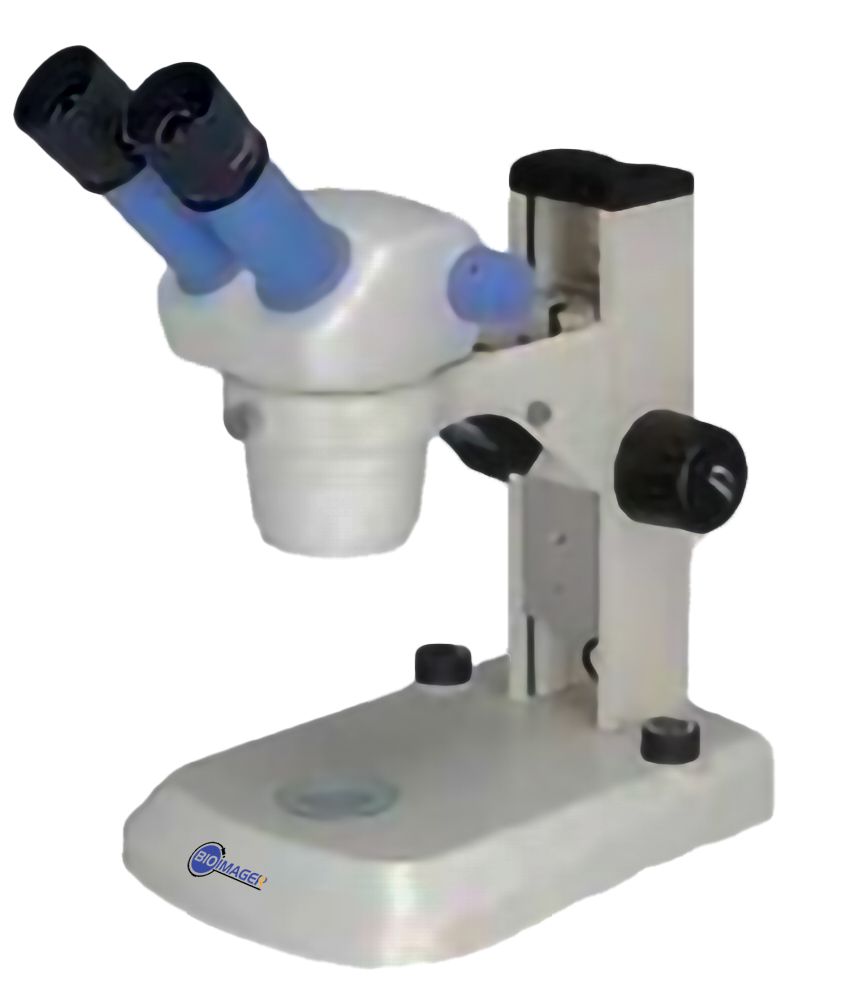

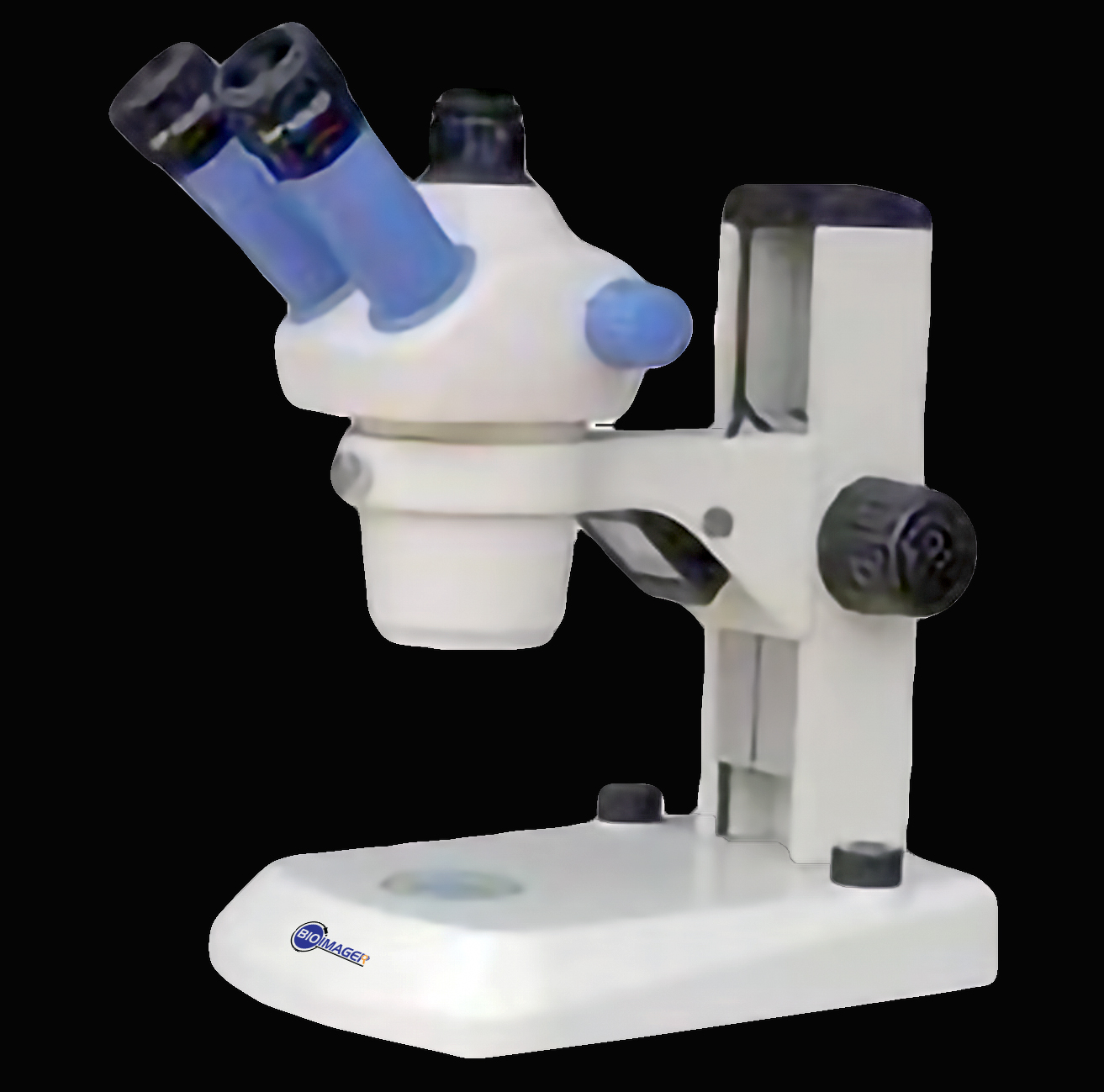

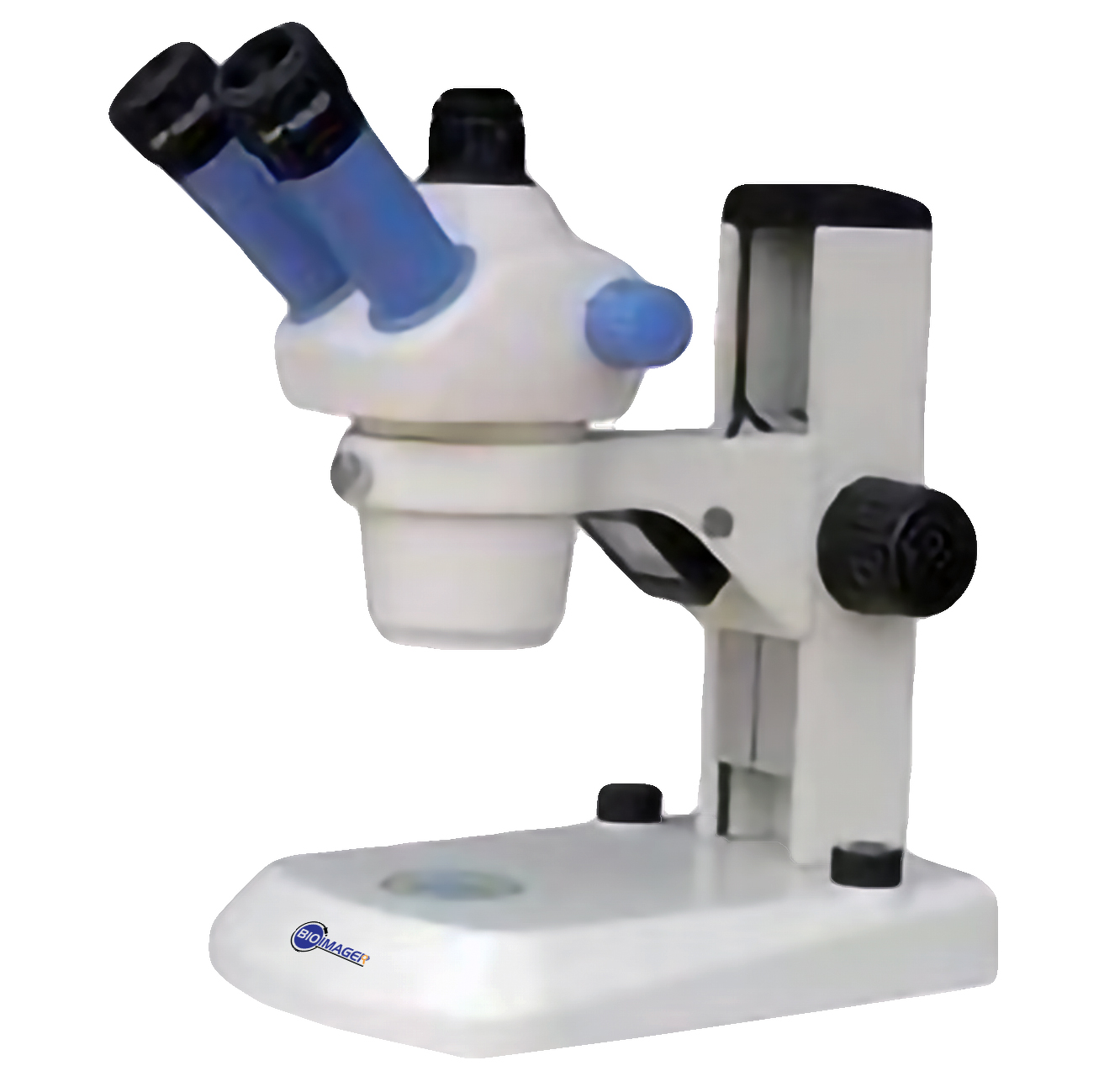

BSM320B                                     BSM320T
Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BSM320 Stereo Zoom Microscope on a post stand offers upright, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

BSM320 is a very popular zoom stereomicroscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BSM320 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features

  1. High quality, high function and excellent cost performance.
  2. Ergonomic design, sharp image display, wide viewing field and easy to operate,.
  3. Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
  4. Ideal instrument in academic, medical and industrial field.
BSM320 Academic Zoom Stereo MicroscopeHigh resolution, Wide viewing field, Long working distanceBSM320 Academic Zoom Stereo MicroscopeDiopter adjustable
BSM320 Academic Zoom Stereo MicroscopeZoom objective 0.7×-3×/ 1×-4.5×, Zoom ratio 1:4.3/ 1:4.5BSM320 Academic Zoom Stereo MicroscopeBinocular head inclined at 45°, Interpupillary 55-75mm

Application area
The stereo zoom microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Specifications

Viewing HeadBinocular head, inclined at 45°
Binocular head, inclined at 60°
Trinocular head, inclined at 45°
EyepieceWide field eyepiece 10×/ 20
Wide field eyepiece 15×/ 16
Wide field eyepiece 20×/ 12
10× Eyepiece with cross line
ObjectiveZoom objective0.7×~3×
1×~4.5×
Auxiliary objective
Zoom Ratio1:4.3
1:4.5
Working Distance97mm
IlluminationLED Reflection illumination 1W
LED Transmission illumination 3W
AttachmentPhoto Attachment
Video Attachment
Package & Dimension36.5cm*31cm*52cm, 1pc/carton, 6kg

Note: ● Standard Outfit, ○ Optional

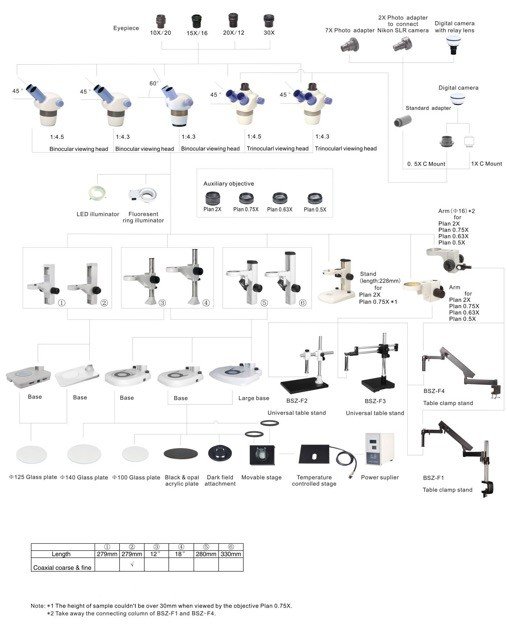

System Diagram
BSM320 Academic Zoom Stereo Microscope

Stand and other accessories
BSM300 stands

SKU: BSM320 Category:
Viewing HeadBinocular head, inclined at 45°
Binocular head, inclined at 60°
Trinocular head, inclined at 45°
EyepieceWide field eyepiece 10×/ 20
Wide field eyepiece 15×/ 16
Wide field eyepiece 20×/ 12
10× Eyepiece with cross line
ObjectiveZoom objective0.7×~3×
1×~4.5×
Auxiliary objective
Zoom Ratio1:4.3
1:4.5
Working Distance97mm
IlluminationLED Reflection illumination 1W
LED Transmission illumination 3W
AttachmentPhoto Attachment
Video Attachment
Package & Dimension36.5cm*31cm*52cm, 1pc/carton, 6kg

System Diagram

BSM320 Academic Zoom Stereo Microscope

Below picture ilustrates the parts of a stereoscope:
