Save $USD 2,625

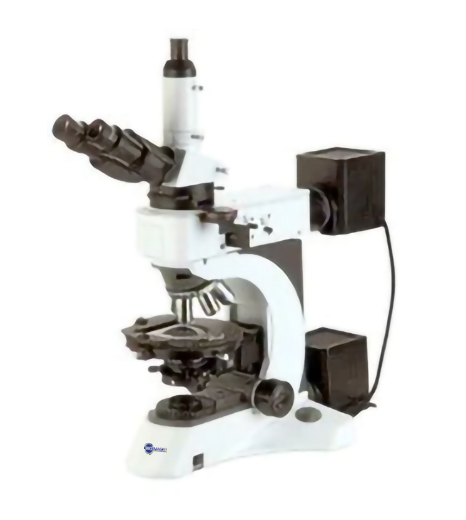

BPM592RF/TRF Trans & Refl Polarizing with swing-out condenser


  • Infinite Optical System
  • Seidentopf trinocular head, Inclined at 30°, Interpulilary 48-75mm Plan Eyepiece EW10×/22
  • Strain-Free Plan Achromatic Objective 4×/0.10/∞/-, WD 17.3mm; 10×/0.25/∞/0.17, WD 10.0mm; 40×/0.65/∞/0.17, WD 0.54mm; 100×/1.25/∞/0.17, WD 0.13mm
  • Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped
  • Strain free swing out condenser NA0.9/0.25

$USD 4,875.00 $USD 7,500.00

BPM592 Polarizing Microscope

  • Infinite Optical System
  • Seidentopf trinocular head, Inclined at 30°, Interpulilary 48-75mm Plan Eyepiece EW10×/22
  • Strain-Free Plan Achromatic Objective 4×/0.10/∞/-, WD 17.3mm; 10×/0.25/∞/0.17, WD 10.0mm; 40×/0.65/∞/0.17, WD 0.54mm; 100×/1.25/∞/0.17, WD 0.13mm
  • Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped
  • Strain free swing out condenser NA0.9/0.25

Polarizing Microscopy Basics & Applications

1.     Trinocular head, digital cameras can be easily used on this microscope for image and video taking.
2.     Supply high quality and contrast image with special strain free objectives.
3.     Can be used for single polarization, othorgonal polarization and conoscopic observation.
4.     Transmitted and (or) reflected illumination, 24V/100W long life halogen lamp.
5.     Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.
6.     Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.
7.     High quality professional polarizing microscope for geology, petroleum, chemicals, mining, metallurgy, pharmacy, polymer, LED and other field.

Introduction
BPM592 series transmitted and (or) reflected polarizing microscopes are specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. They can be used to analyze and identify various minerals and specimens, they can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope.

Features
1. Trinocular head, digital cameras can be easily used on this microscope for image and video taking.

2. Supply high quality and contrast image with special strain free objectives.

3. Can be used for single polarization, othorgonal polarization and conoscopic observation.

4. Transmitted and (or) reflected illumination, 24V/100W long life halogen lamp.

5. Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.

6. Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.

7. High quality professional polarizing microscope for geology, petroleum, chemicals, mining, metallurgy, pharmacy, polymer, LED and other field.

Application area
BPM592 series transmitted and (or) reflected polarizing microscopes can be used for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production.

ModelBPM592

RF

BPM592

TRF

Optical SystemInfinite Optical System
Viewing HeadSeidentopf trinocular head, Inclined at 30°, Interpulilary 48-75mm
EyepiecePlan Eyepiece EW10×/22
Plan eyepiece with scale of crosshair, Plan eyepiece with crosshair, Plan eyepiece with gridding
Strain-Free Plan Achromatic Objective5×/0.12/∞/-, WD 15.5mm
10×/0.25/∞/-, WD 10.0mm
20×/0.4/∞/0, WD 5.8mm
50×/0.75/∞/0, WD 0.32mm
100×/0.8/∞/0, WD 2mm
40×/0.65/∞/0.17, WD 0.54mm
100×/1.25/∞/0.17, WD 0.13mm
NosepieceBackward quintuple nosepiece, Center adjustable
Analyzer0°-360° rotatable analyzer with gradation, minimum gradation: 0.1°
Conoscopic Observation AttachmentSwitch between orthoscopic and conoscopic observation, Bertrand lens position adjustable
Optical Compensatorλ plate (first class red), 1/ 4λ plate, quartz wedge plate
Polarizing Rotatable StageDiameter Φ170mm, center adjustable, 360° scale, minimum division 1°, minimum reading vernier scale 6′, 45° click stop knob
Attachable StageMoving range 30mm×40mm
CondenserStrain free swing out condenser NA0.9/0.25
FocusingCoaxial coarse & fine adjustment, range 32mm, fine division 0.001mm, coarse stroke 37.7mm per rotation, fine stroke 0.1mm per rotation
PolarizerTransmitted: 360° Rotatable, 0° position adjustable
Reflected: Fixed
IlluminationReflected light: 24V/100W Halogen lamp, brightness adjustable
Transmitted light: 24V/100W Halogen lamp, brightness adjustable
FilterBlue filter Φ45mm
ND6 Neutral density filter Φ45mm
ND25 Neutral density filter Φ45mm
Blue filter Φ25mm
ND6 Neutral density filter Φ25mm
ND25 Neutral density filter Φ25mm
AttachmentVideo attachment
0.01mm micrometer

Note: ●Standard parts ○Optional parts
