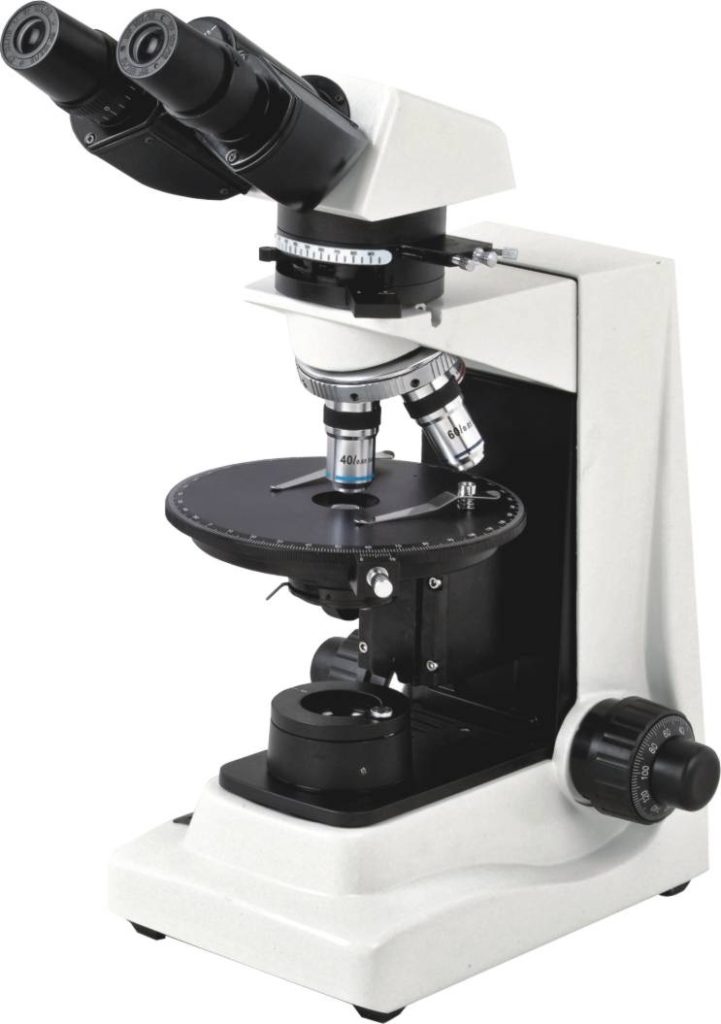

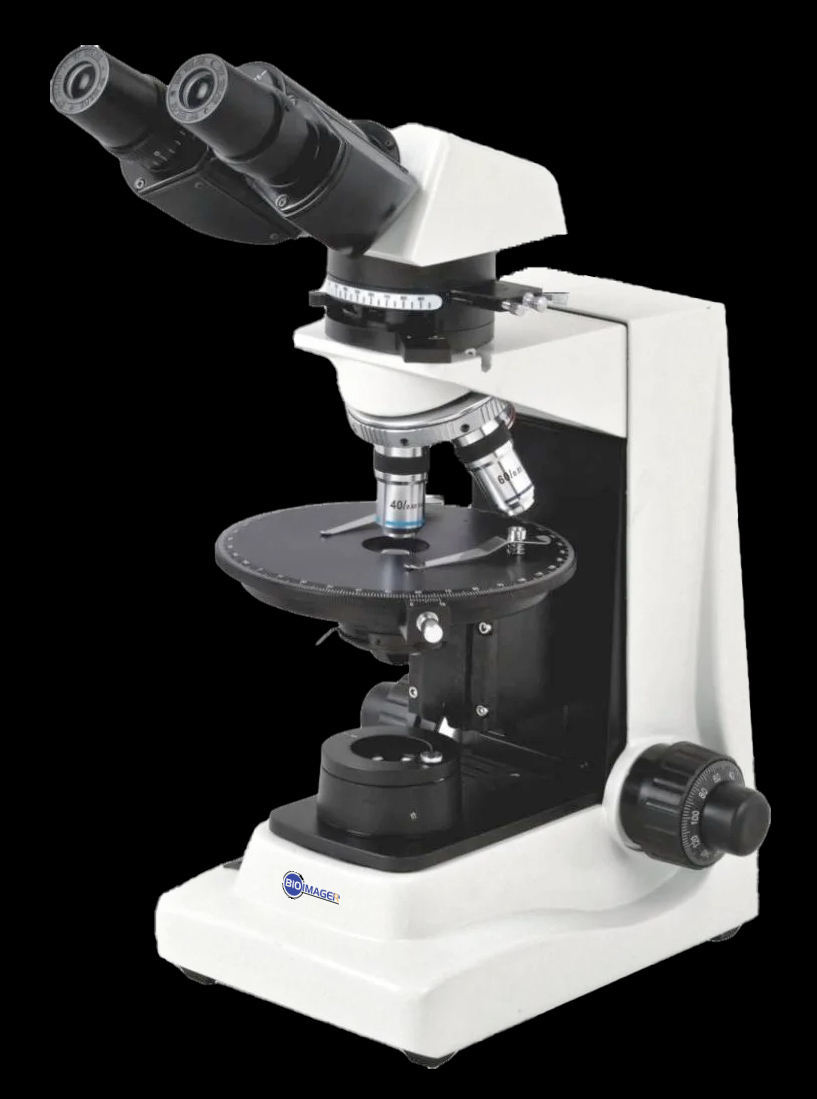

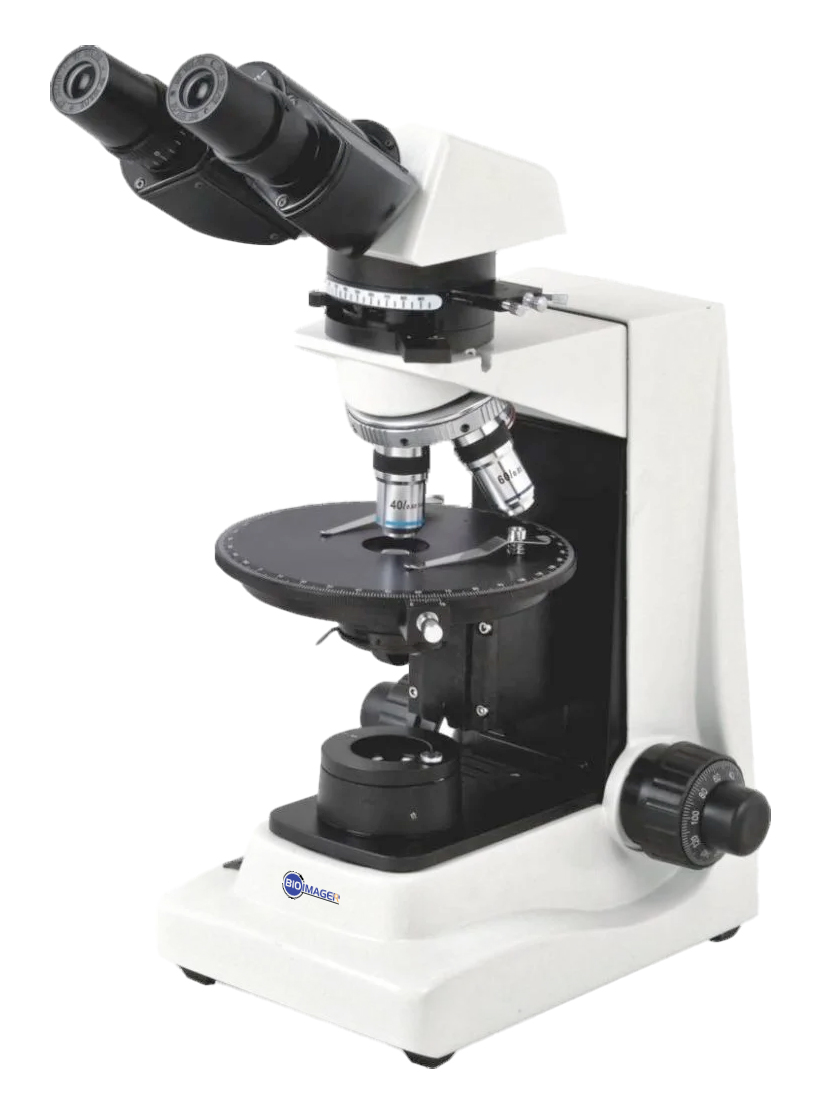

BPM580 Polarizing Transmitted with Rotatable Head


BPM580 Polarizing Microscope

  • Compensation Free Binocular (Trinocular) Head at 30°, 360° Rotatable
  • Eyepiece WF10×/ 18 with Scale of Crosshair
  • Strain free Achromatic Objective 4×,10×,40×,60×
  • NA1.25 Abbe Condenser with Iris Diaphragm & Filter
  • Sliding in/ out of Optical Path, Located on the Top of Collector
  • 6V/ 20W Halogen Lamp, Brightness Adjustable

$USD 1,815.00 $USD 2,400.00

BPM580 Polarizing Microscope

  • Compensation Free Binocular (Trinocular) Head at 30°, 360° Rotatable
  • Eyepiece WF10×/ 18 with Scale of Crosshair
  • Strain free Achromatic Objective 4×,10×,40×,60×
  • NA1.25 Abbe Condenser with Iris Diaphragm & Filter
  • Sliding in/ out of Optical Path, Located on the Top of Collector
  • 6V/ 20W Halogen Lamp, Brightness Adjustable

BPM580 Polarizing Transmitted with Rotatable Head

Introduction

The BPM580 series of polarizing microscopes are specifically designed for use in routine and university level teaching laboratories. The BS-5080 polarizing microscope features a highly robust construction and first class optics designed to provide a long life and excellent quality images. Designed with students in mind the number of removable components is minimized and the operation made as simple as possible. As standard a set of four, very high quality, strain-free, achromatic objectives form the heart of the instrument. A set of inserts allow viewing of all standard mineral types. The optics is also fully corrected so that changes in the viewing angle from the prism in the head during interocular distance adjustments does not cause any color changes.

Features
0°-90° Rotatable Analyzer and when out of optical path, Single Polarizing Observation is Available. With Bertrand, Interferogram of Specimen can be observed clearly. λ Slip,1/4λ Slip and Quartz Wedge are Equipped

Quadruple Nosepiece, Center Adjustable

Polarizer can be Swung out of Optical Path。6V/ 20W Halogen Lamp Illumination, Brightness Adjustable

Trinocular Observing Head optional

Application area

With the features of streamline and stable frame, easy operation and complete functions, polarizing microscope BS-5080 is the best choice for user to observe mineral crystal figure, color and interference color and also exactly identify the optical performance of mineral and other crystal specimen.

Specifications

ModelBPM5080

B

BPM5080

T

Viewing HeadCompensation Free Binocular Head at 30°, 360° Rotatable
Compensation Free Trinocular Head at 30°, 360° Rotatable
EyepieceEyepiece WF10×/ 18 with Scale of Crosshair
Eyepiece WF10×/ 18
ObjectiveStrain free Achromatic Objective 4×, 10×, 40×, 60×
NosepieceBackward Quadruple Nosepiece, Center Adjustable
AnalyzerRotatable Analyzer with Gradation 0°-90°
Bertrand LensBertrand Lens, Sliding in/out of Optical Path
Optical Compensatorλ Slip(first class red), 1/ 4λ Slip, Quartz Wedge
Revolving Round StageDiameter Φ160mm, Graduated in 1°Increments, Minimum Resolution 6′ when using Vernier Scale
CondenserNA1.25 Abbe Condenser with Iris Diaphragm & Filter
FocusingCoaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm
PolarizerSliding in/ out of Optical Path, Located on the Top of Collector
Illumination6V/ 20W Halogen Lamp, Brightness Adjustable

Note : ● Standard Outfit, ○ Optional
